SXV20R-AEPNKW (1996)

Toyota Camry

Production Aug 1996 - Sep 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

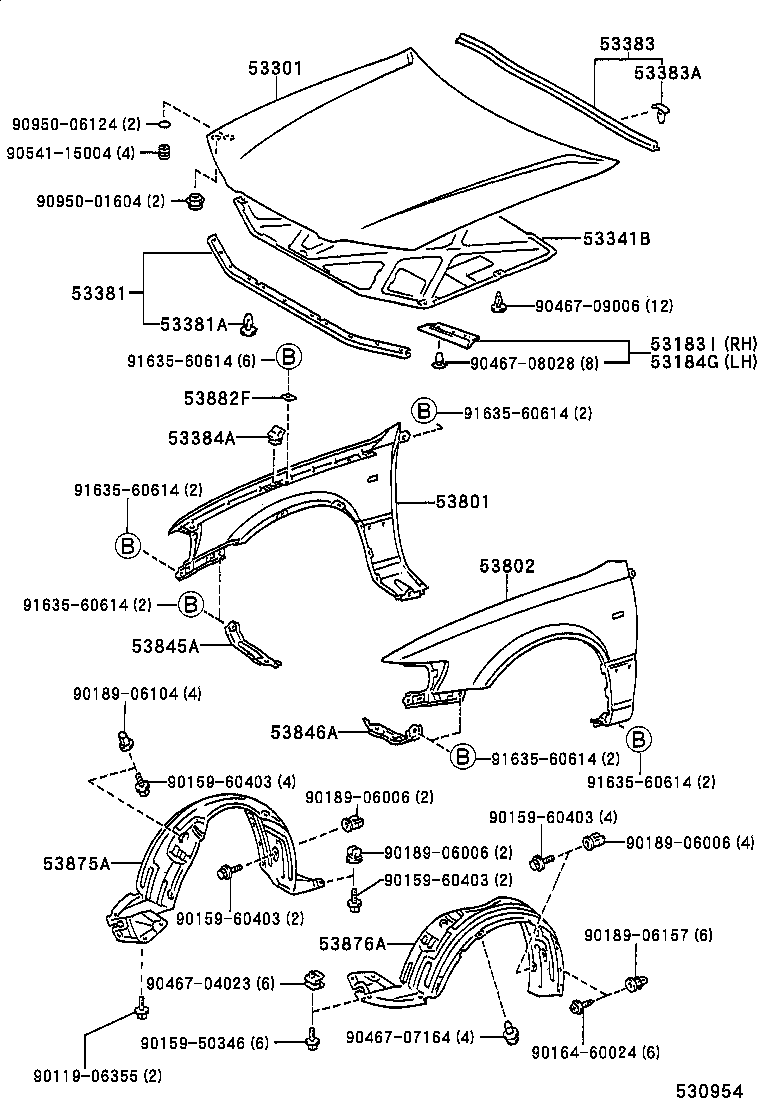

Click highlighted areas on diagram

diagram 53183I 53184G 53301 53341B 53381 53381A 53383 53383A 53384A 53801 53802 53845A 53846A 53875A 53876A 53882F 9011906355 9015950346 9015960403 9015960403 9015960403 9015960403 9016460024 9018906006 9018906006 9018906006 9018906104 9018906157 9046704023 9046707164 9046708028 9046709006 9054115004 9095001604 9095006124 9163560614 9163560614 9163560614 9163560614 9163560614 9163560614
Part # Description Qty Price
53183I - SEAL, HEADLAMP COVER, RH
53183-33040

MCV20,SXV20

 1
53184G - SEAL, HEADLAMP COVER, LH
53184-33040

MCV20,SXV20

 1
53301 - HOOD SUB-ASSY
53301-33061

MCV20,SXV20

 1
53301-33030

MCV20,SXV20

 1
53301-33031

MCV20,SXV20

 1
53301-33032

MCV20,SXV20

 1
53301-33060

MCV20,SXV20

 1
53341B - INSULATOR, HOOD
53341-33060

MCV20,SXV20

 1
53341-33061

MCV20,SXV20

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-33020

MCV20,SXV20

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

MCV20,SXV20

 10
53383 - SEAL, HOOD TO COWL TOP
53383-33040

MCV20,SXV20

 1
53383-33020

MCV20,SXV20

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08101

MCV20,SXV20

 10
90467-08101

MCV20,SXV20

 8
53384A - BUMPER, FENDER TO HOOD
53384-33010

MCV20,SXV20

 2
53801 - FENDER SUB-ASSY, FRONT RH
53811-33080

MCV20,SXV20

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-33080

MCV20,SXV20

 1
53845A - BRACE, FRONT WHEEL OPENING APRON, RH
53845-33040

MCV20,SXV20

 1
53846A - BRACE, FRONT WHEEL OPENING APRON, LH
53846-33030

MCV20,SXV20

 1
53875A - LINER, FRONT FENDER, RH
53875-33071

MCV20,SXV20

 1
53875-33070

MCV20,SXV20

 1
53876A - LINER, FRONT FENDER, LH
53876-33070

MCV20,SXV20

 1
53876-33071

MCV20,SXV20

 1
53882F - SEAL, FRONT FENDER
53882-16030

MCV20,SXV20

 10
Common parts
90119-06355
90159-50346
90159-60403
90164-60024
90189-06006
90189-06104
90189-06157
90467-04023
90467-07164
90467-08028
90467-09006
90541-15004
90950-01604
90950-06124
91635-60614
