SXV20R-AEPNKW (1996)
Toyota Camry
(9608-9908)

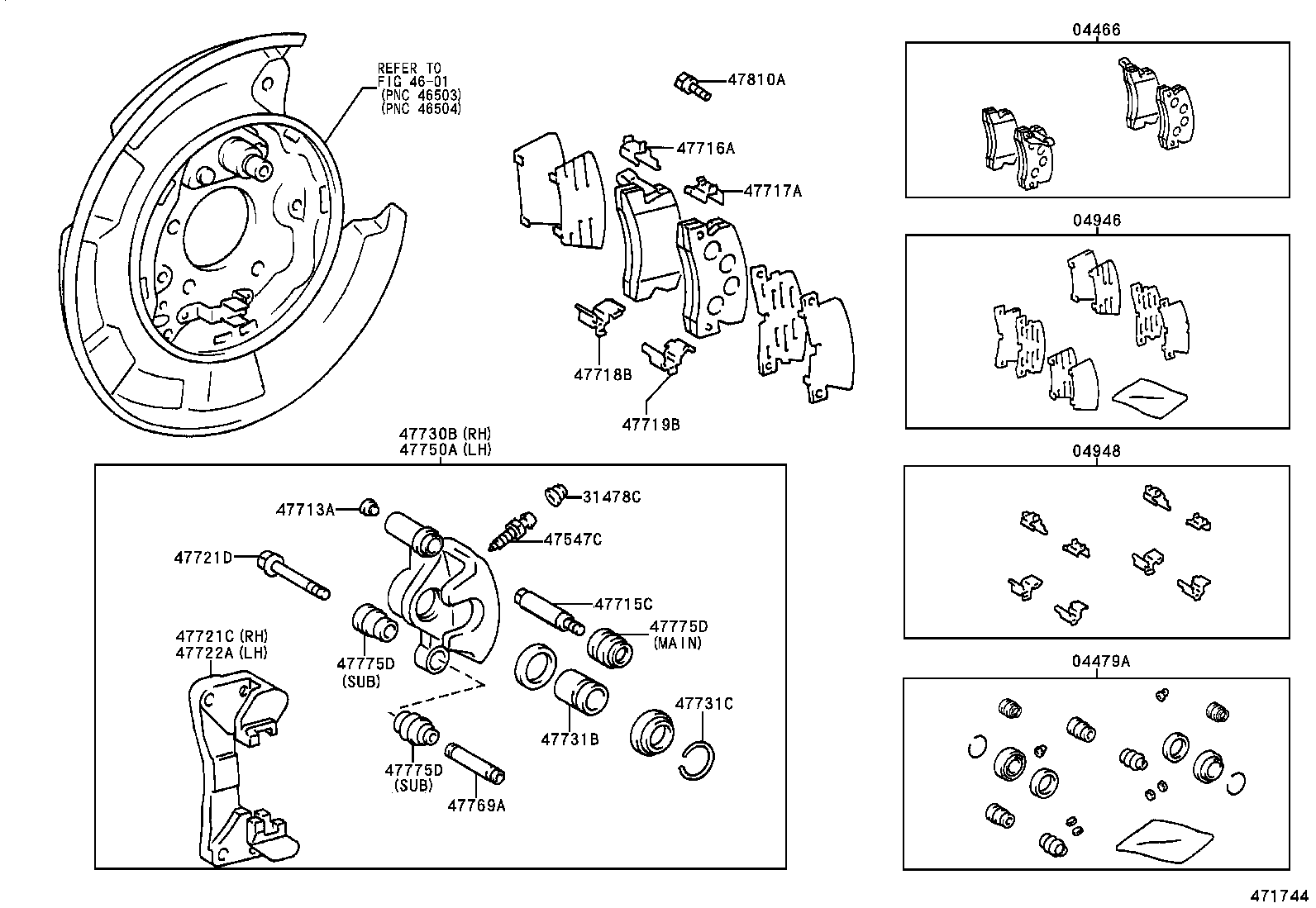

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-32030 |
SXV20..LHD..MTM;MCV20,SXV20..ATM MARK AK PA544,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04466-33040 |
MCV20;SXV20..RHD..ATM MARK AK PA544,LATIN AMERICA SPEC |
1 | ||
| 04466-33040 |
SXV20..LHD..MTM;MCV20,SXV20..ATM MARK AK PA544,LATIN AMERICA SPEC |
1 | ||
| 04466-32010 |
MCV20,SXV20 MARK AK PA511 |
1 | ||
| 04466-20060 |
MCV20,SXV20 MARK SUMITOMO PS506H,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-33041 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
1 | ||
| 04479-33040 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
1 | ||
| 04479-33110 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04479-33071 |
MCV20,SXV20 |
1 | ||
| 04479-33041 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04479-33041 |
SXV20..LHD..MTM;MCV20,SXV20..ATM PISTON:OD=34.8 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-33010 |
SXV20..LHD..MTM;MCV20,SXV20..ATM LATIN AMERICA SPEC |
1 | ||
| 04946-32070 |
MCV20,SXV20 |
1 | ||
| 04946-33010 |
MCV20;SXV20..RHD..ATM LATIN AMERICA SPEC |
1 | ||
| 04946-32070 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04946-32080 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-32040 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04948-33010 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04948-33010 |
MCV20,SXV20 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
MCV20,SXV20 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
MCV20,SXV20 |
2 | ||
| 47713A - PLUG, HOLE(FOR REAR DISC BRAKE CYLINDER) | ||||
| 90950-01538 |
MCV20,SXV20 |
2 | ||
| 90950-01538 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-33020 |
MCV20,SXV20 |
2 | ||
| 47715-32030 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION,SUB PIN SIDE |
2 | ||
| 47715-32020 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION,MAIN PIN SIDE |
2 | ||
| 47715-33020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-32060 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 47716-33070 |
MCV20,SXV20 |
2 | ||
| 47716-33070 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-33050 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47717-33050 |
MCV20,SXV20 |
2 | ||
| 47717-32060 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 47718B - PLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE) | ||||
| 47718-33010 |
MCV20,SXV20 |
2 | ||
| 47718-33010 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47719B - PLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE) | ||||
| 47719-33010 |
MCV20,SXV20 |
2 | ||
| 47719-33010 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-20321 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47721-33110 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47721-33070 |
MCV20,SXV20 |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-08A98 |
MCV20,SXV20 *8-1.25PX68-30,TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 90119-08A98 |
MCV20,SXV20 *8-1.25PX68-30 |
2 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-20321 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47721-20321 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47721-33070 |
MCV20,SXV20 |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-33100 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
1 | ||
| 47730-33100 |
SXV20..LHD..MTM;MCV20,SXV20..ATM PISTON:OD=34.8 |
1 | ||
| 47730-33160 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47730-33051 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47730-33140 |
MCV20,SXV20 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-30120 |
MCV20,SXV20 |
2 | ||
| 47731-20130 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
2 | ||
| 47731-20130 |
SXV20..LHD..MTM;MCV20,SXV20..ATM PISTON:OD=34.8 |
2 | ||
| 47731-20130 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47731-33040 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90520-52006 |
MCV20,SXV20 |
2 | ||
| 90522-43003 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
2 | ||
| 90522-43003 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 90522-43003 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 90522-43003 |
SXV20..LHD..MTM;MCV20,SXV20..ATM PISTON:OD=34.8 |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-33100 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
1 | ||
| 47750-33160 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47750-33140 |
MCV20,SXV20 |
1 | ||
| 47750-33051 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47750-33100 |
SXV20..LHD..MTM;MCV20,SXV20..ATM PISTON:OD=34.8 |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-32020 |
MCV20,SXV20 |
2 | ||
| 47769-32020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-32020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION,MAIN PIN SIDE |
2 | ||
| 47775-32020 |
MCV20,SXV20 MAIN PIN SIDE |
2 | ||
| 47775-16020 |
MCV20,SXV20 SUB PIN SIDE |
4 | ||
| 47775-16020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION,SUB PIN SIDE |
4 | ||
| 47775-32050 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-32020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION,MAIN PIN SIDE |
2 | ||
| 47775-32020 |
MCV20,SXV20 MAIN PIN SIDE |
2 | ||
| 47775-16020 |
MCV20,SXV20 SUB PIN SIDE |
4 | ||
| 47775-16020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION,SUB PIN SIDE |
4 | ||
| 47775-32050 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-32020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION,MAIN PIN SIDE |
2 | ||
| 47775-32020 |
MCV20,SXV20 MAIN PIN SIDE |
2 | ||
| 47775-16020 |
MCV20,SXV20 SUB PIN SIDE |
4 | ||
| 47775-16020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION,SUB PIN SIDE |
4 | ||
| 47775-32050 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10379 |
MCV20,SXV20 |
4 | ||
| Linked diagrams | ||||
| 4601 | ||||
(9908- )
TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-32030 |
SXV20..LHD..MTM;MCV20,SXV20..ATM MARK AK PA544,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04466-33040 |
MCV20;SXV20..RHD..ATM MARK AK PA544,LATIN AMERICA SPEC |
1 | ||
| 04466-33040 |
SXV20..LHD..MTM;MCV20,SXV20..ATM MARK AK PA544,LATIN AMERICA SPEC |
1 | ||
| 04466-32010 |
MCV20,SXV20 MARK AK PA511 |
1 | ||
| 04466-20060 |
MCV20,SXV20 MARK SUMITOMO PS506H,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-33041 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
1 | ||
| 04479-33040 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
1 | ||
| 04479-33110 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04479-33071 |
MCV20,SXV20 |
1 | ||
| 04479-33041 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04479-33041 |
SXV20..LHD..MTM;MCV20,SXV20..ATM PISTON:OD=34.8 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-33010 |
SXV20..LHD..MTM;MCV20,SXV20..ATM LATIN AMERICA SPEC |
1 | ||
| 04946-32070 |
MCV20,SXV20 |
1 | ||
| 04946-33010 |
MCV20;SXV20..RHD..ATM LATIN AMERICA SPEC |
1 | ||
| 04946-32070 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04946-32080 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-32040 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04948-33010 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04948-33010 |
MCV20,SXV20 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
MCV20,SXV20 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
MCV20,SXV20 |
2 | ||
| 47713A - PLUG, HOLE(FOR REAR DISC BRAKE CYLINDER) | ||||
| 90950-01538 |
MCV20,SXV20 |
2 | ||
| 90950-01538 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-33020 |
MCV20,SXV20 |
2 | ||
| 47715-32030 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION,SUB PIN SIDE |
2 | ||
| 47715-32020 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION,MAIN PIN SIDE |
2 | ||
| 47715-33020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-32060 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 47716-33070 |
MCV20,SXV20 |
2 | ||
| 47716-33070 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-33050 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47717-33050 |
MCV20,SXV20 |
2 | ||
| 47717-32060 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 47718B - PLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE) | ||||
| 47718-33010 |
MCV20,SXV20 |
2 | ||
| 47718-33010 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47719B - PLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE) | ||||
| 47719-33010 |
MCV20,SXV20 |
2 | ||
| 47719-33010 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-20321 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47721-33110 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47721-33070 |
MCV20,SXV20 |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-08A98 |
MCV20,SXV20 *8-1.25PX68-30,TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 90119-08A98 |
MCV20,SXV20 *8-1.25PX68-30 |
2 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-20321 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47721-20321 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47721-33070 |
MCV20,SXV20 |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-33100 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
1 | ||
| 47730-33100 |
SXV20..LHD..MTM;MCV20,SXV20..ATM PISTON:OD=34.8 |
1 | ||
| 47730-33160 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47730-33051 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47730-33140 |
MCV20,SXV20 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-30120 |
MCV20,SXV20 |
2 | ||
| 47731-20130 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
2 | ||
| 47731-20130 |
SXV20..LHD..MTM;MCV20,SXV20..ATM PISTON:OD=34.8 |
2 | ||
| 47731-20130 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47731-33040 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90520-52006 |
MCV20,SXV20 |
2 | ||
| 90522-43003 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
2 | ||
| 90522-43003 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 90522-43003 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 90522-43003 |
SXV20..LHD..MTM;MCV20,SXV20..ATM PISTON:OD=34.8 |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-33100 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
1 | ||
| 47750-33160 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47750-33140 |
MCV20,SXV20 |
1 | ||
| 47750-33051 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47750-33100 |
SXV20..LHD..MTM;MCV20,SXV20..ATM PISTON:OD=34.8 |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-32020 |
MCV20,SXV20 |
2 | ||
| 47769-32020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-32020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION,MAIN PIN SIDE |
2 | ||
| 47775-32020 |
MCV20,SXV20 MAIN PIN SIDE |
2 | ||
| 47775-16020 |
MCV20,SXV20 SUB PIN SIDE |
4 | ||
| 47775-16020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION,SUB PIN SIDE |
4 | ||
| 47775-32050 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-32020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION,MAIN PIN SIDE |
2 | ||
| 47775-32020 |
MCV20,SXV20 MAIN PIN SIDE |
2 | ||
| 47775-16020 |
MCV20,SXV20 SUB PIN SIDE |
4 | ||
| 47775-16020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION,SUB PIN SIDE |
4 | ||
| 47775-32050 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-32020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION,MAIN PIN SIDE |
2 | ||
| 47775-32020 |
MCV20,SXV20 MAIN PIN SIDE |
2 | ||
| 47775-16020 |
MCV20,SXV20 SUB PIN SIDE |
4 | ||
| 47775-16020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION,SUB PIN SIDE |
4 | ||
| 47775-32050 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10379 |
MCV20,SXV20 |
4 | ||
| Linked diagrams | ||||
| 4601 | ||||
(9908- )ATM ; (9908- )LHD..MTM
TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-32030 |
SXV20..LHD..MTM;MCV20,SXV20..ATM MARK AK PA544,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04466-33040 |
MCV20;SXV20..RHD..ATM MARK AK PA544,LATIN AMERICA SPEC |
1 | ||
| 04466-33040 |
SXV20..LHD..MTM;MCV20,SXV20..ATM MARK AK PA544,LATIN AMERICA SPEC |
1 | ||
| 04466-32010 |
MCV20,SXV20 MARK AK PA511 |
1 | ||
| 04466-20060 |
MCV20,SXV20 MARK SUMITOMO PS506H,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-33041 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
1 | ||
| 04479-33040 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
1 | ||
| 04479-33110 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04479-33071 |
MCV20,SXV20 |
1 | ||
| 04479-33041 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04479-33041 |
SXV20..LHD..MTM;MCV20,SXV20..ATM PISTON:OD=34.8 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-33010 |
SXV20..LHD..MTM;MCV20,SXV20..ATM LATIN AMERICA SPEC |
1 | ||
| 04946-32070 |
MCV20,SXV20 |
1 | ||
| 04946-33010 |
MCV20;SXV20..RHD..ATM LATIN AMERICA SPEC |
1 | ||
| 04946-32070 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04946-32080 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-32040 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04948-33010 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04948-33010 |
MCV20,SXV20 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
MCV20,SXV20 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
MCV20,SXV20 |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-33020 |
MCV20,SXV20 |
2 | ||
| 47715-32030 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION,SUB PIN SIDE |
2 | ||
| 47715-32020 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION,MAIN PIN SIDE |
2 | ||
| 47715-33020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-33020 |
MCV20,SXV20 |
2 | ||
| 47715-32030 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION,SUB PIN SIDE |
2 | ||
| 47715-32020 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION,MAIN PIN SIDE |
2 | ||
| 47715-33020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-32060 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 47716-33070 |
MCV20,SXV20 |
2 | ||
| 47716-33070 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-32060 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 47716-33070 |
MCV20,SXV20 |
2 | ||
| 47716-33070 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-33050 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47717-33050 |
MCV20,SXV20 |
2 | ||
| 47717-32060 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-33050 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47717-33050 |
MCV20,SXV20 |
2 | ||
| 47717-32060 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-20321 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47721-33110 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47721-33070 |
MCV20,SXV20 |
1 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-20321 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47721-20321 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47721-33070 |
MCV20,SXV20 |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-33100 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
1 | ||
| 47730-33100 |
SXV20..LHD..MTM;MCV20,SXV20..ATM PISTON:OD=34.8 |
1 | ||
| 47730-33160 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47730-33051 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47730-33140 |
MCV20,SXV20 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-30120 |
MCV20,SXV20 |
2 | ||
| 47731-20130 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
2 | ||
| 47731-20130 |
SXV20..LHD..MTM;MCV20,SXV20..ATM PISTON:OD=34.8 |
2 | ||
| 47731-20130 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 47731-33040 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90520-52006 |
MCV20,SXV20 |
2 | ||
| 90522-43003 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
2 | ||
| 90522-43003 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 90522-43003 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 90522-43003 |
SXV20..LHD..MTM;MCV20,SXV20..ATM PISTON:OD=34.8 |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-33100 |
MCV20;SXV20..RHD..ATM PISTON:OD=34.8 |
1 | ||
| 47750-33160 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47750-33140 |
MCV20,SXV20 |
1 | ||
| 47750-33051 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47750-33100 |
SXV20..LHD..MTM;MCV20,SXV20..ATM PISTON:OD=34.8 |
1 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-32030 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-32020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION,MAIN PIN SIDE |
2 | ||
| 47775-32020 |
MCV20,SXV20 MAIN PIN SIDE |
2 | ||
| 47775-16020 |
MCV20,SXV20 SUB PIN SIDE |
4 | ||
| 47775-16020 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION,SUB PIN SIDE |
4 | ||
| 47775-32050 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47779-32030 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10379 |
MCV20,SXV20 |
4 | ||
| Linked diagrams | ||||
| 4601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
