SXV20R-AEPNKW (1996)

Toyota Camry

Production Aug 1996 - Sep 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )SXV20..RHD

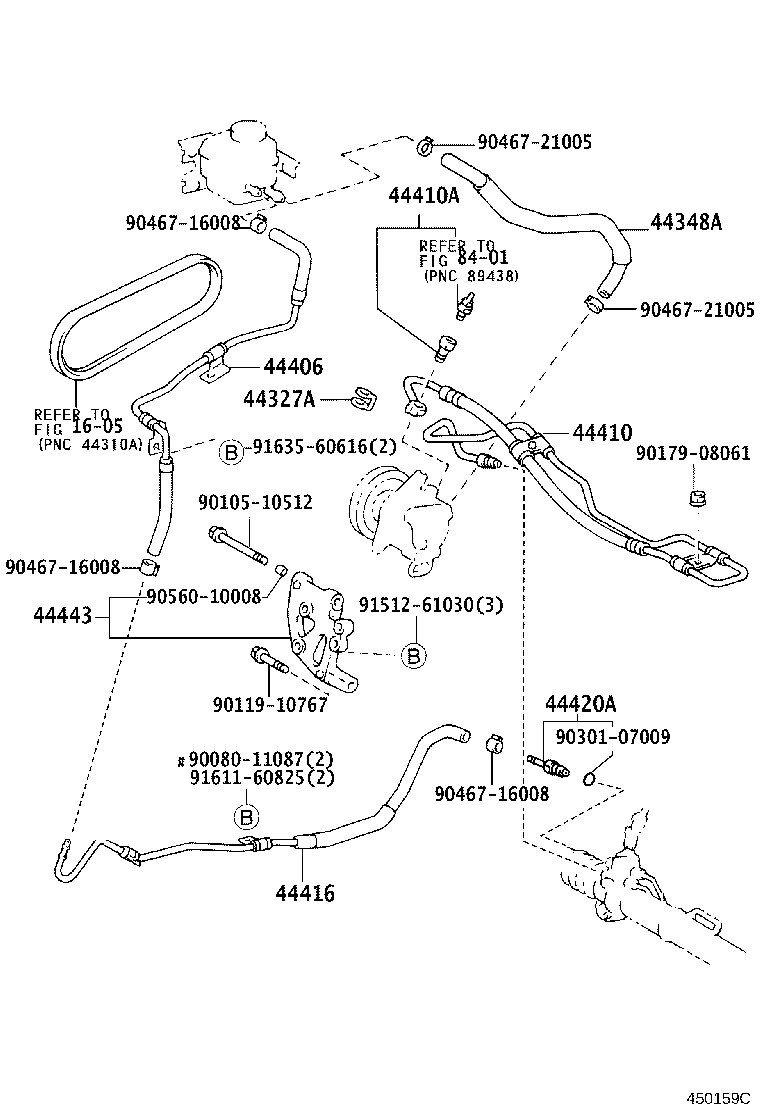

Click highlighted areas on diagram

diagram 1605 44327A 44348A 44406 44410 44410A 44416 44420A 44443 8401 9008011087 9010510512 9011910767 9017908061 9030107009 9046716008 9046716008 9046716008 9046721005 9046721005 9056010008 9151261030 9161160825 9163560616
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

MCV20,SXV20

 1
44327-30030

MCV20,SXV20

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-33140

SXV20..RHD

 1
44406 - TUBE SUB-ASSY, RETURN
44406-33060

MCV20,SXV20

 1
44406-33061

MCV20,SXV20

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-33110

SXV20..RHD

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
44338-33090

MCV20,SXV20

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-33080

MCV20,SXV20..RHD

 1
44420A - TUBE ASSY, RETURN
44420-17010

MCV20,SXV20..RHD

 1
44443 - BRACKET, PUMP
44443-33020

SXV20

 1
Common parts
90080-11087
90105-10512
90119-10767
90179-08061
90301-07009
90467-16008
90467-21005
90560-10008
91512-61030
91611-60825
91635-60616
Linked diagrams
1605
8401
