SXV20R-AEPNKW (1996)
Toyota Camry

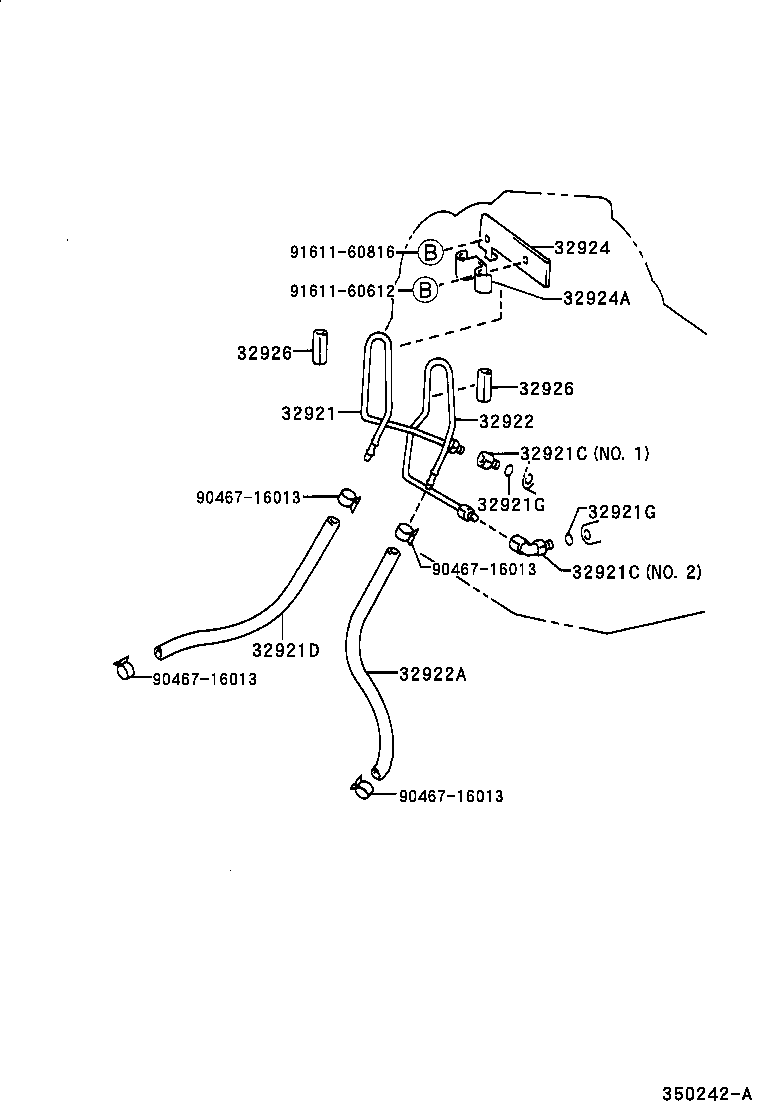

(9608- )SXV20..ATM
A140E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-33060 |
SXV20..ATM |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 32901-32060 |
SXV20..ATM NO.2 |
1 | ||
| 90404-16031 |
MCV20,SXV20..ATM NO.1 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 32901-32060 |
SXV20..ATM NO.2 |
1 | ||
| 90404-16031 |
MCV20,SXV20..ATM NO.1 |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17112 |
SXV20..ATM |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
MCV20,SXV20..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
MCV20,SXV20..ATM |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-33050 |
SXV20..ATM |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17106 |
SXV20..ATM |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32923-20111 |
SXV20..ATM |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 90462-12074 |
MCV20,SXV20..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
MCV20,SXV20..ATM L=35,ID=10 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
MCV20,SXV20..ATM L=35,ID=10 |
2 | ||
| Common parts | ||||
| 90467-16013 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||

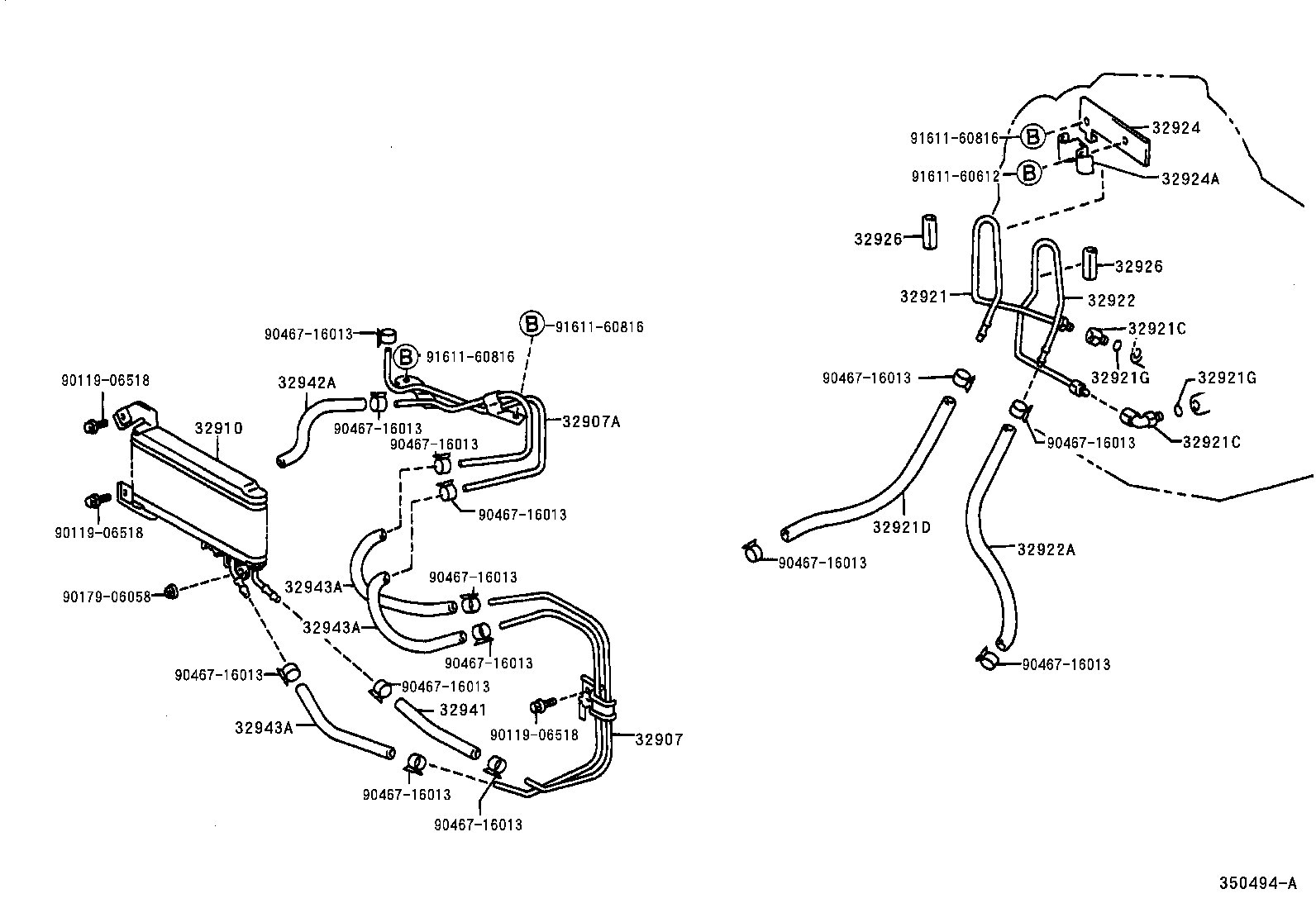

(9608- )SXV20..ATM
A140E,AIR COOLING OIL COLLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 | ||||
| 32907-33050 |
MCV20,SXV20..ATM |
1 | ||
| 32907A - TUBE, OIL COOLER | ||||
| 32907-33100 |
SXV20..ATM |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-33040 |
MCV20,SXV20..ATM |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-33060 |
SXV20..ATM |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 32901-32060 |
SXV20..ATM NO.2 |
1 | ||
| 90404-16031 |
MCV20,SXV20..ATM NO.1 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 32901-32060 |
SXV20..ATM NO.2 |
1 | ||
| 90404-16031 |
MCV20,SXV20..ATM NO.1 |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17112 |
SXV20..ATM |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
MCV20,SXV20..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
MCV20,SXV20..ATM |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-33050 |
SXV20..ATM |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17106 |
SXV20..ATM |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32923-20111 |
SXV20..ATM |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 90462-12074 |
MCV20,SXV20..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
MCV20,SXV20..ATM L=35,ID=10 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
MCV20,SXV20..ATM L=35,ID=10 |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 90445-17101 |
MCV20,SXV20..ATM |
1 | ||
| 32942A - HOSE, OIL COOLER OUTLET, NO.2 | ||||
| 90445-17101 |
SXV20..ATM |
1 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 90445-17139 |
MCV20,SXV20..ATM |
3 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 90445-17139 |
MCV20,SXV20..ATM |
3 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 90445-17139 |
MCV20,SXV20..ATM |
3 | ||
| Common parts | ||||
| 90119-06518 | ||||
| 90179-06058 | ||||
| 90467-16013 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
