SXV20R-AEPNKW (1996)
Toyota Camry
Production
Aug 1996
-
Sep 2001
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )SXV20..ATM

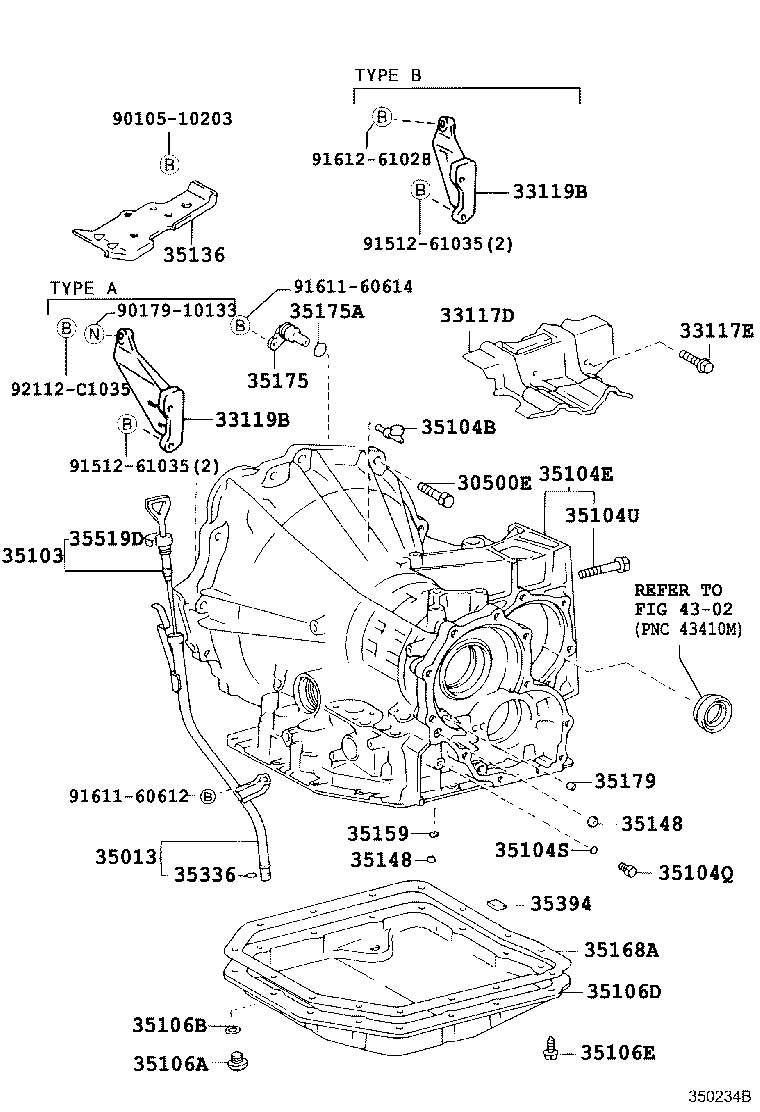

Click highlighted areas on diagram
A140E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-08040 |
SXV20..ATM *8-1.25PX18-15 |
1 | ||
| 91619-61245 |
SXV20..ATM *12-1.25PX45-30 |
3 | ||
| 91651-61022 |
SXV20..ATM *10-1.25PX22-22 |
1 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-32060 |
SXV20..ATM |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
MCV20,SXV20..ATM |
2 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-33010 |
SXV20..ATM TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-33010 |
SXV20..ATM TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-33070 |
SXV20..ATM |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-33100 |
SXV20..ATM |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03089 |
SXV20..ATM |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-32170 |
SXV20..ATM |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
SXV20..ATM |
1 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
SXV20..ATM |
1 | ||
| 35104U - BOLT (FOR TRANSAXLE CASE) | ||||
| 90105-12052 |
SXV20..ATM *12-1.25PX54-24 |
2 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18016 |
MCV20,SXV20..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90430-18008 |
MCV20,SXV20..ATM |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-32012 |
SXV20..ATM |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
SXV20..ATM |
15 | ||
| 35136 - HANGER, TRANSMISSION,NO.1 | ||||
| 35136-33010 |
SXV20..ATM |
1 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
MCV20,SXV20..ATM |
2 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
MCV20,SXV20..ATM |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-32011 |
MCV20,SXV20..ATM |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-32010 |
SXV20..ATM |
1 | ||
| 35175 - CAP, TRANSAXLE CASE, NO.2 | ||||
| 35175-32010 |
SXV20..ATM |
1 | ||
| 35175A - RING, O (FOR TRANSAXLE CASE CAP) | ||||
| 90301-21002 |
SXV20..ATM |
1 | ||
| 35179 - GASKET, OVERDRIVE BRAKE | ||||
| 35179-32010 |
MCV20,SXV20..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
MCV20,SXV20..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
SXV20..ATM |
2 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-32040 |
MCV20,SXV20..ATM |
1 | ||
| 35519-32040 |
SXV20..ATM |
1 | ||
| Common parts | ||||
| 90105-10203 | ||||
| 90179-10133 | ||||
| 91512-61035 | ||||
| 91611-60612 | ||||
| 91611-60614 | ||||
| 91612-61028 | ||||
| 92112-C1035 | ||||
| Linked diagrams | ||||
| 4302 | ||||
