SXV20R-AEPNKW (1996)
Toyota Camry
Production
Aug 1996
-
Sep 2001
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )5SFE

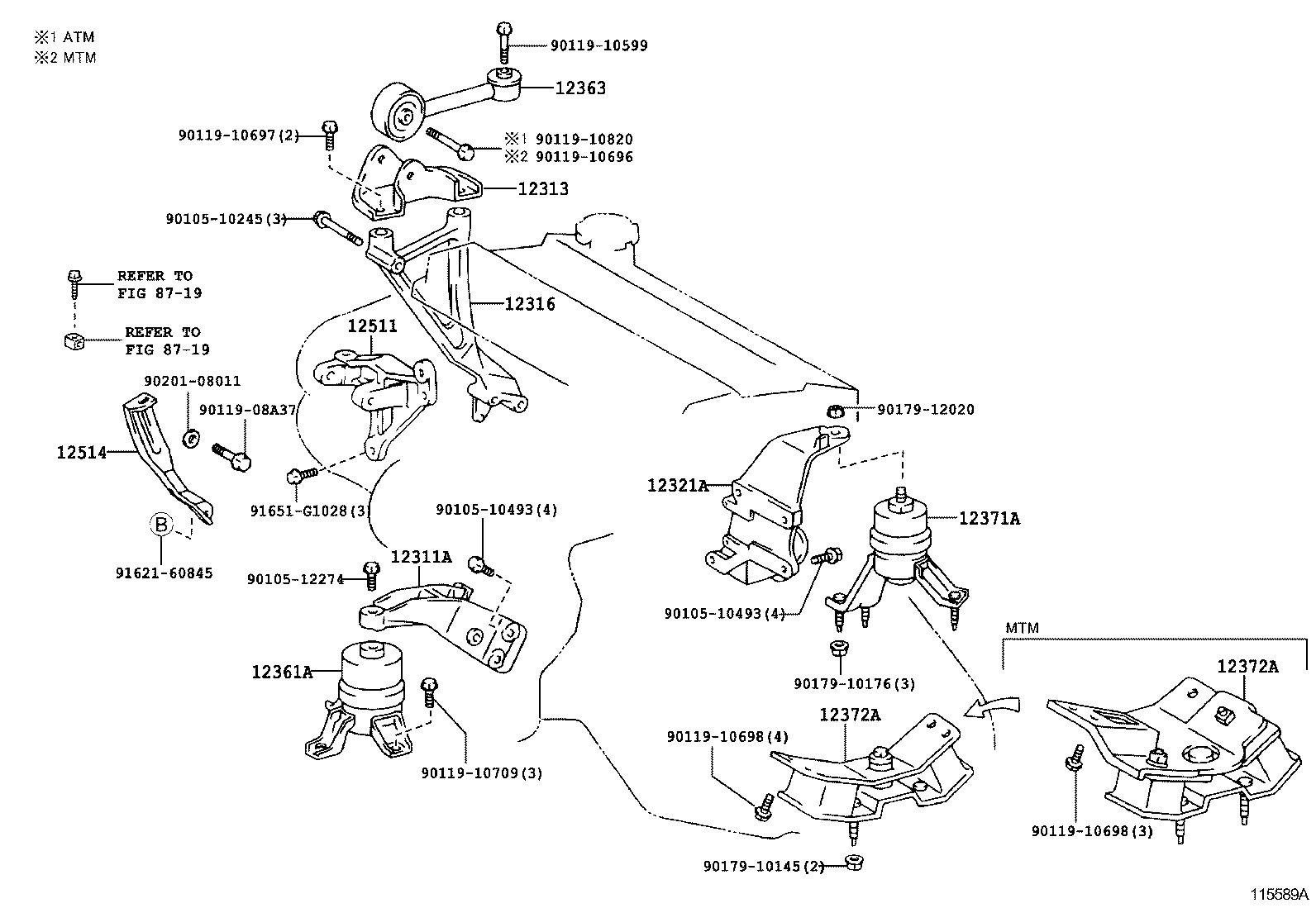

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-74230 |
5SFE..SXV20..ATM |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-74060 |
5SFE..SXV20..ATM |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-74130 |
5SFE..SXV20 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74380 |
5SFE..SXV20..ATM |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-74490 |
5SFE..SXV20..ATM |
1 | ||
| 12363 - INSULATOR, ENGINE MOUNTING, CENTER | ||||
| 12363-74130 |
5SFE..SXV20..ATM |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74550 |
5SFE..SXV20..ATM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74570 |
5SFE..SXV20..ATM (J) |
1 | ||
| 12372-03080 |
5SFE..SXV20..ATM (L) |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74570 |
5SFE..SXV20..ATM (J) |
1 | ||
| 12372-03080 |
5SFE..SXV20..ATM (L) |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-74100 |
5SFE..SXV20 |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-74051 |
5SFE..SXV20 |
1 | ||
| 12514-74050 |
5SFE..SXV20 |
1 | ||
| Common parts | ||||
| 90105-10245 | ||||
| 90105-10493 | ||||
| 90105-12274 | ||||
| 90119-08A37 | ||||
| 90119-10599 | ||||
| 90119-10696 | ||||
| 90119-10697 | ||||
| 90119-10698 | ||||
| 90119-10709 | ||||
| 90119-10820 | ||||
| 90179-10145 | ||||
| 90179-10176 | ||||
| 90179-12020 | ||||
| 90201-08011 | ||||
| 91621-60845 | ||||
| 91651-G1028 | ||||
| Linked diagrams | ||||
| 8719 | ||||
