SXV20R-AEMNKW (1996)
Toyota Camry
Production
Aug 1996
-
Sep 2001
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

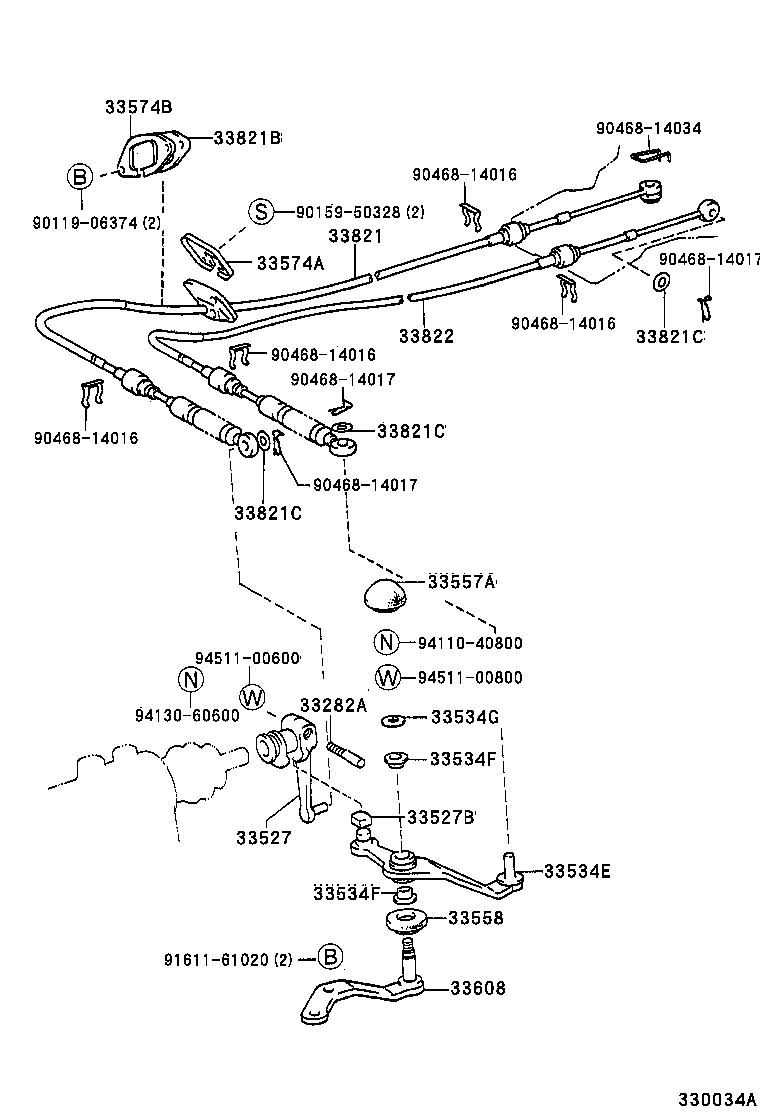

ILLUST NO. 2 OF 2(9608- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33282A - PIN, LEVER LOCK (FOR CONTROL SHIFT LEVER) | ||||
| 33282-35010 |
SXV20..MTM |
1 | ||
| 33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33527-32010 |
SXV20..MTM |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 33557-33010 |
SXV20..MTM |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-33010 |
SXV20..MTM |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
SXV20..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
SXV20..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
SXV20..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
SXV20..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-32010 |
SXV20..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-32101 |
SXV20..MTM |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-33040 |
SXV20..MTM |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-33010 |
SXV20..MTM |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-33010 |
SXV20..MTM |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-33090 |
SXV20..MTM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01602 |
SXV20..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
SXV20..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
SXV20..MTM OD=30,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
SXV20..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
SXV20..MTM OD=30,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
SXV20..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
SXV20..MTM OD=30,TRANSAXLE SIDE |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-33050 |
SXV20..MTM |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90159-50328 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14034 | ||||
| 91611-61020 | ||||
| 94110-40800 | ||||
| 94130-60600 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||

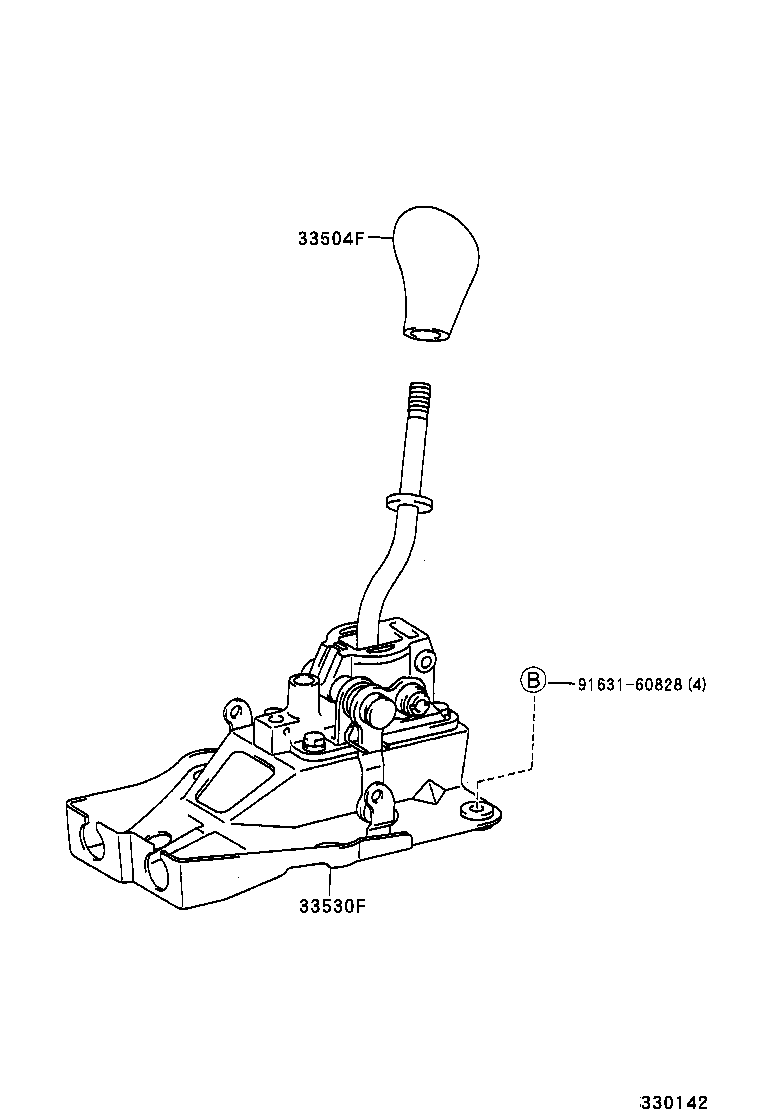

ILLUST NO. 1 OF 2(9608- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12200C0 |
SXV20..MTM BLACK,TRIM1#,4#,6# |
1 | ||
| 33504-12200G2 |
SXV20..MTM DK.SAGE,TRIM6# |
1 | ||
| 33504-12200B2 |
SXV20..MTM BLUISH GRAY,TRIM1# |
1 | ||
| 33504-12200E3 |
SXV20..MTM OAK,TRIM4# |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-33090 |
SXV20..RHD..MTM |
1 | ||
| 33530-33091 |
SXV20..RHD..MTM |
1 | ||
| Common parts | ||||
| 91631-60828 | ||||
