SXV20R-AEMNKW (1996)
Toyota Camry
Production
Aug 1996
-
Sep 2001
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )MTM

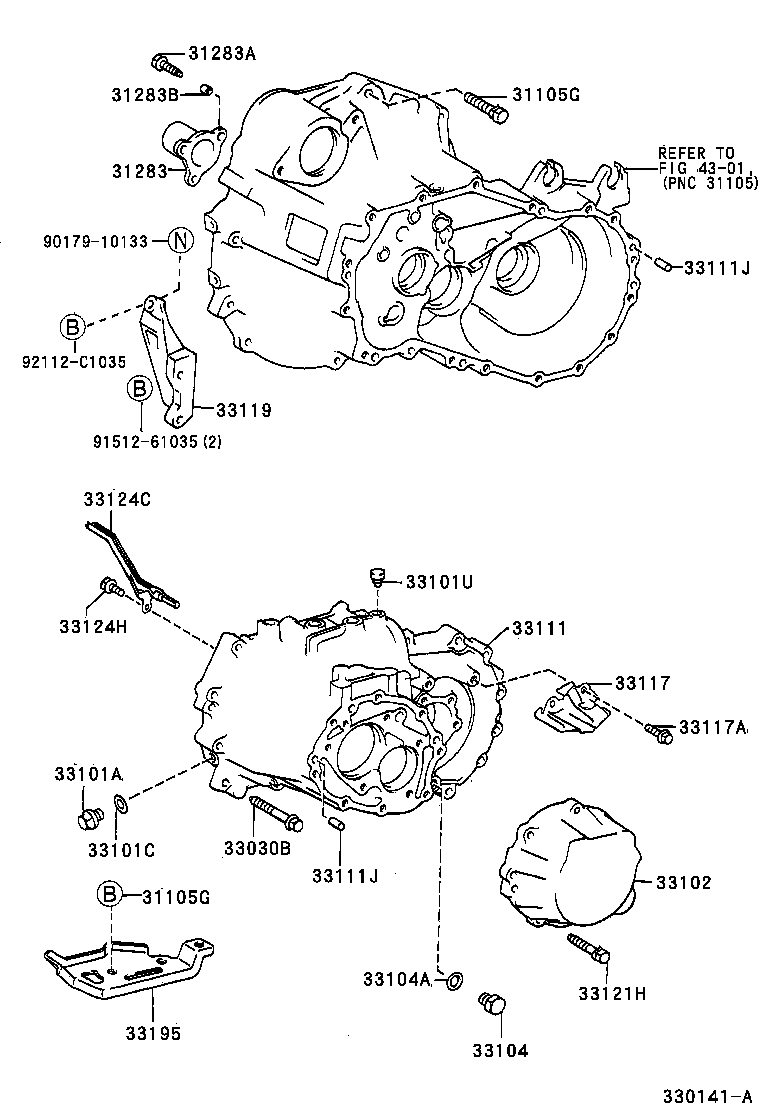

Click highlighted areas on diagram
S53
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-12168 |
SXV20..MTM *12-1.25PX55-30 |
3 | ||
| 90105-10051 |
SXV20..MTM *10-1.25PX22-19.5 |
2 | ||
| 90105-08040 |
SXV20..MTM *8-1.25PX18-15 |
1 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-12168 |
SXV20..MTM *12-1.25PX55-30 |
3 | ||
| 90105-10051 |
SXV20..MTM *10-1.25PX22-19.5 |
2 | ||
| 90105-08040 |
SXV20..MTM *8-1.25PX18-15 |
1 | ||
| 31283 - RETAINER, CLUTCH RELEASE BEARING HUB | ||||
| 31283-32010 |
SXV20..MTM |
1 | ||
| 31283A - BOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER) | ||||
| 90105-06023 |
SXV20..MTM |
3 | ||
| 31283B - PIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER) | ||||
| 90253-08002 |
SXV20..MTM |
2 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08042 |
SXV20..MTM *8-1.25PX45-27.5 |
17 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
SXV20..MTM |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
SXV20..MTM |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03133 |
SXV20..MTM |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-33020 |
SXV20..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
SXV20..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
SXV20..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-32030 |
SXV20..MTM |
1 | ||
| 33111-33031 |
SXV20..MTM |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
SXV20..MTM L=23,OD=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
SXV20..MTM L=23,OD=8 |
6 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-32011 |
SXV20..MTM |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
SXV20..MTM |
2 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-33010 |
SXV20..MTM |
1 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90105-08273 |
SXV20..MTM |
8 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-33010 |
SXV20..MTM |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91651-60618 |
SXV20..MTM |
1 | ||
| 33195 - HANGER, TRANSMISSION CASE, NO.1 | ||||
| 33195-33010 |
SXV20..MTM |
1 | ||
| Common parts | ||||
| 90179-10133 | ||||
| 91512-61035 | ||||
| 92112-C1035 | ||||
| Linked diagrams | ||||
| 4301 | ||||
