SXV20R-AEMNKW (1996)

Toyota Camry

Production Aug 1996 - Sep 2001
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

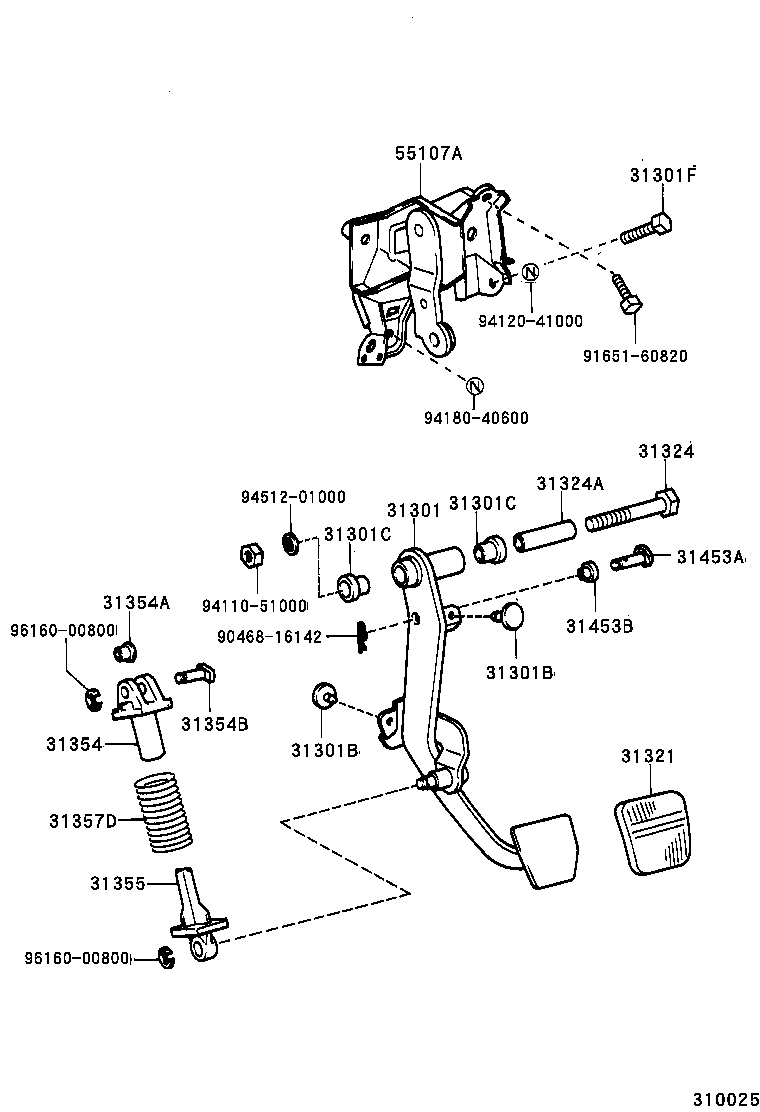

ILLUST NO. 1 OF 2(9608- )MTM

Click highlighted areas on diagram

diagram 31301 31301B 31301B 31301C 31301C 31301F 31321 31324 31324A 31354 31354A 31354B 31355 31357D 31453A 31453B 55107A 9046816142 9165160820 9411051000 9412041000 9418040600 9451201000 9616000800 9616000800
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-33020

SXV20..RHD..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

SXV20..MTM

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

SXV20..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

SXV20..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

SXV20..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

SXV20..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

SXV20..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10273

SXV20..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

SXV20..MTM

 1
31354 - SEAT, CLUTCH PEDAL SPRING, UPPER
31354-33010

SXV20..MTM

 1
31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90386-10019

SXV20..MTM

 1
31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90249-10127

SXV20..MTM

 1
31355 - SEAT, CLUTCH PEDAL SPRING, LOWER
31355-20030

SXV20..MTM

 1
31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)
90501-35018

SXV20..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08143

SXV20..MTM

L=30

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08036

SXV20..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-33020

SXV20..RHD..MTM

 1
Common parts
90468-16142
91651-60820
94110-51000
94120-41000
94180-40600
94512-01000
96160-00800

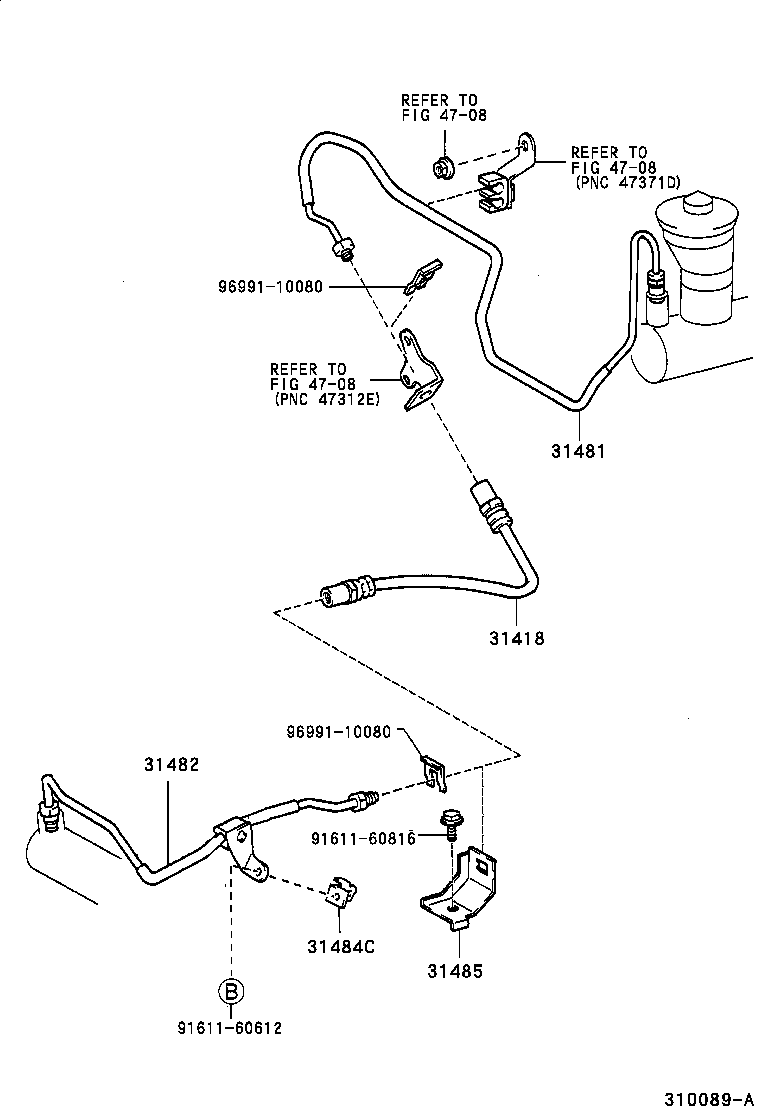

ILLUST NO. 2 OF 2(9608- )MTM

Click highlighted areas on diagram

diagram 31418 31481 31482 31484C 31485 4708 4708 4708 9161160612 9161160816 9699110080 9699110080
Part # Description Qty Price
31418 - HOSE, CLUTCH
90931-01118

SXV20..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-33040

SXV20..RHD..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-33040

SXV20..MTM

L=566.4

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-32050

SXV20..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-32101

SXV20..MTM

 1
Common parts
91611-60612
91611-60816
96991-10080
Linked diagrams
4708
