SXV20R-AEMNKW (1996)

Toyota Camry

Production Aug 1996 - Sep 2001
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

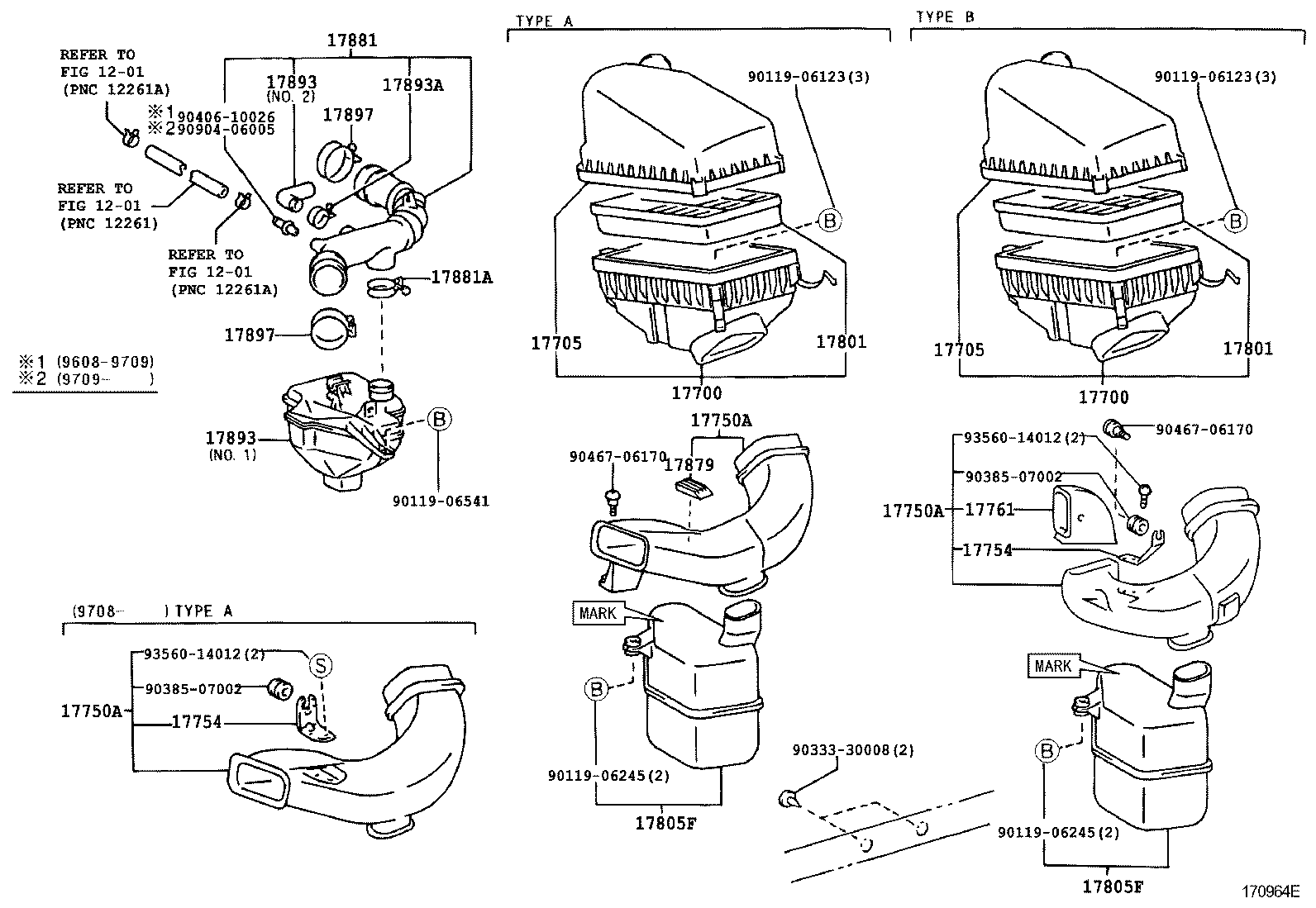

(9608- )5SFE

Click highlighted areas on diagram

TYPE A OR TYPE B

diagram 1201 1201 1201 17700 17700 17705 17705 17750A 17750A 17750A 17754 17754 17761 17801 17801 17805F 17805F 17879 17881 17881A 17893 17893 17893A 17897 17897 9011906123 9011906123 9011906245 9011906245 9011906541 9033330008 9038507002 9038507002 9040610026 9046706170 9046706170 9090406005 9356014012 9356014012
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74600

5SFE..SXV20

TYPE A:REFER TO ILLUSTRATION

 1
17700 - CLEANER ASSY, AIR
17700-74600

5SFE..SXV20

TYPE A:REFER TO ILLUSTRATION

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-03120

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17705-74430

5SFE..SXV20

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-03120

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17705-74430

5SFE..SXV20

 1
17750A - INLET ASSY, AIR CLEANER
17750-74020

5SFE..SXV20

TYPE A:REFER TO ILLUSTRATION

 1
17750-74060

5SFE..SXV20

TYPE A:REFER TO ILLUSTRATION

 1
17750-74061

5SFE..SXV20

TYPE A:REFER TO ILLUSTRATION

 1
17750-74070

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17750A - INLET ASSY, AIR CLEANER
17750-74020

5SFE..SXV20

TYPE A:REFER TO ILLUSTRATION

 1
17750-74060

5SFE..SXV20

TYPE A:REFER TO ILLUSTRATION

 1
17750-74061

5SFE..SXV20

TYPE A:REFER TO ILLUSTRATION

 1
17750-74070

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17750A - INLET ASSY, AIR CLEANER
17750-74020

5SFE..SXV20

TYPE A:REFER TO ILLUSTRATION

 1
17750-74060

5SFE..SXV20

TYPE A:REFER TO ILLUSTRATION

 1
17750-74061

5SFE..SXV20

TYPE A:REFER TO ILLUSTRATION

 1
17750-74070

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17754 - STAY, AIR CLEANER INLET
17754-74030

5SFE..SXV20

 1
17754-20010

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17754 - STAY, AIR CLEANER INLET
17754-74030

5SFE..SXV20

 1
17754-20010

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-03010

5SFE..SXV20

(L)

 1
17801-74060

5SFE..SXV20

(J)

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-03010

5SFE..SXV20

(L)

 1
17801-74060

5SFE..SXV20

(J)

 1
17805F - RESONATOR SUB-ASSY, INTAKE AIR
17805-74200

5SFE..SXV20

MARK 17805-74200

 1
17805-74210

5SFE..SXV20

MARK 17805-74210

 1
17805-74170

5SFE..SXV20

MARK 17805-74170

 1
17805-74200

5SFE..SXV20

MARK 17805-74200

 1
17805-74210

5SFE..SXV20

MARK 17805-74210

 1
17805F - RESONATOR SUB-ASSY, INTAKE AIR
17805-74200

5SFE..SXV20

MARK 17805-74200

 1
17805-74210

5SFE..SXV20

MARK 17805-74210

 1
17805-74170

5SFE..SXV20

MARK 17805-74170

 1
17805-74200

5SFE..SXV20

MARK 17805-74200

 1
17805-74210

5SFE..SXV20

MARK 17805-74210

 1
17879 - PAD, AIR CLEANER INLET
17879-74010

5SFE..SXV20

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74731

5SFE..SXV20

 1
17881-74730

5SFE..SXV20

 1
17881-7A090

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10570

5SFE..SXV20

 1
96111-10480

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17893 - RESONATOR, INTAKE AIR
17893-74390

5SFE..SXV20

NO.1

 1
17893-74410

5SFE..SXV20

NO.2

 1
17893-74490

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17893 - RESONATOR, INTAKE AIR
17893-74390

5SFE..SXV20

NO.1

 1
17893-74410

5SFE..SXV20

NO.2

 1
17893-74490

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17893A - CLAMP, HOSE
96111-10380

5SFE..SXV20

 1
17897 - CLAMP, HOSE(FOR AIR CLEANER)
96111-10690

5SFE..SXV20

 2
96111-10850

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION,NO.1

 1
96111-10690

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION,NO.2

 1
96111-10710

5SFE..SXV20

 2
17897 - CLAMP, HOSE(FOR AIR CLEANER)
96111-10690

5SFE..SXV20

 2
96111-10850

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION,NO.1

 1
96111-10690

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION,NO.2

 1
96111-10710

5SFE..SXV20

 2
Common parts
90119-06123
90119-06245
90119-06541
90333-30008
90385-07002
90406-10026
90467-06170
90904-06005
93560-14012
Linked diagrams
1201

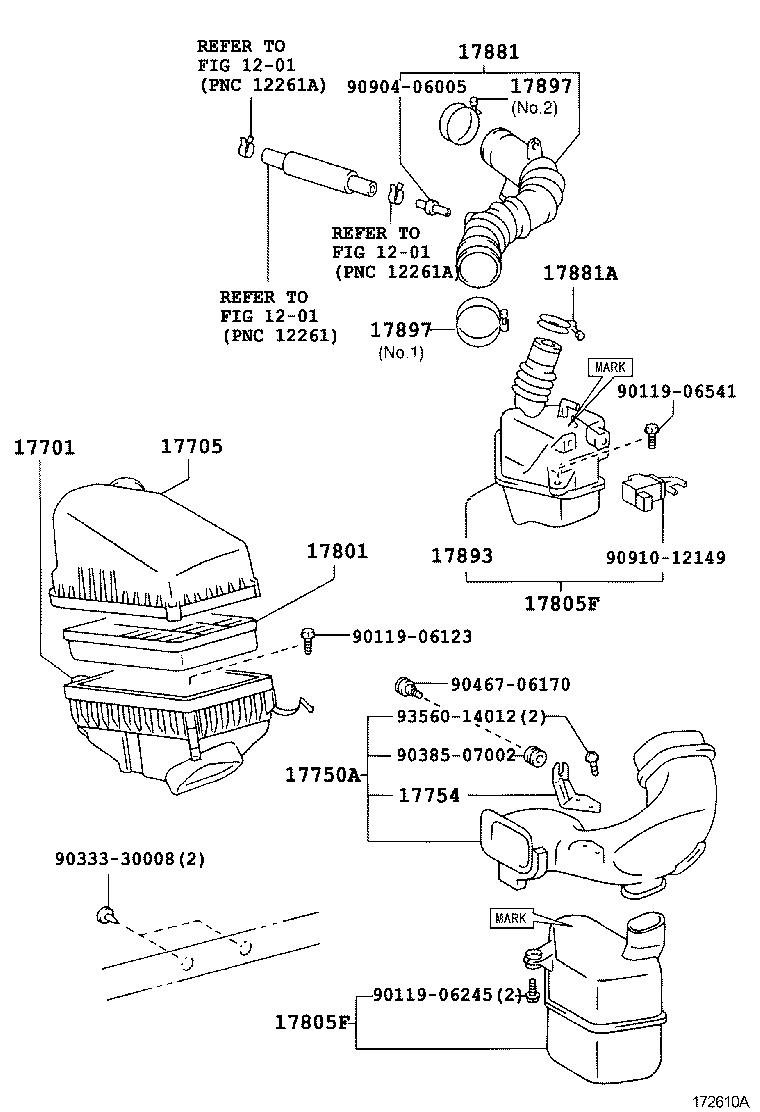

(0008- )5SFE

Click highlighted areas on diagram

TYPE C

diagram 1201 1201 1201 17701 17705 17750A 17754 17801 17805F 17805F 17881 17881A 17893 17897 17897 9011906123 9011906245 9011906541 9033330008 9038507002 9046706170 9090406005 9091012149 9356014012
Part # Description Qty Price
17701 - CASE SUB-ASSY, AIR CLEANER
17701-20030

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION,(J)

 1
17701-0A010

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION,(L)

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-03120

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17705-74430

5SFE..SXV20

 1
17750A - INLET ASSY, AIR CLEANER
17750-74020

5SFE..SXV20

TYPE A:REFER TO ILLUSTRATION

 1
17750-74060

5SFE..SXV20

TYPE A:REFER TO ILLUSTRATION

 1
17750-74061

5SFE..SXV20

TYPE A:REFER TO ILLUSTRATION

 1
17750-74070

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17754 - STAY, AIR CLEANER INLET
17754-74030

5SFE..SXV20

 1
17754-20010

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-03010

5SFE..SXV20

(L)

 1
17801-74060

5SFE..SXV20

(J)

 1
17805F - RESONATOR SUB-ASSY, INTAKE AIR
17805-74200

5SFE..SXV20

MARK 17805-74200

 1
17805-74210

5SFE..SXV20

MARK 17805-74210

 1
17805-74170

5SFE..SXV20

MARK 17805-74170

 1
17805-74200

5SFE..SXV20

MARK 17805-74200

 1
17805-74210

5SFE..SXV20

MARK 17805-74210

 1
17805F - RESONATOR SUB-ASSY, INTAKE AIR
17805-74200

5SFE..SXV20

MARK 17805-74200

 1
17805-74210

5SFE..SXV20

MARK 17805-74210

 1
17805-74170

5SFE..SXV20

MARK 17805-74170

 1
17805-74200

5SFE..SXV20

MARK 17805-74200

 1
17805-74210

5SFE..SXV20

MARK 17805-74210

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74731

5SFE..SXV20

 1
17881-74730

5SFE..SXV20

 1
17881-7A090

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10570

5SFE..SXV20

 1
96111-10480

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17893 - RESONATOR, INTAKE AIR
17893-74390

5SFE..SXV20

NO.1

 1
17893-74410

5SFE..SXV20

NO.2

 1
17893-74490

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION

 1
17897 - CLAMP, HOSE(FOR AIR CLEANER)
96111-10690

5SFE..SXV20

 2
96111-10850

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION,NO.1

 1
96111-10690

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION,NO.2

 1
96111-10710

5SFE..SXV20

 2
17897 - CLAMP, HOSE(FOR AIR CLEANER)
96111-10690

5SFE..SXV20

 2
96111-10850

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION,NO.1

 1
96111-10690

5SFE..SXV20

TYPE C:REFER TO ILLUSTRATION,NO.2

 1
96111-10710

5SFE..SXV20

 2
Common parts
90119-06123
90119-06245
90119-06541
90333-30008
90385-07002
90467-06170
90904-06005
90910-12149
93560-14012
Linked diagrams
1201
