SXV20L-AEPNKW (1996)

Toyota Camry

Production Aug 1996 - Aug 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9608-9705)LHD

Click highlighted areas on diagram

diagram 88374D 88375A 88375B 88460 88467 8846712030 88469E 88471 88473A 88645H 88711 88711 88712 88716A 88716B 88717A 887182A230 8871833050 8871833110 8871833120 8871833130 8871833140 8871833160 8871833170 8889922300 9009120630 9009120633 9009140624 9009900264 9009900264 9009932130 9011906421 9011906421 9017906032 9017906115 91635B0616 91635B0635 91635B0635 91635G0614 91635G0628 91651B0625
Part # Description Qty Price
88374D - VALVE, SERVICE NO.3
88374-30010

MCV20,SXV20..LHD

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-02060

MCV20,SXV20..LHD

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

MCV20,SXV20..LHD

 1
88460 - CONDENSER ASSY, COOLER
88460-06061

MCV20,SXV20..LHD

 1
88460-06060

MCV20,SXV20..LHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-06030

MCV20,SXV20..LHD

 2
88469E - COLLAR, CONDENSER BRACKET, NO.2
88469-28010

MCV20,SXV20

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

MCV20,SXV20..LHD

 1
88473A - HOLDER, RECEIVER
88473-06030

MCV20,SXV20..LHD

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

MCV20,SXV20

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-33100

SXV20

 1
88711-33101

SXV20

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-33100

SXV20

 1
88711-33101

SXV20

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-33060

SXV20..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-06110

MCV20,SXV20..LHD

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-33250

MCV20,SXV20..LHD

 1
88716-33251

MCV20,SXV20..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-33130

MCV20,SXV20..LHD

 1
Common parts
88467-12030
88718-2A230
88718-33050
88718-33110
88718-33120
88718-33130
88718-33140
88718-33160
88718-33170
88899-22300
90091-20630
90091-20633
90091-40624
90099-00264
90099-32130
90119-06421
90179-06032
90179-06115
91635-B0616
91635-B0635
91635-G0614
91635-G0628
91651-B0625

ILLUST NO. 2 OF 2(9608- )

Click highlighted areas on diagram

O RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

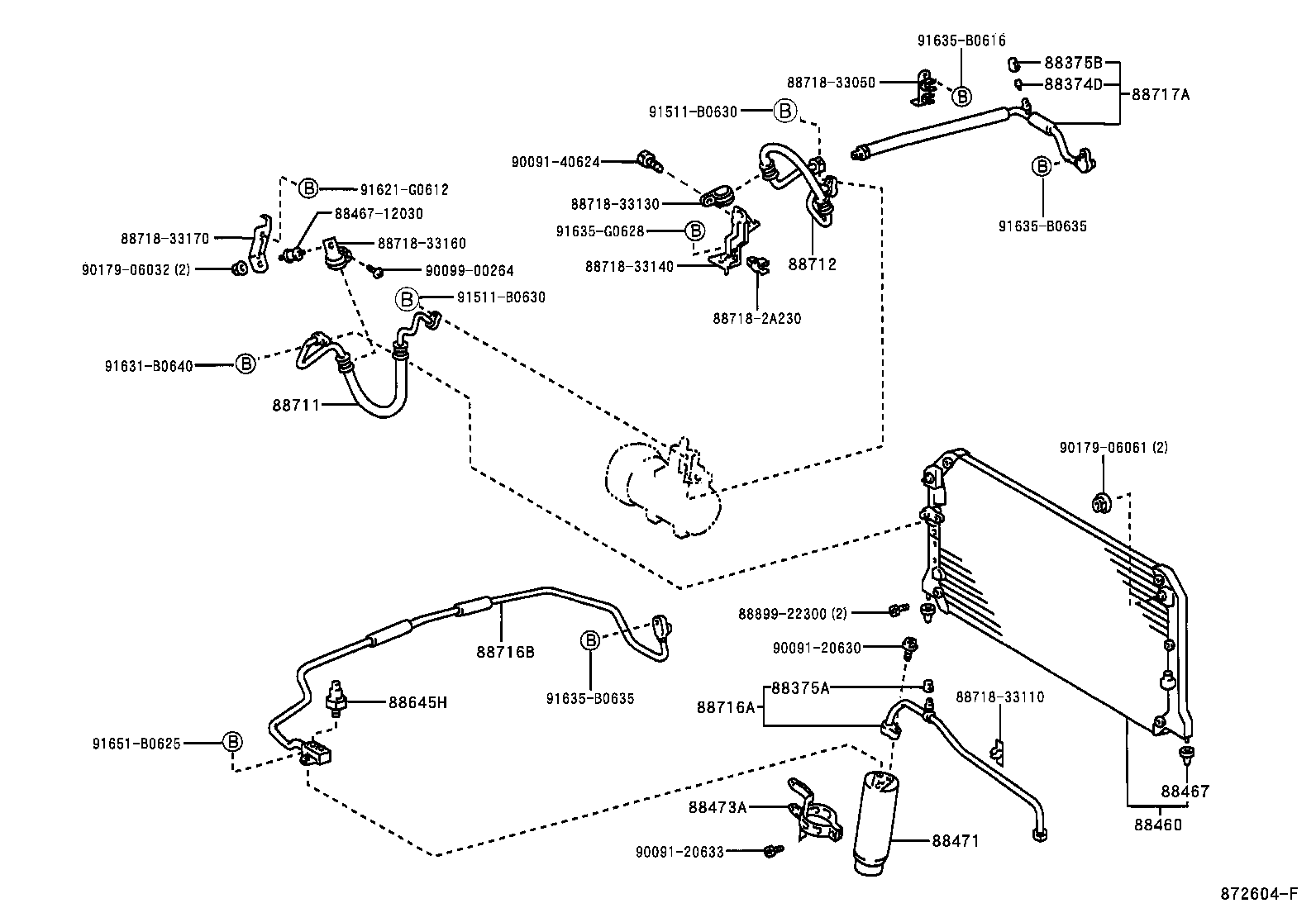

ILLUST NO. 1 OF 2(9705- )LHD

Click highlighted areas on diagram

diagram 88374D 88375A 88375B 88460 88467 8846712030 88471 88473A 88645H 88711 88712 88716A 88716B 88717A 887182A230 8871833050 8871833110 8871833130 8871833140 8871833160 8871833170 8889922300 9009120630 9009120633 9009140624 9009900264 9017906032 9017906061 91511B0630 91511B0630 91621G0612 91631B0640 91635B0616 91635B0635 91635B0635 91635G0628 91651B0625
Part # Description Qty Price
88374D - VALVE, SERVICE NO.3
88374-30010

MCV20,SXV20..LHD

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-02060

MCV20,SXV20..LHD

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

MCV20,SXV20..LHD

 1
88460 - CONDENSER ASSY, COOLER
88460-06061

MCV20,SXV20..LHD

 1
88460-06060

MCV20,SXV20..LHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-06030

MCV20,SXV20..LHD

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

MCV20,SXV20..LHD

 1
88473A - HOLDER, RECEIVER
88473-06030

MCV20,SXV20..LHD

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

MCV20,SXV20

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-33100

SXV20

 1
88711-33101

SXV20

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-33060

SXV20..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-06110

MCV20,SXV20..LHD

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-33250

MCV20,SXV20..LHD

 1
88716-33251

MCV20,SXV20..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-33130

MCV20,SXV20..LHD

 1
Common parts
88467-12030
88718-2A230
88718-33050
88718-33110
88718-33130
88718-33140
88718-33160
88718-33170
88899-22300
90091-20630
90091-20633
90091-40624
90099-00264
90179-06032
90179-06061
91511-B0630
91621-G0612
91631-B0640
91635-B0616
91635-B0635
91635-G0628
91651-B0625
