SXV20L-AEPNKW (1996)
Toyota Camry
ILLUST NO. 1 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-33010 |
MCV20,SXV20 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-33080 |
MCV20,SXV20..LHD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-39355 |
MCV20,SXV20 |
1 | ||
| 77001-39365 |
SXV20..LHD..MTM;MCV20,SXV20..ATM W(DRAIN PLUG) |
1 | ||
| 77001-39335 |
MCV20,SXV20 |
1 | ||
| 77001-39355 |
SXV20;MCV20..LHD |
1 | ||
| 77001-39345 |
SXV20..LHD..MTM;MCV20,SXV20..ATM W(DRAIN PLUG) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
SXV20..LHD..MTM;MCV20,SXV20..ATM |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
SXV20..LHD..MTM;MCV20,SXV20..ATM |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33030 |
MCV20,SXV20 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33010 |
MCV20,SXV20 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
MCV20,SXV20 |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
MCV20,SXV20 |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-33020 |
MCV20,SXV20 |
1 | ||
| 77201-33040 |
MCV20,SXV20..LHD..ATM FUEL TANK = W(DRAIN PLUG)TYPE |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95313-13024 |
SXV20 L=240 |
1 | ||
| 95313-13024 |
MCV20,SXV20..LHD..ATM L=240,CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 95312-13024 |
MCV20,SXV20 L=240 |
1 | ||
| 95313-13024 |
MCV20,SXV20 L=240 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-33010 |
MCV20,SXV20 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-33060 |
SXV20;MCV20..LHD L=224 |
1 | ||
| 77213-33050 |
MCV20,SXV20 L=240 |
1 | ||
| 77213-33060 |
MCV20,SXV20..LHD..ATM L=224 |
1 | ||
| 77213-33060 |
MCV20,SXV20 L=224 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-33010 |
MCV20,SXV20 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-33010 |
MCV20,SXV20 |
1 | ||
| 77246C - SUPPORT, FUEL MAIN TUBE | ||||
| 77246-33010 |
MCV20,SXV20 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 95333-06020 |
SXV20 |
1 | ||
| 95333-06020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 95327-06030 |
MCV20,SXV20 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-33040 |
MCV20,SXV20 |
1 | ||
| 77277-33041 |
MCV20,SXV20 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-33010 |
MCV20,SXV20 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52010 |
MCV20,SXV20 |
1 | ||
| 77300-28010 |
MCV20,SXV20 |
1 | ||
| 77310-16011 |
MCV20,SXV20 |
1 | ||
| 77310-48010 |
MCV20,SXV20 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
MCV20,SXV20 |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-33020 |
MCV20,SXV20 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-33030 |
MCV20,SXV20 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-22020 |
MCV20,SXV20 |
1 | ||
| 77360-33020 |
MCV20,SXV20 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
MCV20,SXV20 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
MCV20,SXV20 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-20030 |
MCV20,SXV20 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-33010 |
MCV20,SXV20 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-33010 |
MCV20,SXV20 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-33010 |
MCV20,SXV20 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
MCV20,SXV20 |
2 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-33020 |
MCV20,SXV20 |
1 | ||
| 77631-33021 |
MCV20,SXV20 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-33010 |
MCV20,SXV20 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-33010 |
MCV20,SXV20 |
1 | ||
| 77642-33010 |
SXV20..LHD..MTM;MCV20,SXV20..ATM |
1 | ||
| 77642-33010 |
SXV20..LHD..MTM;MCV20,SXV20..ATM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77606-33010 |
SXV20 |
1 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-33010 |
MCV20,SXV20 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-32030 |
MCV20,SXV20 |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
MCV20,SXV20 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
MCV20,SXV20 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-33020 |
MCV20,SXV20 |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1A750 | ||||
| 90119-06351 | ||||
| 90119-06398 | ||||
| 90119-06450 | ||||
| 90119-08511 | ||||
| 90119-10477 | ||||
| 90119-10502 | ||||
| 90159-50343 | ||||
| 90179-06279 | ||||
| 90185-06002 | ||||
| 90269-06013 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90464-00745 | ||||
| 90464-00749 | ||||
| 90466-11003 | ||||
| 90467-12056 | ||||
| 90959-01427 | ||||
| Linked diagrams | ||||
| 6105 | ||||

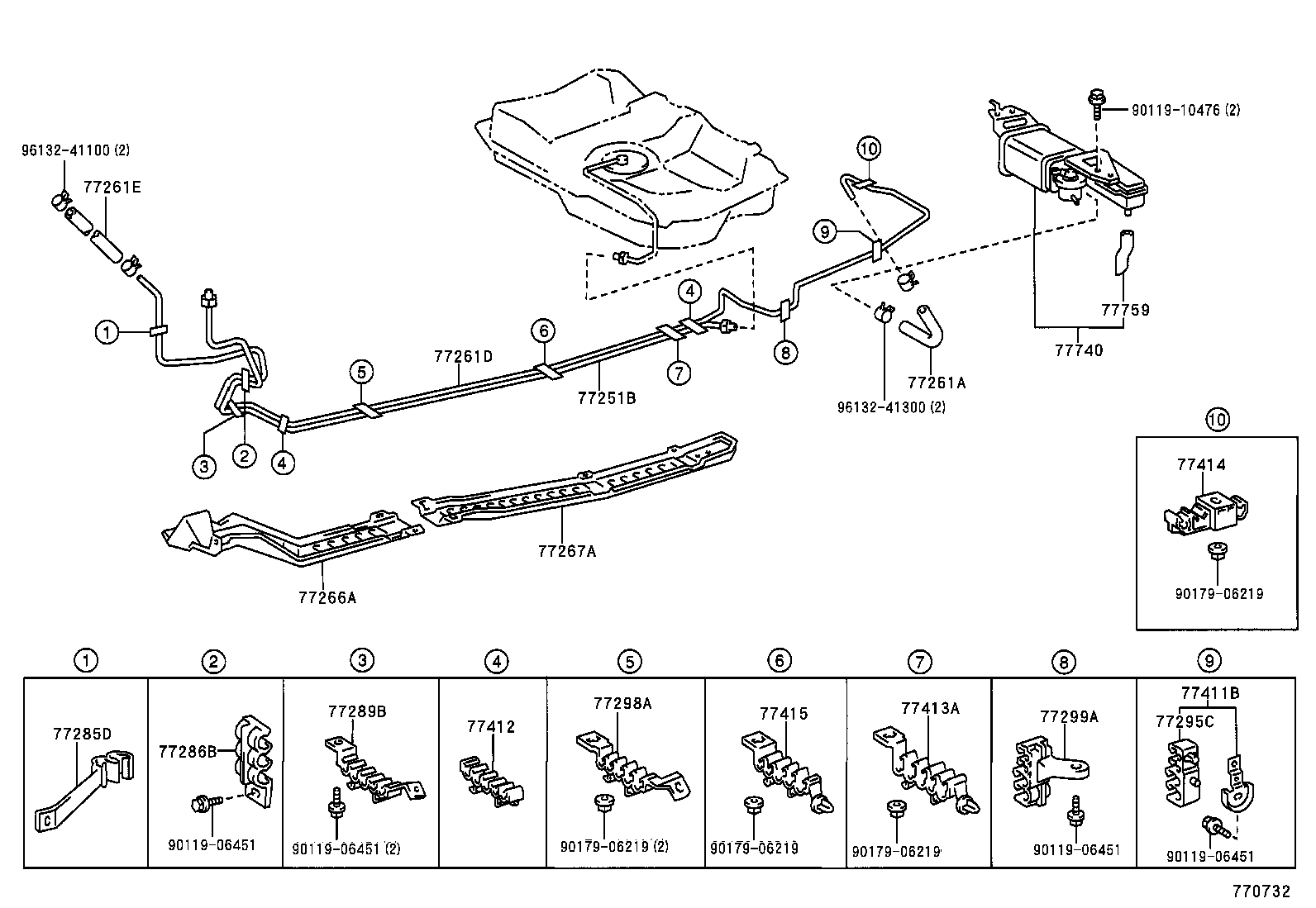

ILLUST NO. 2 OF 2(9608-9908) ; (9908- )SXV20
FRONT CANISTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-33050 |
MCV20,SXV20 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-33040 |
SXV20 |
1 | ||
| 77261-33101 |
MCV20,SXV20 |
1 | ||
| 77261-33100 |
MCV20,SXV20 |
1 | ||
| 77261-33040 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06030 |
SXV20..LHD..MTM;MCV20,SXV20..ATM *H,L=220 |
1 | ||
| 95333-06030 |
MCV20,SXV20 *H,L=220 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-33020 |
MCV20,SXV20 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-33020 |
MCV20,SXV20 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77285-33050 |
MCV20,SXV20 |
1 | ||
| 77285-33020 |
SXV20 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-33010 |
SXV20 |
1 | ||
| 77286-33010 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77286-33020 |
MCV20,SXV20 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77289-33020 |
SXV20 |
1 | ||
| 77289-33030 |
MCV20,SXV20 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-33020 |
SXV20 |
1 | ||
| 77298-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77298-33030 |
MCV20,SXV20 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-33020 |
SXV20 |
1 | ||
| 77299-33030 |
MCV20,SXV20 |
1 | ||
| 77299-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-33020 |
SXV20 |
1 | ||
| 77411-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77411-33030 |
MCV20,SXV20 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-33020 |
SXV20 |
2 | ||
| 77412-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
2 | ||
| 77412-33030 |
MCV20,SXV20 |
2 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77413-33020 |
SXV20 |
1 | ||
| 77413-33030 |
MCV20,SXV20 |
1 | ||
| 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 | ||||
| 77414-33030 |
MCV20,SXV20 |
1 | ||
| 77414-33020 |
SXV20 |
1 | ||
| 77414-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 | ||||
| 77415-33020 |
SXV20 |
1 | ||
| 77415-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77415-33030 |
MCV20,SXV20 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-41040 |
MCV20,SXV20 |
1 | ||
| 77740-33090 |
SXV20..LHD..MTM;MCV20,SXV20..ATM UNLEADED GASOLINE SPEC |
1 | ||
| 77740-41041 |
MCV20,SXV20 |
1 | ||
| 77740-33090 |
MCV20,SXV20 UNLEADED GASOLINE SPEC |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-33040 |
MCV20,SXV20 |
1 | ||
| 77751-33040 |
SXV20..LHD..MTM;MCV20,SXV20..ATM |
1 | ||
| Common parts | ||||
| 90119-06451 | ||||
| 90119-06642 | ||||
| 90179-06219 | ||||
| 90333-30004 | ||||
| 90959-01530 | ||||
| 96132-41100 | ||||
ILLUST NO. 2 OF 2(9908- )MCV20 ; (0009- )SXV20
REAR CANISTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-33050 |
MCV20,SXV20 |
1 | ||
| 77261A - HOSE, FUEL, NO.1 (FOR FUEL EMISSION TUBE) | ||||
| 95333-08020 |
MCV20,SXV20 *H,L=180 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-33040 |
SXV20 |
1 | ||
| 77261-33101 |
MCV20,SXV20 |
1 | ||
| 77261-33100 |
MCV20,SXV20 |
1 | ||
| 77261-33040 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06030 |
SXV20..LHD..MTM;MCV20,SXV20..ATM *H,L=220 |
1 | ||
| 95333-06030 |
MCV20,SXV20 *H,L=220 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-33020 |
MCV20,SXV20 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-33020 |
MCV20,SXV20 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77285-33050 |
MCV20,SXV20 |
1 | ||
| 77285-33020 |
SXV20 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-33010 |
SXV20 |
1 | ||
| 77286-33010 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77286-33020 |
MCV20,SXV20 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77289-33020 |
SXV20 |
1 | ||
| 77289-33030 |
MCV20,SXV20 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-33010 |
MCV20,SXV20 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-33020 |
SXV20 |
1 | ||
| 77298-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77298-33030 |
MCV20,SXV20 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-33020 |
SXV20 |
1 | ||
| 77299-33030 |
MCV20,SXV20 |
1 | ||
| 77299-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-33020 |
SXV20 |
1 | ||
| 77411-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77411-33030 |
MCV20,SXV20 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-33020 |
SXV20 |
2 | ||
| 77412-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
2 | ||
| 77412-33030 |
MCV20,SXV20 |
2 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77413-33020 |
SXV20 |
1 | ||
| 77413-33030 |
MCV20,SXV20 |
1 | ||
| 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 | ||||
| 77414-33030 |
MCV20,SXV20 |
1 | ||
| 77414-33020 |
SXV20 |
1 | ||
| 77414-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 | ||||
| 77415-33020 |
SXV20 |
1 | ||
| 77415-33020 |
SXV20..ATM;SXV20..LHD..MTM CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC |
1 | ||
| 77415-33030 |
MCV20,SXV20 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-41040 |
MCV20,SXV20 |
1 | ||
| 77740-33090 |
SXV20..LHD..MTM;MCV20,SXV20..ATM UNLEADED GASOLINE SPEC |
1 | ||
| 77740-41041 |
MCV20,SXV20 |
1 | ||
| 77740-33090 |
MCV20,SXV20 UNLEADED GASOLINE SPEC |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-41010 |
MCV20,SXV20 |
1 | ||
| Common parts | ||||
| 90119-06451 | ||||
| 90119-10476 | ||||
| 90179-06219 | ||||
| 96132-41100 | ||||
| 96132-41300 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
