SXV20L-AEPNKW (1996)
Toyota Camry
ILLUST NO. 1 OF 2(9608- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55304B - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING | ||||
| 55381-33050 |
MCV20,SXV20..LHD |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55351-33050 |
MCV20,SXV20..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-33070 |
MCV20,SXV20..LHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-33050 |
MCV20,SXV20..LHD |
1 | ||
| 55323A - BRACKET, INSTRUMENT PANEL, NO.3 | ||||
| 55323-33040 |
MCV20,SXV20..LHD |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-24010 |
MCV20,SXV20 |
3 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-33130 |
MCV20,SXV20..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-33050E0 |
MCV20,SXV20..LHD OAK,TRIM4# |
1 | ||
| 55401-33050B0 |
MCV20,SXV20..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 55401-33050G0 |
MCV20,SXV20..LHD DK.SAGE,TRIM6# |
1 | ||
| 55427D - RETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1 | ||||
| 55427-33030 |
MCV20,SXV20..LHD |
1 | ||
| 55428D - RETAINER, INSTRUMENT FINISH PANEL, LOWER NO.2 | ||||
| 55428-33030 |
MCV20,SXV20..LHD |
1 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-32020G0 |
MCV20,SXV20 DK.SAGE,TRIM6# |
1 | ||
| 55458-32020E0 |
MCV20,SXV20 OAK,TRIM4# |
1 | ||
| 55458-32020B1 |
MCV20,SXV20 BLUISH GRAY,TRIM1# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-33061 |
MCV20,SXV20..LHD |
1 | ||
| 55950-33060 |
MCV20,SXV20..LHD |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-33040E0 |
MCV20,SXV20..LHD OAK,TRIM4# |
1 | ||
| 55962-33040B0 |
MCV20,SXV20..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 55962-33040G0 |
MCV20,SXV20..LHD DK.SAGE,TRIM6# |
1 | ||
| 55963A - RETAINER, SIDE DEFROSTER | ||||
| 55963-33020 |
MCV20,SXV20 |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-33030 |
MCV20,SXV20..LHD |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-33030 |
MCV20,SXV20..LHD |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-33050 |
MCV20,SXV20..LHD |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-06040B0 |
MCV20,SXV20..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 73970-06040E0 |
MCV20,SXV20..LHD OAK,TRIM4# |
1 | ||
| 73970-06040G0 |
MCV20,SXV20..LHD DK.SAGE,TRIM6# |
1 | ||
| 73970-06060B0 |
MCV20,SXV20..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 73970-06042G0 |
MCV20,SXV20..LHD DK.SAGE,TRIM6# |
1 | ||
| 73970-06060E0 |
MCV20,SXV20..LHD OAK,TRIM4# |
1 | ||
| 73970-06042B0 |
MCV20,SXV20..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 73970-06042E0 |
MCV20,SXV20..LHD OAK,TRIM4# |
1 | ||
| 73970-06060G0 |
MCV20,SXV20..LHD DK.SAGE,TRIM6# |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
MCV20,SXV20 |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90159-60200 | ||||
| 90176-06043 | ||||
| 90179-06009 | ||||
| 90179-06054 | ||||
| 90179-06097 | ||||
| 90179-08086 | ||||
| 90468-04157 | ||||
| 90468-04175 | ||||
| 91626-60816 | ||||
| 91626-60822 | ||||
| 91665-40616 | ||||
| 93567-15016 | ||||
| 93568-14512 | ||||
| Linked diagrams | ||||
| 5304 | ||||

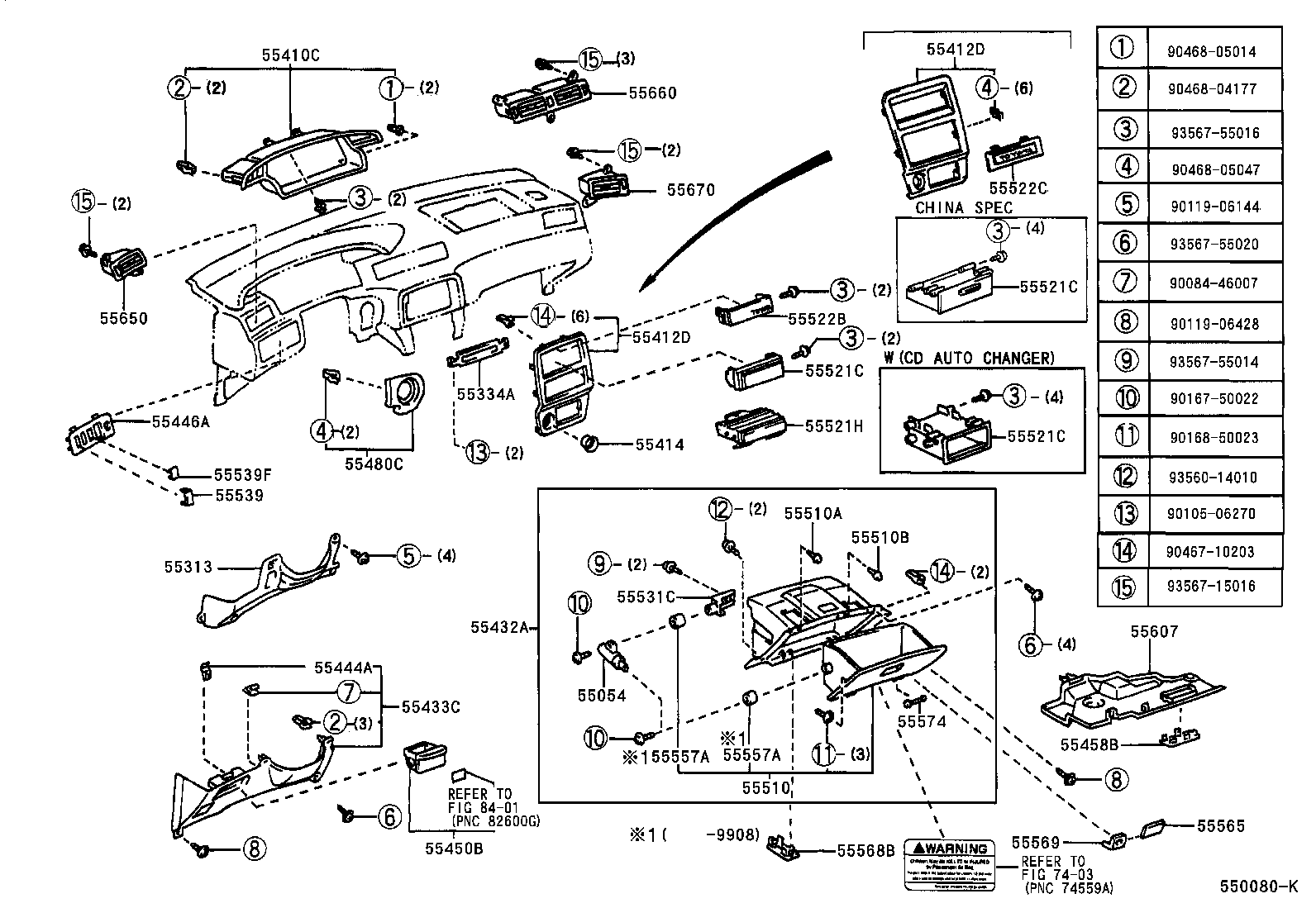

ILLUST NO. 2 OF 2(9608- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-30010 |
MCV20,SXV20 |
1 | ||
| 55313 - PANEL, INSTRUMENT, LOWER LH | ||||
| 55406-33030 |
MCV20,SXV20..LHD |
1 | ||
| 55334A - REINFORCEMENT, INSTRUMENT PANEL, UPPER | ||||
| 55334-33010 |
MCV20,SXV20 |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-33040 |
MCV20,SXV20..LHD |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-33050 |
MCV20,SXV20 |
1 | ||
| 55405-33090 |
MCV20,SXV20 |
1 | ||
| 55405-33040 |
MCV20,SXV20 W/O(RADIO) |
1 | ||
| 55405-33080 |
MCV20,SXV20 W/O(RADIO) |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-33050 |
MCV20,SXV20 |
1 | ||
| 55405-33090 |
MCV20,SXV20 |
1 | ||
| 55405-33040 |
MCV20,SXV20 W/O(RADIO) |
1 | ||
| 55405-33080 |
MCV20,SXV20 W/O(RADIO) |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-33010 |
MCV20,SXV20 |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55303-33110E0 |
MCV20,SXV20..LHD OAK,TRIM4# |
1 | ||
| 55303-33110G0 |
MCV20,SXV20..LHD DK.SAGE,TRIM6# |
1 | ||
| 55303-33110B0 |
MCV20,SXV20..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55302-33040B0 |
MCV20,SXV20..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 55302-33040E0 |
MCV20,SXV20..LHD OAK,TRIM4# |
1 | ||
| 55302-33040G0 |
MCV20,SXV20..LHD DK.SAGE,TRIM6# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-33040 |
MCV20,SXV20..LHD |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-33070 |
MCV20,SXV20..LHD |
1 | ||
| 55446-33040 |
MCV20,SXV20..LHD |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-33030G0 |
MCV20,SXV20..LHD DK.SAGE,TRIM6# |
1 | ||
| 55450-33030E0 |
MCV20,SXV20..LHD OAK,TRIM4# |
1 | ||
| 55450-33030B0 |
MCV20,SXV20..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 55450-33031B0 |
MCV20,SXV20..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 55450-33031G0 |
MCV20,SXV20..LHD DK.SAGE,TRIM6# |
1 | ||
| 55450-33031E0 |
MCV20,SXV20..LHD OAK,TRIM4# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-33070 |
MCV20,SXV20 |
1 | ||
| 55480C - KEY BEZEL | ||||
| 55480-33050G0 |
MCV20,SXV20..LHD DK.SAGE,TRIM6# |
1 | ||
| 55480-33050B0 |
MCV20,SXV20..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 55480-33050E0 |
MCV20,SXV20..LHD OAK,TRIM4# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-33050G0 |
MCV20,SXV20 DK.SAGE,TRIM6# |
1 | ||
| 55501-33050E0 |
MCV20,SXV20 OAK,TRIM4# |
1 | ||
| 55501-33050B0 |
MCV20,SXV20 BLUISH GRAY,TRIM1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05020 |
MCV20,SXV20 |
2 | ||
| 55510B - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
MCV20,SXV20..LHD |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55022-17010 |
MCV20,SXV20 |
1 | ||
| 55520-33020 |
MCV20,SXV20..LHD..ATM W(CD AUTO CHANGER) |
1 | ||
| 55521-32020 |
MCV20,SXV20..LHD..ATM CHINA SPEC |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55022-17010 |
MCV20,SXV20 |
1 | ||
| 55520-33020 |
MCV20,SXV20..LHD..ATM W(CD AUTO CHANGER) |
1 | ||
| 55521-32020 |
MCV20,SXV20..LHD..ATM CHINA SPEC |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55022-17010 |
MCV20,SXV20 |
1 | ||
| 55520-33020 |
MCV20,SXV20..LHD..ATM W(CD AUTO CHANGER) |
1 | ||
| 55521-32020 |
MCV20,SXV20..LHD..ATM CHINA SPEC |
1 | ||
| 55521H - COVER ASSY, STEREO OPENING | ||||
| 55520-33050 |
MCV20,SXV20 |
1 | ||
| 55520-33010 |
MCV20,SXV20 |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-33030 |
MCV20,SXV20 |
1 | ||
| 55522C - COVER, RADIO RECEIVER OPENING | ||||
| 55522-12120 |
MCV20,SXV20 |
1 | ||
| 55531C - PIN, GLOVE DOOR STOPPER | ||||
| 55531-33010 |
MCV20,SXV20 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33050 |
MCV20,SXV20..LHD |
1 | ||
| 55539-33060 |
MCV20,SXV20..LHD |
1 | ||
| 55539-33060 |
SXV20..LHD..MTM;MCV20,SXV20..ATM |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-33050 |
MCV20,SXV20 |
1 | ||
| 55539-33060 |
MCV20,SXV20 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
MCV20,SXV20 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
MCV20,SXV20 |
2 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-22020E1 |
MCV20,SXV20 OAK,TRIM4# |
1 | ||
| 55565-22020B2 |
MCV20,SXV20 BLUISH GRAY,TRIM1# |
1 | ||
| 55565-22020G0 |
MCV20,SXV20 DK.SAGE,TRIM6# |
1 | ||
| 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH | ||||
| 55568-24020 |
MCV20,SXV20 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-22030E1 |
MCV20,SXV20 OAK,TRIM4# |
1 | ||
| 55569-22030B2 |
MCV20,SXV20 BLUISH GRAY,TRIM1# |
1 | ||
| 55569-22030G0 |
MCV20,SXV20 DK.SAGE,TRIM6# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
MCV20,SXV20 |
2 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-33040 |
MCV20,SXV20..LHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-33050B0 |
MCV20,SXV20 BLUISH GRAY,TRIM1# |
1 | ||
| 55650-33050G0 |
MCV20,SXV20 DK.SAGE,TRIM6# |
1 | ||
| 55650-33050E0 |
MCV20,SXV20 OAK,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-33090B0 |
MCV20,SXV20 BLUISH GRAY,TRIM1# |
1 | ||
| 55660-33090E0 |
MCV20,SXV20 OAK,TRIM4# |
1 | ||
| 55660-33090G0 |
MCV20,SXV20 DK.SAGE,TRIM6# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-33060G0 |
MCV20,SXV20 DK.SAGE,TRIM6# |
1 | ||
| 55670-33060B0 |
MCV20,SXV20 BLUISH GRAY,TRIM1# |
1 | ||
| 55670-33060E0 |
MCV20,SXV20 OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90084-46007 | ||||
| 90105-06270 | ||||
| 90119-06144 | ||||
| 90119-06428 | ||||
| 90167-50022 | ||||
| 90168-50023 | ||||
| 90467-10203 | ||||
| 90468-04177 | ||||
| 90468-05014 | ||||
| 90468-05047 | ||||
| 93560-14010 | ||||
| 93567-15016 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93567-55020 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8401 | ||||
