SXV20L-AEPNKW (1996)
Toyota Camry

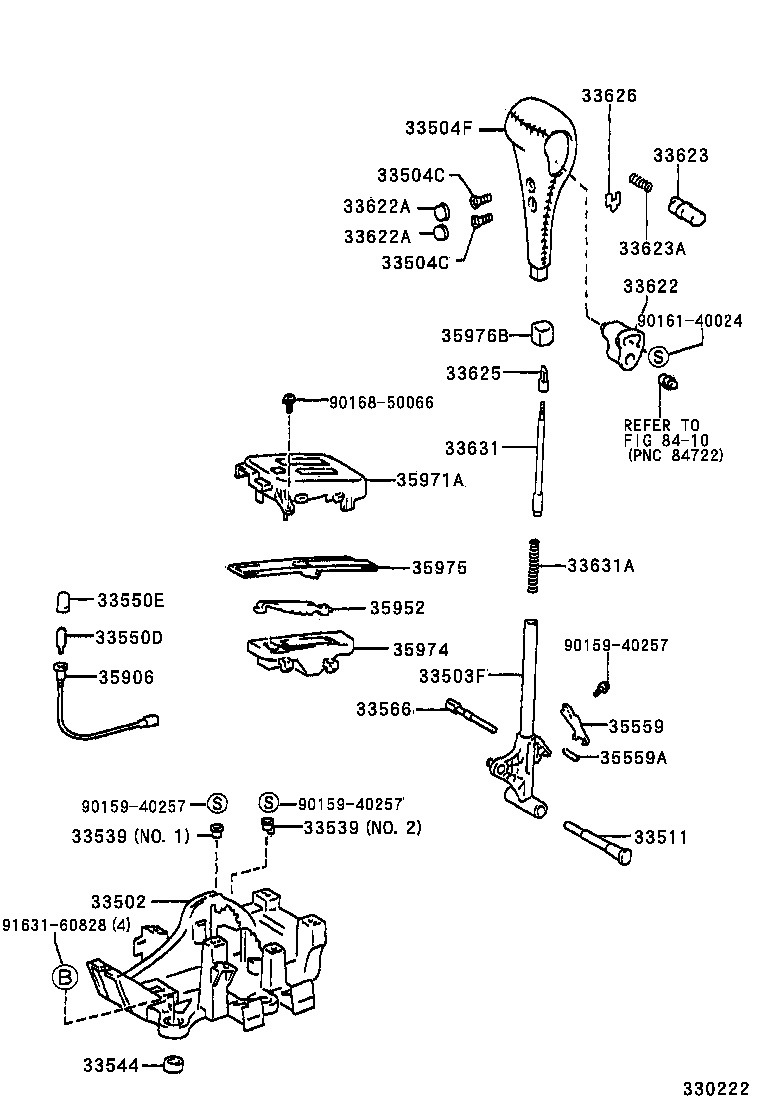

ILLUST NO. 1 OF 2(9608-9908)LHD..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33521-33030 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-33110 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40238 |
MCV20,SXV20..ATM |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40238 |
MCV20,SXV20..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-33040E0 |
MCV20,SXV20..LHD..ATM OAK,TRIM4# |
1 | ||
| 33542-33040B0 |
MCV20,SXV20..LHD..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 33542-33040G0 |
MCV20,SXV20..LHD..ATM DK.SAGE,TRIM6# |
1 | ||
| 33542-33040C0 |
MCV20,SXV20..LHD..ATM BLACK,TRIM1#,4#,6# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-33020 |
MCV20,SXV20..ATM |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-33020 |
MCV20,SXV20..LHD..ATM NO.2 |
1 | ||
| 33539-33010 |
MCV20,SXV20..ATM NO.1 |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-33020 |
MCV20,SXV20..LHD..ATM NO.2 |
1 | ||
| 33539-33010 |
MCV20,SXV20..ATM NO.1 |
1 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-33010 |
MCV20,SXV20..ATM |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
MCV20,SXV20..ATM 12V 1.2W W/O SOCKET |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04049 |
MCV20,SXV20..ATM |
1 | ||
| 33566 - PIN, SHIFT LEVER STOP | ||||
| 90256-04008 |
MCV20,SXV20..ATM |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-33030C0 |
MCV20,SXV20..LHD..ATM BLACK,TRIM1#,4#,6# |
1 | ||
| 33622-33030B1 |
MCV20,SXV20..LHD..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 33622-33030E0 |
MCV20,SXV20..LHD..ATM OAK,TRIM4# |
1 | ||
| 33622-33030G0 |
MCV20,SXV20..LHD..ATM DK.SAGE,TRIM6# |
1 | ||
| 33622A - COVER, SHIFT LEVER KNOB, NO.2 | ||||
| 33622-20050B1 |
MCV20,SXV20..ATM BLUISH GRAY,TRIM1# |
2 | ||
| 33622-20050E1 |
MCV20,SXV20..ATM OAK,TRIM4# |
2 | ||
| 33622-20050C0 |
MCV20,SXV20..ATM BLACK,TRIM1#,4#,6# |
2 | ||
| 33622-20050G0 |
MCV20,SXV20..ATM DK.SAGE,TRIM6# |
2 | ||
| 33622A - COVER, SHIFT LEVER KNOB, NO.2 | ||||
| 33622-20050B1 |
MCV20,SXV20..ATM BLUISH GRAY,TRIM1# |
2 | ||
| 33622-20050E1 |
MCV20,SXV20..ATM OAK,TRIM4# |
2 | ||
| 33622-20050C0 |
MCV20,SXV20..ATM BLACK,TRIM1#,4#,6# |
2 | ||
| 33622-20050G0 |
MCV20,SXV20..ATM DK.SAGE,TRIM6# |
2 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-33050E0 |
MCV20,SXV20..LHD..ATM OAK,TRIM4# |
1 | ||
| 33623-33050B0 |
MCV20,SXV20..LHD..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 33623-33050G0 |
MCV20,SXV20..LHD..ATM DK.SAGE,TRIM6# |
1 | ||
| 33623-33050C0 |
MCV20,SXV20..LHD..ATM BLACK,TRIM1#,4#,6# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07116 |
MCV20,SXV20..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-33040 |
MCV20,SXV20..ATM |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 33626-20010 |
MCV20,SXV20..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-33020 |
MCV20,SXV20..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-06091 |
MCV20,SXV20..ATM |
1 | ||
| 35559 - SPRING, MANUAL DETENT | ||||
| 35559-33030 |
MCV20,SXV20..ATM |
1 | ||
| 35559A - PIN (FOR MANUAL DETENT SPRING) | ||||
| 90249-02005 |
MCV20,SXV20..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-33030 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 35952 - LENS, POSITION INDICATOR | ||||
| 35952-33010 |
MCV20,SXV20..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-33060 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 35971-33120 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-33060 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-33030 |
MCV20,SXV20..ATM |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-33010B1 |
MCV20,SXV20..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 35976-33010C0 |
MCV20,SXV20..ATM BLACK,TRIM1#,4#,6# |
1 | ||
| 35976-33010G0 |
MCV20,SXV20..ATM DK.SAGE,TRIM6# |
1 | ||
| 35976-33010E0 |
MCV20,SXV20..ATM OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-40257 | ||||
| 90161-40024 | ||||
| 90168-50066 | ||||
| 91631-60828 | ||||
| Linked diagrams | ||||
| 8410 | ||||

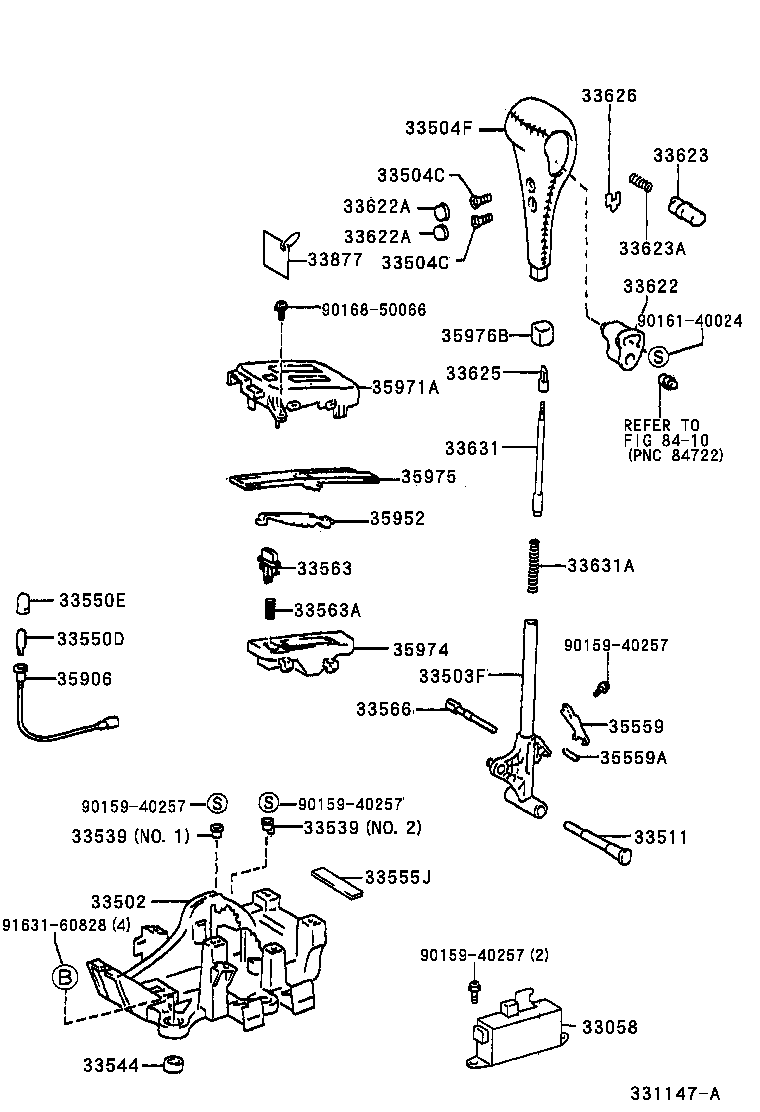

ILLUST NO. 1 OF 2(9908- )LHD..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33560-33010 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33521-33030 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-33110 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40238 |
MCV20,SXV20..ATM |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40238 |
MCV20,SXV20..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-33040E0 |
MCV20,SXV20..LHD..ATM OAK,TRIM4# |
1 | ||
| 33542-33040B0 |
MCV20,SXV20..LHD..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 33542-33040G0 |
MCV20,SXV20..LHD..ATM DK.SAGE,TRIM6# |
1 | ||
| 33542-33040C0 |
MCV20,SXV20..LHD..ATM BLACK,TRIM1#,4#,6# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-33020 |
MCV20,SXV20..ATM |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-33020 |
MCV20,SXV20..LHD..ATM NO.2 |
1 | ||
| 33539-33010 |
MCV20,SXV20..ATM NO.1 |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-33020 |
MCV20,SXV20..LHD..ATM NO.2 |
1 | ||
| 33539-33010 |
MCV20,SXV20..ATM NO.1 |
1 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-33010 |
MCV20,SXV20..ATM |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
MCV20,SXV20..ATM 12V 1.2W W/O SOCKET |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04049 |
MCV20,SXV20..ATM |
1 | ||
| 33555J - SEAL, SHIFT LEVER | ||||
| 33555-33010 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-33120 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-04037 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 33566 - PIN, SHIFT LEVER STOP | ||||
| 90256-04008 |
MCV20,SXV20..ATM |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-33030C0 |
MCV20,SXV20..LHD..ATM BLACK,TRIM1#,4#,6# |
1 | ||
| 33622-33030B1 |
MCV20,SXV20..LHD..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 33622-33030E0 |
MCV20,SXV20..LHD..ATM OAK,TRIM4# |
1 | ||
| 33622-33030G0 |
MCV20,SXV20..LHD..ATM DK.SAGE,TRIM6# |
1 | ||
| 33622A - COVER, SHIFT LEVER KNOB, NO.2 | ||||
| 33622-20050B1 |
MCV20,SXV20..ATM BLUISH GRAY,TRIM1# |
2 | ||
| 33622-20050E1 |
MCV20,SXV20..ATM OAK,TRIM4# |
2 | ||
| 33622-20050C0 |
MCV20,SXV20..ATM BLACK,TRIM1#,4#,6# |
2 | ||
| 33622-20050G0 |
MCV20,SXV20..ATM DK.SAGE,TRIM6# |
2 | ||
| 33622A - COVER, SHIFT LEVER KNOB, NO.2 | ||||
| 33622-20050B1 |
MCV20,SXV20..ATM BLUISH GRAY,TRIM1# |
2 | ||
| 33622-20050E1 |
MCV20,SXV20..ATM OAK,TRIM4# |
2 | ||
| 33622-20050C0 |
MCV20,SXV20..ATM BLACK,TRIM1#,4#,6# |
2 | ||
| 33622-20050G0 |
MCV20,SXV20..ATM DK.SAGE,TRIM6# |
2 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-33050E0 |
MCV20,SXV20..LHD..ATM OAK,TRIM4# |
1 | ||
| 33623-33050B0 |
MCV20,SXV20..LHD..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 33623-33050G0 |
MCV20,SXV20..LHD..ATM DK.SAGE,TRIM6# |
1 | ||
| 33623-33050C0 |
MCV20,SXV20..LHD..ATM BLACK,TRIM1#,4#,6# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07116 |
MCV20,SXV20..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-33040 |
MCV20,SXV20..ATM |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 33626-20010 |
MCV20,SXV20..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-33020 |
MCV20,SXV20..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-06091 |
MCV20,SXV20..ATM |
1 | ||
| 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 | ||||
| 33877-50030 |
MCV20,SXV20..ATM |
1 | ||
| 35559 - SPRING, MANUAL DETENT | ||||
| 35559-33030 |
MCV20,SXV20..ATM |
1 | ||
| 35559A - PIN (FOR MANUAL DETENT SPRING) | ||||
| 90249-02005 |
MCV20,SXV20..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-33030 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 35952 - LENS, POSITION INDICATOR | ||||
| 35952-33010 |
MCV20,SXV20..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-33060 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 35971-33120 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-33060 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-33030 |
MCV20,SXV20..ATM |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-33010B1 |
MCV20,SXV20..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 35976-33010C0 |
MCV20,SXV20..ATM BLACK,TRIM1#,4#,6# |
1 | ||
| 35976-33010G0 |
MCV20,SXV20..ATM DK.SAGE,TRIM6# |
1 | ||
| 35976-33010E0 |
MCV20,SXV20..ATM OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-40257 | ||||
| 90161-40024 | ||||
| 90168-50066 | ||||
| 91631-60828 | ||||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 2 OF 2(9608- )SXV20..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-33030 |
MCV20,SXV20..ATM |
1 | ||
| 33723Q - NUT (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08054 |
MCV20,SXV20..ATM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-33130 |
SXV20..ATM |
1 | ||
| 33820-33131 |
SXV20..ATM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33577-33010 |
MCV20,SXV20..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-33010 |
SXV20..ATM |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-33010 |
SXV20..ATM |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90159-50328 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 1904 | ||||
