SXV20L-AEMNKW (1996)
Toyota Camry
ILLUST NO. 1 OF 9(9608- )SXV20
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-3T700 |
SXV20..LHD..MTM |
1 | ||
| 82121-33800 |
SXV20..LHD..MTM |
1 | ||
| 82121-3T560 |
SXV20..LHD..MTM |
1 | ||
| 82121-3T560 |
SXV20..LHD..MTM CHILE SPEC;LATIN AMERICA SPEC(UNLEADED) |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-33020 |
MCV20,SXV20 |
1 | ||
| 82122-07010 |
MCV20,SXV20 |
1 | ||
| 82122-33020 |
MCV20,SXV20 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-33020 |
MCV20,SXV20 |
1 | ||
| 82123-06020 |
MCV20,SXV20 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-24010 |
MCV20,SXV20 NO.1 |
1 | ||
| Common parts | ||||
| 82711-1E070 | ||||
| 82711-24420 | ||||
| 82711-2A730 | ||||
| 82715-20800 | ||||
| 82715-33040 | ||||
| 82715-33110 | ||||
| 82715-33140 | ||||
| 82715-33150 | ||||
| 82715-33220 | ||||
| 82715-33240 | ||||
| 90105-08096 | ||||
| 90119-06067 | ||||
| 90119-06390 | ||||
| 90119-10550 | ||||
| 90333-30008 | ||||
| 91621-60612 | ||||
| 91635-B0616 | ||||
| 91651-41022 | ||||
| Linked diagrams | ||||
| 8201 | ||||

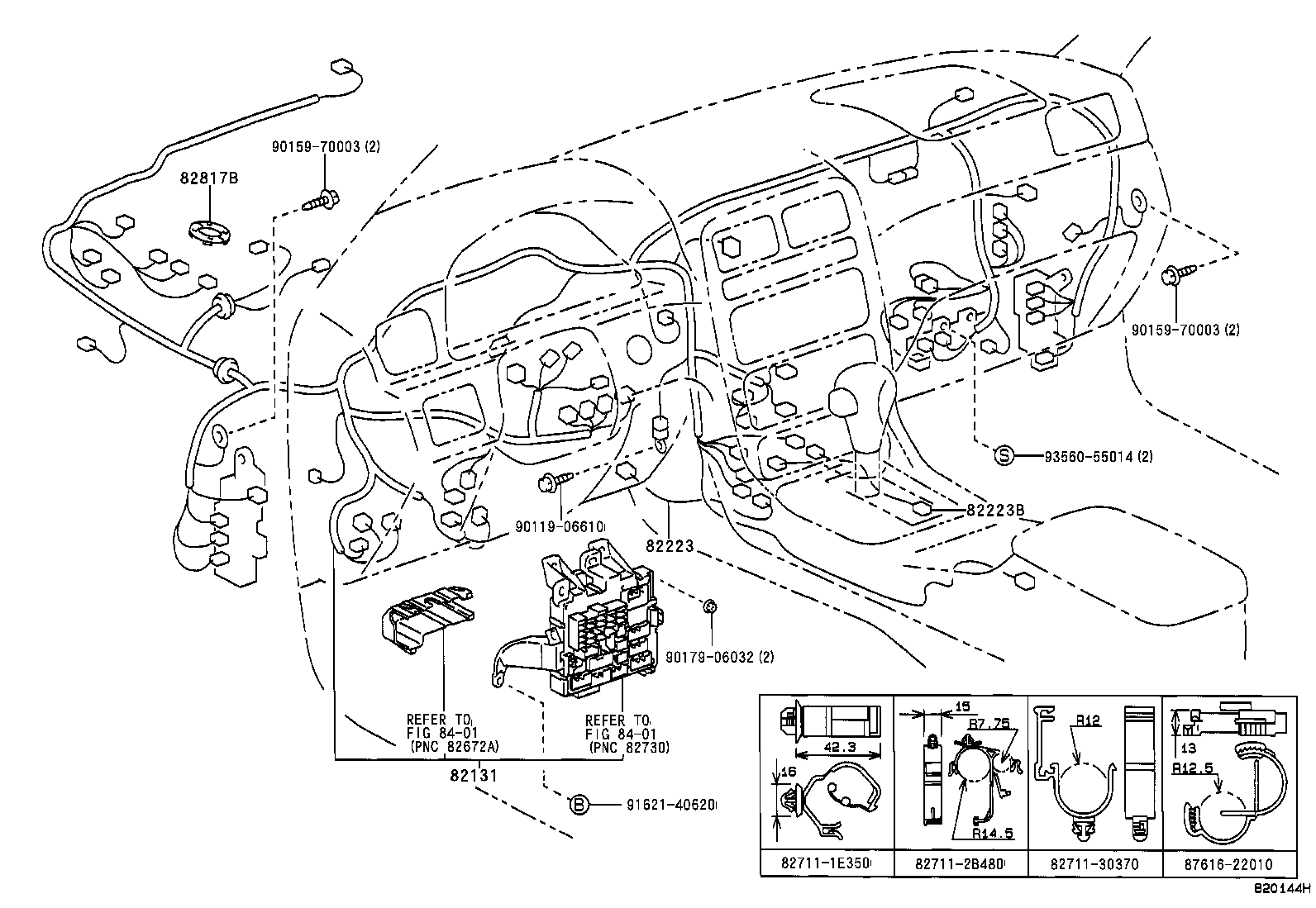

ILLUST NO. 3 OF 9(9608- )LHD
COWL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-33680 |
SXV20..LHD |
1 | ||
| 82131-33690 |
SXV20..LHD FINLAND OR ICELAND & DENMARK OR NORWAY OR SWEDEN SPEC |
1 | ||
| 82135-33550 |
SXV20..LHD |
1 | ||
| 82129-33270 |
SXV20..LHD |
1 | ||
| 82135-33560 |
SXV20..LHD FINLAND OR ICELAND & DENMARK OR NORWAY OR SWEDEN SPEC |
1 | ||
| 82129-33280 |
SXV20..LHD FINLAND OR ICELAND & DENMARK OR NORWAY OR SWEDEN SPEC |
1 | ||
| 82129-33770 |
SXV20..LHD |
1 | ||
| 82129-33780 |
SXV20..LHD FINLAND OR ICELAND & DENMARK OR NORWAY OR SWEDEN SPEC |
1 | ||
| 82129-33781 |
SXV20..LHD FINLAND OR ICELAND & DENMARK OR NORWAY OR SWEDEN SPEC |
1 | ||
| 82148-33110 |
SXV20..LHD |
1 | ||
| 82129-33771 |
SXV20..LHD..MTM CHILE SPEC;LATIN AMERICA SPEC(UNLEADED) |
1 | ||
| 82223B - WIRE, SWITCH, NO.2 | ||||
| 82223-33070 |
MCV20,SXV20..LHD |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-2B730 |
MCV20,SXV20 |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-2B480 | ||||
| 82711-30370 | ||||
| 87616-22010 | ||||
| 90119-06610 | ||||
| 90159-70003 | ||||
| 90179-06032 | ||||
| 91621-40620 | ||||
| 93560-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

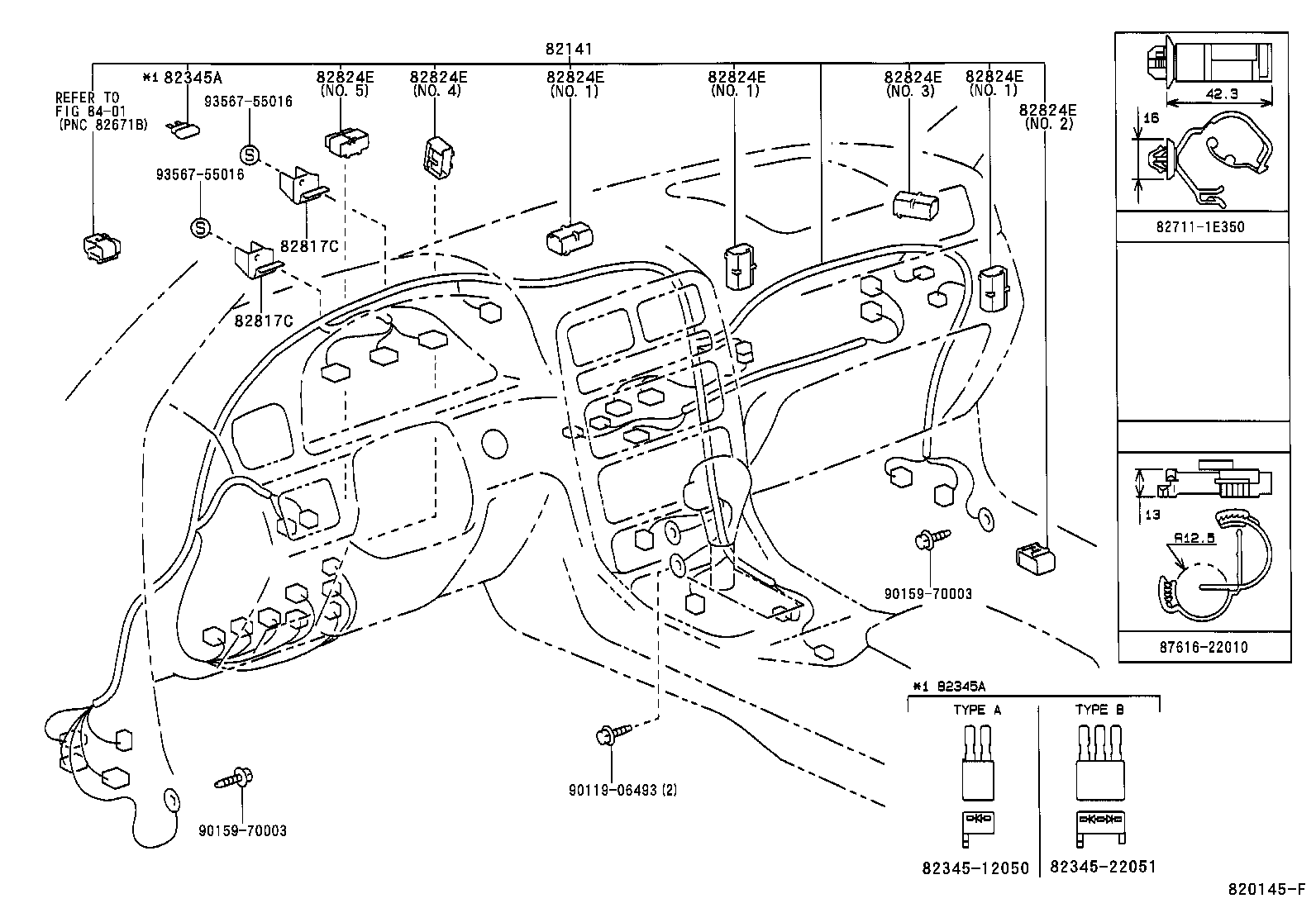

ILLUST NO. 4 OF 9(9608- )LHD
INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-3T070 |
MCV20,SXV20..LHD |
1 | ||
| 82141-33430 |
MCV20,SXV20..LHD |
1 | ||
| 82141-3T530 |
MCV20,SXV20..LHD W(SEAT HEATER) |
1 | ||
| 82141-3T080 |
MCV20,SXV20..LHD W(SEAT HEATER) |
1 | ||
| 82145-33280 |
MCV20,SXV20..LHD |
1 | ||
| 82145-33290 |
MCV20,SXV20..LHD W(SEAT HEATER) |
1 | ||
| 82141-3T520 |
MCV20,SXV20..LHD |
1 | ||
| 82345A - DIODE | ||||
| 82345-12050 |
MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-22051 |
MCV20,SXV20 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-33640 |
MCV20,SXV20..LHD |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-33640 |
MCV20,SXV20..LHD |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
MCV20,SXV20..LHD NO.3 |
1 | ||
| 82824-22080 |
MCV20,SXV20..LHD NO.2 |
1 | ||
| 82824-30190 |
MCV20,SXV20 NO.4 |
1 | ||
| 82824-12210 |
MCV20,SXV20..LHD NO.1 |
3 | ||
| 82824-50110 |
MCV20,SXV20..LHD NO.5 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
MCV20,SXV20..LHD NO.3 |
1 | ||
| 82824-22080 |
MCV20,SXV20..LHD NO.2 |
1 | ||
| 82824-30190 |
MCV20,SXV20 NO.4 |
1 | ||
| 82824-12210 |
MCV20,SXV20..LHD NO.1 |
3 | ||
| 82824-50110 |
MCV20,SXV20..LHD NO.5 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
MCV20,SXV20..LHD NO.3 |
1 | ||
| 82824-22080 |
MCV20,SXV20..LHD NO.2 |
1 | ||
| 82824-30190 |
MCV20,SXV20 NO.4 |
1 | ||
| 82824-12210 |
MCV20,SXV20..LHD NO.1 |
3 | ||
| 82824-50110 |
MCV20,SXV20..LHD NO.5 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
MCV20,SXV20..LHD NO.3 |
1 | ||
| 82824-22080 |
MCV20,SXV20..LHD NO.2 |
1 | ||
| 82824-30190 |
MCV20,SXV20 NO.4 |
1 | ||
| 82824-12210 |
MCV20,SXV20..LHD NO.1 |
3 | ||
| 82824-50110 |
MCV20,SXV20..LHD NO.5 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
MCV20,SXV20..LHD NO.3 |
1 | ||
| 82824-22080 |
MCV20,SXV20..LHD NO.2 |
1 | ||
| 82824-30190 |
MCV20,SXV20 NO.4 |
1 | ||
| 82824-12210 |
MCV20,SXV20..LHD NO.1 |
3 | ||
| 82824-50110 |
MCV20,SXV20..LHD NO.5 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
MCV20,SXV20..LHD NO.3 |
1 | ||
| 82824-22080 |
MCV20,SXV20..LHD NO.2 |
1 | ||
| 82824-30190 |
MCV20,SXV20 NO.4 |
1 | ||
| 82824-12210 |
MCV20,SXV20..LHD NO.1 |
3 | ||
| 82824-50110 |
MCV20,SXV20..LHD NO.5 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
MCV20,SXV20..LHD NO.3 |
1 | ||
| 82824-22080 |
MCV20,SXV20..LHD NO.2 |
1 | ||
| 82824-30190 |
MCV20,SXV20 NO.4 |
1 | ||
| 82824-12210 |
MCV20,SXV20..LHD NO.1 |
3 | ||
| 82824-50110 |
MCV20,SXV20..LHD NO.5 |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 87616-22010 | ||||
| 90119-06493 | ||||
| 90159-70003 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 9(9608- )
DOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-33280 |
MCV20,SXV20..LHD |
1 | ||
| 82151-33281 |
MCV20,SXV20..LHD |
1 | ||
| 82151-33820 |
MCV20,SXV20..LHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-33670 |
MCV20,SXV20..LHD |
1 | ||
| 82152-33671 |
MCV20,SXV20..LHD |
1 | ||
| 82152-3T050 |
MCV20,SXV20..LHD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-33080 |
MCV20,SXV20 |
1 | ||
| 82153-AA020 |
MCV20,SXV20 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-33080 |
MCV20,SXV20 |
1 | ||
| 82153-AA020 |
MCV20,SXV20 |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 82711-1E260 | ||||

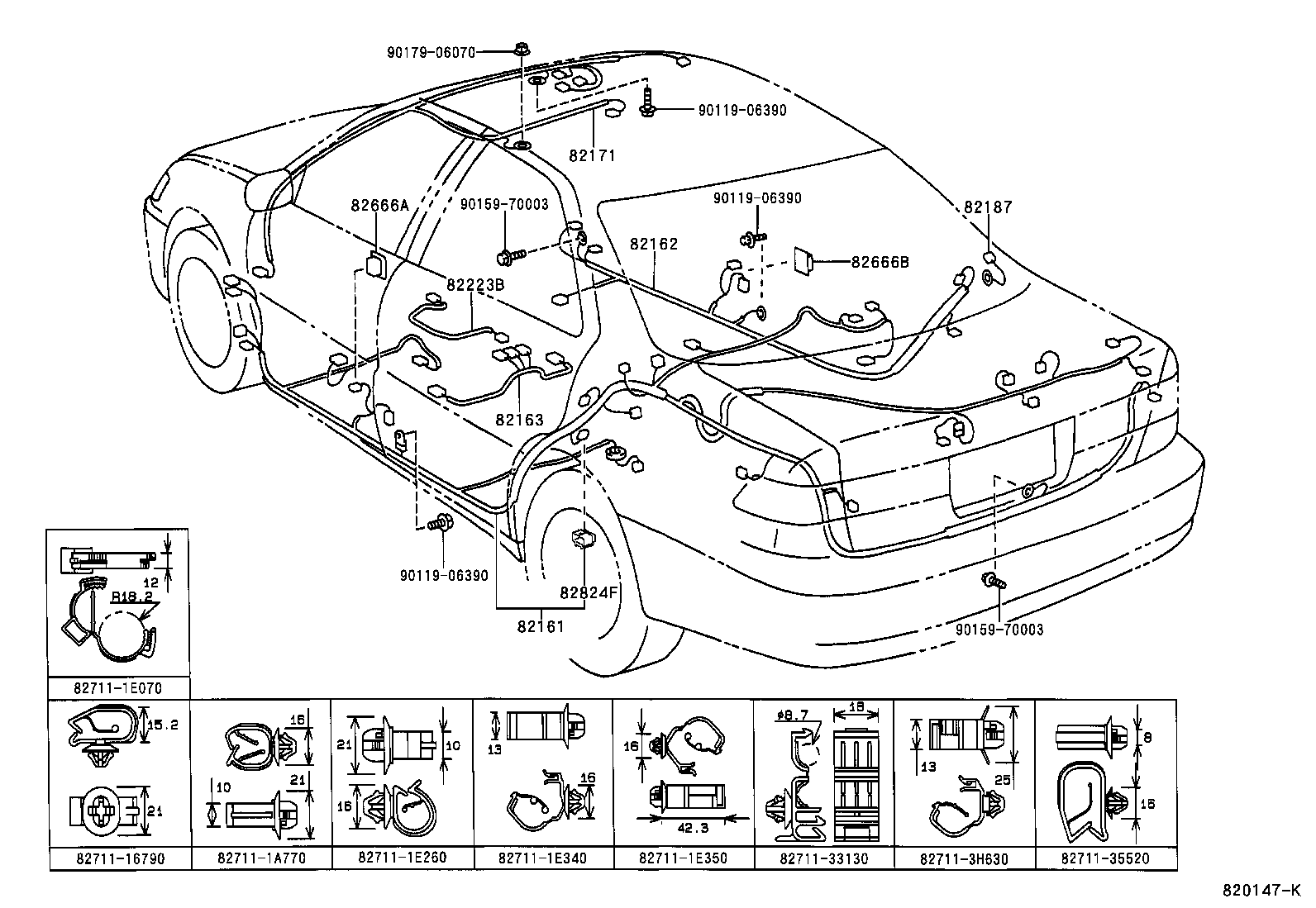

ILLUST NO. 6 OF 9(9608- )LHD
ROOF & FLOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-33590 |
MCV20,SXV20..LHD |
1 | ||
| 82161-33720 |
MCV20,SXV20..LHD |
1 | ||
| 82161-33890 |
MCV20,SXV20..LHD CHILE SPEC |
1 | ||
| 82161-3T420 |
MCV20,SXV20..LHD W(POWER SEAT) |
1 | ||
| 82161-33750 |
MCV20,SXV20..LHD CHILE SPEC & W(POWER SEAT) |
1 | ||
| 82161-3T440 |
MCV20,SXV20..LHD CHILE SPEC & W(POWER SEAT) |
1 | ||
| 82161-33730 |
MCV20,SXV20..LHD W(POWER SEAT) |
1 | ||
| 82161-33740 |
MCV20,SXV20..LHD CHILE SPEC |
1 | ||
| 82161-3T430 |
MCV20,SXV20..LHD CHILE SPEC |
1 | ||
| 82161-3T800 |
MCV20,SXV20..LHD CHILE SPEC & W(POWER SEAT) |
1 | ||
| 82161-3T790 |
MCV20,SXV20..LHD CHILE SPEC |
1 | ||
| 82161-3T781 |
MCV20,SXV20..LHD W(POWER SEAT) |
1 | ||
| 82161-3T780 |
MCV20,SXV20..LHD W(POWER SEAT) |
1 | ||
| 82161-3T410 |
MCV20,SXV20..LHD |
1 | ||
| 82161-3T770 |
MCV20,SXV20..LHD |
1 | ||
| 82161-3T801 |
MCV20,SXV20..LHD CHILE SPEC & W(POWER SEAT) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-AA060 |
MCV20,SXV20..LHD |
1 | ||
| 82162-33600 |
SXV20..LHD..MTM W(POWER SEAT) |
1 | ||
| 82162-3T270 |
MCV20,SXV20..LHD |
1 | ||
| 82162-33590 |
MCV20,SXV20..LHD |
1 | ||
| 82162-3T280 |
MCV20,SXV20..LHD CHINA SPEC OR W(POWER SEAT) |
1 | ||
| 82162-3T600 |
MCV20,SXV20..LHD W(POWER SEAT) |
1 | ||
| 82162-3T601 |
MCV20,SXV20..LHD W(POWER SEAT) |
1 | ||
| 82162-3T590 |
MCV20,SXV20..LHD |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-33010 |
MCV20,SXV20..LHD |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-33290 |
MCV20,SXV20..LHD W(MOON ROOF) |
1 | ||
| 82171-33251 |
MCV20,SXV20..LHD |
1 | ||
| 82171-33250 |
MCV20,SXV20..LHD |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-33030 |
MCV20,SXV20 |
1 | ||
| 82223B - WIRE, SWITCH, NO.2 | ||||
| 82223-33070 |
MCV20,SXV20..LHD |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-33180 |
MCV20,SXV20..LHD |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-33190 |
MCV20,SXV20..LHD |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
MCV20,SXV20 |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1A770 | ||||
| 82711-1E070 | ||||
| 82711-1E260 | ||||
| 82711-1E340 | ||||
| 82711-1E350 | ||||
| 82711-33130 | ||||
| 82711-35520 | ||||
| 82711-3H630 | ||||
| 90119-06390 | ||||
| 90159-70003 | ||||
| 90179-06070 | ||||
ILLUST NO. 7 OF 9(9608- )
SEAT WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-33080 |
MCV20,SXV20 |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-33060 |
MCV20,SXV20 |
1 | ||
| 82168-33030 |
MCV20,SXV20 |
1 | ||
ILLUST NO. 9 OF 9(9608- )SXV20
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07346 |
MCV20,SXV20 |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07390 |
MCV20,SXV20 |
1 | ||
| 90980-07390 |
SXV20 |
1 | ||
| 82001D - CABLE, BOND, NO.3 | ||||
| 90980-07315 |
SXV20 |
1 | ||
| 82001G - CABLE, BOND, NO.4 | ||||
| 90980-07280 |
SXV20 (J) |
1 | ||
| 90084-98019 |
SXV20 (L) |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 90119-06067 | ||||
| 91611-61020 | ||||
ILLUST NO. 2 OF 9(9608- )
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-33440 |
SXV20..LHD |
1 | ||
| 82111-3T640 |
SXV20..LHD |
1 | ||
| 82111-33441 |
SXV20..LHD |
1 | ||
| 82115-33640 |
SXV20..LHD COOL AIR INTAKE(LONG TYPE) |
1 | ||
| 82115-33181 |
SXV20..LHD |
1 | ||
| 82115-33180 |
SXV20..LHD |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-33020 |
SXV20 |
1 | ||
| 82113-06020 |
SXV20 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
MCV20,SXV20 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08282 |
MCV20,SXV20 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
MCV20,SXV20 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08281 |
MCV20,SXV20 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
MCV20,SXV20 30A,TERM.:FEMALE,PNK |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-33350 |
MCV20,SXV20 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12360 |
SXV20..LHD..MTM;MCV20,SXV20..ATM |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12360 |
SXV20..LHD..MTM;MCV20,SXV20..ATM |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
MCV20,SXV20 |
1 | ||
| Common parts | ||||
| 82711-1E070 | ||||
| 82711-1E350 | ||||
| 82711-2B480 | ||||
| 82711-3F230 | ||||
| 90119-06390 | ||||
| 90333-20001 | ||||
| 93385-15010 | ||||
| 93385-16010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
