SV25R-UEMNKW (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

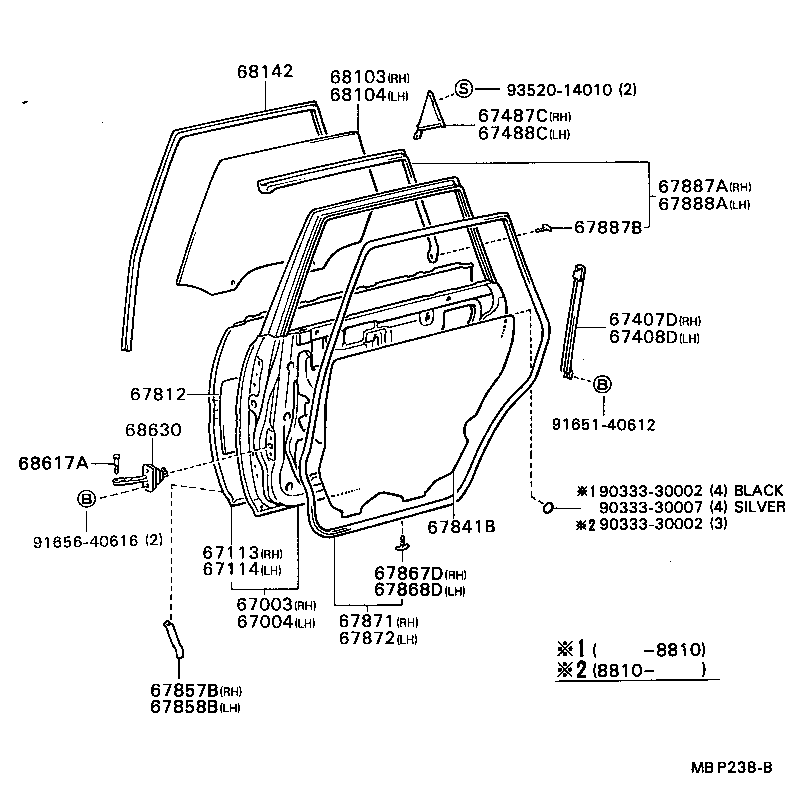

ILLUST NO. 1 OF 3(8808- )

Click highlighted areas on diagram

diagram 67003 67004 67113 67114 67407D 67408D 67487C 67488C 67812 67841B 67857B 67858B 67867D 67868D 67871 67872 67887A 67887B 67888A 68103 68104 68142 68617A 68630 9033330002 9033330002 9033330007 9165140612 9165640616 9352014010
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-32130

CV20,SV2#,VZV21..SED

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-32130

CV20,SV2#,VZV21..SED

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-32040

CV20,SV2#,VZV21

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-32040

CV20,SV2#,VZV21

 1
67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67407-32030

CV20,SV2#,VZV21

 1
67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67408-32030

CV20,SV2#,VZV21

 1
67487C - SEAL, REAR DOOR REAR GUIDE, RH
67487-32030

CV20,SV2#,VZV21

 1
67488C - SEAL, REAR DOOR REAR GUIDE, LH
67488-32030

CV20,SV2#,VZV21

 1
67812 - PAD, REAR DOOR SILENCER
67812-12010

CV20,SV2#,VZV21

 2
67841B - COVER, REAR DOOR SERVICE HOLE
67841-32050

CV20,SV2#,VZV21

 2
67857B - PROTECTOR, REAR DOOR PANEL, RH
67857-32010

CV20,SV2#,VZV21

 1
67858B - PROTECTOR, REAR DOOR PANEL, LH
67858-32010

CV20,SV2#,VZV21

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-20010

CV20,SV2#,VZV21..SED

 17
67868-32030

CV20,SV2#,VZV21..SED

 17
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67868-20010

CV20,SV2#,VZV21..SED

 17
67868-32030

CV20,SV2#,VZV21..SED

 17
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-32050

CV20,SV2#,VZV21..SED

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-32050

CV20,SV2#,VZV21..SED

 1
67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH
67887-32010

CV20,SV2#,VZV21..SED

 1
67887B - CLIP(FOR REAR DOOR WEATHERSTRIP)
67869-30020

CV20,SV2#,VZV21

 2
67869-20020

CV20,SV2#,VZV21

 2
67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH
67888-32010

CV20,SV2#,VZV21..SED

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-32050

CV20,SV2#,VZV21..SED

*TT,T=3.5

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-32050

CV20,SV2#,VZV21..SED

*TT,T=3.5

 1
68142 - RUN, REAR DOOR GLASS
68142-32050

CV20,SV2#,VZV21..SED

RH

 1
68152-32010

CV20,SV2#,VZV21..SED

LH

 1
68617A - PIN, REAR DOOR CHECK
68617-32010

CV20,SV2#,VZV21

 2
68630 - CHECK ASSY, REAR DOOR
68630-32031

CV20,SV2#,VZV21

 2
Common parts
90333-30002
90333-30007
91651-40612
91656-40616
93520-14010

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

diagram 67603 67603A 67604 67785B 68190 7401 8401 9016460014 9018906024 9356015025
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-3271004

CV20,SV2#..RHD..(GL,GLI)

DARK BLUE,TRIM8#

 1
67630-3271003

CV20,SV2#..RHD..(GL,GLI)

MEDIUM GRAY,TRIM1#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-14040

CV20,SV2#,VZV21..GL,GLI,GXI

 8
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-3271004

CV20,SV2#..RHD..(GL,GLI)

DARK BLUE,TRIM8#

 1
67640-3271003

CV20,SV2#..RHD..(GL,GLI)

MEDIUM GRAY,TRIM1#

 1
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
69751-3201004

CV20,SV2#,VZV21

DARK BLUE,TRIM8#

 1
69751-12040J0

CV20,SV2#,VZV21

DARK BLUE,TRIM8#

 2
69751-3201003

CV20,SV2#,VZV21

MEDIUM GRAY,TRIM1#

 1
69751-32010J0

CV20,SV2#,VZV21

DARK BLUE,TRIM8#

 1
69751-1204013

CV20,SV2#,VZV21

MEDIUM GRAY,TRIM1#

 2
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-32030

CV20,SV2#,VZV21

 2
Common parts
90164-60014
90189-06024
93560-15025
Linked diagrams
7401
8401

ILLUST NO. 3 OF 3(8808-9008)

Click highlighted areas on diagram

diagram 12345
Part # Description Qty Price

ILLUST NO. 3 OF 3(9008- )

Click highlighted areas on diagram

diagram 12345
Part # Description Qty Price
