SV25R-UEMNKW (1987)
Toyota Camry
Production
Oct 1987
-
Aug 1988
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8710- )SV25

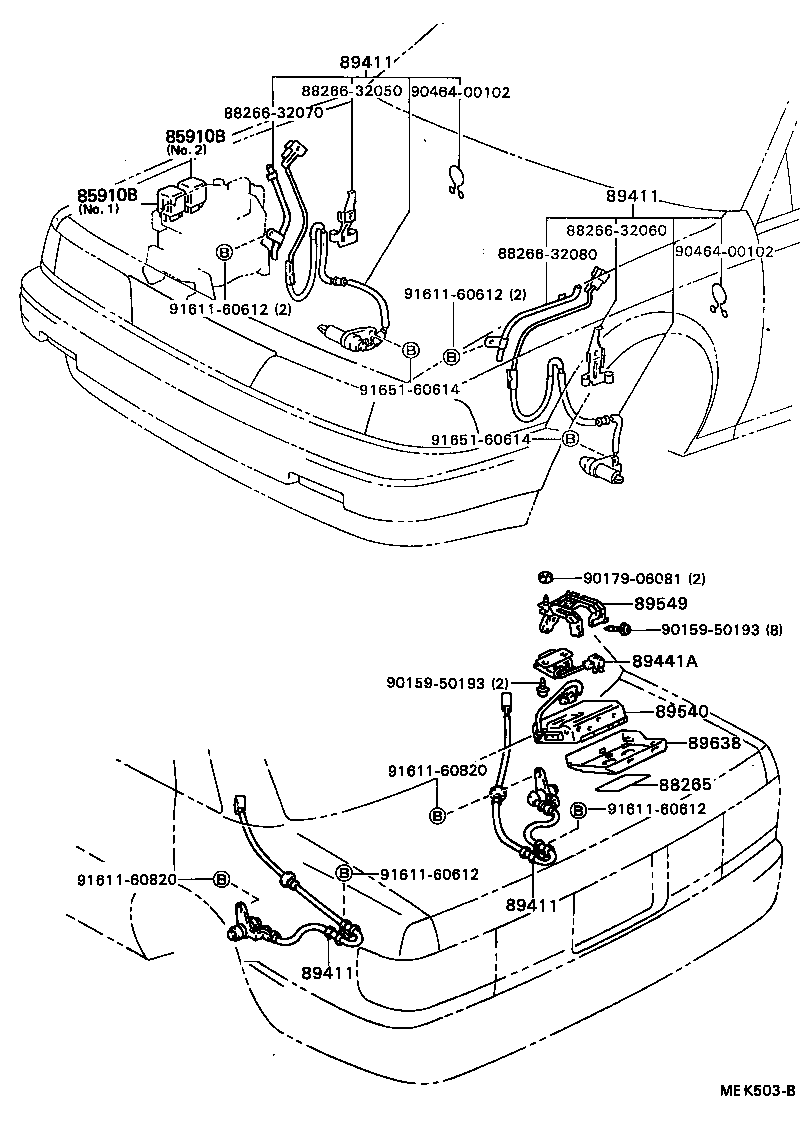

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910B - RELAY ASSY, CIRCUIT OPENING (FOR ESC) | ||||
| 88263-14110 |
SV21,25,VZV21 NO.1 |
1 | ||
| 88263-14120 |
SV21,25,VZV21 NO.2 |
1 | ||
| 85910B - RELAY ASSY, CIRCUIT OPENING (FOR ESC) | ||||
| 88263-14110 |
SV21,25,VZV21 NO.1 |
1 | ||
| 88263-14120 |
SV21,25,VZV21 NO.2 |
1 | ||
| 88265 - LABEL, SKID CONTROL CAUTION | ||||
| 88265-20040 |
SV25 |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89545-32020 |
SV25 RR,RH |
1 | ||
| 89543-32010 |
SV21,25,VZV21 FR,LH |
1 | ||
| 89542-32010 |
SV21,25,VZV21 FR,RH |
1 | ||
| 89546-32020 |
SV25 RR,LH |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89545-32020 |
SV25 RR,RH |
1 | ||
| 89543-32010 |
SV21,25,VZV21 FR,LH |
1 | ||
| 89542-32010 |
SV21,25,VZV21 FR,RH |
1 | ||
| 89546-32020 |
SV25 RR,LH |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89545-32020 |
SV25 RR,RH |
1 | ||
| 89543-32010 |
SV21,25,VZV21 FR,LH |
1 | ||
| 89542-32010 |
SV21,25,VZV21 FR,RH |
1 | ||
| 89546-32020 |
SV25 RR,LH |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89545-32020 |
SV25 RR,RH |
1 | ||
| 89543-32010 |
SV21,25,VZV21 FR,LH |
1 | ||
| 89542-32010 |
SV21,25,VZV21 FR,RH |
1 | ||
| 89546-32020 |
SV25 RR,LH |
1 | ||
| 89441A - SENSOR, DECELERATION | ||||
| 89441-32010 |
SV25 |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89541-32020 |
SV25 |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 89549-32020 |
SV21,25,VZV21..SED |
1 | ||
| 89638 - COVER, BRAKE CONTROL COMPUTER | ||||
| 89638-32010 |
SV21,25,VZV21..SED |
1 | ||
| Common parts | ||||
| 88266-32050 | ||||
| 88266-32060 | ||||
| 88266-32070 | ||||
| 88266-32080 | ||||
| 90159-50193 | ||||
| 90179-06081 | ||||
| 90464-00102 | ||||
| 91611-60612 | ||||
| 91611-60820 | ||||
| 91651-60614 | ||||
