SV25L-UEMNKW (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

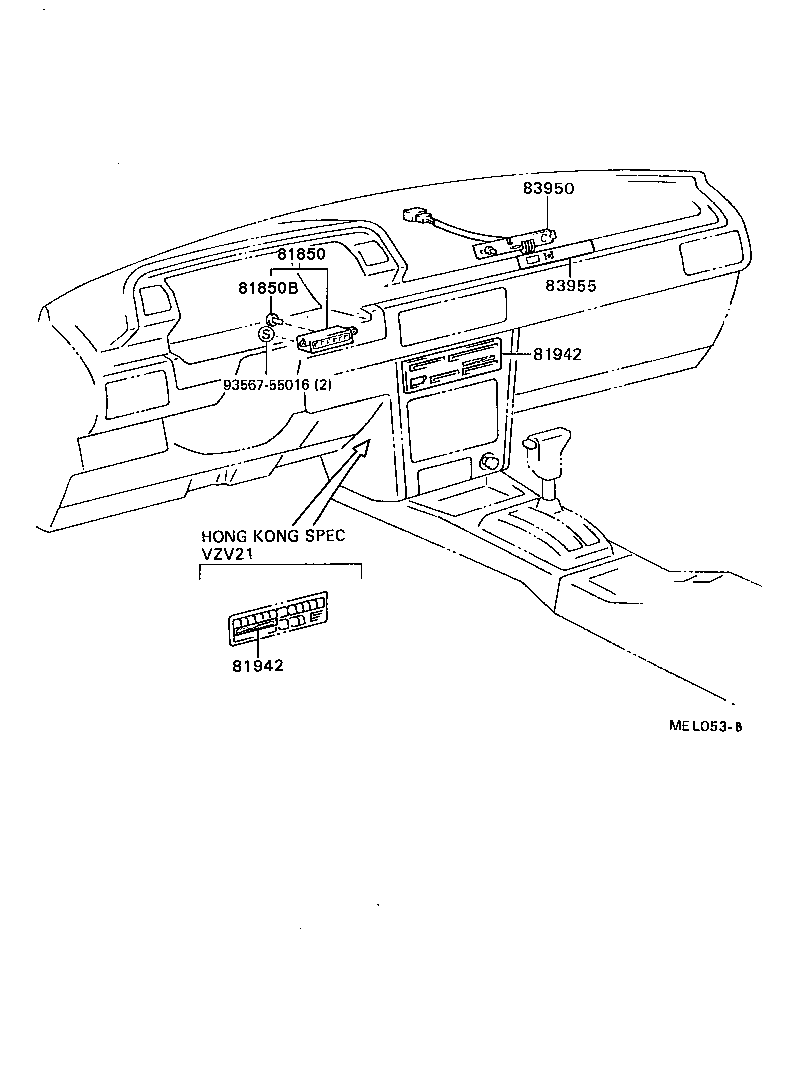

Click highlighted areas on diagram

diagram 81850 81850B 81942 81942 83950 83955 9356755016
Part # Description Qty Price
81942 - SHEET, HEATER CONTROL NAME
81942-32041

CV20,SV2#..LHD

 1
81942 - SHEET, HEATER CONTROL NAME
81942-32041

CV20,SV2#..LHD

 1
83950 - LAMP ASSY, TELLTALE
83950-32010

SV25

 1
83950-32020

SV25

W(*66)

 1
83955 - LENS, TELL TALE
83955-32030

SV25..LHD

 1
83955-32040

SV25..LHD

W(*66)

 1
Common parts
93567-55016
