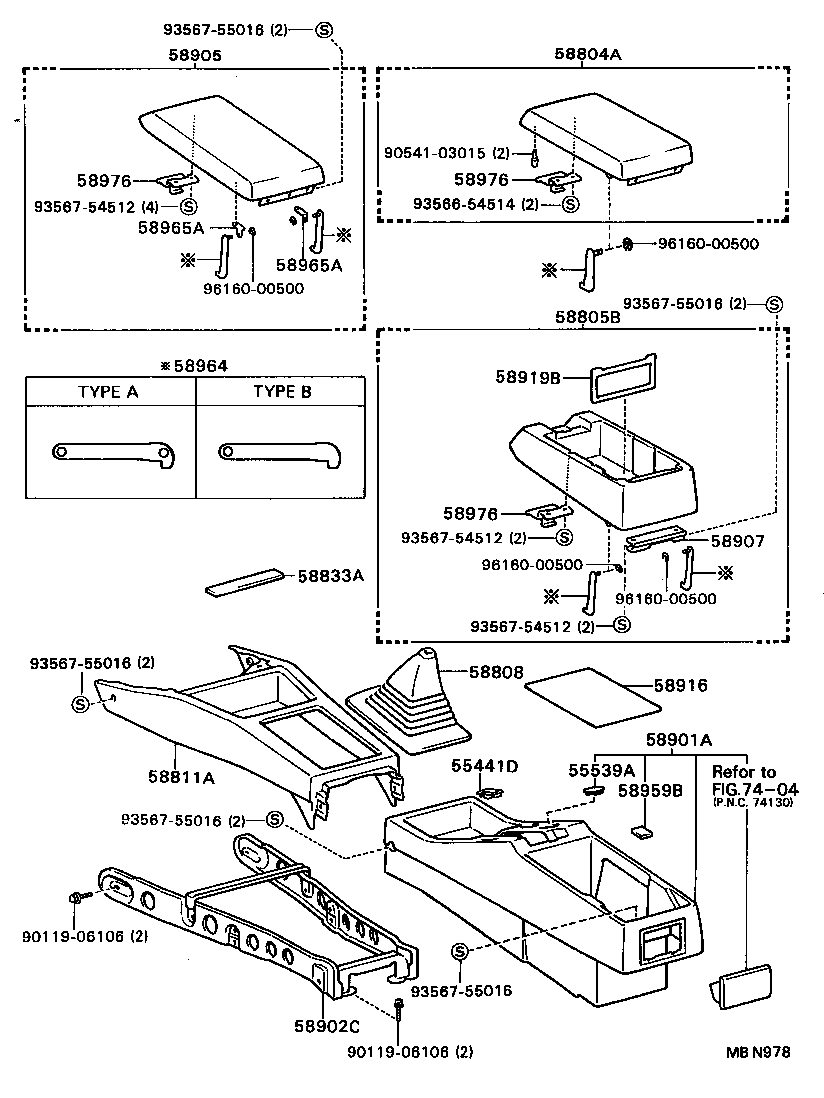

SV25L-UEMNKW (1988)
Toyota Camry
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55441D - BOX, INSTRUMENT PANEL COIN | ||||
| 55539-20020E0 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55539-3203003 |
CV20,SV2#,VZV21 MEDIUM GARY,TRIM1# |
1 | ||
| 55539-20020J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 55539-3203004 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 55539-3203006 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55539-20020B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2003013 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-2003036 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55539-2003014 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-3203003 |
CV20,SV2#,VZV21..GL,GLI,GXI MEDIUM GRAY,TRIM1# |
1 | ||
| 58804-3203006 |
CV20,SV2#,VZV21..LHD..(GL,GLI,GXI) BROWN,TRIM4# |
1 | ||
| 58804-3203004 |
CV20,SV2#,VZV21..GL,GLI,GXI DARK BLUE,TRIM8# |
1 | ||
| 58805B - PANEL SUB-ASSY, CONSOLE, LOWER | ||||
| 58805-3202104 |
CV20,SV2#,VZV21..GL,GLI,GXI DARK BLUE,TRIM8# |
1 | ||
| 58805-3202106 |
CV20,SV2#,VZV21..LHD..(GL,GLI,GXI) BROWN,TRIM4# |
1 | ||
| 58805-3202103 |
CV20,SV2#,VZV21..GL,GLI,GXI MEDIUM GRAY,TRIM1# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-3202001 |
CV20,SV2#,VZV21..LHD..5F..(GL,GLI,GXI) BLACK,TRIM1#,4#,8# |
1 | ||
| 58808-3202001 |
CV20,SV2#,VZV21..LHD..5F BLACK,TRIM1#,4#,8# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-3205004 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 58811-3205003 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 58811-3205006 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 58833A - COVER, CONSOLE, UPPER | ||||
| 58833-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-3204206 |
SV25..LHD BROWN,TRIM4# |
1 | ||
| 58901-3204204 |
SV25 DARK BLUE,TRIM8# |
1 | ||
| 58901-3204203 |
SV25 MEDIUM GRAY,TRIM1# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-32011 |
CV20,SV2#,VZV21 |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-89101 |
CV20,SV2#,VZV21..GL,GLI,GXI |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-32070 |
SV25 |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-32010 |
CV20,SV2#,VZV21..GL,GLI,GXI |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-16010 |
CV20,SV2#,VZV21 |
2 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-32040 |
CV20,SV2#,VZV21 TYPE B |
1 | ||
| 58964-30040 |
CV20,SV2#,VZV21..GL,GLI,GXI TYPE A |
2 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58908-32020 |
CV20,SV2#,VZV21..GL,GLI,GXI |
2 | ||
| 58976-22020 |
CV20,SV2#,VZV21..GL,GLI,GXI |
2 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58908-32020 |
CV20,SV2#,VZV21..GL,GLI,GXI |
2 | ||
| 58976-22020 |
CV20,SV2#,VZV21..GL,GLI,GXI |
2 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58908-32020 |
CV20,SV2#,VZV21..GL,GLI,GXI |
2 | ||
| 58976-22020 |
CV20,SV2#,VZV21..GL,GLI,GXI |
2 | ||
| Common parts | ||||
| 90119-06106 | ||||
| 90541-03015 | ||||
| 93566-54514 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 7404 | ||||
