SV25L-UEMNKW (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )SV25

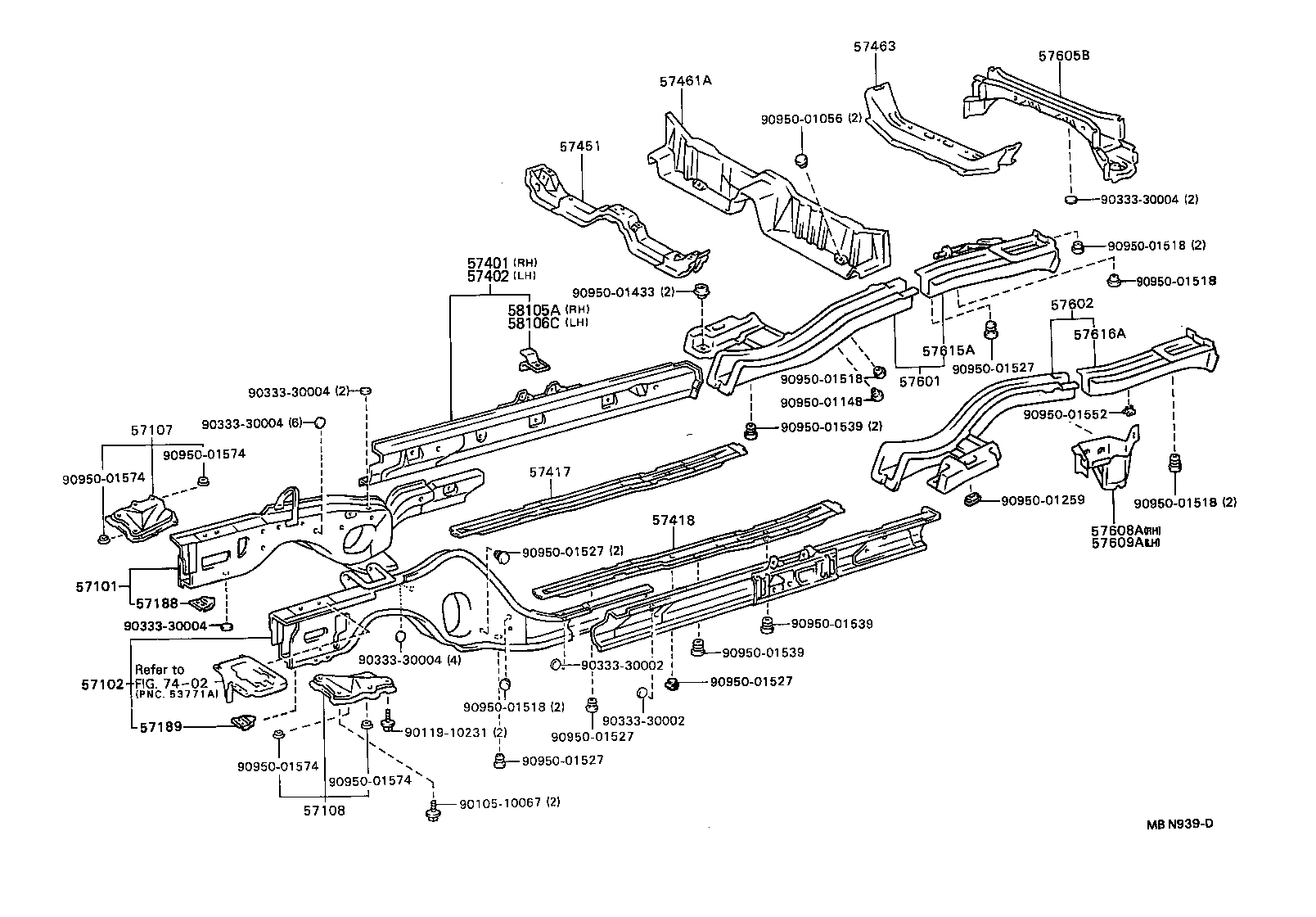

Click highlighted areas on diagram

diagram 57101 57102 57107 57108 57188 57189 57401 57402 57417 57418 57451 57461A 57463 57601 57602 57605B 57608A 57609A 57615A 57616A 58105A 58106C 7402 9010510067 9011910231 9033330002 9033330002 9033330004 9033330004 9033330004 9033330004 9033330004 9095001056 9095001148 9095001259 9095001433 9095001518 9095001518 9095001518 9095001518 9095001518 9095001527 9095001527 9095001527 9095001527 9095001527 9095001539 9095001539 9095001539 9095001552 9095001574 9095001574 9095001574 9095001574
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-32050

CV20,SV25

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-32050

CV20,SV2#,VZV21

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-32020

CV20,SV2#,VZV21

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-32020

CV20,SV2#,VZV21

 1
57188 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57188-32030

CV20,SV25

 1
57189 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57189-32030

CV20,SV2#,VZV21

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-32050

CV20,SV2#,VZV21

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-32050

CV20,SV2#,VZV21

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-32030

CV20,SV2#,VZV21

 1
57417-32031

CV20,SV2#,VZV21

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57417-32031

CV20,SV2#,VZV21

 1
57417-32030

CV20,SV2#,VZV21

 1
57451 - MEMBER, FRONT FLOOR CROSS
57408-32030

SV25

 1
57461A - MEMBER, CENTER FLOOR CROSS
57461-20030

SV25

 1
57463 - MEMBER, CENTER FLOOR CROSS, NO.3
57463-20020

SV25

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-32110

SV25

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-32100

SV25

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-32040

SV25

 1
57608A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57608-20050

SV25

 1
57609A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57609-20050

SV25

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-32909

SV25

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-32909

SV25

 1
58105A - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE, RH
58105-32020

CV20,SV2#,VZV21

 1
58106C - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH
58106-32020

CV20,SV2#,VZV21

 1
Common parts
90105-10067
90119-10231
90333-30002
90333-30004
90950-01056
90950-01148
90950-01259
90950-01433
90950-01518
90950-01527
90950-01539
90950-01552
90950-01574
Linked diagrams
7402
