SV25L-UEMNKA (1987)
Toyota Camry
Production
Oct 1987
-
Aug 1988
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8710- )SV25

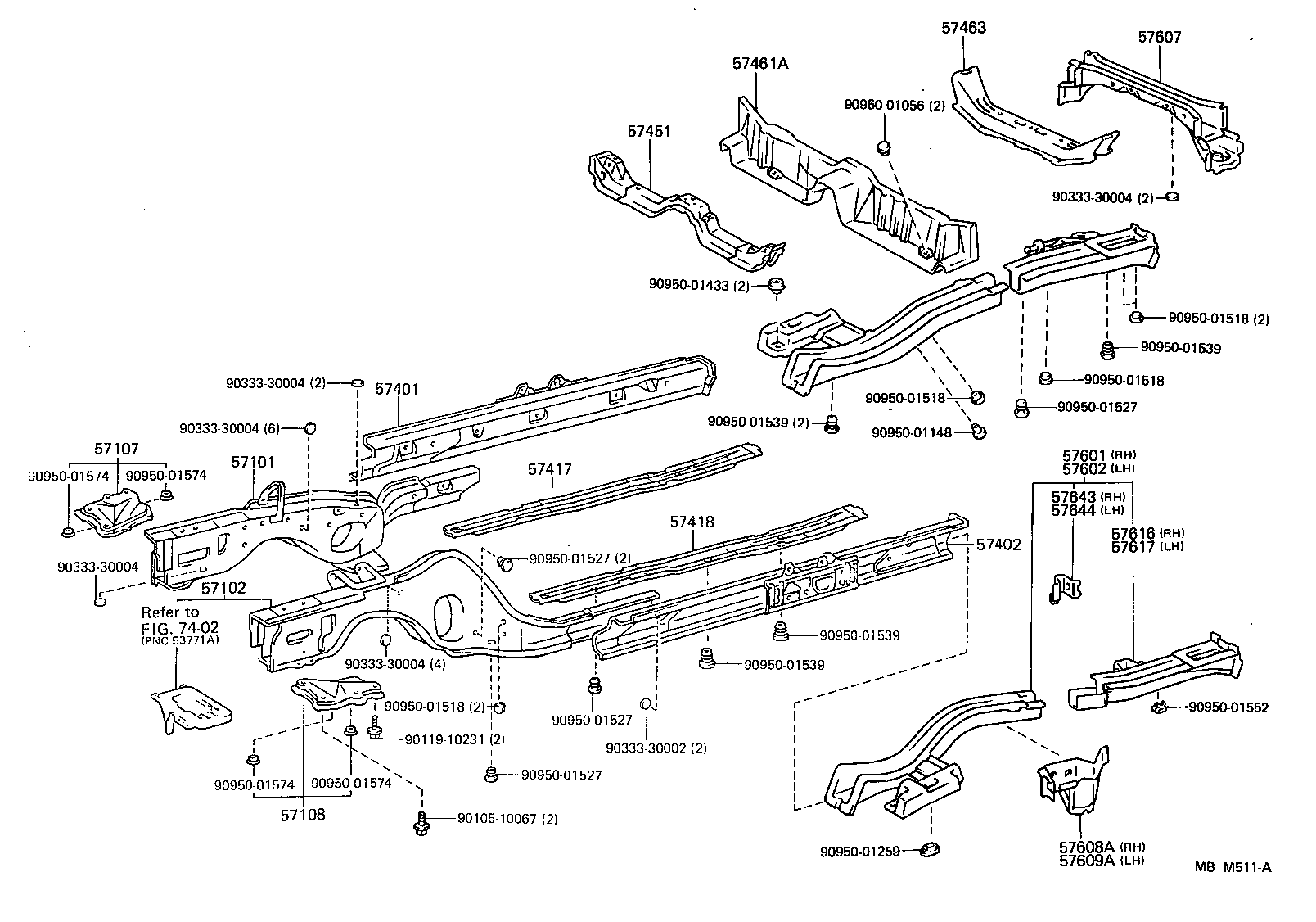

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-32041 |
SV2# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-32041 |
SV2#,VZV21 |
1 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-32020 |
SV2#,VZV21 |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-32020 |
SV2#,VZV21 |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-32030 |
SV2#,VZV21..USA |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-32030 |
SV2#,VZV21..USA |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-32030 |
SV2#,VZV21 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-32030 |
SV2#,VZV21 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-32030 |
SV25 |
1 | ||
| 57461A - MEMBER, CENTER FLOOR CROSS | ||||
| 57461-20030 |
SV25 |
1 | ||
| 57463 - MEMBER, CENTER FLOOR CROSS, NO.3 | ||||
| 57463-20020 |
SV25 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-32120 |
SV25 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-32110 |
SV25 |
1 | ||
| 57607 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1 | ||||
| 57605-32040 |
SV25 |
1 | ||
| 57608A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-20050 |
SV25 |
1 | ||
| 57609A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-20050 |
SV25 |
1 | ||
| 57616 - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-32910 |
SV25 |
1 | ||
| 57617 - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-32910 |
SV25 |
1 | ||
| 57643 - STIFFENER, REAR FLOOR SIDE MEMBER, CENTER RH | ||||
| 57643-20020 |
SV25 |
1 | ||
| 57644 - STIFFENER, REAR FLOOR SIDE MEMBER, CENTER LH | ||||
| 57644-20020 |
SV25 |
1 | ||
| Common parts | ||||
| 90105-10067 | ||||
| 90119-10231 | ||||
| 90333-30002 | ||||
| 90333-30004 | ||||
| 90950-01056 | ||||
| 90950-01148 | ||||
| 90950-01259 | ||||
| 90950-01433 | ||||
| 90950-01518 | ||||
| 90950-01527 | ||||
| 90950-01539 | ||||
| 90950-01552 | ||||
| 90950-01574 | ||||
| Linked diagrams | ||||
| 7402 | ||||
(8710- )SV25

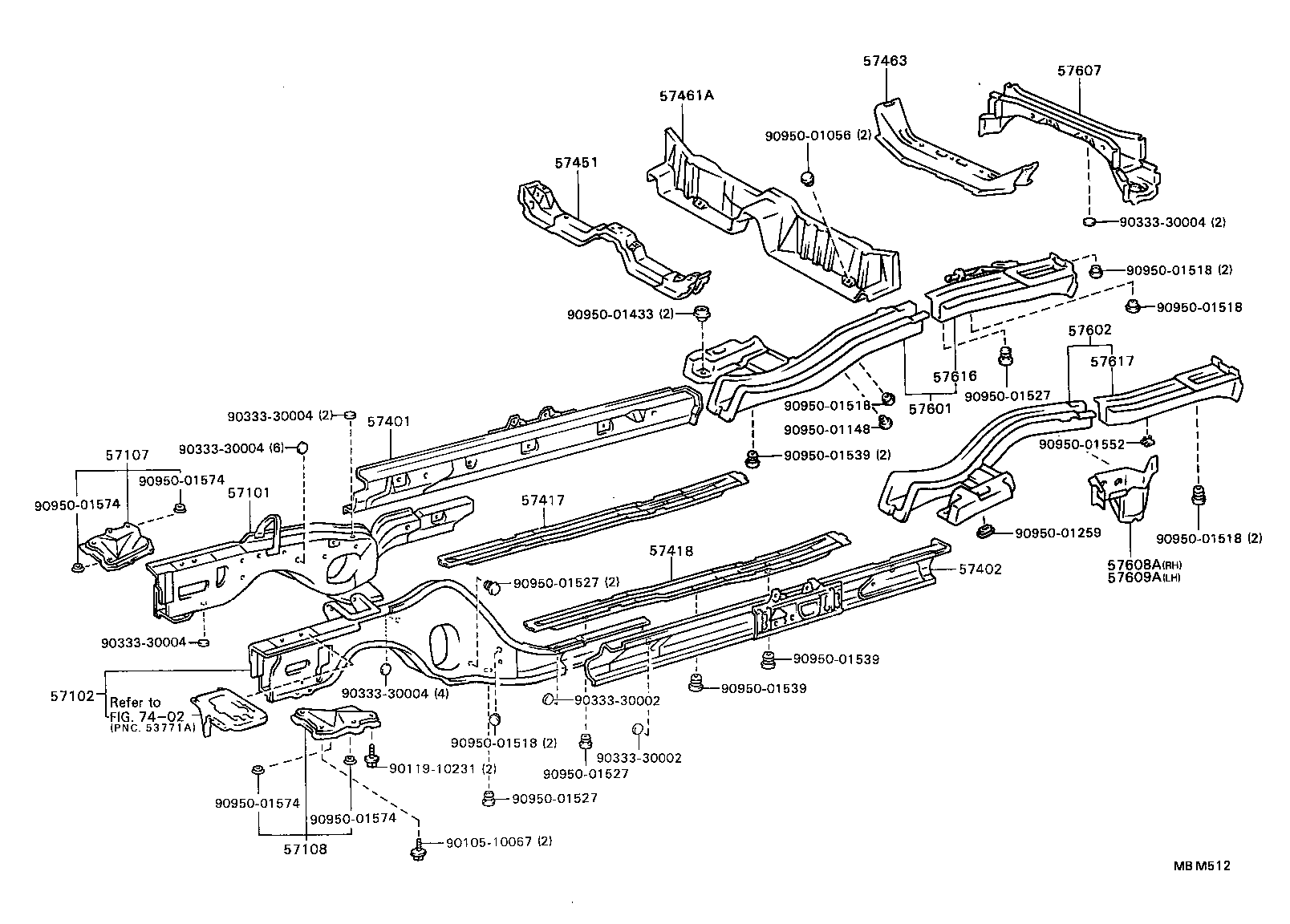

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10067 | ||||
| 90119-10231 | ||||
| 90333-30002 | ||||
| 90333-30004 | ||||
| 90950-01056 | ||||
| 90950-01148 | ||||
| 90950-01259 | ||||
| 90950-01433 | ||||
| 90950-01518 | ||||
| 90950-01527 | ||||
| 90950-01539 | ||||
| 90950-01552 | ||||
| 90950-01574 | ||||
| Linked diagrams | ||||
| 7402 | ||||
