SV21RG-UWPNKW (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RHD

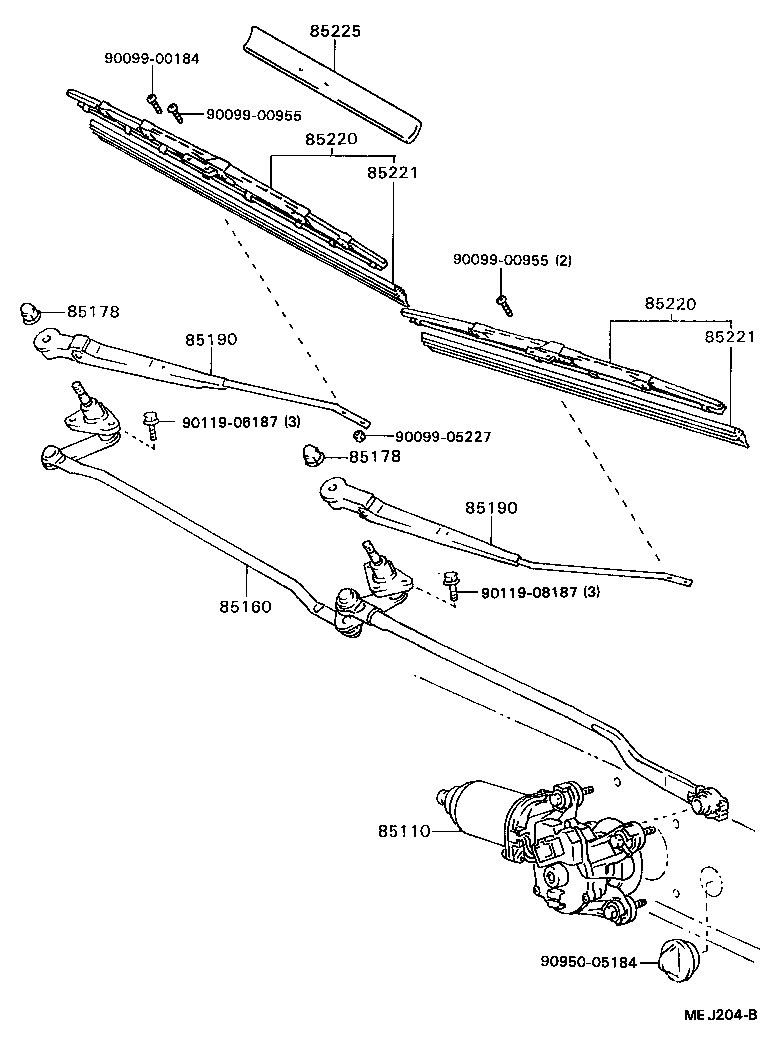

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85220 85220 85221 85221 85225 9009900184 9009900955 9009900955 9009905227 9011906187 9011908187 9095005184
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-32202

CV20,SV2#,VZV21..RHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-32101

CV20,SV2#,VZV21..RHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08040

CV20,SV2#,VZV21

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08040

CV20,SV2#,VZV21

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-32251

CV20,SV2#,VZV21..RHD

RH

 1
85210-32190

CV20,SV2#,VZV21..RHD

LH

 1
85190-32252

CV20,SV2#,VZV21..RHD

RH

 1
85210-32191

CV20,SV2#,VZV21..RHD

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-32251

CV20,SV2#,VZV21..RHD

RH

 1
85210-32190

CV20,SV2#,VZV21..RHD

LH

 1
85190-32252

CV20,SV2#,VZV21..RHD

RH

 1
85210-32191

CV20,SV2#,VZV21..RHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16230

CV20,SV2#,VZV21..RHD

LH

 1
85220-32841

CV20,SV2#,VZV21..RHD

RH

 1
85220-32840

CV20,SV2#,VZV21..RHD

RH

 1
85220-16321

CV20,SV2#,VZV21..RHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16230

CV20,SV2#,VZV21..RHD

LH

 1
85220-32841

CV20,SV2#,VZV21..RHD

RH

 1
85220-32840

CV20,SV2#,VZV21..RHD

RH

 1
85220-16321

CV20,SV2#,VZV21..RHD

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-14290

CV20,SV2#,VZV21..RHD

RH

 1
85221-30100

CV20,SV2#,VZV21..RHD

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-14290

CV20,SV2#,VZV21..RHD

RH

 1
85221-30100

CV20,SV2#,VZV21..RHD

LH

 1
85225 - WING, WIPER BLADE
85225-32250

CV20,SV2#,VZV21..RHD

 1
Common parts
90099-00184
90099-00955
90099-05227
90119-06187
90119-08187
90950-05184
