SV21RG-UWPNKW (1988)
Toyota Camry

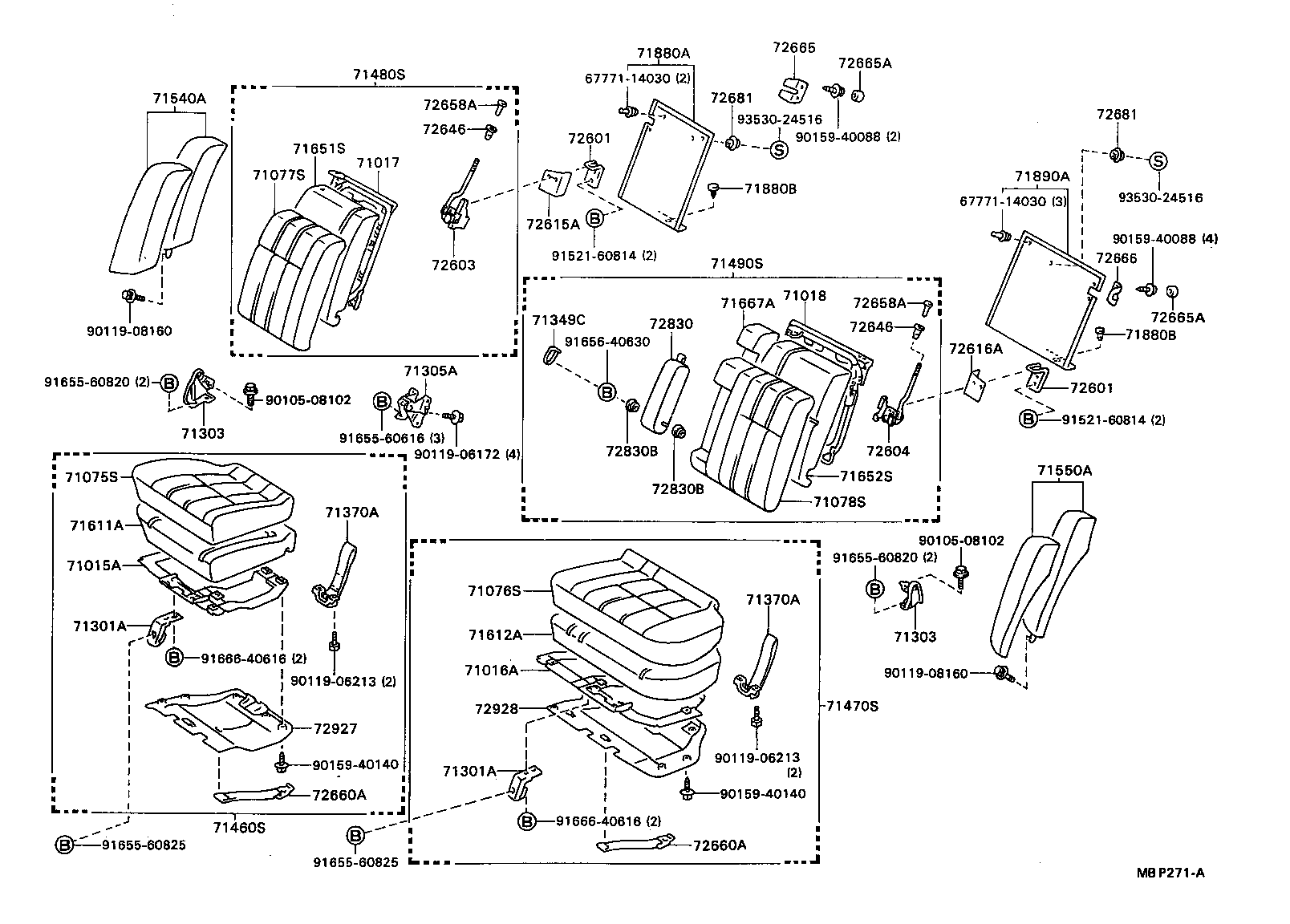

ILLUST NO. 1 OF 2(8808- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-32040 |
CV20,SV21,VZV21..WG |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-32010 |
CV20,SV21,VZV21..WG |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-32090 |
CV20,SV21,VZV21..WG |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-32030 |
SV21,VZV21..WG..(GLI,GXI) |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71065-3204004 |
SV21..WG..GLI DARK BLUE,TRIM8# |
1 | ||
| 71065-3204003 |
SV21..WG..GLI MEDIUM GRAY,TRIM1# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-3207004 |
SV21..WG..GLI DARK BLUE,TRIM8# |
1 | ||
| 71076-3207003 |
SV21..WG..GLI MEDIUM GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-3288003 |
SV21..WG..GLI MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-3288004 |
SV21..WG..GLI DARK BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-3247004 |
SV21..WG..GLI DARK BLUE,TRIM8# |
1 | ||
| 71078-3247003 |
SV21..WG..GLI MEDIUM GRAY,TRIM1# |
1 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-32020 |
CV20,SV21,VZV21..WG |
2 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-32020 |
CV20,SV21,VZV21..WG |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71304-32020 |
CV20,SV21,VZV21..WG LH |
1 | ||
| 71303-32020 |
CV20,SV21,VZV21..WG RH |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71304-32020 |
CV20,SV21,VZV21..WG LH |
1 | ||
| 71303-32020 |
CV20,SV21,VZV21..WG RH |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-32020 |
CV20,SV21,VZV21..WG |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-32030J0 |
CV20,SV25..SED;SV21..SED..XLI;SV21,VZV21..GLI,GXI DARK BLUE,TRIM8# |
1 | ||
| 71349-32030B0 |
CV20,SV25..SED;SV21..SED..XLI;SV21,VZV21..GLI,GXI MEDIUM GRAY,TRIM1# |
1 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-3202004 |
CV20,SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 71370-3202003 |
CV20,SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-3202004 |
CV20,SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 71370-3202003 |
CV20,SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71560-3205003 |
SV21..WG..GLI ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71560-3205004 |
SV21..WG..GLI ***,DARK BLUE,TRIM8# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-3207004 |
SV21..WG..GLI ***,DARK BLUE,TRIM8# |
1 | ||
| 71470-3207003 |
SV21..WG..GLI ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-3H02003 |
SV21..WG..GLI ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-3H02004 |
SV21..WG..GLI ***,DARK BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-3249003 |
SV21..WG..GLI ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71490-3249004 |
SV21..WG..GLI ***,DARK BLUE,TRIM8# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-3245004 |
SV21..WG..GLI DARK BLUE,TRIM8# |
1 | ||
| 71540-3245003 |
SV21..WG..GLI MEDIUM GRAY,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-3245003 |
SV21..WG..GLI MEDIUM GRAY,TRIM1# |
1 | ||
| 71550-3245004 |
SV21..WG..GLI DARK BLUE,TRIM8# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-32120 |
CV20,SV21,VZV21..WG |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-32030 |
CV20,SV21,VZV21..WG |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-32100 |
CV20,SV21,VZV21..WG |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-32080 |
SV21,VZV21..WG..(GLI,GXI) |
1 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71667-32010 |
CV20,SV25..SED;SV21..SED..XLI;SV21,VZV21..GLI,GXI |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-3203004 |
SV21,VZV21..WG..(GLI,GXI) DARK BLUE,TRIM8# |
1 | ||
| 71880-3203003 |
SV21,VZV21..WG..(GLI,GXI) MEDIUM GRAY,TRIM1# |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0604924 |
CV20,SV21..WG DARK BLUE,TRIM8# |
5 | ||
| 90467-06049J1 |
CV20,SV21,VZV21..WG DARK BLUE,TRIM8# |
5 | ||
| 90467-0604923 |
CV20,SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
5 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0604924 |
CV20,SV21..WG DARK BLUE,TRIM8# |
5 | ||
| 90467-06049J1 |
CV20,SV21,VZV21..WG DARK BLUE,TRIM8# |
5 | ||
| 90467-0604923 |
CV20,SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
5 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-3203003 |
SV21,VZV21..WG..(GLI,GXI) MEDIUM GRAY,TRIM1# |
1 | ||
| 71890-3203004 |
SV21,VZV21..WG..(GLI,GXI) DARK BLUE,TRIM8# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-32010 |
CV20,SV21,VZV21 |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-32010 |
CV20,SV21,VZV21 |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-32030 |
CV20,SV21,VZV21..WG |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-32030 |
CV20,SV21,VZV21..WG |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72605-3201013 |
SV21,VZV21..WG..(GLI,GXI) MEDIUM GRAY,TRIM1# |
1 | ||
| 72605-3201014 |
SV21,VZV21..WG..(GLI,GXI) DARK BLUE,TRIM8# |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72606-3201014 |
SV21,VZV21..WG..(GLI,GXI) DARK BLUE,TRIM8# |
1 | ||
| 72606-3201013 |
SV21,VZV21..WG..(GLI,GXI) MEDIUM GRAY,TRIM1# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-3201003 |
CV20,SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 72646-3201004 |
CV20,SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 72646-3201003 |
CV20,SV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-3201003 |
CV20,SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 72646-3201004 |
CV20,SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 72646-3201003 |
CV20,SV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-23010B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
2 | ||
| 72658-23010J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
2 | ||
| 72658-23010J0 |
CV20,SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 72658-2004013 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
2 | ||
| 72658-23010B0 |
CV20,SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 72658-2004004 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
2 | ||
| 72658-23010B0 |
SV21,VZV21..WG..(GLI,GXI) MEDIUM GRAY,TRIM1# |
2 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-23010B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
2 | ||
| 72658-23010J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
2 | ||
| 72658-23010J0 |
CV20,SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 72658-2004013 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
2 | ||
| 72658-23010B0 |
CV20,SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 72658-2004004 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
2 | ||
| 72658-23010B0 |
SV21,VZV21..WG..(GLI,GXI) MEDIUM GRAY,TRIM1# |
2 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-3202003 |
CV20,SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 72660-3202004 |
CV20,SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-3202003 |
CV20,SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 72660-3202004 |
CV20,SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-3203004 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 72665-3203003 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 72665A - CAP(FOR REAR SEAT BACK LOCK COVER) | ||||
| 90339-10001B2 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-10001B2 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-10001J1 |
SV21..WG;CV20,VZV21..GXI,XL;CV20,SV2#..SED..LHD..(GL,GLI,XLI) DARK BLUE,TRIM8# |
4 | ||
| 90339-10001B2 |
SV25;CV20,SV21..WG MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-10001J1 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
4 | ||
| 72665A - CAP(FOR REAR SEAT BACK LOCK COVER) | ||||
| 90339-10001B2 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-10001B2 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-10001J1 |
SV21..WG;CV20,VZV21..GXI,XL;CV20,SV2#..SED..LHD..(GL,GLI,XLI) DARK BLUE,TRIM8# |
4 | ||
| 90339-10001B2 |
SV25;CV20,SV21..WG MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-10001J1 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
4 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72665-3203003 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 72665-3203004 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-1601043 |
CV20,SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 72681-1601034 |
CV20,SV21..WG DARK BLUE,TRIM8# |
2 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-1601043 |
CV20,SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 72681-1601034 |
CV20,SV21..WG DARK BLUE,TRIM8# |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3230004 |
CV20,SV2#..GL,GLI DARK BLUE,TRIM8# |
1 | ||
| 72830-3230003 |
CV20,SV2#..GL,GLI MEDIUM GRAY,TRIM1# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06036 |
CV20,SV25..SED;SV21..SED..XLI;SV21,VZV21..GLI,GXI LH |
1 | ||
| 90386-06028 |
CV20,SV25..SED;SV21..SED..XLI;SV21,VZV21..GLI,GXI RH |
1 | ||
| 90386-06002 |
SV21..GLI;SV21..SED..XLI;CV20,SV25,VZV21..SED LH |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06036 |
CV20,SV25..SED;SV21..SED..XLI;SV21,VZV21..GLI,GXI LH |
1 | ||
| 90386-06028 |
CV20,SV25..SED;SV21..SED..XLI;SV21,VZV21..GLI,GXI RH |
1 | ||
| 90386-06002 |
SV21..GLI;SV21..SED..XLI;CV20,SV25,VZV21..SED LH |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-3201104 |
CV20,SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 72927-3201103 |
CV20,SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-3201104 |
CV20,SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 72928-3201103 |
CV20,SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-14030 | ||||
| 90105-08102 | ||||
| 90119-06172 | ||||
| 90119-06213 | ||||
| 90119-08160 | ||||
| 90159-40088 | ||||
| 90159-40140 | ||||
| 91521-60814 | ||||
| 91655-60616 | ||||
| 91655-60820 | ||||
| 91655-60825 | ||||
| 91656-40630 | ||||
| 91666-40616 | ||||
| 93530-24516 | ||||
ILLUST NO. 2 OF 2(8808-9008)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9008- )
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
