SV21RG-UWMNKW (1986)
Toyota Camry
Production
Oct 1986
-
Aug 1988
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )SV21,25

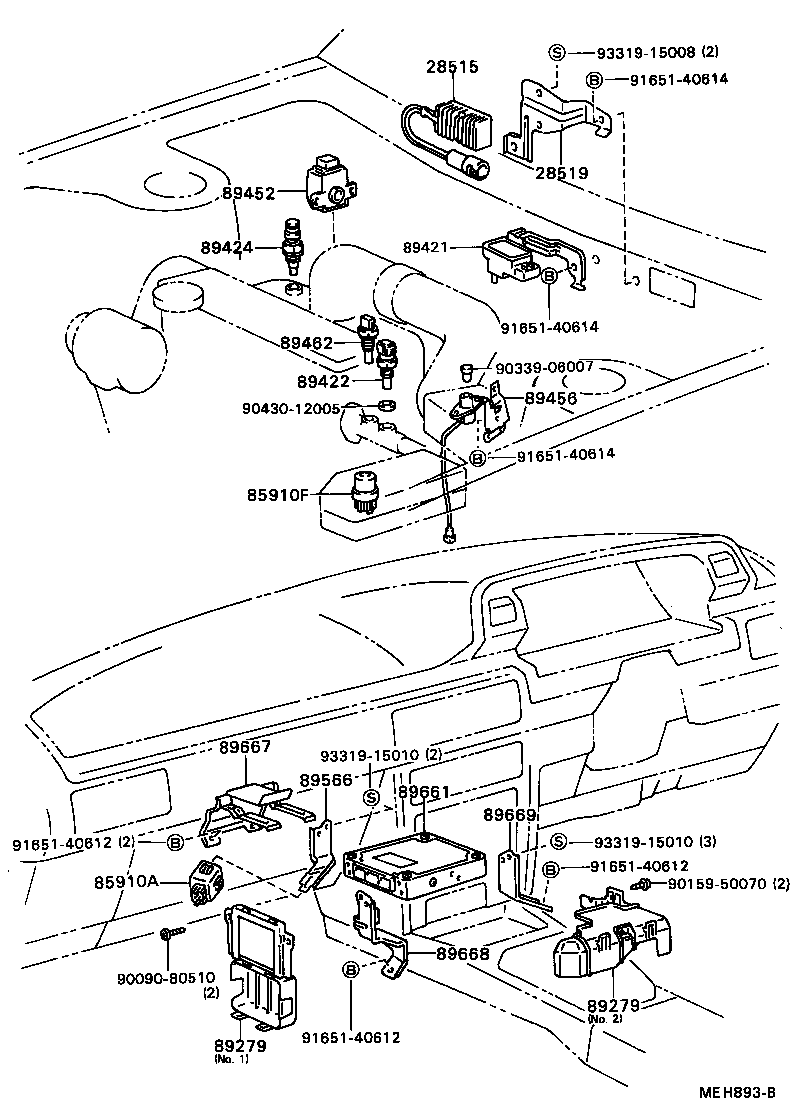

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-11010 |
3SFE..SV21 |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-63030 |
3SFE..SV21..RHD |
1 | ||
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
SV21 |
1 | ||
| 85910-30050 |
SV21,25,VZV21 |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
SV21 |
1 | ||
| 90987-02004 |
SV21,25,VZV21 |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-32080 |
SV21..RHD NO.2 |
1 | ||
| 89279-32070 |
SV21 NO.1 |
1 | ||
| 89279-32070 |
SV21,25 NO.1 |
1 | ||
| 89279-32080 |
SV21,25..RHD NO.2 |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-32080 |
SV21..RHD NO.2 |
1 | ||
| 89279-32070 |
SV21 NO.1 |
1 | ||
| 89279-32070 |
SV21,25 NO.1 |
1 | ||
| 89279-32080 |
SV21,25..RHD NO.2 |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89420-32010 |
SV21..EUG |
1 | ||
| 89420-32010 |
SV21,25..EUG |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
SV21,25,VZV21 |
1 | ||
| 89422-30020 |
SV21 |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-28010 |
SV21,25..EUG |
1 | ||
| 89424-28010 |
SV21..EUG |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-32020 |
SV21,25 |
1 | ||
| 89452-32020 |
SV21 |
1 | ||
| 89456 - RESISTOR, VARIABLE | ||||
| 89456-32010 |
SV21..EUG |
1 | ||
| 89456-32010 |
SV21,25..EUG |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-40010 |
SV21 |
1 | ||
| 89462-40010 |
SV25..EUG;SV21,VZV21 |
1 | ||
| 89566 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89566-32020 |
SV21,25..RHD |
1 | ||
| 89566-32020 |
SV21..RHD |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-32080 |
SV21..EUG |
1 | ||
| 89661-20490 |
SV21..EUG |
1 | ||
| 89661-32200 |
SV21..EUG |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-32020 |
SV21,25,VZV21 |
1 | ||
| 89667-32020 |
SV21 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-32010 |
SV21,25..RHD |
1 | ||
| 89668-32010 |
SV21..RHD |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-32030 |
SV21..RHD |
1 | ||
| 89669-32030 |
SV21,25..RHD |
1 | ||
| Common parts | ||||
| 90090-80510 | ||||
| 90159-50070 | ||||
| 90339-06007 | ||||
| 90430-12005 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93319-15008 | ||||
| 93319-15010 | ||||
