SV21LG-UWPDKW (1986)
Toyota Camry

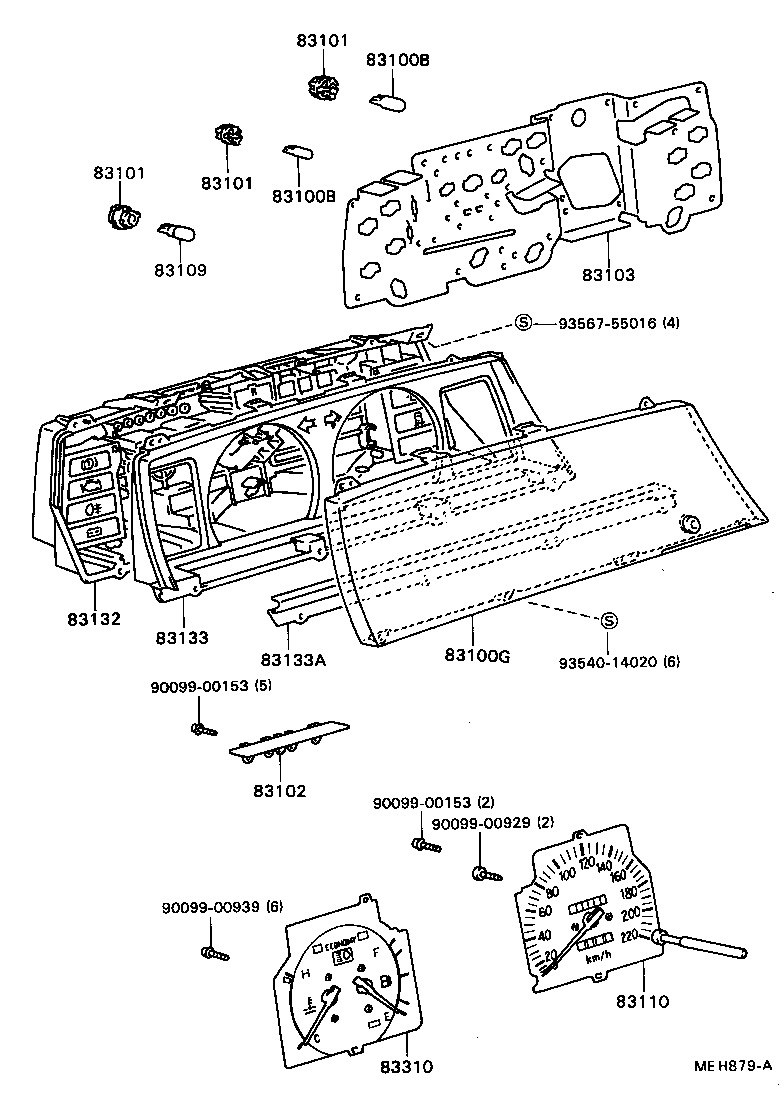

ILLUST NO. 1 OF 5(8610- )XL,XLI
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
CV20,SV2# 12V 1.2W W/O SOCKET,12V 1.4W |
11 | ||
| 99132-12034 |
CV20,SV2# 12V 3.4W,12V 3.4W |
15 | ||
| 83109-10010 |
SV21..XLI 12V 1.4W,ORANGE CAP,12V 1.4W W(TACHOMETER) |
1 | ||
| 90981-11018 |
CV20,SV20,21..XL,XLI 12V 1.2W W/O SOCKET |
2 | ||
| 83109-10010 |
SV21 12V 1.4W,ORANGE CAP,12V 1.4W ORENGE CAP |
1 | ||
| 90981-11018 |
SV21..XLI..EUG 12V 1.2W W/O SOCKET,W(TACHOMETER) |
10 | ||
| 99132-12034 |
SV21..XLI 12V 3.4W,12V 3.4W W(TACOMETER) |
1 | ||
| 99132-12034 |
SV21..XLI 12V 3.4W,12V 3.4W |
12 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
CV20,SV2# 12V 1.2W W/O SOCKET,12V 1.4W |
11 | ||
| 99132-12034 |
CV20,SV2# 12V 3.4W,12V 3.4W |
15 | ||
| 83109-10010 |
SV21..XLI 12V 1.4W,ORANGE CAP,12V 1.4W W(TACHOMETER) |
1 | ||
| 90981-11018 |
CV20,SV20,21..XL,XLI 12V 1.2W W/O SOCKET |
2 | ||
| 83109-10010 |
SV21 12V 1.4W,ORANGE CAP,12V 1.4W ORENGE CAP |
1 | ||
| 90981-11018 |
SV21..XLI..EUG 12V 1.2W W/O SOCKET,W(TACHOMETER) |
10 | ||
| 99132-12034 |
SV21..XLI 12V 3.4W,12V 3.4W W(TACOMETER) |
1 | ||
| 99132-12034 |
SV21..XLI 12V 3.4W,12V 3.4W |
12 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-32050 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 83138-32050 |
CV20,SV2#..LHD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
CV20,SV2# 12V 3.4W BULB |
12 | ||
| 83101-14030 |
SV21..XLI 12V 3.4W BULB,W(TACHOMETER) |
5 | ||
| 83101-14040 |
CV20,SV2# 12V 1.4W BULB |
11 | ||
| 83101-14040 |
CV20,SV20,21..XL,XLI 12V 1.4W BULB |
2 | ||
| 83101-14030 |
SV21..XLI 12V 3.4W BULB |
16 | ||
| 83101-14040 |
SV21..XLI W(TACHOMETER) 12V 1.4W BULB |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
CV20,SV2# 12V 3.4W BULB |
12 | ||
| 83101-14030 |
SV21..XLI 12V 3.4W BULB,W(TACHOMETER) |
5 | ||
| 83101-14040 |
CV20,SV2# 12V 1.4W BULB |
11 | ||
| 83101-14040 |
CV20,SV20,21..XL,XLI 12V 1.4W BULB |
2 | ||
| 83101-14030 |
SV21..XLI 12V 3.4W BULB |
16 | ||
| 83101-14040 |
SV21..XLI W(TACHOMETER) 12V 1.4W BULB |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
CV20,SV2# 12V 3.4W BULB |
12 | ||
| 83101-14030 |
SV21..XLI 12V 3.4W BULB,W(TACHOMETER) |
5 | ||
| 83101-14040 |
CV20,SV2# 12V 1.4W BULB |
11 | ||
| 83101-14040 |
CV20,SV20,21..XL,XLI 12V 1.4W BULB |
2 | ||
| 83101-14030 |
SV21..XLI 12V 3.4W BULB |
16 | ||
| 83101-14040 |
SV21..XLI W(TACHOMETER) 12V 1.4W BULB |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-32740 |
SV2#..LHD W/TACHOMETER |
1 | ||
| 83247-32680 |
SV2#..XL,XLI |
1 | ||
| 83247-32740 |
SV21..XLI W(TACHOMETER) |
1 | ||
| 83247-32680 |
SV20,21..XL,XLI |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-32400 |
SV21..LHD W/TACHOMETER |
1 | ||
| 83247-32860 |
SV21..XLI W(*TAC) OR W(*66 & *TAC) |
1 | ||
| 83247-32500 |
SV2#..XL,XLI |
1 | ||
| 83247-3H290 |
SV21..XLI W(ANTI-LOCK BRAKE SYSTEM) |
1 | ||
| 83247-32860 |
SV21..LHD W(TACHOMETER) |
1 | ||
| 83247-32500 |
SV20,21..XL,XLI |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
CV20,SV2# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-24020 |
CV20,SV2#,VZV21 12V3.4W W(GREEN CAP) |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-32470 |
CV20,SV2#..LHD W/TACHOMETER |
1 | ||
| 83110-32460 |
CV20,SV2#..LHD..(XL,XLI) |
1 | ||
| 83110-32460 |
CV20,SV20,21..LHD..(XL,XLI) |
1 | ||
| 83110-32470 |
SV21..XLI W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-32320 |
SV2#..LHD W/TACHOMETER |
1 | ||
| 83132-32140 |
SV21..XLI |
1 | ||
| 83132-32140 |
SV21..XLI |
1 | ||
| 83132-32480 |
SV21..XLI W(ANTI-LOCK BRAKE SYSTEM) |
1 | ||
| 83132-32320 |
SV21..XLI W(*TAC) OR W(*66 & *TAC) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-32550 |
CV20,SV2#..LHD..(XL,XLI) |
1 | ||
| 83133-32570 |
SV21..XLI W(TACHOMETER) |
1 | ||
| 83133-32550 |
CV20,SV20,21..LHD..(XL,XLI) |
1 | ||
| 83133-32570 |
CV20,SV2#..LHD W/TACHOMETER |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-32610 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 83133-32610 |
CV20,SV2#..LHD |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-32370 |
SV2#..(XL,XLI)..EUG |
1 | ||
| 83243-32490 |
CV20,SV21..LHD..EUG W/TACHOMETER |
1 | ||
| 83243-32630 |
SV21..XLI..EUG W(TACHOMETER) |
1 | ||
| 83243-32370 |
SV20,21..(XL,XLI)..EUG |
1 | ||
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
ILLUST NO. 1 OF 5(8610- )
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
CV20,SV2# 12V 1.2W W/O SOCKET,12V 1.4W |
11 | ||
| 99132-12034 |
CV20,SV2# 12V 3.4W,12V 3.4W |
15 | ||
| 83109-10010 |
SV21..XLI 12V 1.4W,ORANGE CAP,12V 1.4W W(TACHOMETER) |
1 | ||
| 90981-11018 |
CV20,SV20,21..XL,XLI 12V 1.2W W/O SOCKET |
2 | ||
| 83109-10010 |
SV21 12V 1.4W,ORANGE CAP,12V 1.4W ORENGE CAP |
1 | ||
| 90981-11018 |
SV21..XLI..EUG 12V 1.2W W/O SOCKET,W(TACHOMETER) |
10 | ||
| 99132-12034 |
SV21..XLI 12V 3.4W,12V 3.4W W(TACOMETER) |
1 | ||
| 99132-12034 |
SV21..XLI 12V 3.4W,12V 3.4W |
12 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
CV20,SV2# 12V 1.2W W/O SOCKET,12V 1.4W |
11 | ||
| 99132-12034 |
CV20,SV2# 12V 3.4W,12V 3.4W |
15 | ||
| 83109-10010 |
SV21..XLI 12V 1.4W,ORANGE CAP,12V 1.4W W(TACHOMETER) |
1 | ||
| 90981-11018 |
CV20,SV20,21..XL,XLI 12V 1.2W W/O SOCKET |
2 | ||
| 83109-10010 |
SV21 12V 1.4W,ORANGE CAP,12V 1.4W ORENGE CAP |
1 | ||
| 90981-11018 |
SV21..XLI..EUG 12V 1.2W W/O SOCKET,W(TACHOMETER) |
10 | ||
| 99132-12034 |
SV21..XLI 12V 3.4W,12V 3.4W W(TACOMETER) |
1 | ||
| 99132-12034 |
SV21..XLI 12V 3.4W,12V 3.4W |
12 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-32050 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 83138-32050 |
CV20,SV2#..LHD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
CV20,SV2# 12V 3.4W BULB |
12 | ||
| 83101-14030 |
SV21..XLI 12V 3.4W BULB,W(TACHOMETER) |
5 | ||
| 83101-14040 |
CV20,SV2# 12V 1.4W BULB |
11 | ||
| 83101-14040 |
CV20,SV20,21..XL,XLI 12V 1.4W BULB |
2 | ||
| 83101-14030 |
SV21..XLI 12V 3.4W BULB |
16 | ||
| 83101-14040 |
SV21..XLI W(TACHOMETER) 12V 1.4W BULB |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
CV20,SV2# 12V 3.4W BULB |
12 | ||
| 83101-14030 |
SV21..XLI 12V 3.4W BULB,W(TACHOMETER) |
5 | ||
| 83101-14040 |
CV20,SV2# 12V 1.4W BULB |
11 | ||
| 83101-14040 |
CV20,SV20,21..XL,XLI 12V 1.4W BULB |
2 | ||
| 83101-14030 |
SV21..XLI 12V 3.4W BULB |
16 | ||
| 83101-14040 |
SV21..XLI W(TACHOMETER) 12V 1.4W BULB |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
CV20,SV2# 12V 3.4W BULB |
12 | ||
| 83101-14030 |
SV21..XLI 12V 3.4W BULB,W(TACHOMETER) |
5 | ||
| 83101-14040 |
CV20,SV2# 12V 1.4W BULB |
11 | ||
| 83101-14040 |
CV20,SV20,21..XL,XLI 12V 1.4W BULB |
2 | ||
| 83101-14030 |
SV21..XLI 12V 3.4W BULB |
16 | ||
| 83101-14040 |
SV21..XLI W(TACHOMETER) 12V 1.4W BULB |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-32740 |
SV2#..LHD W/TACHOMETER |
1 | ||
| 83247-32680 |
SV2#..XL,XLI |
1 | ||
| 83247-32740 |
SV21..XLI W(TACHOMETER) |
1 | ||
| 83247-32680 |
SV20,21..XL,XLI |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-32400 |
SV21..LHD W/TACHOMETER |
1 | ||
| 83247-32860 |
SV21..XLI W(*TAC) OR W(*66 & *TAC) |
1 | ||
| 83247-32500 |
SV2#..XL,XLI |
1 | ||
| 83247-3H290 |
SV21..XLI W(ANTI-LOCK BRAKE SYSTEM) |
1 | ||
| 83247-32860 |
SV21..LHD W(TACHOMETER) |
1 | ||
| 83247-32500 |
SV20,21..XL,XLI |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
CV20,SV2# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-24020 |
CV20,SV2#,VZV21 12V3.4W W(GREEN CAP) |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-32470 |
CV20,SV2#..LHD W/TACHOMETER |
1 | ||
| 83110-32460 |
CV20,SV2#..LHD..(XL,XLI) |
1 | ||
| 83110-32460 |
CV20,SV20,21..LHD..(XL,XLI) |
1 | ||
| 83110-32470 |
SV21..XLI W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-32320 |
SV2#..LHD W/TACHOMETER |
1 | ||
| 83132-32140 |
SV21..XLI |
1 | ||
| 83132-32140 |
SV21..XLI |
1 | ||
| 83132-32480 |
SV21..XLI W(ANTI-LOCK BRAKE SYSTEM) |
1 | ||
| 83132-32320 |
SV21..XLI W(*TAC) OR W(*66 & *TAC) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-32550 |
CV20,SV2#..LHD..(XL,XLI) |
1 | ||
| 83133-32570 |
SV21..XLI W(TACHOMETER) |
1 | ||
| 83133-32550 |
CV20,SV20,21..LHD..(XL,XLI) |
1 | ||
| 83133-32570 |
CV20,SV2#..LHD W/TACHOMETER |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-32610 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 83133-32610 |
CV20,SV2#..LHD |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-32370 |
CV20,SV2#..LHD |
1 | ||
| 83145-32370 |
SV21..XLI |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-32550 |
SV21..LHD |
1 | ||
| 83242-32690 |
SV21..LHD |
1 | ||
| 83242-32690 |
SV21..XLI |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-32370 |
SV2#..(XL,XLI)..EUG |
1 | ||
| 83243-32490 |
CV20,SV21..LHD..EUG W/TACHOMETER |
1 | ||
| 83243-32630 |
SV21..XLI..EUG W(TACHOMETER) |
1 | ||
| 83243-32370 |
SV20,21..(XL,XLI)..EUG |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-32530 |
CV20,SV2#..LHD |
1 | ||
| 83244-32530 |
SV21..XLI |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
ILLUST NO. 3 OF 5(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
CV20,SV2# |
1 | ||
| 83189-20020 |
CV20,SV2#,VZV21 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-32160 |
SV21..LHD NO.1 |
1 | ||
| 83710-32170 |
SV21..LHD NO.2 |
1 | ||
| 83710-32170 |
SV21..LHD NO.2 |
1 | ||
| 83710-32160 |
SV21,25..LHD NO.1 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-32160 |
SV21..LHD NO.1 |
1 | ||
| 83710-32170 |
SV21..LHD NO.2 |
1 | ||
| 83710-32170 |
SV21..LHD NO.2 |
1 | ||
| 83710-32160 |
SV21,25..LHD NO.1 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-32160 |
SV21..LHD NO.1 |
1 | ||
| 83710-32170 |
SV21..LHD NO.2 |
1 | ||
| 83710-32170 |
SV21..LHD NO.2 |
1 | ||
| 83710-32160 |
SV21,25..LHD NO.1 |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
ILLUST NO. 5 OF 5(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-32060 |
CV20,SV2#,VZV21 |
1 | ||
| 83910-32060 |
CV20,SV2# |
1 | ||
ILLUST NO. 4 OF 5(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83390A - SWITCH ASSY, VACUUM(FOR ECONOMETER) | ||||
| 83391-16020 |
SV2#..LHD |
1 | ||
| 83390A - SWITCH ASSY, VACUUM(FOR ECONOMETER) | ||||
| 83391-16020 |
SV2#..LHD |
1 | ||
| 83390A - SWITCH ASSY, VACUUM(FOR ECONOMETER) | ||||
| 83391-16020 |
SV2#..LHD |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-32050 |
SV2#..LHD |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-32050 |
SV2#..LHD |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-32050 |
SV2#..LHD |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 83090-32020 |
SV21..LHD |
1 | ||
| 83090-32020 |
SV21,25..LHD |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 83090-32020 |
SV21..LHD |
1 | ||
| 83090-32020 |
SV21,25..LHD |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 83090-32020 |
SV21..LHD |
1 | ||
| 83090-32020 |
SV21,25..LHD |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90464-00248 | ||||
| 90468-04021 | ||||
ILLUST NO. 2 OF 5(8610- )
BULB & SOCKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83101-14030 | ||||
| 83101-14040 | ||||
| 83101-32010 | ||||
| 83109-10010 | ||||
| 83109-20030 | ||||
| 83109-24020 | ||||
| 90981-11018 | ||||
| 99132-12034 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
