SV21LG-UWPDKK (1986)
Toyota Camry
Production
Aug 1986
-
Aug 1988
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )

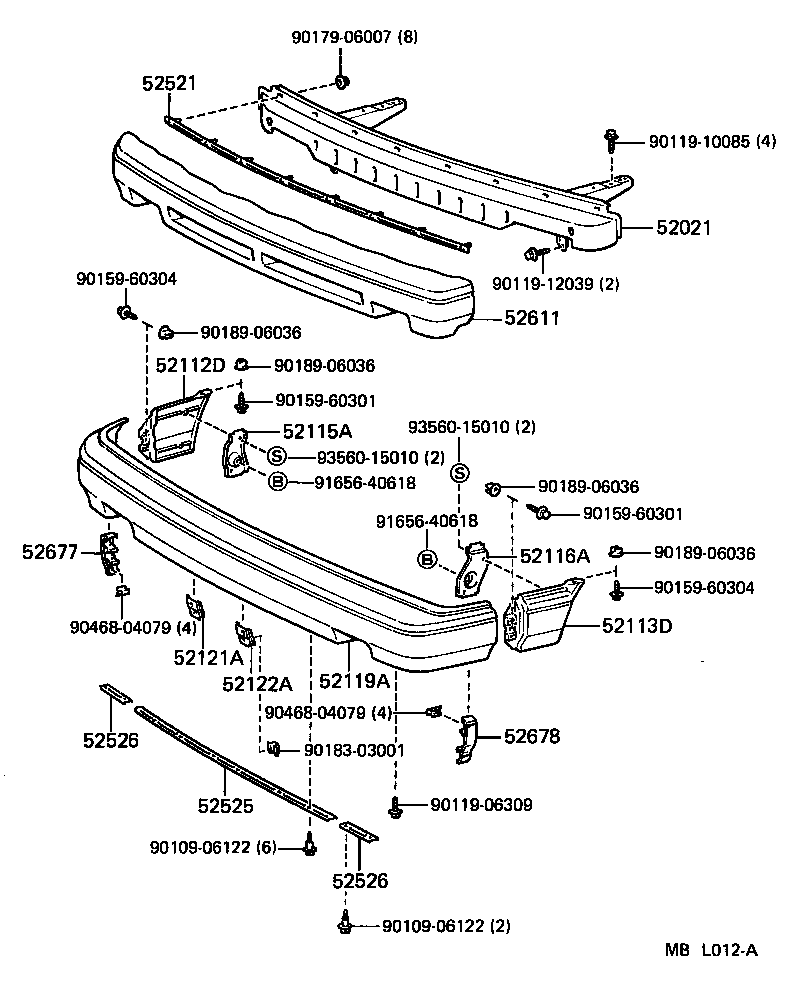

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-32040 |
SV21 |
1 | ||
| 52021-32040 |
SV2#,VZV21 |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-32030 |
SV21 |
1 | ||
| 52112-32030 |
SV2#,VZV21 |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-32030 |
SV2#,VZV21 |
1 | ||
| 52113-32030 |
SV21 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-32020 |
SV21 |
1 | ||
| 52115-32020 |
SV2#,VZV21 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-32020 |
SV21 |
1 | ||
| 52116-32020 |
SV2#,VZV21 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-32180 |
SV21..DX,STD |
1 | ||
| 52119-32180 |
SV2#,VZV21..DX,STD |
1 | ||
| 52121A - BRACKET, FRONT LICENSE PLATE MOUNTING, RH | ||||
| 52121-32040 |
SV21 |
1 | ||
| 52121-32040 |
SV2#,VZV21 |
1 | ||
| 52122A - BRACKET, FRONT LICENSE PLATE MOUNTING, LH | ||||
| 52122-32010 |
SV21 |
1 | ||
| 52122-32010 |
SV2#,VZV21 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-32060 |
SV2#,VZV21 |
1 | ||
| 52521-32060 |
SV21 |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52525-32020 |
SV21 |
1 | ||
| 52525-32020 |
SV2#,VZV21 |
1 | ||
| 52526 - RETAINER, FRONT BUMPER, LOWER SIDE | ||||
| 52526-32040 |
SV21 |
2 | ||
| 52526-32040 |
SV2#,VZV21 |
2 | ||
| 52526 - RETAINER, FRONT BUMPER, LOWER SIDE | ||||
| 52526-32040 |
SV21 |
2 | ||
| 52526-32040 |
SV2#,VZV21 |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-32070 |
SV2#,VZV21 |
1 | ||
| 52611-32070 |
SV21 |
1 | ||
| 52677 - SUPPORT, FRONT BUMPER SIDE, NO.2, RH | ||||
| 52677-32020 |
SV2#,VZV21 |
1 | ||
| 52677-32020 |
SV21 |
1 | ||
| 52678 - SUPPORT, FRONT BUMPER SIDE, NO.2, LH | ||||
| 52678-32020 |
SV2#,VZV21 |
1 | ||
| 52678-32020 |
SV21 |
1 | ||
| Common parts | ||||
| 90109-06122 | ||||
| 90119-06309 | ||||
| 90119-10085 | ||||
| 90119-12039 | ||||
| 90159-60301 | ||||
| 90159-60304 | ||||
| 90179-06007 | ||||
| 90183-03001 | ||||
| 90189-06036 | ||||
| 90468-04079 | ||||
| 91656-40618 | ||||
| 93560-15010 | ||||
(8610- )

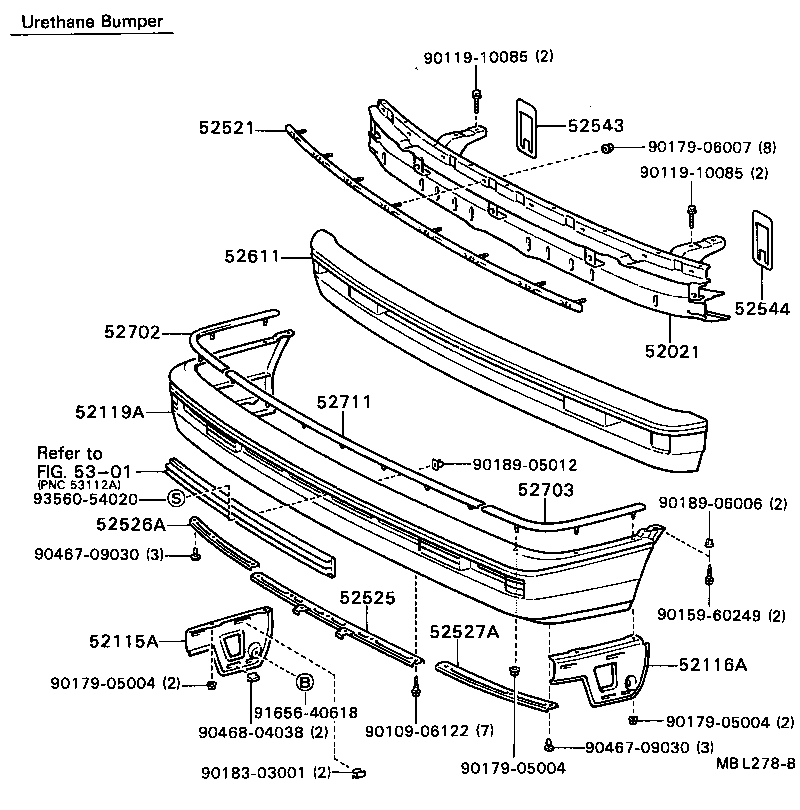

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08126 | ||||
| 90119-10085 | ||||
| 90159-60249 | ||||
| 90179-05004 | ||||
| 90179-06086 | ||||
| 90189-06006 | ||||
| 91656-40618 | ||||
| 93560-15010 | ||||
(8610- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06122 | ||||
| 90119-10085 | ||||
| 90159-60249 | ||||
| 90179-05004 | ||||
| 90179-06007 | ||||
| 90183-03001 | ||||
| 90189-05012 | ||||
| 90189-06006 | ||||
| 90467-09030 | ||||
| 90468-04038 | ||||
| 91656-40618 | ||||
| 93560-54020 | ||||
| Linked diagrams | ||||
| 5301 | ||||
