SV21LG-UWPDKG (1988)
Toyota Camry
(8808- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011 - GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD | ||||
| 55011-32120 |
CV20,SV21,VZV21..LHD |
1 | ||
| 55011 - GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD | ||||
| 55011-32120 |
CV20,SV21,VZV21..LHD |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-32080 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-32050 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-32070 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-32030 |
CV20,SV2#,VZV21 |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-32030 |
CV20,SV2#,VZV21 |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-32040 |
CV20,SV2#,VZV21 |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-32050 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 55382 - BRACKET, FINISH PANEL MOUNTING, NO.2 | ||||
| 55382-32030 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-3206106 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55401-3206103 |
CV20,SV2#,VZV21..LHD GRAY,TRIM1# |
1 | ||
| 55401-3206104 |
CV20,SV2#,VZV21..LHD DARK BLUE,TRIM8# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-3208004 |
CV20,SV2#,VZV21..LHD DARK BLUE,TRIM8# |
1 | ||
| 55404-3208003 |
CV20,SV2#,VZV21..LHD GRAY,TRIM1# |
1 | ||
| 55404-3208006 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-32080 |
CV20,SV2#..LHD W(RADIO) |
1 | ||
| 55412-32080 |
CV20,SV2#..LHD W(RADIO) |
1 | ||
| 55410-32020 |
CV20,SV2#..LHD |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-32080 |
CV20,SV2#..LHD W(RADIO) |
1 | ||
| 55412-32080 |
CV20,SV2#..LHD W(RADIO) |
1 | ||
| 55410-32020 |
CV20,SV2#..LHD |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12060 |
CV20,SV2#,VZV21 |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-3204003 |
CV20,SV2#,VZV21..LHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55432-3204004 |
CV20,SV2#,VZV21..LHD DARK BLUE,TRIM8# |
1 | ||
| 55432-3204006 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55433-3204006 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55433-3204003 |
CV20,SV2#,VZV21..LHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55433-3204004 |
CV20,SV2#,VZV21..LHD DARK BLUE,TRIM8# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-3206004 |
CV20,SV2#,VZV21..LHD DARK BLUE,TRIM8# |
1 | ||
| 55434-3206006 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55434-3206003 |
CV20,SV2#,VZV21..LHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55457B - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-22030 |
CV20,SV2#,VZV21 |
5 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-3206004 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 55550-3206006 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55550-3206003 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
CV20,SV2#,VZV21 |
3 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-20120 |
SV21..WG;SV21..SED..5F;CV20,SV25,VZV21;SV21..SED..LHD..4FC |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-20060 |
CV20,SV2# |
1 | ||
| 55522-32010 |
CV20,SV2# W(RADIO LESS SET) |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-16020 |
CV20,SV2# |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-16020 |
CV20,SV2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201011 |
CV20,SV2#,VZV21..LHD BLACK,TRIM1#,4#,8# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201011 |
CV20,SV2#,VZV21..LHD BLACK,TRIM1#,4#,8# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201011 |
CV20,SV2#,VZV21..LHD BLACK,TRIM1#,4#,8# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-3203001 |
CV20,SV21..LHD..(XL,XLI) BLACK,TRIM1#,4#,8# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
CV20,SV2#,VZV21 |
2 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-32020 |
CV20,SV2#,VZV21 |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-2004014 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 55565-2004013 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 55565-2004026 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-3207103 |
CV20,SV2#,VZV21..LHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55650-3207104 |
CV20,SV2#,VZV21..LHD DARK BLUE,TRIM8# |
1 | ||
| 55650-3207106 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-3207206 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55660-3207203 |
CV20,SV2#,VZV21..LHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55660-3207204 |
CV20,SV2#,VZV21..LHD DARK BLUE,TRIM8# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-3206104 |
CV20,SV2#,VZV21..LHD DAEK BLUE,TRIM8# |
1 | ||
| 55670-3206103 |
CV20,SV2#,VZV21..LHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55670-3206106 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-14030 |
CV20,SV21..XL,XLI |
1 | ||
| 55680-14030J0 |
CV20,SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 55680-14030B0 |
CV20,SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 55680-14030E0 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55841A - DUCT, COWL TO REGISTER, NO.1 | ||||
| 55841-32010 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 55842A - DUCT, COWL TO REGISTER, NO.2 | ||||
| 55842-32010 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 55863B - BOOT, SIDE VENTILATOR DUCT, NO.1 | ||||
| 55863-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 55864A - BOOT, SIDE VENTILATOR DUCT, NO.2 | ||||
| 55864-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-3206006 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55961-3206003 |
CV20,SV2#,VZV21..LHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55961-3206004 |
CV20,SV2#,VZV21..LHD DARK BLUE,TRIM8# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-3204004 |
CV20,SV2#,VZV21..LHD DARK BLUE,TRIM8# |
1 | ||
| 55962-3204003 |
CV20,SV2#,VZV21..LHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55962-3204006 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-3204006 |
CV20,SV21..WG..LHD;SV21..SED..LHD..GLI;CV20,SV25,VZV21..LHD..(GL,GLI,GXI) BROWN,TRIM4# |
1 | ||
| 55981-3204004 |
CV20,SV2#,VZV21..LHD DARK BLUE,TRIM8# |
1 | ||
| 55981-3204006 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| 55981-3204003 |
CV20,SV2#,VZV21..LHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55981-3204003 |
CV20,SV21..WG..LHD;SV21..SED..LHD..GLI;CV20,SV25,VZV21..LHD..(GL,GLI,GXI) MEDIUM GRAY,TRIM1# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-3204003 |
CV20,SV2#,VZV21..LHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55982-3204006 |
CV20,SV21..WG..LHD;SV21..SED..LHD..GLI;CV20,SV25,VZV21..LHD..(GL,GLI,GXI) BROWN,TRIM4# |
1 | ||
| 55982-3204004 |
CV20,SV2#,VZV21..LHD DARK BLUE,TRIM8# |
1 | ||
| 55982-3204003 |
CV20,SV21..WG..LHD;SV21..SED..LHD..GLI;CV20,SV25,VZV21..LHD..(GL,GLI,GXI) MEDIUM GRAY,TRIM1# |
1 | ||
| 55982-3204006 |
CV20,SV2#,VZV21..LHD BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06106 | ||||
| 90151-40005 | ||||
| 90167-50002 | ||||
| 90179-06097 | ||||
| 90179-08025 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90183-06009 | ||||
| 90189-05024 | ||||
| 90254-04016 | ||||
| 90467-14002 | ||||
| 90468-04087 | ||||
| 90468-04106 | ||||
| 90468-05047 | ||||
| 91665-60820 | ||||
| 93540-23006 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93567-55018 | ||||

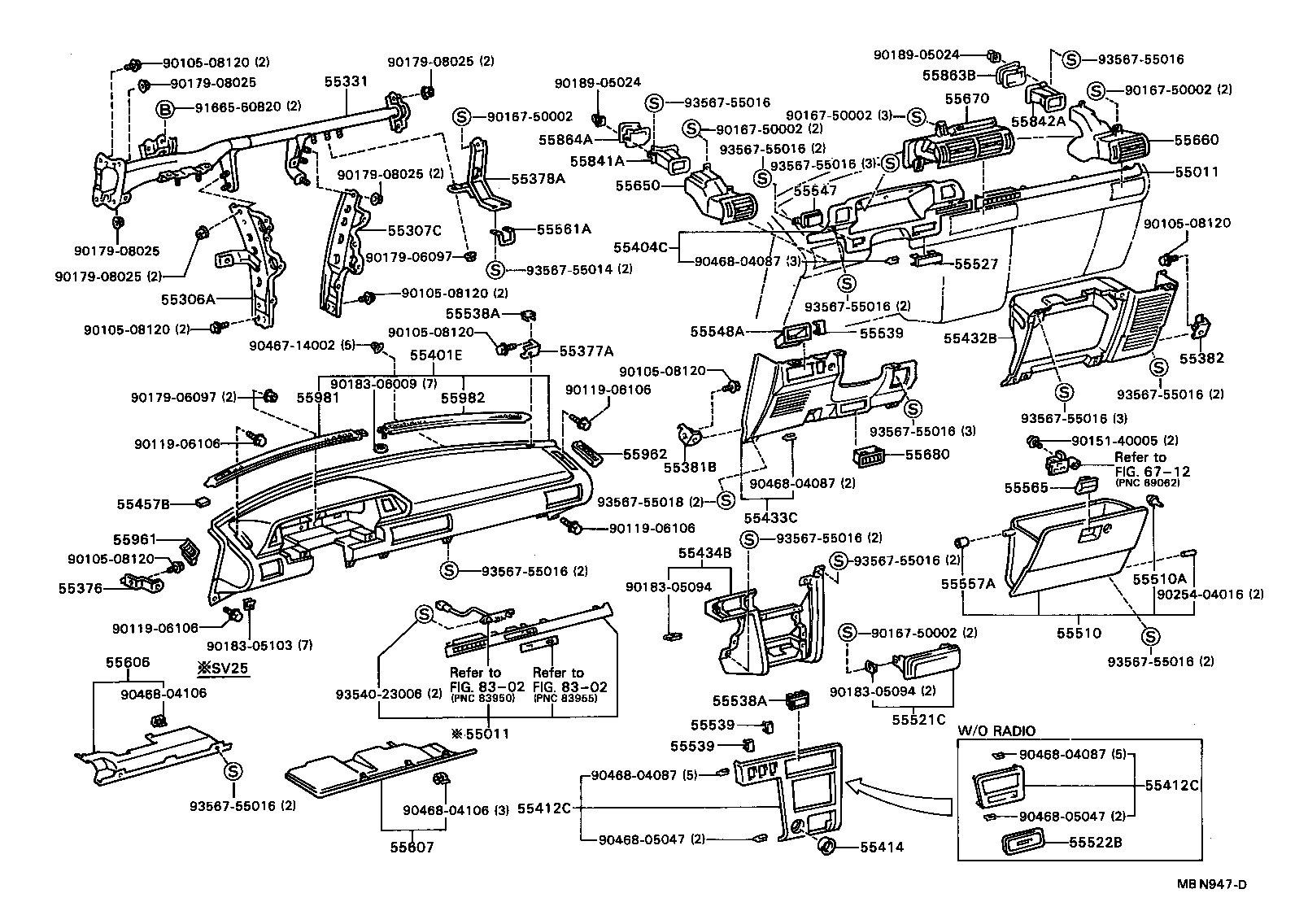

| Linked diagrams | ||||
| 6712 | ||||
| 8302 | ||||
