SV21LG-UWPDKG (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )SV21..LHD

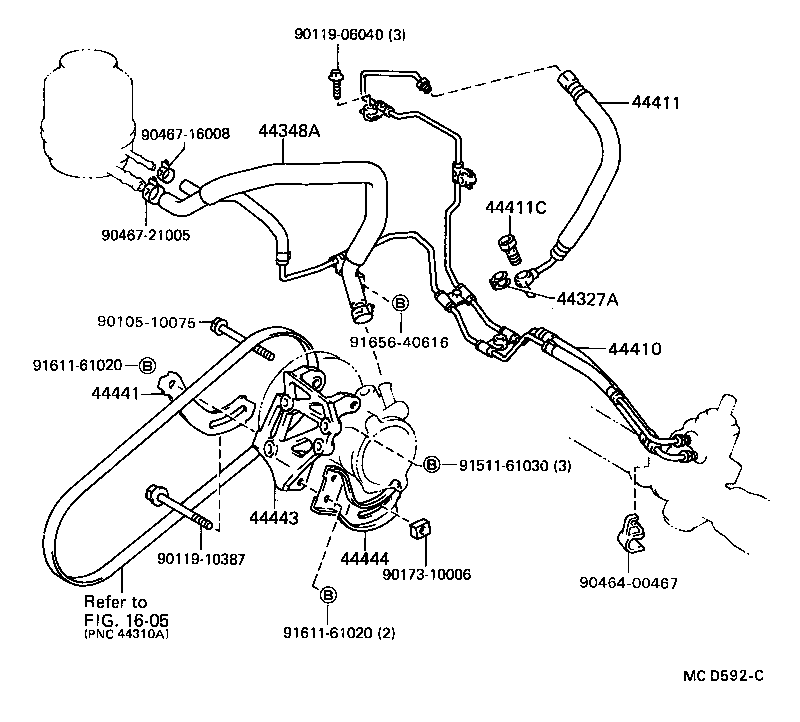

Click highlighted areas on diagram

diagram 1605 44327A 44348A 44410 44411 44411C 44441 44443 44444 9010510075 9011906040 9011910387 9017310006 9046400467 9046716008 9046721005 9151161030 9161161020 9161161020 9165640616
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

CV20,SV2#,VZV21

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-32100

SV2#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-32380

SV21..XLI

W(*66)

 1
44410-32370

SV21..XLI

 1
44411 - HOSE, PRESSURE FEED
44411-32050

SV2#..LHD

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

SV2#,VZV21

 1
44441 - BRACKET, PUMP, FRONT
44441-32010

SV2#

 1
44443 - BRACKET, PUMP
44443-20050

SV2#

 1
44444 - STAY, PUMP, REAR
44444-20030

SV2#

 1
Common parts
90105-10075
90119-06040
90119-10387
90173-10006
90464-00467
90467-16008
90467-21005
91511-61030
91611-61020
91656-40616
Linked diagrams
1605
