SV21LG-UWPDKG (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CV20,SV21,VZV21

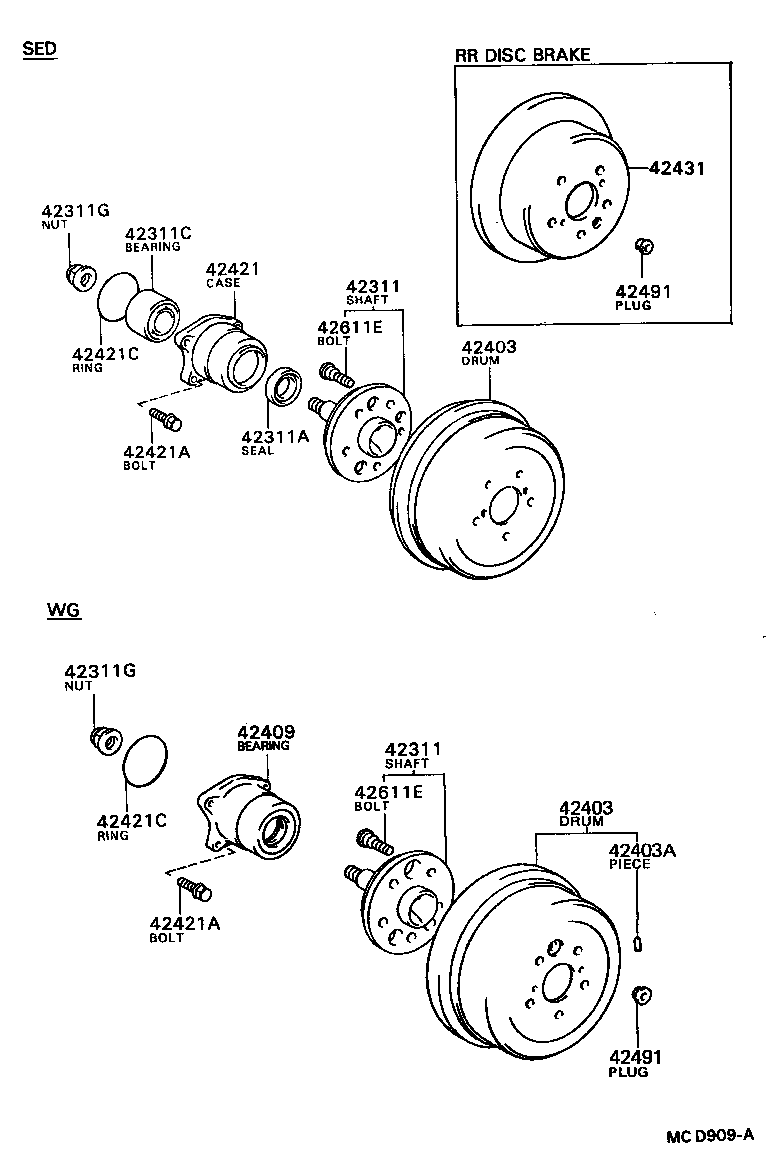

Click highlighted areas on diagram

diagram 42311 42311 42311A 42311C 42311G 42311G 42403 42403 42403A 42409 42421 42421A 42421A 42421C 42421C 42431 42491 42491 42611E 42611E
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42301-32031

CV20,SV21,VZV21

 2
42301-32020

SV21,VZV21

W(*66)

 2
42311 - SHAFT, REAR AXLE
42301-32031

CV20,SV21,VZV21

 2
42301-32020

SV21,VZV21

W(*66)

 2
42311G - NUT (FOR REAR AXLE SHAFT)
90179-20003

CV20,SV21,VZV21

 2
90179-20017

CV20,SV21,VZV21

 1
42311G - NUT (FOR REAR AXLE SHAFT)
90179-20003

CV20,SV21,VZV21

 2
90179-20017

CV20,SV21,VZV21

 1
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-32030

CV20,SV21..WG

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-32030

CV20,SV21..WG

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01287

CV20,SV21..WG

10G

 1
90937-01288

CV20,SV21..WG

20G

 1
90937-01289

CV20,SV21..WG

30G

 1
42409 - BEARING SUB-ASSY, REAR AXLE
42409-32010

CV20,SV21,VZV21..WG

 2
42421A - BOLT (FOR REAR AXLE BEARING CASE)
90105-10124

CV20,SV21,VZV21

 4
90105-10309

CV20,SV21,VZV21

 4
42421A - BOLT (FOR REAR AXLE BEARING CASE)
90105-10124

CV20,SV21,VZV21

 4
90105-10309

CV20,SV21,VZV21

 4
42421C - RING, O (FOR REAR AXLE BEARING CASE)
90301-63003

CV20,SV21,VZV21

 1
42421C - RING, O (FOR REAR AXLE BEARING CASE)
90301-63003

CV20,SV21,VZV21

 1
42431 - DISC, REAR
42431-20090

SV21,VZV21

 2
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-14010

CV20,SV21..WG

 2
47491-22020

SV21..WG

W(*66)

 2
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-14010

CV20,SV21..WG

 2
47491-22020

SV21..WG

W(*66)

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

CV20,SV2#,VZV21

 10
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

CV20,SV2#,VZV21

 10
