SV21LG-UWPDKG (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

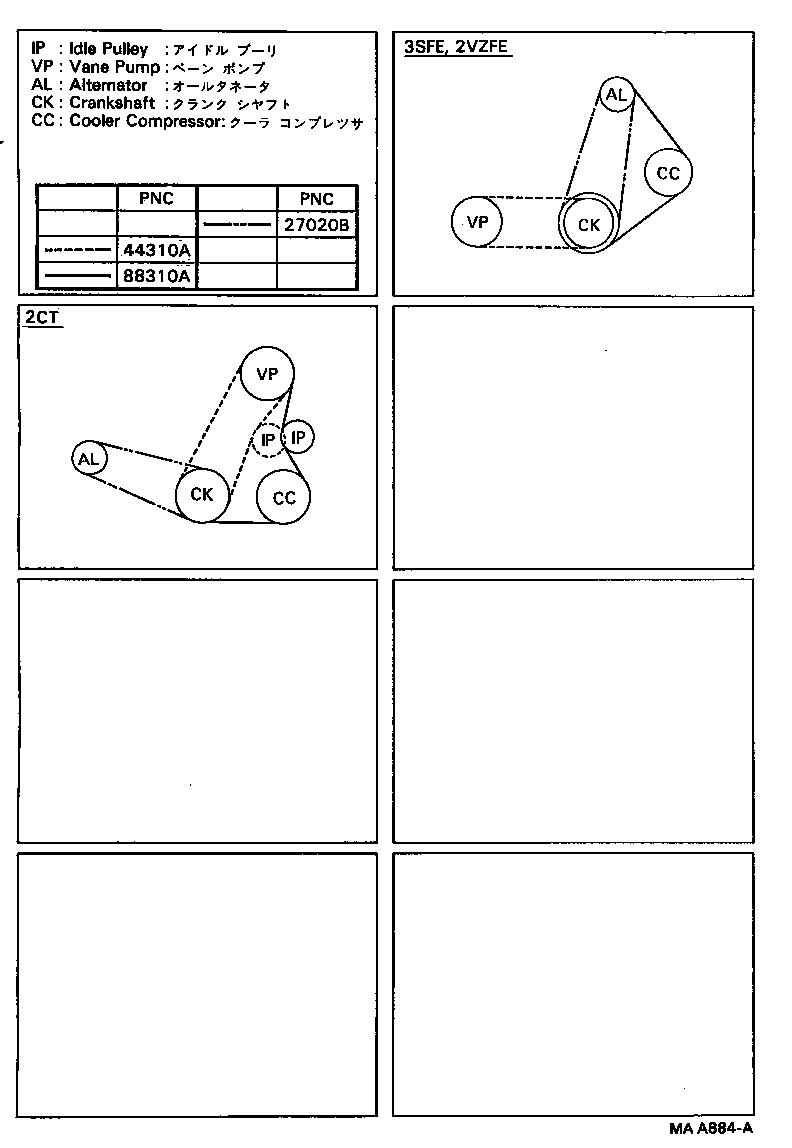

Click highlighted areas on diagram

diagram 27020B 44310A 88310A
Part # Description Qty Price
27020B - BELT, V(FOR ALTERNATOR)
90916-02295

3SFE..SV2#

 1
90916-02219

3SFE..SV2#

 1
44310A - BELT, V(FOR VANE PUMP)
99363-50760

SV2#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99365-21110

SV21..WG;SV2#..SED..5F;SV21..SED..LHD..4FC

L=1110,MITUBOSI

 1
99365-71110

SV21..WG;SV2#..SED..5F;SV21..SED..LHD..4FC

BANDO

 1
99365-51110

SV21..WG;SV2#..SED..5F;SV21..SED..LHD..4FC

*ND ALTERNATOR

 1
