Toyota Camry SV21 REAR WASHER - JDM Part Detective

Part #	Description	Period	Qty
85031C - VALVE SUB-ASSY, WASHER
85031-30010	SV21,VZV21..WG	10/1987 - 08/1988	2
85031C - VALVE SUB-ASSY, WASHER
85031-30010	SV21,VZV21..WG	10/1987 - 08/1988	2
85345R - NOZZLE, REAR WASHER
85345-32010	SV21..WG	08/1986 - 10/1987	1
85345-32010	SV21,VZV21..WG	10/1987 - 08/1988	1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20070	SV21..WG	08/1986 - 05/1987	1
85355-14481	SV21,VZV21..WG	10/1987 - 08/1988	1
85355-14481	SV21..WG	05/1987 - 10/1987	1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122	SV21,VZV21..WG	10/1987 - 08/1988	3
85349-89122	SV21..WG	08/1986 - 10/1987	3
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122	SV21,VZV21..WG	10/1987 - 08/1988	3
85349-89122	SV21..WG	08/1986 - 10/1987	3
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122	SV21,VZV21..WG	10/1987 - 08/1988	3
85349-89122	SV21..WG	08/1986 - 10/1987	3
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122	SV21,VZV21..WG	10/1987 - 08/1988	3
85349-89122	SV21..WG	08/1986 - 10/1987	3
85348U - JOINT, REAR WASHER HOSE, NO.3
85355-32020	SV21..WG	08/1986 - 10/1987	1
85355-32020	SV21,VZV21..WG	10/1987 - 08/1988	1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33299	SV21..WG *H,L=30	08/1986 - 10/1987	1
90099-33299	SV21,VZV21..WG L=1000	10/1987 - 08/1988	1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33299	SV21..WG *H,L=60,NO.5,NO.2	08/1986 - 10/1987	1
90446-06013	SV21..WG *H,L=300,NO.2	08/1986 - 10/1987	1
90099-33299	SV21,VZV21..WG L=1000,NO.5	10/1987 - 08/1988	1
90446-07001	SV21,VZV21..WG NO.3,NO.4	10/1987 - 08/1988	1
90446-07001	SV21..WG *H,L=800,NO.3,NO.2	08/1986 - 10/1987	1
90099-33366	SV21,VZV21..WG *H,L=60,NO.2	10/1987 - 08/1988	1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33299	SV21..WG *H,L=60,NO.5,NO.2	08/1986 - 10/1987	1
90446-06013	SV21..WG *H,L=300,NO.2	08/1986 - 10/1987	1
90099-33299	SV21,VZV21..WG L=1000,NO.5	10/1987 - 08/1988	1
90446-07001	SV21,VZV21..WG NO.3,NO.4	10/1987 - 08/1988	1
90446-07001	SV21..WG *H,L=800,NO.3,NO.2	08/1986 - 10/1987	1
90099-33366	SV21,VZV21..WG *H,L=60,NO.2	10/1987 - 08/1988	1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33299	SV21..WG *H,L=60,NO.5,NO.2	08/1986 - 10/1987	1
90446-06013	SV21..WG *H,L=300,NO.2	08/1986 - 10/1987	1
90099-33299	SV21,VZV21..WG L=1000,NO.5	10/1987 - 08/1988	1
90446-07001	SV21,VZV21..WG NO.3,NO.4	10/1987 - 08/1988	1
90446-07001	SV21..WG *H,L=800,NO.3,NO.2	08/1986 - 10/1987	1
90099-33366	SV21,VZV21..WG *H,L=60,NO.2	10/1987 - 08/1988	1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33299	SV21..WG *H,L=60,NO.5,NO.2	08/1986 - 10/1987	1
90446-06013	SV21..WG *H,L=300,NO.2	08/1986 - 10/1987	1
90099-33299	SV21,VZV21..WG L=1000,NO.5	10/1987 - 08/1988	1
90446-07001	SV21,VZV21..WG NO.3,NO.4	10/1987 - 08/1988	1
90446-07001	SV21..WG *H,L=800,NO.3,NO.2	08/1986 - 10/1987	1
90099-33366	SV21,VZV21..WG *H,L=60,NO.2	10/1987 - 08/1988	1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33299	SV21..WG *H,L=60,NO.5,NO.2	08/1986 - 10/1987	1
90446-06013	SV21..WG *H,L=300,NO.2	08/1986 - 10/1987	1
90099-33299	SV21,VZV21..WG L=1000,NO.5	10/1987 - 08/1988	1
90446-07001	SV21,VZV21..WG NO.3,NO.4	10/1987 - 08/1988	1
90446-07001	SV21..WG *H,L=800,NO.3,NO.2	08/1986 - 10/1987	1
90099-33366	SV21,VZV21..WG *H,L=60,NO.2	10/1987 - 08/1988	1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33221	SV21,VZV21..WG *H,L=1100,NO.1	10/1987 - 08/1988	1
90446-06013	SV21..WG *H,L=300,NO.2	08/1986 - 10/1987	1
90099-33299	SV21,VZV21..WG L=1000	10/1987 - 08/1988	1
90099-33221	SV21..WG *H,L=1100,NO.1	08/1986 - 10/1987	1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33221	SV21,VZV21..WG *H,L=1100,NO.1	10/1987 - 08/1988	1
90446-06013	SV21..WG *H,L=300,NO.2	08/1986 - 10/1987	1
90099-33299	SV21,VZV21..WG L=1000	10/1987 - 08/1988	1
90099-33221	SV21..WG *H,L=1100,NO.1	08/1986 - 10/1987	1
Common parts
82711-30180
82711-32750
85372-32010
90463-04033

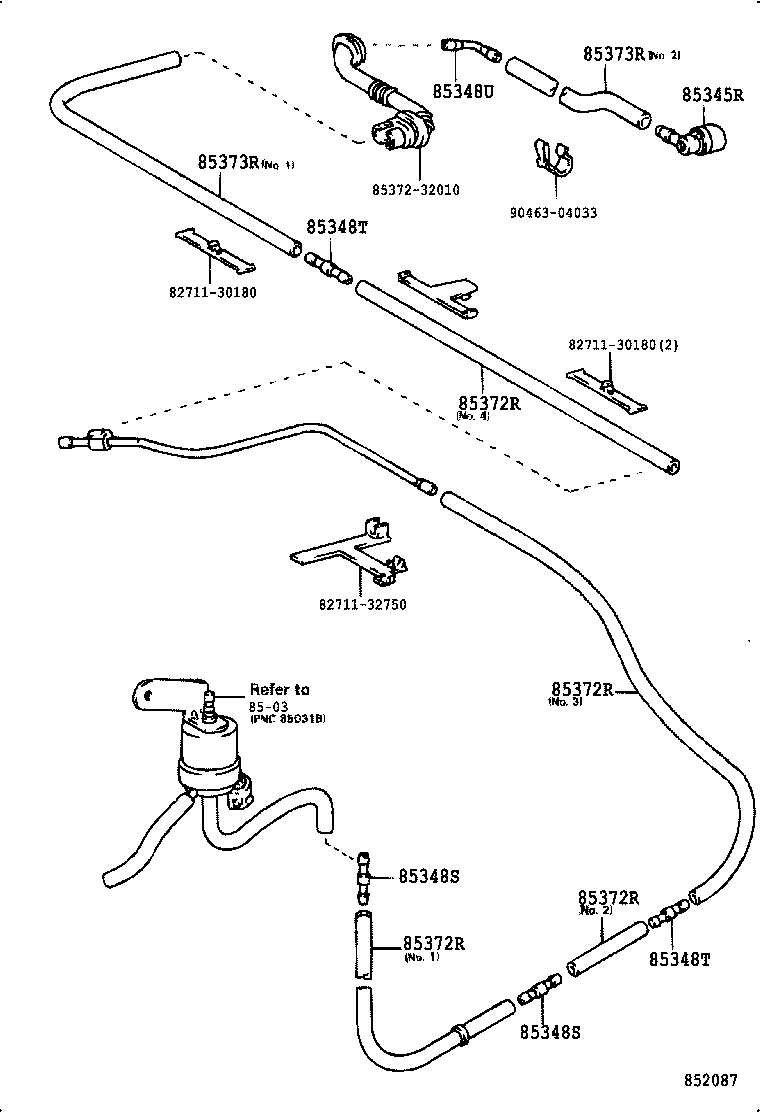

Linked diagrams
8503

SV21LG-UWPDKA (1986)

(8608- )WG

(8610- )WG
