SV21LG-UWPDKA (1986)
Toyota Camry

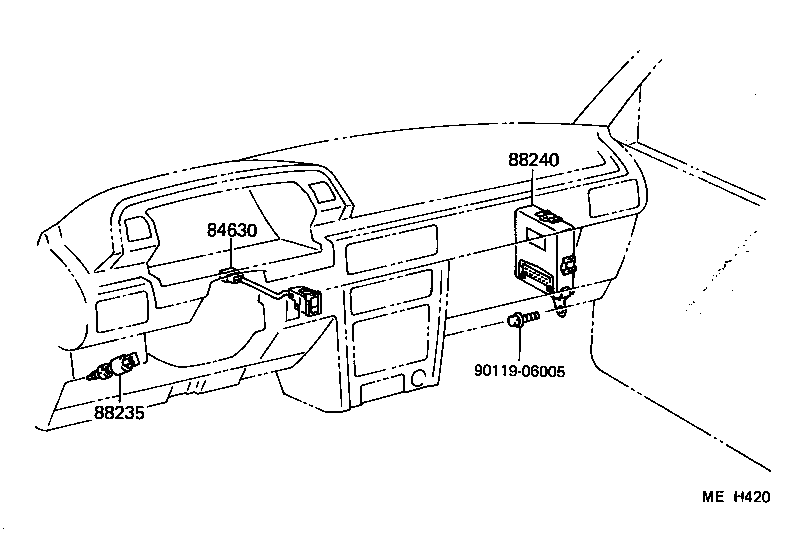

ILLUST NO. 1 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84630 - SWITCH ASSY, CRUISE CONTROL MAIN | ||||
| 84630-32070 |
SV21..USA |
1 | ||
| 84630-32070 |
SV21..STD..CND;SV2#,VZV21..USA |
1 | ||
| 88240 - COMPUTER ASSY, CRUISE CONTROL | ||||
| 88240-32110 |
SV2#,VZV21 |
1 | ||
| 88240-32110 |
SV21 |
1 | ||
| 88240-32111 |
SV2#,VZV21 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||

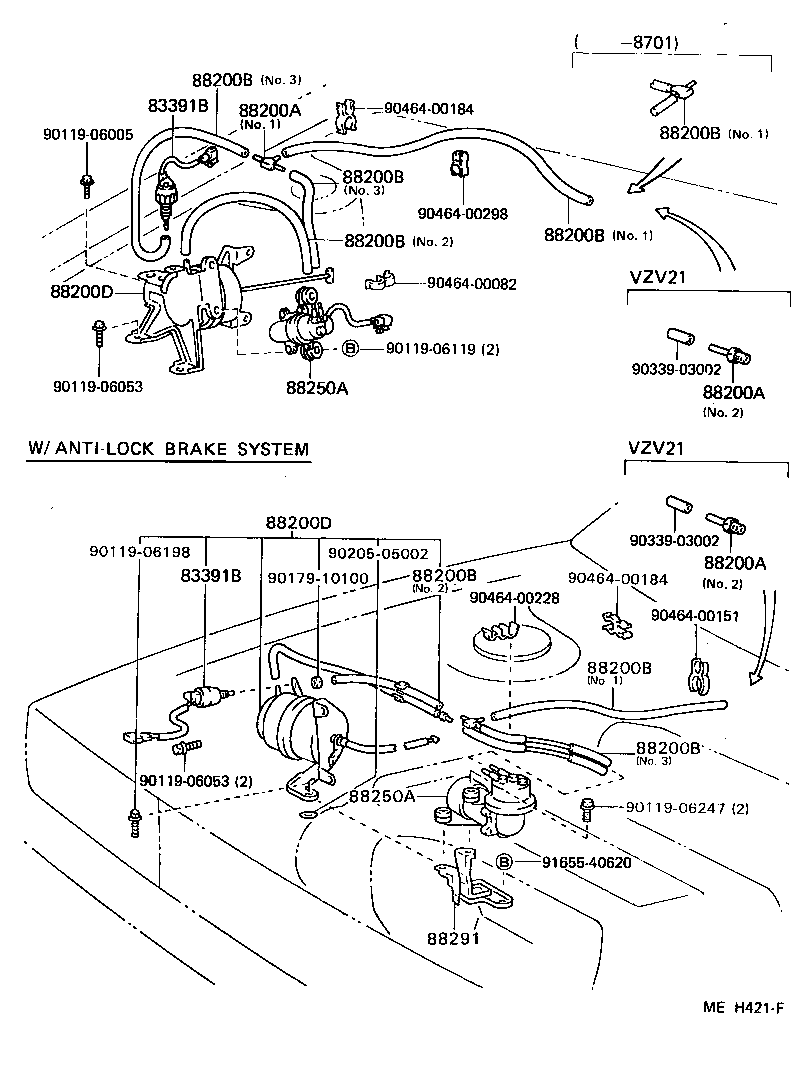

ILLUST NO. 2 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83391B - SWITCH, AUTO DRIVE VACUUM | ||||
| 83391-32040 |
SV2#,VZV21 |
1 | ||
| 83391-14090 |
SV21 |
1 | ||
| 83391B - SWITCH, AUTO DRIVE VACUUM | ||||
| 83391-32040 |
SV2#,VZV21 |
1 | ||
| 83391-14090 |
SV21 |
1 | ||
| 88200A - UNION OR WAY, CRUISE CONTROL VACUUM | ||||
| 90413-04005 |
SV2#,VZV21 NO.1 |
1 | ||
| 90413-04005 |
SV21 NO.1 |
1 | ||
| 88200A - UNION OR WAY, CRUISE CONTROL VACUUM | ||||
| 90413-04005 |
SV2#,VZV21 NO.1 |
1 | ||
| 90413-04005 |
SV21 NO.1 |
1 | ||
| 88200A - UNION OR WAY, CRUISE CONTROL VACUUM | ||||
| 90413-04005 |
SV2#,VZV21 NO.1 |
1 | ||
| 90413-04005 |
SV21 NO.1 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 95411-10095 |
SV21 *H,L=800,MARK=#0,NO.1 |
1 | ||
| 95411-19930 |
SV21 *H,L=180,MARK=#*,NO.2 |
1 | ||
| 95411-19995 |
SV21 *H,L=800,MARK=#*,NO.1 |
1 | ||
| 95411-10095 |
SV21;SV25..DX *H,L=950,MARK=#0,NO.1 |
1 | ||
| 95411-19930 |
SV2#,VZV21 *H,L=300,MARK=#*,NO.2 |
1 | ||
| 95411-19930 |
SV21 *H,L=160,MARK=#*,NO.3 |
2 | ||
| 88283-32040 |
SV21 NO.1 |
1 | ||
| 95411-19930 |
SV2#,VZV21 *H,L=300,MARK=#*,NO.3 |
2 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 95411-10095 |
SV21 *H,L=800,MARK=#0,NO.1 |
1 | ||
| 95411-19930 |
SV21 *H,L=180,MARK=#*,NO.2 |
1 | ||
| 95411-19995 |
SV21 *H,L=800,MARK=#*,NO.1 |
1 | ||
| 95411-10095 |
SV21;SV25..DX *H,L=950,MARK=#0,NO.1 |
1 | ||
| 95411-19930 |
SV2#,VZV21 *H,L=300,MARK=#*,NO.2 |
1 | ||
| 95411-19930 |
SV21 *H,L=160,MARK=#*,NO.3 |
2 | ||
| 88283-32040 |
SV21 NO.1 |
1 | ||
| 95411-19930 |
SV2#,VZV21 *H,L=300,MARK=#*,NO.3 |
2 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 95411-10095 |
SV21 *H,L=800,MARK=#0,NO.1 |
1 | ||
| 95411-19930 |
SV21 *H,L=180,MARK=#*,NO.2 |
1 | ||
| 95411-19995 |
SV21 *H,L=800,MARK=#*,NO.1 |
1 | ||
| 95411-10095 |
SV21;SV25..DX *H,L=950,MARK=#0,NO.1 |
1 | ||
| 95411-19930 |
SV2#,VZV21 *H,L=300,MARK=#*,NO.2 |
1 | ||
| 95411-19930 |
SV21 *H,L=160,MARK=#*,NO.3 |
2 | ||
| 88283-32040 |
SV21 NO.1 |
1 | ||
| 95411-19930 |
SV2#,VZV21 *H,L=300,MARK=#*,NO.3 |
2 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 95411-10095 |
SV21 *H,L=800,MARK=#0,NO.1 |
1 | ||
| 95411-19930 |
SV21 *H,L=180,MARK=#*,NO.2 |
1 | ||
| 95411-19995 |
SV21 *H,L=800,MARK=#*,NO.1 |
1 | ||
| 95411-10095 |
SV21;SV25..DX *H,L=950,MARK=#0,NO.1 |
1 | ||
| 95411-19930 |
SV2#,VZV21 *H,L=300,MARK=#*,NO.2 |
1 | ||
| 95411-19930 |
SV21 *H,L=160,MARK=#*,NO.3 |
2 | ||
| 88283-32040 |
SV21 NO.1 |
1 | ||
| 95411-19930 |
SV2#,VZV21 *H,L=300,MARK=#*,NO.3 |
2 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 95411-10095 |
SV21 *H,L=800,MARK=#0,NO.1 |
1 | ||
| 95411-19930 |
SV21 *H,L=180,MARK=#*,NO.2 |
1 | ||
| 95411-19995 |
SV21 *H,L=800,MARK=#*,NO.1 |
1 | ||
| 95411-10095 |
SV21;SV25..DX *H,L=950,MARK=#0,NO.1 |
1 | ||
| 95411-19930 |
SV2#,VZV21 *H,L=300,MARK=#*,NO.2 |
1 | ||
| 95411-19930 |
SV21 *H,L=160,MARK=#*,NO.3 |
2 | ||
| 88283-32040 |
SV21 NO.1 |
1 | ||
| 95411-19930 |
SV2#,VZV21 *H,L=300,MARK=#*,NO.3 |
2 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 95411-10095 |
SV21 *H,L=800,MARK=#0,NO.1 |
1 | ||
| 95411-19930 |
SV21 *H,L=180,MARK=#*,NO.2 |
1 | ||
| 95411-19995 |
SV21 *H,L=800,MARK=#*,NO.1 |
1 | ||
| 95411-10095 |
SV21;SV25..DX *H,L=950,MARK=#0,NO.1 |
1 | ||
| 95411-19930 |
SV2#,VZV21 *H,L=300,MARK=#*,NO.2 |
1 | ||
| 95411-19930 |
SV21 *H,L=160,MARK=#*,NO.3 |
2 | ||
| 88283-32040 |
SV21 NO.1 |
1 | ||
| 95411-19930 |
SV2#,VZV21 *H,L=300,MARK=#*,NO.3 |
2 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 95411-10095 |
SV21 *H,L=800,MARK=#0,NO.1 |
1 | ||
| 95411-19930 |
SV21 *H,L=180,MARK=#*,NO.2 |
1 | ||
| 95411-19995 |
SV21 *H,L=800,MARK=#*,NO.1 |
1 | ||
| 95411-10095 |
SV21;SV25..DX *H,L=950,MARK=#0,NO.1 |
1 | ||
| 95411-19930 |
SV2#,VZV21 *H,L=300,MARK=#*,NO.2 |
1 | ||
| 95411-19930 |
SV21 *H,L=160,MARK=#*,NO.3 |
2 | ||
| 88283-32040 |
SV21 NO.1 |
1 | ||
| 95411-19930 |
SV2#,VZV21 *H,L=300,MARK=#*,NO.3 |
2 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 95411-10095 |
SV21 *H,L=800,MARK=#0,NO.1 |
1 | ||
| 95411-19930 |
SV21 *H,L=180,MARK=#*,NO.2 |
1 | ||
| 95411-19995 |
SV21 *H,L=800,MARK=#*,NO.1 |
1 | ||
| 95411-10095 |
SV21;SV25..DX *H,L=950,MARK=#0,NO.1 |
1 | ||
| 95411-19930 |
SV2#,VZV21 *H,L=300,MARK=#*,NO.2 |
1 | ||
| 95411-19930 |
SV21 *H,L=160,MARK=#*,NO.3 |
2 | ||
| 88283-32040 |
SV21 NO.1 |
1 | ||
| 95411-19930 |
SV2#,VZV21 *H,L=300,MARK=#*,NO.3 |
2 | ||
| 88200D - ACTUATOR ASSY, CRUISE CONTROL | ||||
| 88200-32071 |
SV2# |
1 | ||
| 88200-32071 |
SV21 |
1 | ||
| 88200-32070 |
SV21 |
1 | ||
| 88200-32072 |
SV2#,VZV21 |
1 | ||
| 88200D - ACTUATOR ASSY, CRUISE CONTROL | ||||
| 88200-32071 |
SV2# |
1 | ||
| 88200-32071 |
SV21 |
1 | ||
| 88200-32070 |
SV21 |
1 | ||
| 88200-32072 |
SV2#,VZV21 |
1 | ||
| 88250A - PUMP ASSY, CRUISE CONTROL | ||||
| 88251-32071 |
SV21 |
1 | ||
| 88251-32071 |
SV2#,VZV21 |
1 | ||
| 88251-32070 |
SV21 |
1 | ||
| 88250A - PUMP ASSY, CRUISE CONTROL | ||||
| 88251-32071 |
SV21 |
1 | ||
| 88251-32071 |
SV2#,VZV21 |
1 | ||
| 88251-32070 |
SV21 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-06119 | ||||
| 90119-06198 | ||||
| 90119-06247 | ||||
| 90179-10100 | ||||
| 90205-05002 | ||||
| 90339-03002 | ||||
| 90464-00082 | ||||
| 90464-00151 | ||||
| 90464-00184 | ||||
| 90464-00228 | ||||
| 90464-00298 | ||||
| 91655-40620 | ||||
