SV21LG-UWPDKA (1986)
Toyota Camry

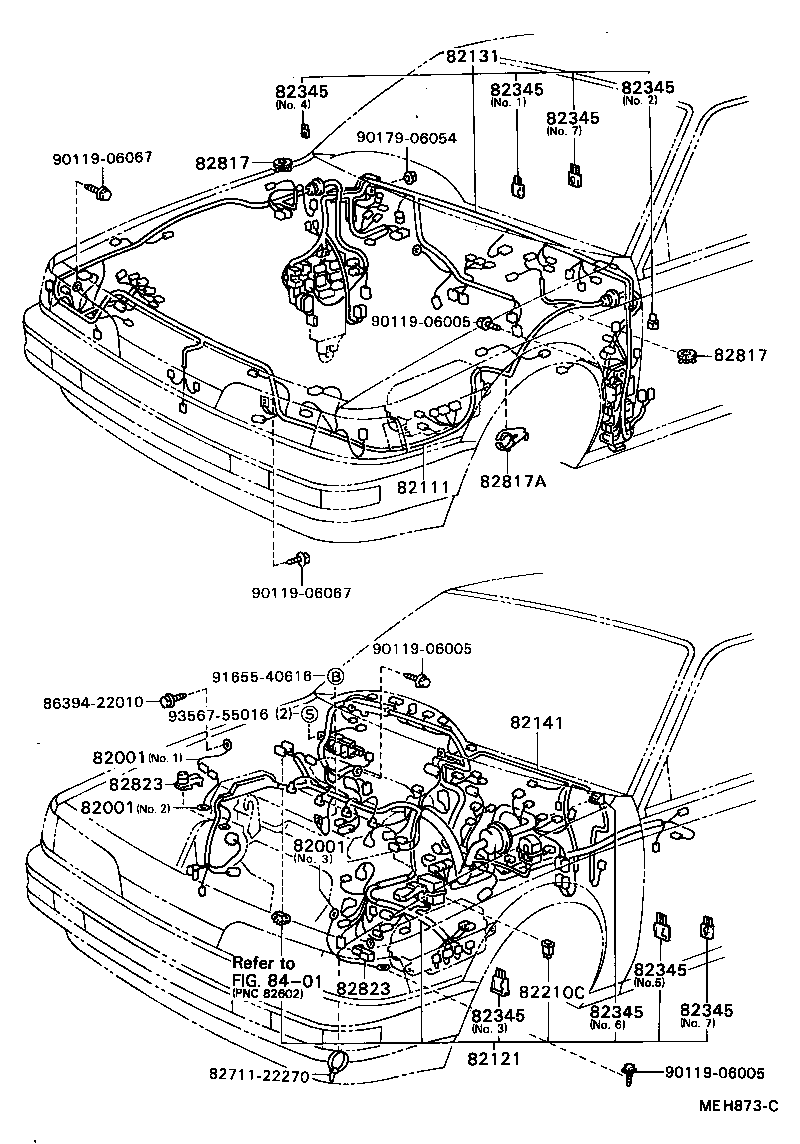

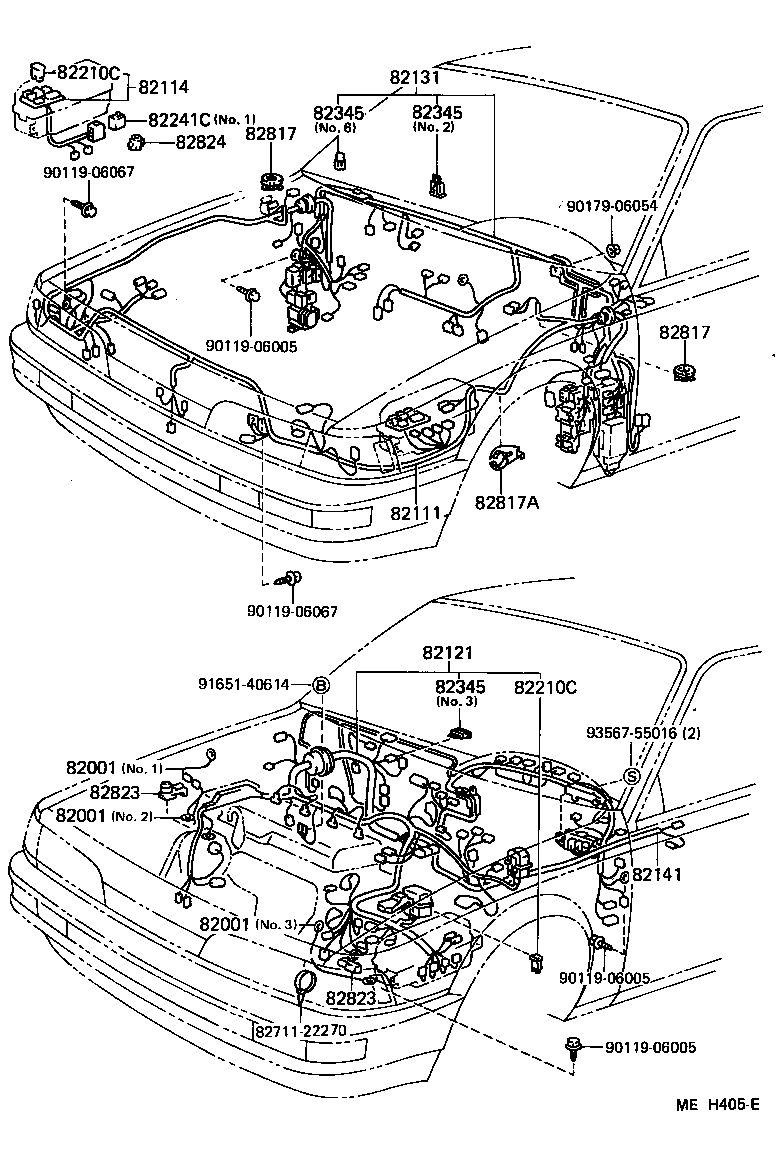

ILLUST NO. 1 OF 5(8608- )SV2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07136 |
SV21 NO.3 |
1 | ||
| 90980-07206 |
SV21 NO.2 |
1 | ||
| 90980-07287 |
SV21 NO.1 |
1 | ||
| 90980-07280 |
SV21 NO.2 |
1 | ||
| 90980-07287 |
SV2#,VZV21 NO.1 |
1 | ||
| 90980-07280 |
SV2# NO.2 |
1 | ||
| 90980-07136 |
SV2# NO.3 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07136 |
SV21 NO.3 |
1 | ||
| 90980-07206 |
SV21 NO.2 |
1 | ||
| 90980-07287 |
SV21 NO.1 |
1 | ||
| 90980-07280 |
SV21 NO.2 |
1 | ||
| 90980-07287 |
SV2#,VZV21 NO.1 |
1 | ||
| 90980-07280 |
SV2# NO.2 |
1 | ||
| 90980-07136 |
SV2# NO.3 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07136 |
SV21 NO.3 |
1 | ||
| 90980-07206 |
SV21 NO.2 |
1 | ||
| 90980-07287 |
SV21 NO.1 |
1 | ||
| 90980-07280 |
SV21 NO.2 |
1 | ||
| 90980-07287 |
SV2#,VZV21 NO.1 |
1 | ||
| 90980-07280 |
SV2# NO.2 |
1 | ||
| 90980-07136 |
SV2# NO.3 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-32161 |
SV21..WG |
1 | ||
| 82111-32160 |
SV21..WG |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-32040 |
SV2# |
1 | ||
| 82114-32040 |
SV21 W/*AIC |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-32671 |
SV21..4FC |
1 | ||
| 82121-32670 |
SV21..4FC |
1 | ||
| 82121-32672 |
SV21..4FC..(DX,LE) |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-3H181 |
SV2#..DX..USA |
1 | ||
| 82131-3H180 |
SV21..DX..USA |
1 | ||
| 82131-3H470 |
SV21..DX..USA W/*PW OR *SNR |
1 | ||
| 82131-3H470 |
SV21..DX..USA W(*PW) OR W(*MR) OR W(*PW & *MR) |
1 | ||
| 82131-3H182 |
SV2#,VZV21..DX..USA |
1 | ||
| 82131-3H471 |
SV21..DX..USA W(*PW) OR W(*MR) OR W(*PW & *MR) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-32080 |
SV21..WG..USA |
1 | ||
| 82141-32081 |
SV21,VZV21..WG..USA |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
SV21 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08203 |
SV21 80A,TERM.:MALE,BLK,80A |
1 | ||
| 90982-08203 |
SV2#,VZV21 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08189 |
SV2#,VZV21 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08188 |
SV2#,VZV21 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08188 |
SV21 30A,TERM.:FEMALE,PNK,30A |
3 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
SV21 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08203 |
SV21 80A,TERM.:MALE,BLK,80A |
1 | ||
| 90982-08203 |
SV2#,VZV21 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08189 |
SV2#,VZV21 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08188 |
SV2#,VZV21 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08188 |
SV21 30A,TERM.:FEMALE,PNK,30A |
3 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-32020 |
SV2#;VZV21..DX W/O(AIR CONDITIONER),NO.1 |
1 | ||
| 82241-32020 |
SV21 W/O *AIC,NO.1 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
SV21..4FC ENGINE WIRE,NO.3 |
1 | ||
| 82345-20040 |
SV25..DX;SV25..CND;SV21,VZV21 COWL WIRE,NO.2 |
1 | ||
| 82345-20040 |
SV21 COWL WIRE,NO.2 |
1 | ||
| 82345-20050 |
SV21..4FC ENGINE WIRE,NO.3 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
SV21..4FC ENGINE WIRE,NO.3 |
1 | ||
| 82345-20040 |
SV25..DX;SV25..CND;SV21,VZV21 COWL WIRE,NO.2 |
1 | ||
| 82345-20040 |
SV21 COWL WIRE,NO.2 |
1 | ||
| 82345-20050 |
SV21..4FC ENGINE WIRE,NO.3 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
SV21..4FC ENGINE WIRE,NO.3 |
1 | ||
| 82345-20040 |
SV25..DX;SV25..CND;SV21,VZV21 COWL WIRE,NO.2 |
1 | ||
| 82345-20040 |
SV21 COWL WIRE,NO.2 |
1 | ||
| 82345-20050 |
SV21..4FC ENGINE WIRE,NO.3 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32420 |
SV2#,VZV21 |
2 | ||
| 82817-32420 |
SV21 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32420 |
SV2#,VZV21 |
2 | ||
| 82817-32420 |
SV21 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32310 |
SV21 |
1 | ||
| 82817-32310 |
SV2#,VZV21 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
SV2# ALTERNATOR |
1 | ||
| 82823-20030 |
SV21 STARTER |
1 | ||
| 82823-22050 |
SV21 ALTERNATOR |
1 | ||
| 82823-20030 |
SV2# ST |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
SV2# ALTERNATOR |
1 | ||
| 82823-20030 |
SV21 STARTER |
1 | ||
| 82823-22050 |
SV21 ALTERNATOR |
1 | ||
| 82823-20030 |
SV2# ST |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
SV21 W/O *AIC |
1 | ||
| 82824-32030 |
SV2#,VZV21 |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90179-06054 | ||||
| 91651-40614 | ||||
| 93567-55016 | ||||

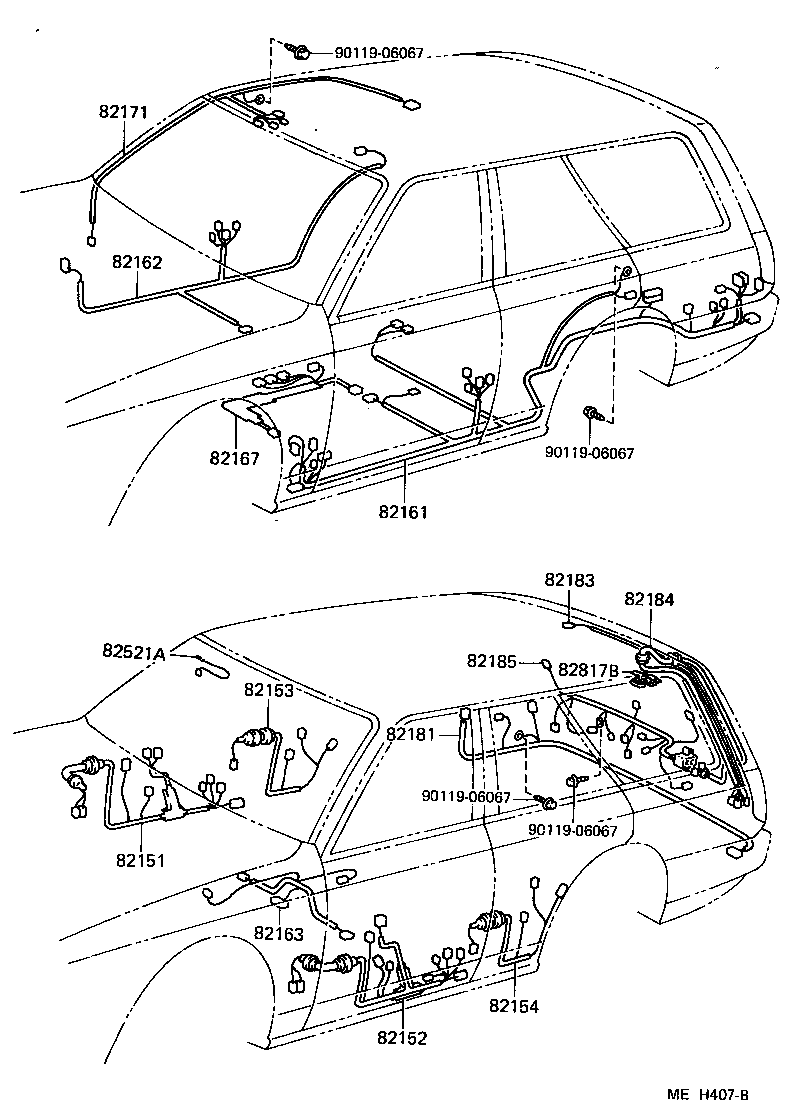

ILLUST NO. 2 OF 5(8608- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-32240 |
SV21..(DX,STD)..USA |
1 | ||
| 82151-32420 |
SV21..DX..USA W/*PW |
1 | ||
| 82151-32240 |
SV2#,VZV21..(DX,STD)..USA |
1 | ||
| 82151-32420 |
SV2#,VZV21..DX..USA W(POWER WINDOW) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-32380 |
SV21..DX..USA W/*PW |
1 | ||
| 82152-32230 |
SV21..(DX,STD)..USA |
1 | ||
| 82152-32380 |
SV2#,VZV21..DX..USA W(POWER WINDOW) |
1 | ||
| 82152-32230 |
SV2#,VZV21..(DX,STD)..USA |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-32080 |
SV21..DX,LE |
1 | ||
| 82153-32080 |
SV2#,VZV21..DX,LE |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-32080 |
SV21..DX,LE |
1 | ||
| 82153-32080 |
SV2#,VZV21..DX,LE |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-32370 |
SV21..WG..USA |
1 | ||
| 82161-32380 |
SV21..WG..USA W/*PW |
1 | ||
| 82161-32380 |
SV21..WG..USA W(POWER WINDOW) |
1 | ||
| 82161-32371 |
SV21,VZV21..WG..USA |
1 | ||
| 82161-32381 |
SV21..WG..USA;VZV21..WG..DX W(POWER WINDOW) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-32070 |
SV21..USA |
1 | ||
| 82162-32080 |
SV21..(DX,LE)..USA W/*PW |
1 | ||
| 82162-32070 |
SV2#,VZV21..USA |
1 | ||
| 82162-32080 |
SV2#,VZV21..(DX,LE)..USA W(POWER WINDOW) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-32050 |
SV21,VZV21..USA |
1 | ||
| 82163-32051 |
SV21,VZV21..USA |
1 | ||
| 82163-32050 |
SV21..USA |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-32090 |
SV21..(DX,LE)..USA W/*SNR |
1 | ||
| 82171-32090 |
SV2#,VZV21..(DX,LE)..USA W(MOON ROOF) |
1 | ||
| 82171-32070 |
SV2#,VZV21..(DX,STD)..USA |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-32050 |
SV21..WG |
1 | ||
| 82181-32050 |
SV21,VZV21..WG |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-32020 |
SV21..WG..DX W(RADIO) |
1 | ||
| 82183-32030 |
SV21..WG..DX |
1 | ||
| 82183-32020 |
SV21..WG W/RADIO |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-32030 |
SV21..WG |
1 | ||
| 82184-32030 |
SV21,VZV21..WG |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-32050 |
SV21..WG |
1 | ||
| 82185-32050 |
SV21,VZV21..WG |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-32050 |
SV21..WG |
1 | ||
| 82817-32050 |
SV21,VZV21..WG |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
ILLUST NO. 4 OF 5(8608- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-22020 |
SV21 |
1 | ||
| 82981-22020 |
SV2#,VZV21 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-22050 |
SV21 |
1 | ||
| 82982-22050 |
SV2#,VZV21 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-32010 |
SV21 |
1 | ||
| 82983-32010 |
SV2#,VZV21 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
SV21 |
1 | ||
| 82984-22010 |
SV2#,VZV21 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20050 |
SV21 |
1 | ||
| 82991-20050 |
SV2#,VZV21 |
1 | ||
| Common parts | ||||
| 82981-22020 | ||||
| 82982-22050 | ||||
| 82983-32010 | ||||
| 82984-22010 | ||||
| 82991-20050 | ||||
ILLUST NO. 3 OF 5(8608- )
CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12770 | ||||
| 82711-14110 | ||||
| 82711-14350 | ||||
| 82711-20880 | ||||
| 82711-22270 | ||||
| 82711-24070 | ||||
| 82711-32520 | ||||
| 82711-32620 | ||||
| 82711-32640 | ||||
| 82711-32650 | ||||
| 82711-32660 | ||||
| 82711-32670 | ||||
| 82711-32720 | ||||
| 82711-32730 | ||||
| 82711-32780 | ||||
| 82711-32810 | ||||
| 82711-32830 | ||||
| 82711-3H090 | ||||

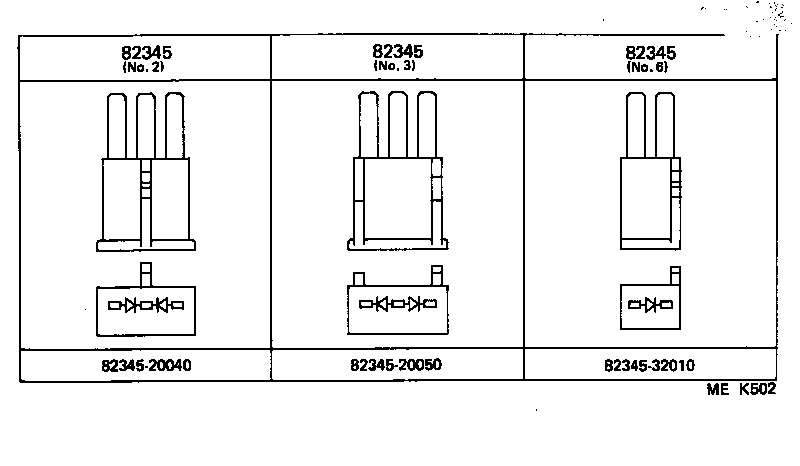

ILLUST NO. 5 OF 5(8608- )
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-20050 |
SV21..4FC ENGINE WIRE,NO.3 |
1 | ||
| 82345-20040 |
SV25..DX;SV25..CND;SV21,VZV21 COWL WIRE,NO.2 |
1 | ||
| 82345-20040 |
SV21 COWL WIRE,NO.2 |
1 | ||
| 82345-20050 |
SV21..4FC ENGINE WIRE,NO.3 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
SV21..4FC ENGINE WIRE,NO.3 |
1 | ||
| 82345-20040 |
SV25..DX;SV25..CND;SV21,VZV21 COWL WIRE,NO.2 |
1 | ||
| 82345-20040 |
SV21 COWL WIRE,NO.2 |
1 | ||
| 82345-20050 |
SV21..4FC ENGINE WIRE,NO.3 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
SV21..4FC ENGINE WIRE,NO.3 |
1 | ||
| 82345-20040 |
SV25..DX;SV25..CND;SV21,VZV21 COWL WIRE,NO.2 |
1 | ||
| 82345-20040 |
SV21 COWL WIRE,NO.2 |
1 | ||
| 82345-20050 |
SV21..4FC ENGINE WIRE,NO.3 |
1 | ||
| Common parts | ||||
| 82345-20040 | ||||
| 82345-20050 | ||||
| 82345-32010 | ||||
ILLUST NO. 3 OF 5(8610- )
CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-20410 | ||||
| 82711-20850 | ||||
| 82711-22220 | ||||
| 82711-22270 | ||||
| 82711-24070 | ||||
| 82711-32070 | ||||
| 82711-32100 | ||||
| 82711-32501 | ||||
| 82711-32511 | ||||
| 82711-32520 | ||||
| 82711-32540 | ||||
| 82711-32600 | ||||
| 82711-32620 | ||||
| 82711-32640 | ||||
| 82711-32650 | ||||
| 82711-32660 | ||||
| 82711-32670 | ||||
| 82711-32720 | ||||
| 82711-32730 | ||||
| 82711-32780 | ||||
ILLUST NO. 3 OF 5(8610- )
CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-20880 | ||||
| 82711-22140 | ||||
| 82711-32810 | ||||
| 82711-32830 | ||||
| 82711-32840 | ||||
| 82711-3H030 | ||||
| 82711-3H090 | ||||
| 90461-08066 | ||||
| 90461-08202 | ||||
| 90464-00248 | ||||
ILLUST NO. 1 OF 5(8610- )SV21,25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-22270 | ||||
| 86394-22010 | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90179-06054 | ||||
| 91655-40616 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 5(8610- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06067 | ||||
ILLUST NO. 4 OF 5(8610- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82981-20010 | ||||
| 82982-22050 | ||||
| 82983-32010 | ||||
| 82984-20010 | ||||
| 82985-20010 | ||||
| 82991-20010 | ||||
ILLUST NO. 4 OF 5(8610- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82911-20050 | ||||
| 82991-32060 | ||||
ILLUST NO. 5 OF 5(8610- )
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82345-12050 | ||||
| 82345-20040 | ||||
| 82345-20050 | ||||
| 82345-20060 | ||||
| 82345-22051 | ||||
| 82345-32010 | ||||
| 82345-32020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
