SV21LG-UWPDKA (1986)
Toyota Camry
Production
Aug 1986
-
Aug 1988
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

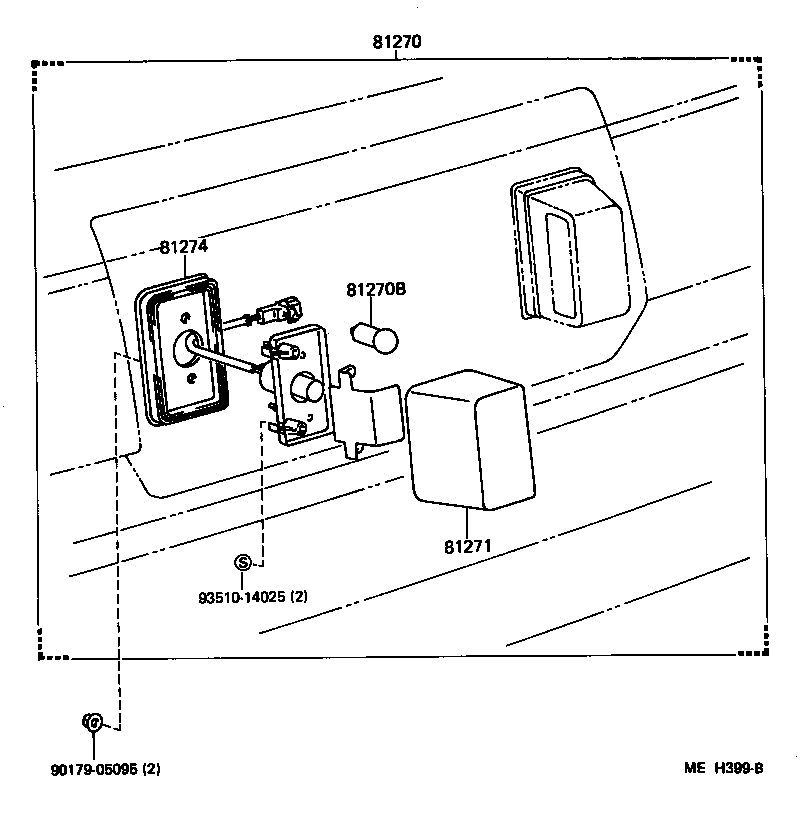

(8608- )WG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-32130 |
SV21..WG |
2 | ||
| 81270-32130 |
SV21,VZV21..WG |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90981-12012 |
SV21 12V 7.5W,12V 7.5W(LICENSE) |
2 | ||
| 90981-12012 |
SV2#,VZV21 12V 7.5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-10141 |
SV21,VZV21..WG |
2 | ||
| 81271-10141 |
SV21..WG |
2 | ||
| 81274 - GASKET, LICENSE PLATE LAMP BODY | ||||
| 81274-32130 |
SV21..WG |
2 | ||
| 81274-32130 |
SV21,VZV21..WG |
2 | ||
| Common parts | ||||
| 90179-05095 | ||||
| 93510-14025 | ||||

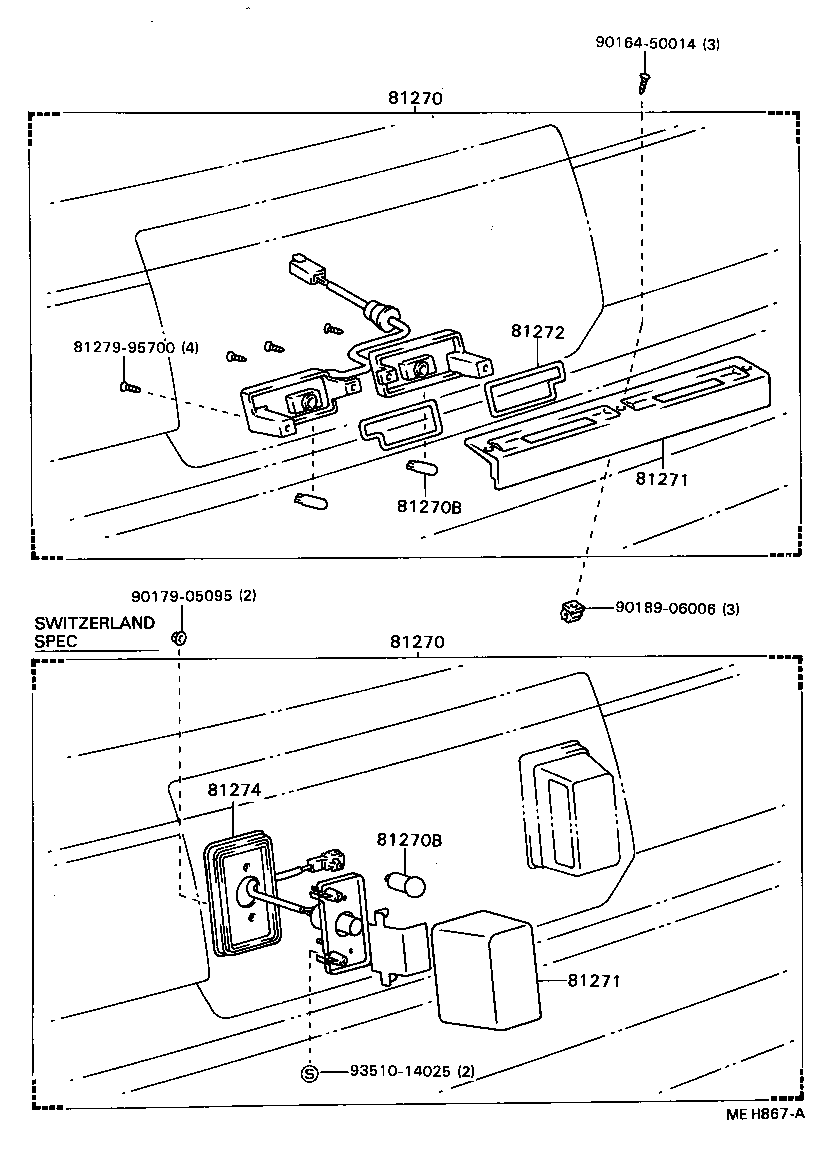

(8610- )WG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 81279-95700 | ||||
| 90164-50014 | ||||
| 90179-05095 | ||||
| 90189-06006 | ||||
| 93510-14025 | ||||
