SV21LG-UWPDKA (1986)
Toyota Camry
Production
Aug 1986
-
Aug 1988
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )

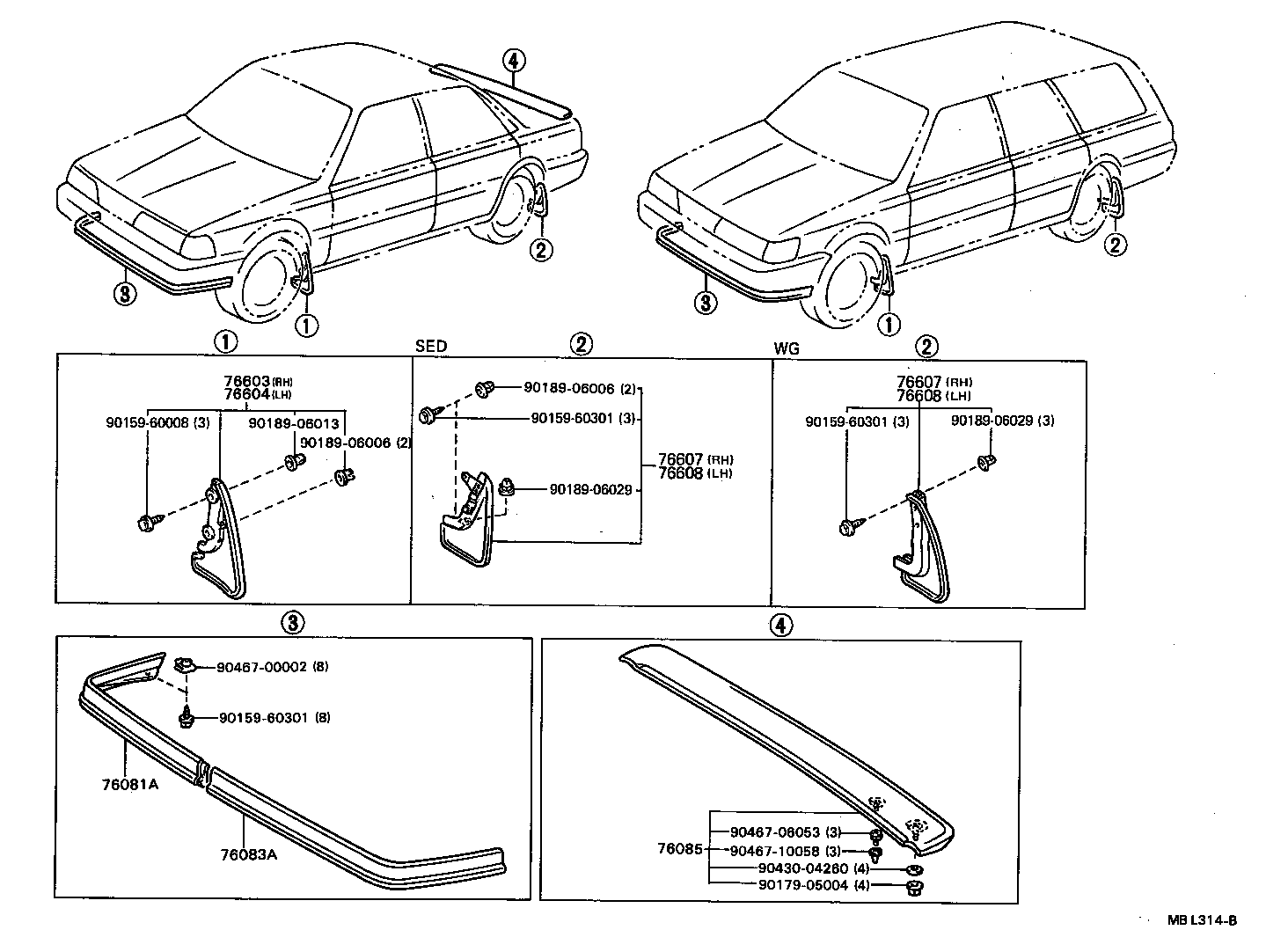

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-39095 |
SV2#,VZV21 |
1 | ||
| 76621-39095 |
SV21 BLACK |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-39095 |
SV2#,VZV21 |
1 | ||
| 76622-39095 |
SV21 BLACK |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-39145 |
SV21,VZV21..WG |
1 | ||
| 76625-39145 |
SV21..WG SILVER-M,20C |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-39145 |
SV21,VZV21..WG |
1 | ||
| 76625-39145 |
SV21..WG SILVER-M,20C |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-39135 |
SV21,VZV21..WG |
1 | ||
| 76626-39135 |
SV21..WG SILVER-M,20C |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-39135 |
SV21,VZV21..WG |
1 | ||
| 76626-39135 |
SV21..WG SILVER-M,20C |
1 | ||
| Common parts | ||||
| 90081-18004 | ||||
| 90159-60008 | ||||
| 90159-60301 | ||||
| 90189-06006 | ||||
| 90189-06029 | ||||
(8610- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60008 | ||||
| 90159-60301 | ||||
| 90179-05004 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
| 90189-06029 | ||||
| 90430-04260 | ||||
| 90467-00002 | ||||
| 90467-06053 | ||||
| 90467-10058 | ||||
