SV21LG-UWPDKA (1986)
Toyota Camry
(8608- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-32040 |
SV21..WG |
1 | ||
| 71015-32040 |
SV21,VZV21..WG |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-32010 |
SV21..WG |
1 | ||
| 71016-32010 |
SV21,VZV21..WG |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-32090 |
SV21,VZV21..WG |
1 | ||
| 71017-32090 |
SV21..WG |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-32020 |
SV21,VZV21..WG..DX |
1 | ||
| 71018-32020 |
SV21..WG..DX |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-3252002 |
SV21..WG..DX..USA FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71075-3252003 |
SV21..WG..DX FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71075-3252002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 71075-3252005 |
SV21..WG..DX FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71075-3252005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 71075-3252004 |
SV21..WG..DX FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71075-3252003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 71075-3252004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-3201004 |
SV21..WG..DX FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71076-3201003 |
SV21..WG..DX FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71076-3201005 |
SV21..WG..DX FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71076-3201002 |
SV21..WG..DX..USA FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71076-3201002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 71076-3201004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 71076-3201003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 71076-3201005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-3256003 |
SV21..WG..DX FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-3256002 |
SV21..WG..DX..USA FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71077-3256005 |
SV21..WG..DX FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71077-3256004 |
SV21..WG..DX FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71077-3256002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 71077-3256004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 71077-3256003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-3256005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-3235002 |
SV21..WG..DX..USA FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71078-3235004 |
SV21..WG..DX FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71078-3235005 |
SV21..WG..DX FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71078-3235002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 71078-3235003 |
SV21..WG..DX FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71078-3235004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 71078-3235003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 71078-3235005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-32020 |
SV21,VZV21..WG |
2 | ||
| 71301-32020 |
SV21..WG |
4 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-32020 |
SV21,VZV21..WG |
2 | ||
| 71301-32020 |
SV21..WG |
4 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-32020 |
SV21..WG RH |
1 | ||
| 71304-32020 |
SV21..WG LH |
1 | ||
| 71304-32020 |
SV21,VZV21..WG LH |
1 | ||
| 71303-32020 |
SV21,VZV21..WG RH |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-32020 |
SV21..WG RH |
1 | ||
| 71304-32020 |
SV21..WG LH |
1 | ||
| 71304-32020 |
SV21,VZV21..WG LH |
1 | ||
| 71303-32020 |
SV21,VZV21..WG RH |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-32020 |
SV21,VZV21..WG |
1 | ||
| 71305-32020 |
SV21..WG |
1 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-3202004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71370-3202003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 71370-3202003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 71370-3202002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 71370-3202005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71370-3202002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
2 | ||
| 71370-3202005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
2 | ||
| 71370-3202004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-3202004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71370-3202003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 71370-3202003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 71370-3202002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 71370-3202005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71370-3202002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
2 | ||
| 71370-3202005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
2 | ||
| 71370-3202004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-3226002 |
SV21..WG..DX..USA FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71540-3226004 |
SV21..WG..DX FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71540-3226003 |
SV21..WG..DX FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71540-3226005 |
SV21..WG..DX FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71540-3226003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 71540-3226004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 71540-3226005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 71540-3226002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-3225005 |
SV21..WG..DX FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71550-3225002 |
SV21..WG..DX..USA FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71550-3225004 |
SV21..WG..DX FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71550-3225003 |
SV21..WG..DX FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71550-3225002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 71550-3225004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 71550-3225003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 71550-3225005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-32120 |
SV21,VZV21..WG |
1 | ||
| 71611-32120 |
SV21..WG |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-32030 |
SV21,VZV21..WG |
1 | ||
| 71612-32030 |
SV21..WG |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-32100 |
SV21,VZV21..WG |
1 | ||
| 71651-32100 |
SV21..WG |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-32070 |
SV21..WG..DX |
1 | ||
| 71652-32070 |
SV21,VZV21..WG..DX |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-3202002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 71880-3202004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71880-3202005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71880-3202003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71880-3202005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 71880-3202002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 71880-3202003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 71880-3202004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0604912 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
5 | ||
| 90467-0604923 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
5 | ||
| 90467-0604912 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
5 | ||
| 90467-0604915 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
5 | ||
| 90467-0604924 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
5 | ||
| 90467-0604923 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
5 | ||
| 90467-0604924 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
5 | ||
| 90467-0604915 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
5 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0604912 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
5 | ||
| 90467-0604923 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
5 | ||
| 90467-0604912 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
5 | ||
| 90467-0604915 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
5 | ||
| 90467-0604924 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
5 | ||
| 90467-0604923 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
5 | ||
| 90467-0604924 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
5 | ||
| 90467-0604915 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
5 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-3202002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 71890-3202002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 71890-3202004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71890-3202003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71890-3202005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71890-3202003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 71890-3202004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 71890-3202005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-32010 |
SV21..LE;SV21..WG..DX |
2 | ||
| 72601-32010 |
SV21..WG..DX;SV21,VZV21..LE |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-32010 |
SV21..LE;SV21..WG..DX |
2 | ||
| 72601-32010 |
SV21..WG..DX;SV21,VZV21..LE |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-32040 |
SV21..WG |
1 | ||
| 72630-32040 |
SV21..WG;VZV21..WG..LE |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-32040 |
SV21..WG;VZV21..WG..LE |
1 | ||
| 72640-32040 |
SV21..WG |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-3202004 |
SV21..WG..DX RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72615-3202005 |
SV21..WG..DX RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72616-3202004 |
SV21..WG..DX LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72615-3202003 |
SV21..WG..DX RH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72616-3202003 |
SV21..WG..DX LH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72615-3202002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3#,RH |
1 | ||
| 72616-3202005 |
SV21..WG..DX LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72615-3202005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4#,RH |
1 | ||
| 72616-3202004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8#,LH |
1 | ||
| 72615-3202004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8#,RH |
1 | ||
| 72616-3202005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4#,LH |
1 | ||
| 72615-3202003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1#,RH |
1 | ||
| 72616-3202002 |
SV21..WG..DX..USA LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72616-3202002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3#,LH |
1 | ||
| 72616-3202003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1#,LH |
1 | ||
| 72615-3202002 |
SV21..WG..DX..USA RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-3202004 |
SV21..WG..DX RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72615-3202005 |
SV21..WG..DX RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72616-3202004 |
SV21..WG..DX LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72615-3202003 |
SV21..WG..DX RH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72616-3202003 |
SV21..WG..DX LH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72615-3202002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3#,RH |
1 | ||
| 72616-3202005 |
SV21..WG..DX LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72615-3202005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4#,RH |
1 | ||
| 72616-3202004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8#,LH |
1 | ||
| 72615-3202004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8#,RH |
1 | ||
| 72616-3202005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4#,LH |
1 | ||
| 72615-3202003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1#,RH |
1 | ||
| 72616-3202002 |
SV21..WG..DX..USA LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72616-3202002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3#,LH |
1 | ||
| 72616-3202003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1#,LH |
1 | ||
| 72615-3202002 |
SV21..WG..DX..USA RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-3201003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 72646-3201005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 72646-3201002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
2 | ||
| 72646-3201004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
2 | ||
| 72646-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 72646-3201005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
1 | ||
| 72646-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 72646-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-3201003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 72646-3201005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 72646-3201002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
2 | ||
| 72646-3201004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
2 | ||
| 72646-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 72646-3201005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
1 | ||
| 72646-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 72646-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-2301013 |
SV21..LE;SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 72658-2301013 |
SV2#..LE;VZV21..WG;SV21..WG..DX;VZV21..SED..LE MEDIUM GRAY,TRIM1# |
1 | ||
| 72658-2301015 |
SV2#..LE;VZV21..WG;SV21..WG..DX;VZV21..SED..LE DARK BEIGE,TRIM4# |
1 | ||
| 72658-2301014 |
SV21..LE;SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
2 | ||
| 72658-2301015 |
SV21..LE;SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 72658-2301002 |
SV21,VZV21..WG..USA;SV2#,VZV21..SED..LE..USA MAROON,TRIM3# |
1 | ||
| 72658-2301002 |
SV21..WG..USA;SV21..SED..LE..USA MAROON,MAROON,TRIM3# |
2 | ||
| 72658-2301014 |
SV2#..LE;VZV21..WG;SV21..WG..DX;VZV21..SED..LE DARK BLUE,TRIM8# |
1 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-2301013 |
SV21..LE;SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 72658-2301013 |
SV2#..LE;VZV21..WG;SV21..WG..DX;VZV21..SED..LE MEDIUM GRAY,TRIM1# |
1 | ||
| 72658-2301015 |
SV2#..LE;VZV21..WG;SV21..WG..DX;VZV21..SED..LE DARK BEIGE,TRIM4# |
1 | ||
| 72658-2301014 |
SV21..LE;SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
2 | ||
| 72658-2301015 |
SV21..LE;SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 72658-2301002 |
SV21,VZV21..WG..USA;SV2#,VZV21..SED..LE..USA MAROON,TRIM3# |
1 | ||
| 72658-2301002 |
SV21..WG..USA;SV21..SED..LE..USA MAROON,MAROON,TRIM3# |
2 | ||
| 72658-2301014 |
SV2#..LE;VZV21..WG;SV21..WG..DX;VZV21..SED..LE DARK BLUE,TRIM8# |
1 | ||
| 72660 - STOPPER SUB-ASSY, REAR SEAT BACK, LOWER LH | ||||
| 72660-3202003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 72660-3202005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 72660-3202002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 72660-3202004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
2 | ||
| 72660-3202003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 72660-3202004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 72660-3202005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
2 | ||
| 72660-3202002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
2 | ||
| 72660 - STOPPER SUB-ASSY, REAR SEAT BACK, LOWER LH | ||||
| 72660-3202003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 72660-3202005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 72660-3202002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 72660-3202004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
2 | ||
| 72660-3202003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 72660-3202004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 72660-3202005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
2 | ||
| 72660-3202002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
2 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-3203004 |
SV21..LE;SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72665-3203002 |
SV21..WG..USA;SV21..SED..LE..USA MAROON,MAROON,TRIM3# |
1 | ||
| 72665-3203005 |
SV21..LE;SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72665-3203003 |
SV21..LE;SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72665A - CAP(FOR REAR SEAT BACK LOCK COVER) | ||||
| 90339-1000124 |
SV21..LE;SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
4 | ||
| 90339-1000133 |
SV21..LE;SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-1000122 |
SV21..WG..USA;SV21..SED..LE..USA MAROON,MAROON,TRIM3# |
4 | ||
| 90339-1000124 |
SV2#..LE;VZV21..WG;SV21..WG..DX;VZV21..SED..LE DARK BLUE,TRIM8# |
4 | ||
| 90339-1000145 |
SV2#..LE;VZV21..WG;SV21..WG..DX;VZV21..SED..LE DARK BEIGE,TRIM4# |
4 | ||
| 90339-1000133 |
SV2#..LE;VZV21..WG;SV21..WG..DX;VZV21..SED..LE MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-1000145 |
SV21..LE;SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
4 | ||
| 90339-1000122 |
SV21,VZV21..WG..USA;SV2#,VZV21..SED..LE..USA MAROON,TRIM3# |
4 | ||
| 72665A - CAP(FOR REAR SEAT BACK LOCK COVER) | ||||
| 90339-1000124 |
SV21..LE;SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
4 | ||
| 90339-1000133 |
SV21..LE;SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-1000122 |
SV21..WG..USA;SV21..SED..LE..USA MAROON,MAROON,TRIM3# |
4 | ||
| 90339-1000124 |
SV2#..LE;VZV21..WG;SV21..WG..DX;VZV21..SED..LE DARK BLUE,TRIM8# |
4 | ||
| 90339-1000145 |
SV2#..LE;VZV21..WG;SV21..WG..DX;VZV21..SED..LE DARK BEIGE,TRIM4# |
4 | ||
| 90339-1000133 |
SV2#..LE;VZV21..WG;SV21..WG..DX;VZV21..SED..LE MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-1000145 |
SV21..LE;SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
4 | ||
| 90339-1000122 |
SV21,VZV21..WG..USA;SV2#,VZV21..SED..LE..USA MAROON,TRIM3# |
4 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72665-3203004 |
SV21..LE;SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72665-3203005 |
SV21..LE;SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72665-3203003 |
SV21..LE;SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72665-3203002 |
SV21..WG..USA;SV21..SED..LE..USA MAROON,MAROON,TRIM3# |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-1601012 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
2 | ||
| 72681-1601025 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 72681-1601043 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 72681-1601025 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
2 | ||
| 72681-1601012 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 72681-1601043 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 72681-1601034 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
2 | ||
| 72681-1601034 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-1601012 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
2 | ||
| 72681-1601025 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 72681-1601043 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 72681-1601025 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
2 | ||
| 72681-1601012 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 72681-1601043 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 72681-1601034 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
2 | ||
| 72681-1601034 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-3201002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
1 | ||
| 72927-3201005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72927-3201005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
1 | ||
| 72927-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 72927-3201003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72927-3201004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72927-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 72927-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 72927A - SCREW (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90159-4014002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
11 | ||
| 90159-40140 |
SV21..WG BLACK |
11 | ||
| 90159-4014003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
11 | ||
| 90159-4014004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
11 | ||
| 90159-4014005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
11 | ||
| 90159-40140 |
SV21,VZV21..WG |
6 | ||
| 90159-40140 |
SV21,VZV21..WG |
5 | ||
| 72927A - SCREW (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90159-4014002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
11 | ||
| 90159-40140 |
SV21..WG BLACK |
11 | ||
| 90159-4014003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
11 | ||
| 90159-4014004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
11 | ||
| 90159-4014005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
11 | ||
| 90159-40140 |
SV21,VZV21..WG |
6 | ||
| 90159-40140 |
SV21,VZV21..WG |
5 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-3201002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
1 | ||
| 72928-3201003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72928-3201004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72928-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 72928-3201005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72928-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 72928-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 72928-3201005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 67771-14030 | ||||
| 90119-06172 | ||||
| 90119-06213 | ||||
| 90119-08160 | ||||
| 90159-40088 | ||||
| 91521-60814 | ||||
| 91651-60818 | ||||
| 91655-60616 | ||||
| 91655-60820 | ||||
| 91655-60825 | ||||
| 91656-40630 | ||||
| 91666-40616 | ||||
| 93530-24516 | ||||
(8610- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67771-14030 | ||||
| 90119-06172 | ||||
| 90119-06213 | ||||
| 90119-08160 | ||||
| 90159-40088 | ||||
| 91521-60814 | ||||
| 91655-60616 | ||||
| 91655-60820 | ||||
| 91655-60825 | ||||
| 91656-40630 | ||||
| 91666-40616 | ||||
| 93530-24516 | ||||

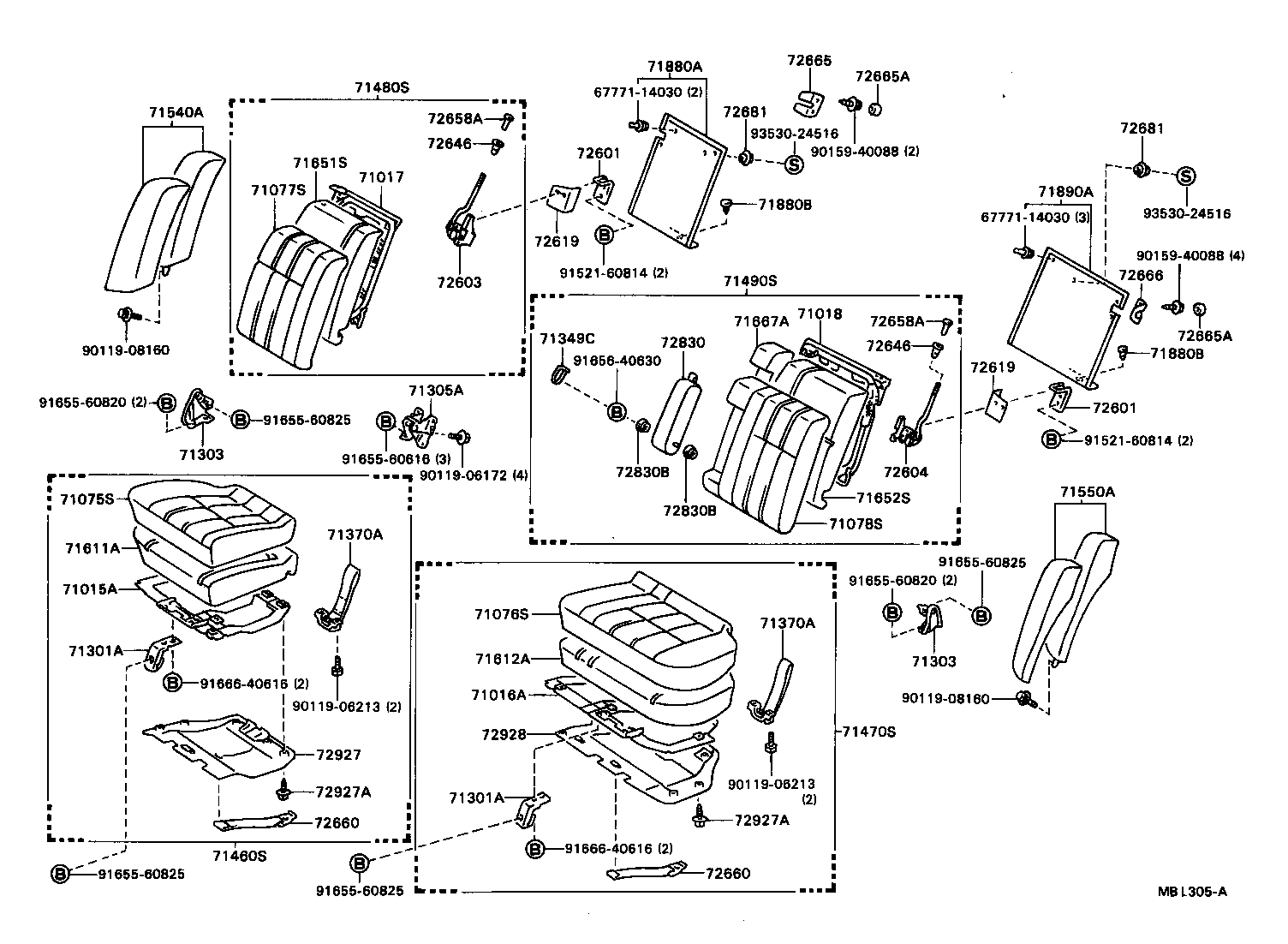

ILLUST NO. 2 OF 2(8808-9008)
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
