SV21LG-UWPDKA (1986)
Toyota Camry

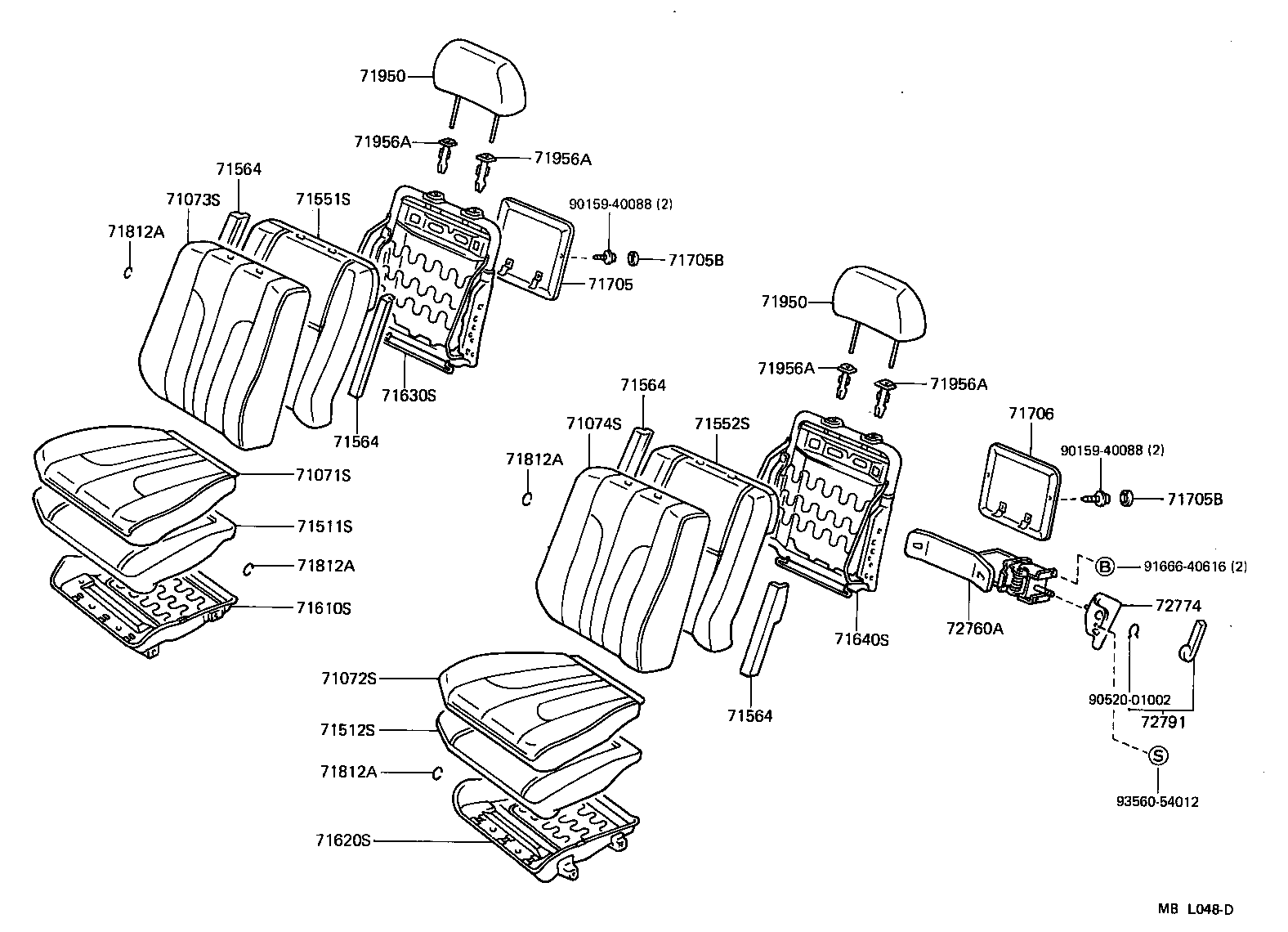

ILLUST NO. 1 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3239002 |
SV21..DX..USA FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-3239004 |
SV21..DX..USA FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71071-3239003 |
SV21..DX..USA FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-3239005 |
SV21..DX..USA FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71071-3239002 |
SV2#,VZV21..DX..USA MAROON,TRIM3# |
1 | ||
| 71071-3239003 |
SV2#,VZV21..DX..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-3239005 |
SV21,VZV21..DX..USA DARK BEIGE,TRIM4# |
1 | ||
| 71071-3239004 |
SV2#,VZV21..DX..USA DARK BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3234002 |
SV21..DX..USA FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-3234003 |
SV21..DX..USA FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-3234004 |
SV21..DX..USA FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71072-3234005 |
SV21..DX..USA FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71072-3234002 |
SV2#,VZV21..DX..USA MAROON,TRIM3# |
1 | ||
| 71072-3234004 |
SV2#,VZV21..DX..USA DARK BLUE,TRIM8# |
1 | ||
| 71072-3234005 |
SV21,VZV21..DX..USA DARK BEIGE,TRIM4# |
1 | ||
| 71072-3234003 |
SV2#,VZV21..DX..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3245003 |
SV21..DX FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-3245004 |
SV21..DX FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71073-3245002 |
SV21..DX..USA FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-3245005 |
SV21..DX FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71073-3245004 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
1 | ||
| 71073-3245002 |
SV2#,VZV21..DX..USA MAROON,TRIM3# |
1 | ||
| 71073-3245005 |
SV21,VZV21..DX DARK BEIGE,TRIM4# |
1 | ||
| 71073-3245003 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-3216003 |
SV21..DX FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-3216002 |
SV21..DX..USA FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-3216005 |
SV21..DX FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71074-3216004 |
SV21..DX FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71074-3216002 |
SV2#,VZV21..DX..USA MAROON,TRIM3# |
1 | ||
| 71074-3216004 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
1 | ||
| 71074-3216005 |
SV21,VZV21..DX DARK BEIGE,TRIM4# |
1 | ||
| 71074-3216003 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-32110 |
SV21..USA |
1 | ||
| 71511-32110 |
SV2#,VZV21..USA |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-32110 |
SV2#,VZV21..USA |
1 | ||
| 71511-32110 |
SV21..USA |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-32100 |
SV21 |
1 | ||
| 71551-32100 |
SV2#,VZV21 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-32100 |
SV2#,VZV21 |
1 | ||
| 71551-32100 |
SV21 |
1 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71564-32030 |
SV2#,VZV21 LH |
2 | ||
| 71564-32030 |
SV21 LH |
2 | ||
| 71563-32030 |
SV21 RH |
2 | ||
| 71563-32030 |
SV2#,VZV21 RH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71564-32030 |
SV2#,VZV21 LH |
2 | ||
| 71564-32030 |
SV21 LH |
2 | ||
| 71563-32030 |
SV21 RH |
2 | ||
| 71563-32030 |
SV2#,VZV21 RH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71564-32030 |
SV2#,VZV21 LH |
2 | ||
| 71564-32030 |
SV21 LH |
2 | ||
| 71563-32030 |
SV21 RH |
2 | ||
| 71563-32030 |
SV2#,VZV21 RH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71564-32030 |
SV2#,VZV21 LH |
2 | ||
| 71564-32030 |
SV21 LH |
2 | ||
| 71563-32030 |
SV21 RH |
2 | ||
| 71563-32030 |
SV2#,VZV21 RH |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-32030 |
SV21 |
1 | ||
| 71610-32030 |
SV2#,VZV21 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-32050 |
SV2#,VZV21..DX,LE |
1 | ||
| 71610-32050 |
SV21 |
1 | ||
| 71610-32050 |
SV21..DX,LE |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-32120 |
SV2#,VZV21 |
1 | ||
| 71630-32110 |
SV21 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-32120 |
SV21..DX |
1 | ||
| 71630-32120 |
SV2#,VZV21..DX,STD |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
SV21 |
33 | ||
| 90468-18071 |
SV2#,VZV21 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
SV21 |
33 | ||
| 90468-18071 |
SV2#,VZV21 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
SV21 |
33 | ||
| 90468-18071 |
SV2#,VZV21 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
SV21 |
33 | ||
| 90468-18071 |
SV2#,VZV21 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3227003 |
SV21..DX GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-3227005 |
SV21..DX BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71910-3227002 |
SV21..DX..USA MAROON,MAROON,TRIM3# |
2 | ||
| 71910-3227002 |
SV2#,VZV21..DX..USA MAROON,TRIM3# |
2 | ||
| 71910-3227003 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-3227004 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
2 | ||
| 71910-3227005 |
SV21,VZV21..DX DARK BEIGE,TRIM4# |
2 | ||
| 71910-3227004 |
SV21..DX BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3227003 |
SV21..DX GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-3227005 |
SV21..DX BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71910-3227002 |
SV21..DX..USA MAROON,MAROON,TRIM3# |
2 | ||
| 71910-3227002 |
SV2#,VZV21..DX..USA MAROON,TRIM3# |
2 | ||
| 71910-3227003 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-3227004 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
2 | ||
| 71910-3227005 |
SV21,VZV21..DX DARK BEIGE,TRIM4# |
2 | ||
| 71910-3227004 |
SV21..DX BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001042 |
SV21..USA W/O(LOCK),W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1001010 |
SV21 W/O(LOCK),W/O LOCK,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006010 |
SV21 W(LOCK),W/LOCK,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006054 |
SV21 W(LOCK),W/LOCK,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71931-1001053 |
SV21 W/O(LOCK),W/O LOCK,GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-1006042 |
SV21..USA W(LOCK),W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1006053 |
SV2#,VZV21 W(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-1006042 |
SV2#,VZV21..USA W(LOCK),MAROON,TRIM3# |
2 | ||
| 71930-1006053 |
SV21 W(LOCK),W/LOCK,GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-1001054 |
SV2#,VZV21 W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1001042 |
SV2#,VZV21..USA W/O(LOCK),MAROON,TRIM3# |
2 | ||
| 71931-1001010 |
SV25..LE;SV21,VZV21 W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006054 |
SV2#,VZV21 W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1006010 |
SV25..LE;SV21,VZV21 W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1001053 |
SV2#,VZV21 W/O(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-1001054 |
SV21 W/O(LOCK),W/O LOCK,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001042 |
SV21..USA W/O(LOCK),W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1001010 |
SV21 W/O(LOCK),W/O LOCK,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006010 |
SV21 W(LOCK),W/LOCK,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006054 |
SV21 W(LOCK),W/LOCK,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71931-1001053 |
SV21 W/O(LOCK),W/O LOCK,GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-1006042 |
SV21..USA W(LOCK),W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1006053 |
SV2#,VZV21 W(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-1006042 |
SV2#,VZV21..USA W(LOCK),MAROON,TRIM3# |
2 | ||
| 71930-1006053 |
SV21 W(LOCK),W/LOCK,GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-1001054 |
SV2#,VZV21 W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1001042 |
SV2#,VZV21..USA W/O(LOCK),MAROON,TRIM3# |
2 | ||
| 71931-1001010 |
SV25..LE;SV21,VZV21 W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006054 |
SV2#,VZV21 W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1006010 |
SV25..LE;SV21,VZV21 W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1001053 |
SV2#,VZV21 W/O(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-1001054 |
SV21 W/O(LOCK),W/O LOCK,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001042 |
SV21..USA W/O(LOCK),W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1001010 |
SV21 W/O(LOCK),W/O LOCK,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006010 |
SV21 W(LOCK),W/LOCK,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006054 |
SV21 W(LOCK),W/LOCK,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71931-1001053 |
SV21 W/O(LOCK),W/O LOCK,GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-1006042 |
SV21..USA W(LOCK),W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1006053 |
SV2#,VZV21 W(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-1006042 |
SV2#,VZV21..USA W(LOCK),MAROON,TRIM3# |
2 | ||
| 71930-1006053 |
SV21 W(LOCK),W/LOCK,GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-1001054 |
SV2#,VZV21 W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1001042 |
SV2#,VZV21..USA W/O(LOCK),MAROON,TRIM3# |
2 | ||
| 71931-1001010 |
SV25..LE;SV21,VZV21 W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006054 |
SV2#,VZV21 W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1006010 |
SV25..LE;SV21,VZV21 W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1001053 |
SV2#,VZV21 W/O(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-1001054 |
SV21 W/O(LOCK),W/O LOCK,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001042 |
SV21..USA W/O(LOCK),W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1001010 |
SV21 W/O(LOCK),W/O LOCK,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006010 |
SV21 W(LOCK),W/LOCK,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006054 |
SV21 W(LOCK),W/LOCK,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71931-1001053 |
SV21 W/O(LOCK),W/O LOCK,GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-1006042 |
SV21..USA W(LOCK),W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1006053 |
SV2#,VZV21 W(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-1006042 |
SV2#,VZV21..USA W(LOCK),MAROON,TRIM3# |
2 | ||
| 71930-1006053 |
SV21 W(LOCK),W/LOCK,GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-1001054 |
SV2#,VZV21 W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1001042 |
SV2#,VZV21..USA W/O(LOCK),MAROON,TRIM3# |
2 | ||
| 71931-1001010 |
SV25..LE;SV21,VZV21 W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006054 |
SV2#,VZV21 W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1006010 |
SV25..LE;SV21,VZV21 W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1001053 |
SV2#,VZV21 W/O(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-1001054 |
SV21 W/O(LOCK),W/O LOCK,BLUE,DARK BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90159-40088 | ||||
| 90520-01002 | ||||
| 91666-40616 | ||||
| 93560-54012 | ||||

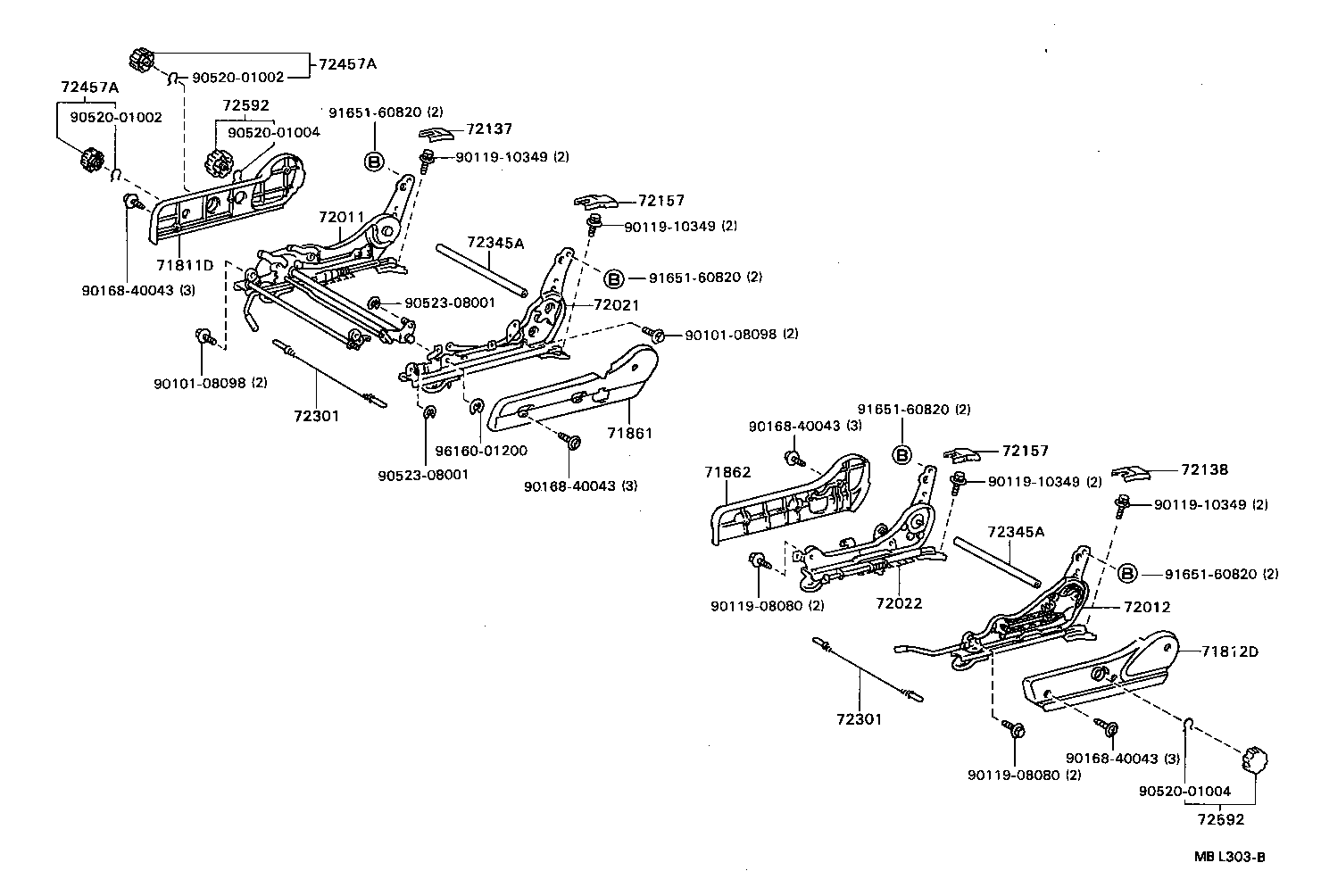

ILLUST NO. 2 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3206004 |
SV21..USA BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71811-3206002 |
SV21..USA MAROON,MAROON,TRIM3# |
1 | ||
| 71811-3206003 |
SV21..USA GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71811-3206002 |
SV2#,VZV21..USA MAROON,TRIM3# |
1 | ||
| 71811-3206005 |
SV21..USA BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71811-3206003 |
SV2#,VZV21..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 71811-3206005 |
SV25..LE..USA;SV21,VZV21..USA DARK BEIGE,TRIM4# |
1 | ||
| 71811-3206004 |
SV2#,VZV21..USA DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3206002 |
SV21..(DX,LE)..USA MAROON,MAROON,TRIM3# |
1 | ||
| 71812-3206004 |
SV21..(DX,LE)..USA BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71812-3206005 |
SV21..(DX,LE)..USA BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71812-3206003 |
SV2#,VZV21..(DX,LE)..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 71812-3206003 |
SV21..(DX,LE)..USA GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71812-3206005 |
SV25..LE..USA;SV21,VZV21..(DX,LE)..USA DARK BEIGE,TRIM4# |
1 | ||
| 71812-3206002 |
SV2#,VZV21..(DX,LE)..USA MAROON,TRIM3# |
1 | ||
| 71812-3206004 |
SV2#,VZV21..(DX,LE)..USA DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3206002 |
SV21..(DX,LE)..USA MAROON,MAROON,TRIM3# |
1 | ||
| 71812-3206004 |
SV21..(DX,LE)..USA BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71812-3206005 |
SV21..(DX,LE)..USA BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71812-3206003 |
SV2#,VZV21..(DX,LE)..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 71812-3206003 |
SV21..(DX,LE)..USA GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71812-3206005 |
SV25..LE..USA;SV21,VZV21..(DX,LE)..USA DARK BEIGE,TRIM4# |
1 | ||
| 71812-3206002 |
SV2#,VZV21..(DX,LE)..USA MAROON,TRIM3# |
1 | ||
| 71812-3206004 |
SV2#,VZV21..(DX,LE)..USA DARK BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-3205002 |
SV2#,VZV21..USA MAROON,TRIM3# |
1 | ||
| 71861-3205002 |
SV21..USA MAROON,MAROON,TRIM3# |
1 | ||
| 71861-3205005 |
SV21..USA BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71861-3205004 |
SV2#,VZV21..USA DARK BLUE,TRIM8# |
1 | ||
| 71861-3205003 |
SV2#,VZV21..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 71861-3205004 |
SV21..USA BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71861-3205003 |
SV21..USA GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71861-3205005 |
SV25..LE..USA;SV21,VZV21..USA DARK BEIGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-3206002 |
SV2#,VZV21..USA MAROON,TRIM3# |
1 | ||
| 71862-3206004 |
SV21..USA BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71862-3206004 |
SV2#,VZV21..USA DARK BLUE,TRIM8# |
1 | ||
| 71862-3206005 |
SV21..USA BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71862-3206002 |
SV21..USA MAROON,MAROON,TRIM3# |
1 | ||
| 71862-3206005 |
SV25..LE..USA;SV21,VZV21..USA DARK BEIGE,TRIM4# |
1 | ||
| 71862-3206003 |
SV2#,VZV21..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 71862-3206003 |
SV21..USA GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-3206002 |
SV2#,VZV21..USA MAROON,TRIM3# |
1 | ||
| 71862-3206004 |
SV21..USA BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71862-3206004 |
SV2#,VZV21..USA DARK BLUE,TRIM8# |
1 | ||
| 71862-3206005 |
SV21..USA BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71862-3206002 |
SV21..USA MAROON,MAROON,TRIM3# |
1 | ||
| 71862-3206005 |
SV25..LE..USA;SV21,VZV21..USA DARK BEIGE,TRIM4# |
1 | ||
| 71862-3206003 |
SV2#,VZV21..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 71862-3206003 |
SV21..USA GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-32060 |
SV21..USA |
1 | ||
| 72011-32060 |
SV2#,VZV21..USA |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-32080 |
SV2#,VZV21..DX,LE |
1 | ||
| 72012-32080 |
SV21..DX,LE |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-32060 |
SV21..USA |
1 | ||
| 72021-32060 |
SV2#,VZV21..USA |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-32070 |
SV2#,VZV21..DX,LE |
1 | ||
| 72022-32070 |
SV21..DX,LE |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3202002 |
SV21..USA MAROON,MAROON,TRIM3# |
1 | ||
| 72137-3202005 |
SV21 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72137-3202004 |
SV21 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72137-3202003 |
SV21 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-3202002 |
SV21..USA MAROON,MAROON,TRIM3# |
1 | ||
| 72137-3202005 |
SV21 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72137-3202003 |
SV21 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72137-3202004 |
SV21 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-3201003 |
SV21 LH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72157-3201002 |
SV21..USA RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72157-3201002 |
SV2#,VZV21..USA MAROON,TRIM3#,RH |
1 | ||
| 72158-3201004 |
SV2#,VZV21 DARK BLUE,TRIM8#,LH |
1 | ||
| 72158-3201003 |
SV2#,VZV21 MEDIUM GRAY,TRIM1#,LH |
1 | ||
| 72157-3201003 |
SV2#,VZV21 MEDIUM GRAY,TRIM1#,RH |
1 | ||
| 72157-3201005 |
SV25..LE;SV21,VZV21 DARK BEIGE,TRIM4#,RH |
1 | ||
| 72157-3201003 |
SV21 RH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72157-3201004 |
SV2#,VZV21 DARK BLUE,TRIM8#,RH |
1 | ||
| 72158-3201005 |
SV25..LE;SV21,VZV21 DARK BEIGE,TRIM4#,LH |
1 | ||
| 72158-3201005 |
SV21 LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72157-3201005 |
SV21 RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72158-3201004 |
SV21 LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72158-3201002 |
SV21..USA LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72158-3201002 |
SV2#,VZV21..USA MAROON,TRIM3#,LH |
1 | ||
| 72157-3201004 |
SV21 RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-3201003 |
SV21 LH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72157-3201002 |
SV21..USA RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72157-3201002 |
SV2#,VZV21..USA MAROON,TRIM3#,RH |
1 | ||
| 72158-3201004 |
SV2#,VZV21 DARK BLUE,TRIM8#,LH |
1 | ||
| 72158-3201003 |
SV2#,VZV21 MEDIUM GRAY,TRIM1#,LH |
1 | ||
| 72157-3201003 |
SV2#,VZV21 MEDIUM GRAY,TRIM1#,RH |
1 | ||
| 72157-3201005 |
SV25..LE;SV21,VZV21 DARK BEIGE,TRIM4#,RH |
1 | ||
| 72157-3201003 |
SV21 RH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72157-3201004 |
SV2#,VZV21 DARK BLUE,TRIM8#,RH |
1 | ||
| 72158-3201005 |
SV25..LE;SV21,VZV21 DARK BEIGE,TRIM4#,LH |
1 | ||
| 72158-3201005 |
SV21 LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72157-3201005 |
SV21 RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72158-3201004 |
SV21 LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72158-3201002 |
SV21..USA LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72158-3201002 |
SV2#,VZV21..USA MAROON,TRIM3#,LH |
1 | ||
| 72157-3201004 |
SV21 RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-32020 |
SV2#,VZV21 |
1 | ||
| 72301-32020 |
SV21 |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-32020 |
SV2#,VZV21 |
1 | ||
| 72301-32020 |
SV21 |
2 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-32020 |
SV21 |
2 | ||
| 72345-32020 |
SV2#,VZV21 LH |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-32020 |
SV21 |
2 | ||
| 72345-32020 |
SV2#,VZV21 LH |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-32020 |
SV21 |
2 | ||
| 72345-32020 |
SV2#,VZV21 LH |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-2201004 |
SV21..DX,LE BLUE,DARK BLUE,TRIM8# |
2 | ||
| 72457-2201002 |
SV2#,VZV21..(DX,LE)..USA RED,TRIM3# |
2 | ||
| 72457-2201013 |
SV21..DX,LE GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 72457-2201013 |
SV2#,VZV21..DX,LE MEDIUM GRAY,TRIM1# |
2 | ||
| 72457-2201002 |
SV21..(DX,LE)..USA MAROON,RED,TRIM3# |
2 | ||
| 72457-2201015 |
SV21..DX,LE BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 72457-2201015 |
SV25..LE;SV21,VZV21..DX,LE DARK BEIGE,TRIM4# |
2 | ||
| 72457-2201004 |
SV2#,VZV21..DX,LE DARK BLUE,TRIM8# |
2 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-1401015 |
SV21 BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 72592-1401013 |
SV2#,VZV21 MEDIUM GRAY,TRIM1#,LH |
1 | ||
| 72592-1401002 |
SV2#,VZV21..USA MAROON,TRIM3#,LH |
1 | ||
| 72592-1401014 |
SV2#,VZV21 DARK BLUE,TRIM8#,LH |
1 | ||
| 72592-1401013 |
SV21 GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 72592-1401002 |
SV21..USA MAROON,MAROON,TRIM3# |
2 | ||
| 72592-1401015 |
SV25..LE;SV21,VZV21 DARK BEIGE,TRIM4#,LH |
1 | ||
| 72592-1401014 |
SV21 BLUE,DARK BLUE,TRIM8# |
2 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-1401015 |
SV21 BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 72592-1401013 |
SV2#,VZV21 MEDIUM GRAY,TRIM1#,LH |
1 | ||
| 72592-1401002 |
SV2#,VZV21..USA MAROON,TRIM3#,LH |
1 | ||
| 72592-1401014 |
SV2#,VZV21 DARK BLUE,TRIM8#,LH |
1 | ||
| 72592-1401013 |
SV21 GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 72592-1401002 |
SV21..USA MAROON,MAROON,TRIM3# |
2 | ||
| 72592-1401015 |
SV25..LE;SV21,VZV21 DARK BEIGE,TRIM4#,LH |
1 | ||
| 72592-1401014 |
SV21 BLUE,DARK BLUE,TRIM8# |
2 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-1401015 |
SV21 BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 72592-1401013 |
SV2#,VZV21 MEDIUM GRAY,TRIM1#,LH |
1 | ||
| 72592-1401002 |
SV2#,VZV21..USA MAROON,TRIM3#,LH |
1 | ||
| 72592-1401014 |
SV2#,VZV21 DARK BLUE,TRIM8#,LH |
1 | ||
| 72592-1401013 |
SV21 GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 72592-1401002 |
SV21..USA MAROON,MAROON,TRIM3# |
2 | ||
| 72592-1401015 |
SV25..LE;SV21,VZV21 DARK BEIGE,TRIM4#,LH |
1 | ||
| 72592-1401014 |
SV21 BLUE,DARK BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90101-08098 | ||||
| 90119-08080 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90520-01002 | ||||
| 90520-01004 | ||||
| 90523-08001 | ||||
| 91651-60820 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 8202 | ||||

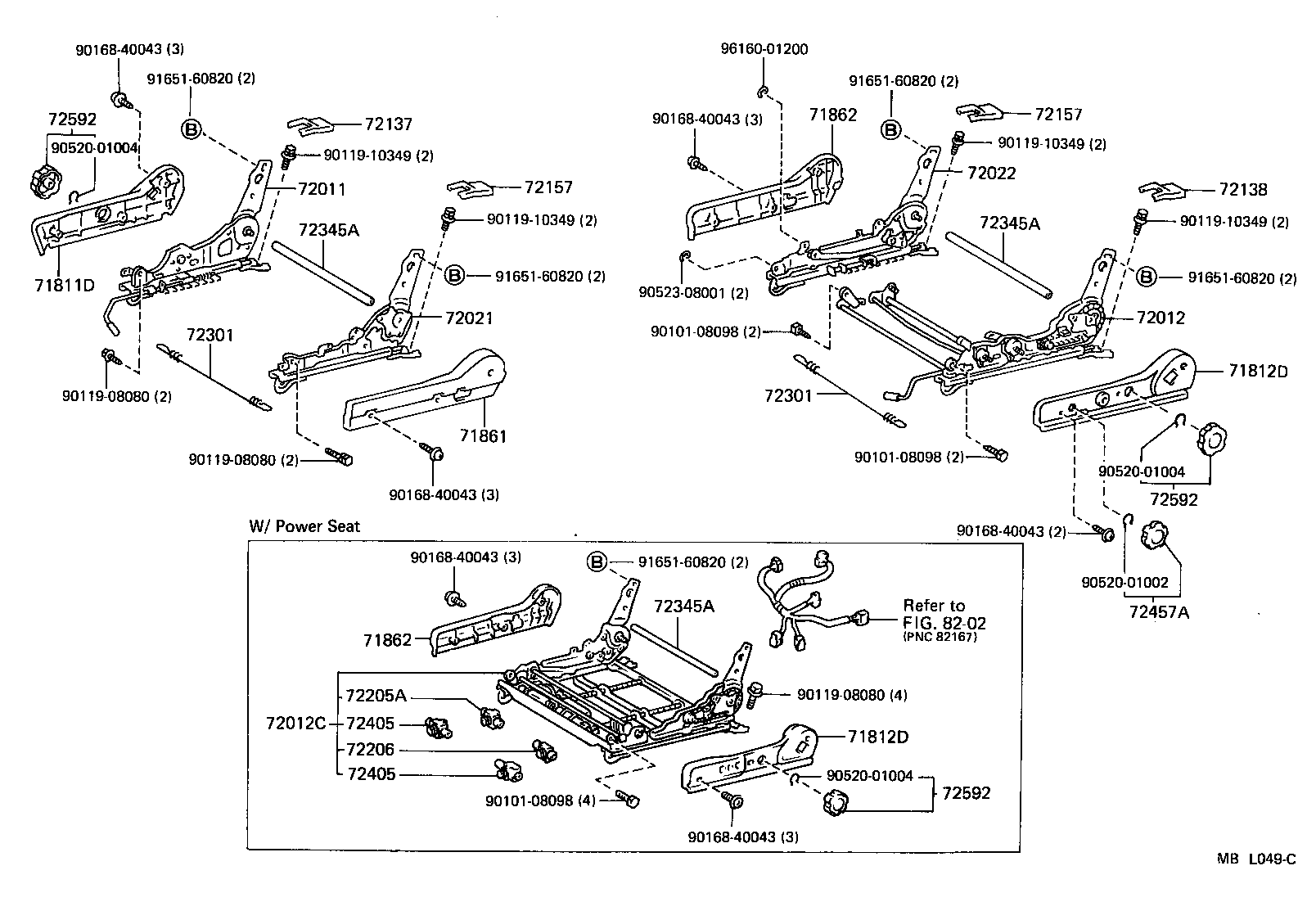

ILLUST NO. 1 OF 2(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-40088 | ||||
| 90520-01002 | ||||
| 91666-40616 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8513 | ||||
ILLUST NO. 2 OF 2(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-08098 | ||||
| 90119-08080 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90520-01002 | ||||
| 90520-01004 | ||||
| 90523-08001 | ||||
| 91651-60820 | ||||
| 96160-01200 | ||||
ILLUST NO. 2 OF 2(8808-9008)
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
