SV21LG-UWPDKA (1986)
Toyota Camry
(8608- )WG

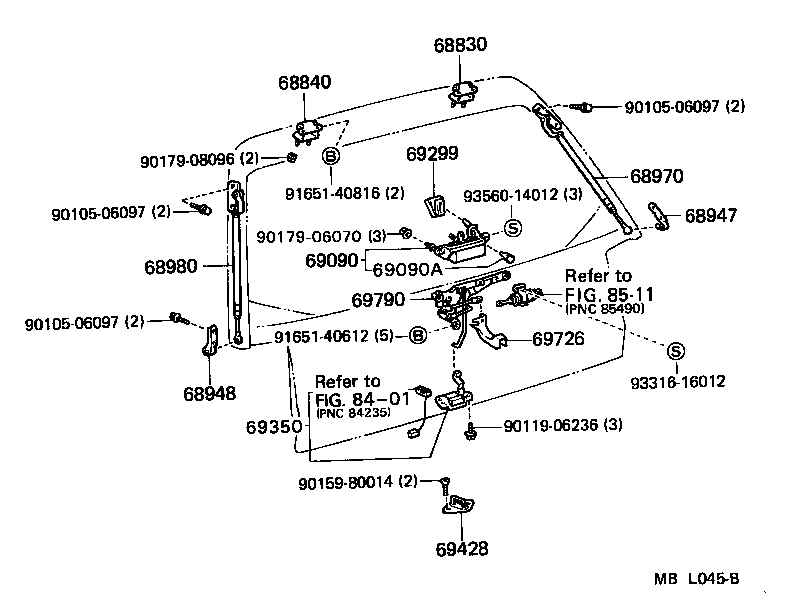

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-32010 |
SV21,VZV21..WG |
1 | ||
| 68810-32010 |
SV21..WG |
1 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-32010 |
SV21..WG |
1 | ||
| 68810-32010 |
SV21,VZV21..WG |
1 | ||
| 68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH | ||||
| 68947-32010 |
SV21,VZV21..WG |
1 | ||
| 68947-32010 |
SV21..WG |
1 | ||
| 68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH | ||||
| 68948-32010 |
SV21,VZV21..WG |
1 | ||
| 68948-32010 |
SV21..WG |
1 | ||
| 68970 - STAY ASSY, BACK DOOR, RH | ||||
| 68950-32060 |
SV21..WG |
1 | ||
| 68950-32060 |
SV21,VZV21..WG |
1 | ||
| 68980 - STAY ASSY, BACK DOOR | ||||
| 68960-32010 |
SV21,VZV21..WG |
1 | ||
| 68960-32010 |
SV21..WG |
1 | ||
| 69090 - HANDLE ASSY, BACK DOOR, OUTSIDE | ||||
| 69090-32010 |
SV21..WG |
1 | ||
| 69090-32010 |
SV21,VZV21..WG |
1 | ||
| 69090A - CUSHION(FOR BACK DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
SV21,VZV21..WG |
2 | ||
| 90541-03021 |
SV21..WG |
2 | ||
| 69299 - GROMMET, BACK DOOR HANDLE | ||||
| 69299-32010 |
SV21,VZV21..WG |
1 | ||
| 69299-32010 |
SV21..WG |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-32040 |
SV21..WG |
1 | ||
| 69350-32040 |
SV21,VZV21..WG |
1 | ||
| 69428 - PLATE, BACK DOOR LOCK BASE | ||||
| 69410-32020 |
SV21,VZV21..WG |
1 | ||
| 69410-32020 |
SV21..WG |
1 | ||
| 69726 - PROTECTOR, BACK DOOR LOCK CONTROL | ||||
| 69726-32010 |
SV21..WG |
1 | ||
| 69726-32010 |
SV21,VZV21..WG |
1 | ||
| 69790 - CONTROL ASSY, BACK DOOR LOCK | ||||
| 69709-32020 |
SV21..WG |
1 | ||
| 69709-32010 |
SV21,VZV21..WG |
1 | ||
| Common parts | ||||
| 90105-06097 | ||||
| 90119-06236 | ||||
| 90159-80014 | ||||
| 90179-06070 | ||||
| 90179-08096 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 93316-16012 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8511 | ||||
(8610- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-32010 |
SV21,VZV21..WG |
1 | ||
| 68810-32010 |
SV21..WG |
1 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-32010 |
SV21..WG |
1 | ||
| 68810-32010 |
SV21,VZV21..WG |
1 | ||
| 68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH | ||||
| 68947-32010 |
SV21,VZV21..WG |
1 | ||
| 68947-32010 |
SV21..WG |
1 | ||
| 68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH | ||||
| 68948-32010 |
SV21,VZV21..WG |
1 | ||
| 68948-32010 |
SV21..WG |
1 | ||
| 68970 - STAY ASSY, BACK DOOR, RH | ||||
| 68950-32060 |
SV21..WG |
1 | ||
| 68950-32060 |
SV21,VZV21..WG |
1 | ||
| 68980 - STAY ASSY, BACK DOOR | ||||
| 68960-32010 |
SV21,VZV21..WG |
1 | ||
| 68960-32010 |
SV21..WG |
1 | ||
| 69090 - HANDLE ASSY, BACK DOOR, OUTSIDE | ||||
| 69090-32010 |
SV21..WG |
1 | ||
| 69090-32010 |
SV21,VZV21..WG |
1 | ||
| 69090A - CUSHION(FOR BACK DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
SV21,VZV21..WG |
2 | ||
| 90541-03021 |
SV21..WG |
2 | ||
| 69299 - GROMMET, BACK DOOR HANDLE | ||||
| 69299-32010 |
SV21,VZV21..WG |
1 | ||
| 69299-32010 |
SV21..WG |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-32040 |
SV21..WG |
1 | ||
| 69350-32040 |
SV21,VZV21..WG |
1 | ||
| 69428 - PLATE, BACK DOOR LOCK BASE | ||||
| 69410-32020 |
SV21,VZV21..WG |
1 | ||
| 69410-32020 |
SV21..WG |
1 | ||
| 69726 - PROTECTOR, BACK DOOR LOCK CONTROL | ||||
| 69726-32010 |
SV21..WG |
1 | ||
| 69726-32010 |
SV21,VZV21..WG |
1 | ||
| 69790 - CONTROL ASSY, BACK DOOR LOCK | ||||
| 69709-32020 |
SV21..WG |
1 | ||
| 69709-32010 |
SV21,VZV21..WG |
1 | ||
| Common parts | ||||
| 90105-06097 | ||||
| 90119-06236 | ||||
| 90159-80014 | ||||
| 90179-06070 | ||||
| 90179-08096 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 93316-16012 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8511 | ||||
