SV21LG-UWPDKA (1986)
Toyota Camry
(8608- )USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-3202004 |
SV21..DX,STD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69205-3202002 |
SV21..(DX,STD)..USA MAROON,MAROON,TRIM3# |
1 | ||
| 69205-3202003 |
SV21..DX,STD GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69205-3202005 |
SV21..DX,STD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69205-3202004 |
SV2#,VZV21..DX,STD DARK BLUE,TRIM8# |
1 | ||
| 69205-3202003 |
SV2#,VZV21..DX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 69205-3202005 |
SV21,VZV21..DX,STD DARK BEIGE,TRIM4# |
1 | ||
| 69205-3202002 |
SV2#,VZV21..(DX,STD)..USA MAROON,TRIM3# |
1 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-3202002 |
SV21..(DX,STD)..USA MAROON,MAROON,TRIM3# |
1 | ||
| 69206-3202003 |
SV21..DX,STD GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69206-3202004 |
SV21..DX,STD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69206-3202005 |
SV21..DX,STD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69206-3202005 |
SV21,VZV21..DX,STD DARK BEIGE,TRIM4# |
1 | ||
| 69206-3202003 |
SV2#,VZV21..DX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 69206-3202002 |
SV2#,VZV21..(DX,STD)..USA MAROON,TRIM3# |
1 | ||
| 69206-3202004 |
SV2#,VZV21..DX,STD DARK BLUE,TRIM8# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-32030 |
SV21 |
1 | ||
| 69210-32030 |
SV2#,VZV21 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
SV21 |
4 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
SV21 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-32030 |
SV2#,VZV21..DX,STD |
1 | ||
| 69220-32030 |
SV21..DX,STD |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-32030 |
SV2#,VZV21..DX,STD |
1 | ||
| 69220-32030 |
SV21..DX,STD |
1 | ||
| 69273 - SNAP, DOOR INSIDE HANDLE ROD | ||||
| 69759-14050 |
SV21..DX,STD RH |
1 | ||
| 69759-24070 |
SV2#,VZV21..DX,STD LH |
1 | ||
| 69759-24070 |
SV21..DX,STD LH |
1 | ||
| 69759-14050 |
SV2#,VZV21..DX,STD RH |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12050 |
SV2#,VZV21..DX,STD RH |
1 | ||
| 69293-12060 |
SV21 LH |
1 | ||
| 69293-12050 |
SV21 RH |
1 | ||
| 69293-12060 |
SV2#,VZV21..DX,STD LH |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12050 |
SV2#,VZV21..DX,STD RH |
1 | ||
| 69293-12060 |
SV21 LH |
1 | ||
| 69293-12050 |
SV21 RH |
1 | ||
| 69293-12060 |
SV2#,VZV21..DX,STD LH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-32140 |
SV21..USA W/O *PW |
1 | ||
| 69310-32171 |
SV21..(DX,LE)..USA W/*PW |
1 | ||
| 69310-32141 |
SV2#,VZV21..USA |
1 | ||
| 69310-32171 |
SV2#,VZV21..(DX,LE)..USA W(POWER WINDOW) |
1 | ||
| 69310-32141 |
SV21..USA W/O *PW |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-32140 |
SV21..USA W/O *PW |
1 | ||
| 69310-32171 |
SV21..(DX,LE)..USA W/*PW |
1 | ||
| 69310-32141 |
SV2#,VZV21..USA |
1 | ||
| 69310-32171 |
SV2#,VZV21..(DX,LE)..USA W(POWER WINDOW) |
1 | ||
| 69310-32141 |
SV21..USA W/O *PW |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-32120 |
SV21..USA W/O *PW |
1 | ||
| 69320-32161 |
SV21..(DX,LE)..USA W/*PW |
1 | ||
| 69320-32161 |
SV2#,VZV21..(DX,LE)..USA W(POWER WINDOW) |
1 | ||
| 69320-32121 |
SV2#,VZV21..USA |
1 | ||
| 69320-32121 |
SV21..USA W/O *PW |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-32120 |
SV21..USA W/O *PW |
1 | ||
| 69320-32161 |
SV21..(DX,LE)..USA W/*PW |
1 | ||
| 69320-32161 |
SV2#,VZV21..(DX,LE)..USA W(POWER WINDOW) |
1 | ||
| 69320-32121 |
SV2#,VZV21..USA |
1 | ||
| 69320-32121 |
SV21..USA W/O *PW |
1 | ||
| 69377 - SNAP, FRONT DOOR LOCK CONTROL ROD | ||||
| 69759-24060 |
SV21 RH |
1 | ||
| 69759-24060 |
SV2#,VZV21 RH |
1 | ||
| 69759-24050 |
SV21 LH |
1 | ||
| 69759-24050 |
SV2#,VZV21 LH |
1 | ||
| 69377 - SNAP, FRONT DOOR LOCK CONTROL ROD | ||||
| 69759-24060 |
SV21 RH |
1 | ||
| 69759-24060 |
SV2#,VZV21 RH |
1 | ||
| 69759-24050 |
SV21 LH |
1 | ||
| 69759-24050 |
SV2#,VZV21 LH |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
SV21 |
2 | ||
| 69410-87001 |
SV2#,VZV21 |
2 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69711-32030 |
SV21 |
1 | ||
| 69711-32030 |
SV2#,VZV21 |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69712-32020 |
SV21 |
1 | ||
| 69712-32020 |
SV2#,VZV21 |
1 | ||
| 69736A - GUIDE, FRONT DOOR LOCK LINK | ||||
| 69736-12030 |
SV21 |
2 | ||
| 69736-12030 |
SV2#,VZV21 |
2 | ||
| 69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR) | ||||
| 69741-3202002 |
SV21..USA MAROON,MAROON,TRIM3# |
2 | ||
| 69741-3202003 |
SV2#,VZV21 MEDIUM GRAY,TRIM1# |
2 | ||
| 69741-3202004 |
SV21 BLUE,DARK BLUE,TRIM8# |
2 | ||
| 69741-3202003 |
SV21 GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 69741-3202005 |
SV25..LE;SV21,VZV21 DARK BEIGE,TRIM4# |
2 | ||
| 69741-3202005 |
SV21 BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 69741-3202004 |
SV2#,VZV21 DARK BLUE,TRIM8# |
2 | ||
| 69741-3202002 |
SV2#,VZV21..USA MAROON,TRIM3# |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-30020 |
SV21 |
2 | ||
| 69749-30020 |
SV2#,VZV21 |
2 | ||
| Common parts | ||||
| 90105-06074 | ||||
| 90159-60268 | ||||
| 90159-60329 | ||||
| 90159-80030 | ||||
| 90167-20002 | ||||
| 90168-40006 | ||||
| 90189-05003 | ||||
| 90386-06021 | ||||
| 91651-40612 | ||||
| 93530-55016 | ||||

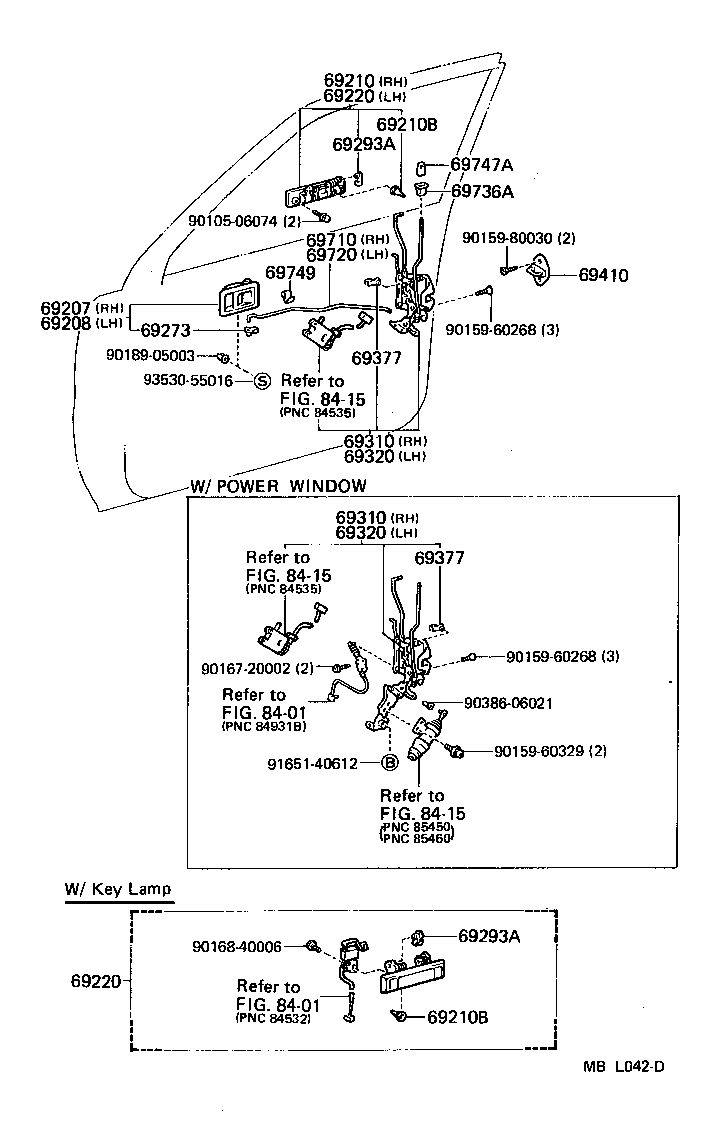

| Linked diagrams | ||||
| 8401 | ||||
| 8415 | ||||
(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06074 | ||||
| 90159-60268 | ||||
| 90159-60329 | ||||
| 90159-80030 | ||||
| 90167-20002 | ||||
| 90189-05003 | ||||
| 90386-06021 | ||||
| 91651-40612 | ||||
| 93530-55016 | ||||

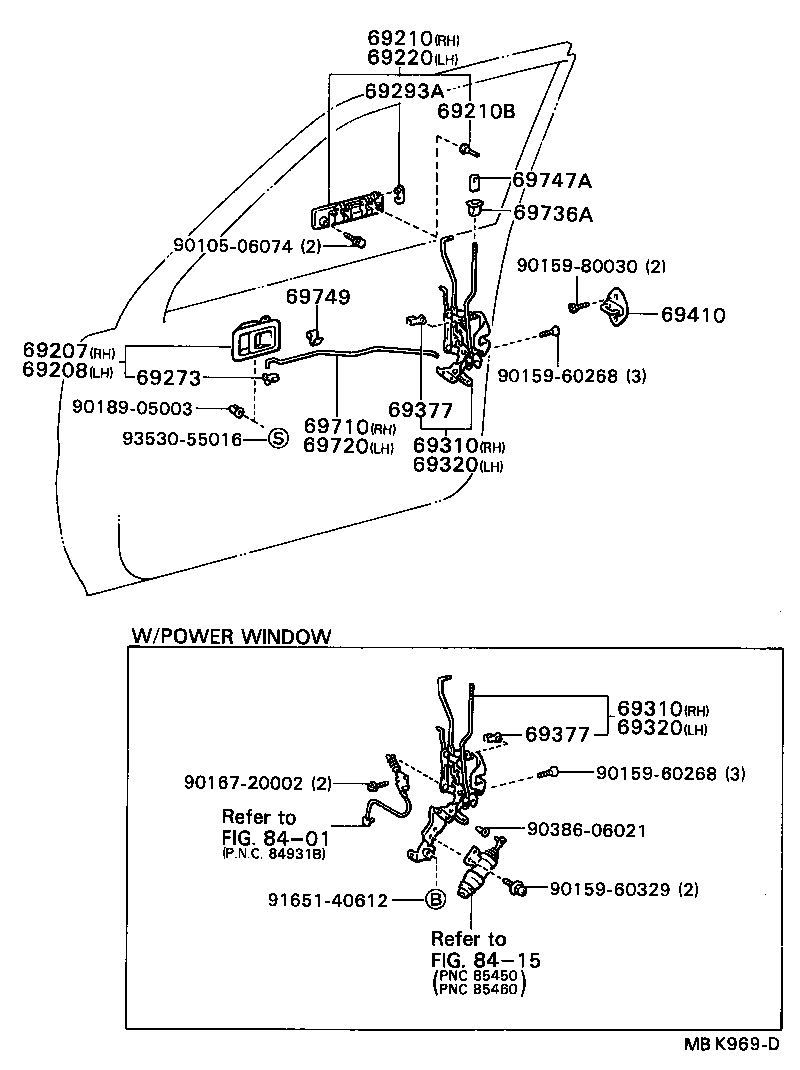

| Linked diagrams | ||||
| 8401 | ||||
| 8415 | ||||
