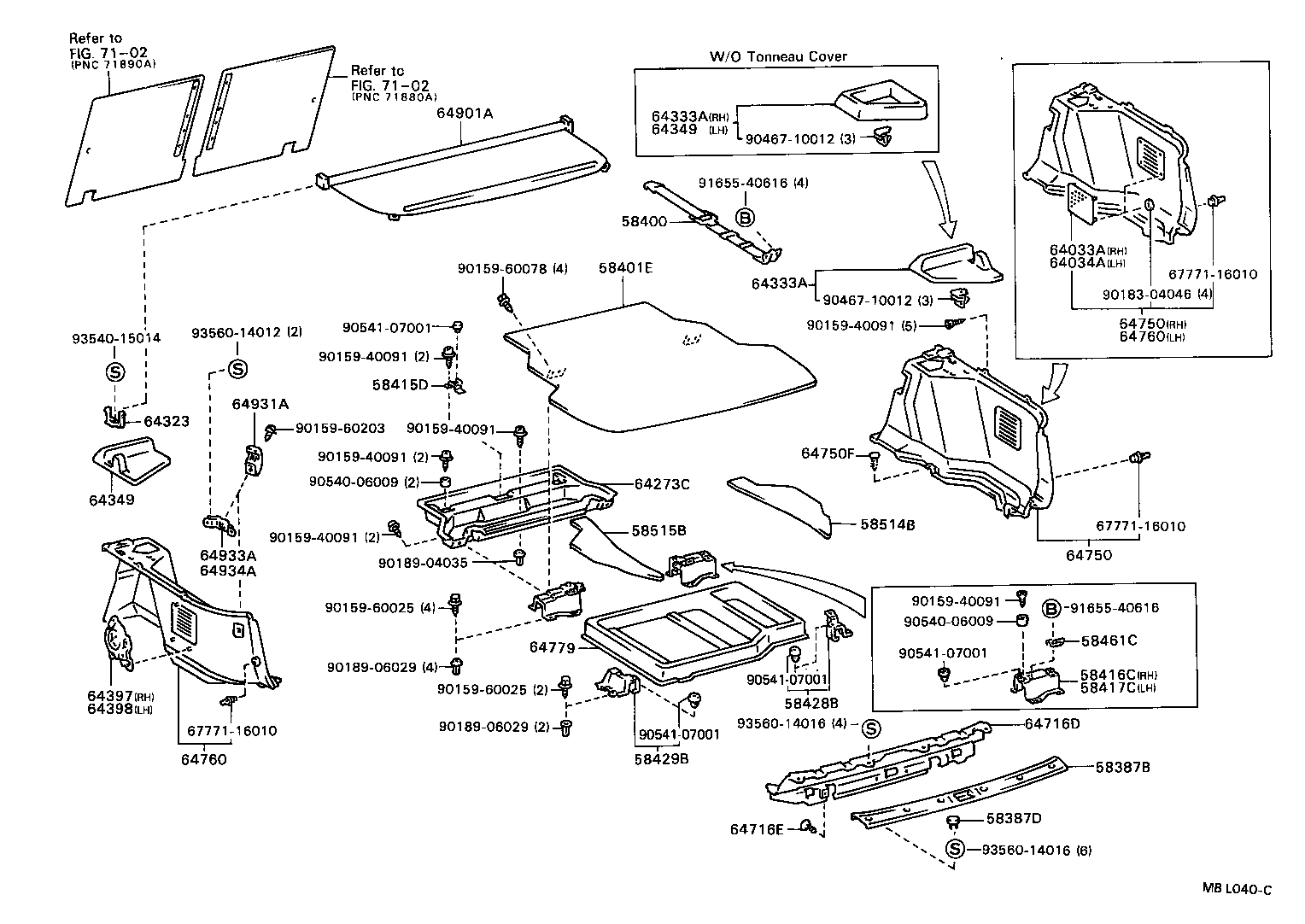

SV21LG-UWPDKA (1986)
Toyota Camry
(8608- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387B - PLATE, REAR FLOOR FINISH | ||||
| 58387-3201005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58387-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 58387-3201003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 58387-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 58387-3201004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58387-3201005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
1 | ||
| 58387-3201002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
1 | ||
| 58387-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 58387D - PLUG, HOLE(FOR REAR FLOOR FINISH PLATE) | ||||
| 90950-0150312 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
6 | ||
| 90950-0150305 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
6 | ||
| 90950-0150314 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
6 | ||
| 90950-0150305 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
6 | ||
| 90950-0150313 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
6 | ||
| 90950-0150312 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
6 | ||
| 90950-0150314 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
6 | ||
| 90950-0150323 |
SV21,VZV21..WG LIGHT GRAY,TRIM1#,3#,4# |
6 | ||
| 90950-0150313 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
6 | ||
| 58401E - BOARD SUB-ASSY, DECK | ||||
| 58410-3201003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 58410-3201002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 58410-3201003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 58410-3201005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58410-3201002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 58410-3201004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 58410-3201004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58410-3201005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 58415D - BRACKET, DECK BOARD SUPPORT | ||||
| 58415-32010 |
SV21,VZV21..WG |
1 | ||
| 58415-32010 |
SV21..WG |
1 | ||
| 58416C - BRACKET, DECK BOARD, NO.1 RH | ||||
| 58416-32010 |
SV21,VZV21..WG |
1 | ||
| 58416-32010 |
SV21..WG |
1 | ||
| 58417C - BRACKET, DECK BOARD, NO.1 LH | ||||
| 58417-32010 |
SV21..WG |
1 | ||
| 58417-32010 |
SV21,VZV21..WG |
1 | ||
| 58428B - BRACKET, DECK BOARD, NO.5 RH | ||||
| 58428-32010 |
SV21..WG |
1 | ||
| 58428-32010 |
SV21,VZV21..WG |
1 | ||
| 58429B - BRACKET, DECK BOARD, NO.5 LH | ||||
| 58429-32010 |
SV21,VZV21..WG |
1 | ||
| 58429-32010 |
SV21..WG |
1 | ||
| 58461C - STRIKER, LUGGAGE HOLD BELT | ||||
| 58461-32010 |
SV21,VZV21..WG |
2 | ||
| 58461-32010 |
SV21..WG |
2 | ||
| 58514B - MAT, FLOOR, REAR RH | ||||
| 58514-3201001 |
SV21,VZV21..WG BLACK,TRIM1#,3#,4#,8# |
1 | ||
| 58514-3201001 |
SV21..WG BLACK,BLACK |
1 | ||
| 58515B - MAT, FLOOR, REAR LH | ||||
| 58515-3201001 |
SV21..WG BLACK,BLACK |
1 | ||
| 58515-3201001 |
SV21,VZV21..WG BLACK,TRIM1#,3#,4#,8# |
1 | ||
| 64273C - POCKET, BACK PANEL TRIM | ||||
| 64273-3202001 |
SV21,VZV21..WG BLACK,TRIM1#,3#,4#,8# |
1 | ||
| 64273-3202001 |
SV21..WG BLACK,BLACK |
1 | ||
| 64323 - CLAMP, PACKAGE TRAY TRIM, NO.1 | ||||
| 64323-3201004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
2 | ||
| 64323-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 64323-3201002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
2 | ||
| 64323-3201003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 64323-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 64323-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 64323-3201005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
2 | ||
| 64323-3201005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 64333A - COVER, TONNEAU SIDE, RH | ||||
| 64333-3203002 |
SV21..WG..USA W/TONNEAU COVER,MAROON,MAROON,TRIM3# |
1 | ||
| 64333-3202004 |
SV21..WG W/O TONNEAU COVER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64333-3203004 |
SV21..WG W/TONNEAU COVER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64333-3202002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 64333-3202005 |
SV21..WG W/O TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64333-3202003 |
SV21..WG W/O TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64333-3203005 |
SV21..WG W/TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64333-3202002 |
SV21..WG..USA W/O TONNEAU COVER,MAROON,MAROON,TRIM3# |
1 | ||
| 64333-3203002 |
SV21,VZV21..WG..USA W(REAR CARGO DECK COVER),MAROON,TRIM3# |
1 | ||
| 64333-3202003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 64333-3203004 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),DARK BLUE,TRIM8# |
1 | ||
| 64333-3203003 |
SV21..WG W/TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64333-3203003 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),MEDIUM GRAY,TRIM1# |
1 | ||
| 64333-3202004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 64333-3203005 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),DARK BEIGE,TRIM4# |
1 | ||
| 64333-3202005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
1 | ||
| 64333A - COVER, TONNEAU SIDE, RH | ||||
| 64333-3203002 |
SV21..WG..USA W/TONNEAU COVER,MAROON,MAROON,TRIM3# |
1 | ||
| 64333-3202004 |
SV21..WG W/O TONNEAU COVER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64333-3203004 |
SV21..WG W/TONNEAU COVER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64333-3202002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 64333-3202005 |
SV21..WG W/O TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64333-3202003 |
SV21..WG W/O TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64333-3203005 |
SV21..WG W/TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64333-3202002 |
SV21..WG..USA W/O TONNEAU COVER,MAROON,MAROON,TRIM3# |
1 | ||
| 64333-3203002 |
SV21,VZV21..WG..USA W(REAR CARGO DECK COVER),MAROON,TRIM3# |
1 | ||
| 64333-3202003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 64333-3203004 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),DARK BLUE,TRIM8# |
1 | ||
| 64333-3203003 |
SV21..WG W/TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64333-3203003 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),MEDIUM GRAY,TRIM1# |
1 | ||
| 64333-3202004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 64333-3203005 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),DARK BEIGE,TRIM4# |
1 | ||
| 64333-3202005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
1 | ||
| 64349 - COVER, TONNEAU SIDE, LH | ||||
| 64349-3201002 |
SV21..WG..USA W/O TONNEAU COVER,MAROON,MAROON,TRIM3# |
1 | ||
| 64349-3201004 |
SV21..WG W/O TONNEAU COVER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64349-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 64349-3201003 |
SV21..WG W/O TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64349-3202004 |
SV21..WG W/TONNEAU COVER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64349-3202003 |
SV21..WG W/TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64349-3202002 |
SV21..WG..USA W/TONNEAU COVER,MAROON,MAROON,TRIM3# |
1 | ||
| 64349-3201005 |
SV21..WG W/O TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64349-3202005 |
SV21..WG W/TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64349-3202005 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),DARK BEIGE,TRIM4# |
1 | ||
| 64349-3201005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
1 | ||
| 64349-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 64349-3202004 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),DARK BLUE,TRIM8# |
1 | ||
| 64349-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 64349-3202002 |
SV21,VZV21..WG..USA W(REAR CARGO DECK COVER),MAROON,TRIM3# |
1 | ||
| 64349-3202003 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),MEDIUM GRAY,TRIM1# |
1 | ||
| 64349 - COVER, TONNEAU SIDE, LH | ||||
| 64349-3201002 |
SV21..WG..USA W/O TONNEAU COVER,MAROON,MAROON,TRIM3# |
1 | ||
| 64349-3201004 |
SV21..WG W/O TONNEAU COVER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64349-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 64349-3201003 |
SV21..WG W/O TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64349-3202004 |
SV21..WG W/TONNEAU COVER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64349-3202003 |
SV21..WG W/TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64349-3202002 |
SV21..WG..USA W/TONNEAU COVER,MAROON,MAROON,TRIM3# |
1 | ||
| 64349-3201005 |
SV21..WG W/O TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64349-3202005 |
SV21..WG W/TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64349-3202005 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),DARK BEIGE,TRIM4# |
1 | ||
| 64349-3201005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
1 | ||
| 64349-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 64349-3202004 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),DARK BLUE,TRIM8# |
1 | ||
| 64349-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 64349-3202002 |
SV21,VZV21..WG..USA W(REAR CARGO DECK COVER),MAROON,TRIM3# |
1 | ||
| 64349-3202003 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),MEDIUM GRAY,TRIM1# |
1 | ||
| 64397 - HOLDER, TONNEAU COVER SIDE, RH | ||||
| 64397-32020 |
SV21..WG..DX |
1 | ||
| 64397-32020 |
SV21,VZV21..WG..DX |
1 | ||
| 64398 - HOLDER, TONNEAU COVER SIDE, LH | ||||
| 64398-32010 |
SV21,VZV21..WG..DX |
1 | ||
| 64398-32010 |
SV21..WG..DX |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-3206002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64716-3206004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64716-3206005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64716-3206004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 64716-3206002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 64716-3206005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 64716-3206003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64716-3206003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-0604912 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
6 | ||
| 90467-0604923 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
6 | ||
| 90467-0604915 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
6 | ||
| 90467-0604912 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
6 | ||
| 90467-0604924 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
6 | ||
| 90467-0604924 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
6 | ||
| 90467-0604923 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
6 | ||
| 90467-0604915 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
6 | ||
| 64750 - PANEL ASSY, DECK SIDE TRIM, RH | ||||
| 64730-3202004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64730-3202002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64730-3202005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64730-3203003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64730-3203004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64730-3203005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64730-3203002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64730-3203002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 64730-3203005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 64730-3202003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64730-3203003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 64730-3203004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 64750 - PANEL ASSY, DECK SIDE TRIM, RH | ||||
| 64730-3202004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64730-3202002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64730-3202005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64730-3203003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64730-3203004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64730-3203005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64730-3203002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64730-3203002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 64730-3203005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 64730-3202003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64730-3203003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 64730-3203004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-0604923 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-0604924 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
2 | ||
| 90467-0604915 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 90467-0604912 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
2 | ||
| 90467-0604912 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 90467-0604924 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 90467-0604923 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-0604915 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
2 | ||
| 64760 - PANEL ASSY, DECK SIDE TRIM, LH | ||||
| 64740-3202003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64740-3203002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64740-3203003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64740-3202004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64740-3203004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64740-3202005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64740-3202002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64740-3203003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 64740-3203005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64740-3203004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 64740-3203002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 64740-3203005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 64760 - PANEL ASSY, DECK SIDE TRIM, LH | ||||
| 64740-3202003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64740-3203002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64740-3203003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64740-3202004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64740-3203004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64740-3202005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64740-3202002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64740-3203003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 64740-3203005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64740-3203004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 64740-3203002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 64740-3203005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 64779 - TRAY, SPARE WHEEL COVER | ||||
| 64779-3202001 |
SV21..WG BLACK,BLACK |
1 | ||
| 64779-3202001 |
SV21,VZV21..WG BLACK,TRIM1#,3#,4#,8# |
1 | ||
| 64901A - RETRACTOR SUB-ASSY, TONNEAU COVER | ||||
| 64901-3201002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64901-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 64901-3201005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64901-3201004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64901-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 64901-3201003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64901-3201005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
1 | ||
| 64901-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 64931A - HANGER, TONNEAU COVER | ||||
| 64931-3201002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
2 | ||
| 64931-3201004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
2 | ||
| 64931-3201003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 64931-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 64931-3201005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 64931-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 64931-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 64931-3201005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
2 | ||
| 64933A - BRACKET, TONNEAU COVER HOLDER, RH | ||||
| 64933-32010 |
SV21,VZV21..WG |
1 | ||
| 64933-32010 |
SV21..WG |
1 | ||
| 64934A - BRACKET, TONNEAU COVER HOLDER, LH | ||||
| 64934-32010 |
SV21..WG |
1 | ||
| 64934-32010 |
SV21,VZV21..WG |
1 | ||
| Common parts | ||||
| 67771-16010 | ||||
| 90159-40091 | ||||
| 90159-60025 | ||||
| 90159-60078 | ||||
| 90159-60203 | ||||
| 90183-04046 | ||||
| 90189-04035 | ||||
| 90189-06029 | ||||
| 90467-10012 | ||||
| 90540-06009 | ||||
| 90541-07001 | ||||
| 91655-40616 | ||||
| 93540-15014 | ||||
| 93560-14012 | ||||
| 93560-14016 | ||||
| Linked diagrams | ||||
| 7102 | ||||
(8610- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387B - PLATE, REAR FLOOR FINISH | ||||
| 58387-3201005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58387-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 58387-3201003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 58387-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 58387-3201004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58387-3201005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
1 | ||
| 58387-3201002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
1 | ||
| 58387-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 58387D - PLUG, HOLE(FOR REAR FLOOR FINISH PLATE) | ||||
| 90950-0150312 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
6 | ||
| 90950-0150305 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
6 | ||
| 90950-0150314 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
6 | ||
| 90950-0150305 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
6 | ||
| 90950-0150313 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
6 | ||
| 90950-0150312 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
6 | ||
| 90950-0150314 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
6 | ||
| 90950-0150323 |
SV21,VZV21..WG LIGHT GRAY,TRIM1#,3#,4# |
6 | ||
| 90950-0150313 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
6 | ||
| 58401E - BOARD SUB-ASSY, DECK | ||||
| 58410-3201003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 58410-3201002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 58410-3201003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 58410-3201005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58410-3201002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 58410-3201004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 58410-3201004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58410-3201005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 58415D - BRACKET, DECK BOARD SUPPORT | ||||
| 58415-32010 |
SV21,VZV21..WG |
1 | ||
| 58415-32010 |
SV21..WG |
1 | ||
| 58416C - BRACKET, DECK BOARD, NO.1 RH | ||||
| 58416-32010 |
SV21,VZV21..WG |
1 | ||
| 58416-32010 |
SV21..WG |
1 | ||
| 58417C - BRACKET, DECK BOARD, NO.1 LH | ||||
| 58417-32010 |
SV21..WG |
1 | ||
| 58417-32010 |
SV21,VZV21..WG |
1 | ||
| 58428B - BRACKET, DECK BOARD, NO.5 RH | ||||
| 58428-32010 |
SV21..WG |
1 | ||
| 58428-32010 |
SV21,VZV21..WG |
1 | ||
| 58429B - BRACKET, DECK BOARD, NO.5 LH | ||||
| 58429-32010 |
SV21,VZV21..WG |
1 | ||
| 58429-32010 |
SV21..WG |
1 | ||
| 58461C - STRIKER, LUGGAGE HOLD BELT | ||||
| 58461-32010 |
SV21,VZV21..WG |
2 | ||
| 58461-32010 |
SV21..WG |
2 | ||
| 58514B - MAT, FLOOR, REAR RH | ||||
| 58514-3201001 |
SV21,VZV21..WG BLACK,TRIM1#,3#,4#,8# |
1 | ||
| 58514-3201001 |
SV21..WG BLACK,BLACK |
1 | ||
| 58515B - MAT, FLOOR, REAR LH | ||||
| 58515-3201001 |
SV21..WG BLACK,BLACK |
1 | ||
| 58515-3201001 |
SV21,VZV21..WG BLACK,TRIM1#,3#,4#,8# |
1 | ||
| 64273C - POCKET, BACK PANEL TRIM | ||||
| 64273-3202001 |
SV21,VZV21..WG BLACK,TRIM1#,3#,4#,8# |
1 | ||
| 64273-3202001 |
SV21..WG BLACK,BLACK |
1 | ||
| 64323 - CLAMP, PACKAGE TRAY TRIM, NO.1 | ||||
| 64323-3201004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
2 | ||
| 64323-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 64323-3201002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
2 | ||
| 64323-3201003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 64323-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 64323-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 64323-3201005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
2 | ||
| 64323-3201005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 64333A - COVER, TONNEAU SIDE, RH | ||||
| 64333-3203002 |
SV21..WG..USA W/TONNEAU COVER,MAROON,MAROON,TRIM3# |
1 | ||
| 64333-3202004 |
SV21..WG W/O TONNEAU COVER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64333-3203004 |
SV21..WG W/TONNEAU COVER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64333-3202002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 64333-3202005 |
SV21..WG W/O TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64333-3202003 |
SV21..WG W/O TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64333-3203005 |
SV21..WG W/TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64333-3202002 |
SV21..WG..USA W/O TONNEAU COVER,MAROON,MAROON,TRIM3# |
1 | ||
| 64333-3203002 |
SV21,VZV21..WG..USA W(REAR CARGO DECK COVER),MAROON,TRIM3# |
1 | ||
| 64333-3202003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 64333-3203004 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),DARK BLUE,TRIM8# |
1 | ||
| 64333-3203003 |
SV21..WG W/TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64333-3203003 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),MEDIUM GRAY,TRIM1# |
1 | ||
| 64333-3202004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 64333-3203005 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),DARK BEIGE,TRIM4# |
1 | ||
| 64333-3202005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
1 | ||
| 64333A - COVER, TONNEAU SIDE, RH | ||||
| 64333-3203002 |
SV21..WG..USA W/TONNEAU COVER,MAROON,MAROON,TRIM3# |
1 | ||
| 64333-3202004 |
SV21..WG W/O TONNEAU COVER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64333-3203004 |
SV21..WG W/TONNEAU COVER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64333-3202002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 64333-3202005 |
SV21..WG W/O TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64333-3202003 |
SV21..WG W/O TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64333-3203005 |
SV21..WG W/TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64333-3202002 |
SV21..WG..USA W/O TONNEAU COVER,MAROON,MAROON,TRIM3# |
1 | ||
| 64333-3203002 |
SV21,VZV21..WG..USA W(REAR CARGO DECK COVER),MAROON,TRIM3# |
1 | ||
| 64333-3202003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 64333-3203004 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),DARK BLUE,TRIM8# |
1 | ||
| 64333-3203003 |
SV21..WG W/TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64333-3203003 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),MEDIUM GRAY,TRIM1# |
1 | ||
| 64333-3202004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 64333-3203005 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),DARK BEIGE,TRIM4# |
1 | ||
| 64333-3202005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
1 | ||
| 64349 - COVER, TONNEAU SIDE, LH | ||||
| 64349-3201002 |
SV21..WG..USA W/O TONNEAU COVER,MAROON,MAROON,TRIM3# |
1 | ||
| 64349-3201004 |
SV21..WG W/O TONNEAU COVER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64349-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 64349-3201003 |
SV21..WG W/O TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64349-3202004 |
SV21..WG W/TONNEAU COVER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64349-3202003 |
SV21..WG W/TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64349-3202002 |
SV21..WG..USA W/TONNEAU COVER,MAROON,MAROON,TRIM3# |
1 | ||
| 64349-3201005 |
SV21..WG W/O TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64349-3202005 |
SV21..WG W/TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64349-3202005 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),DARK BEIGE,TRIM4# |
1 | ||
| 64349-3201005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
1 | ||
| 64349-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 64349-3202004 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),DARK BLUE,TRIM8# |
1 | ||
| 64349-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 64349-3202002 |
SV21,VZV21..WG..USA W(REAR CARGO DECK COVER),MAROON,TRIM3# |
1 | ||
| 64349-3202003 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),MEDIUM GRAY,TRIM1# |
1 | ||
| 64349 - COVER, TONNEAU SIDE, LH | ||||
| 64349-3201002 |
SV21..WG..USA W/O TONNEAU COVER,MAROON,MAROON,TRIM3# |
1 | ||
| 64349-3201004 |
SV21..WG W/O TONNEAU COVER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64349-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 64349-3201003 |
SV21..WG W/O TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64349-3202004 |
SV21..WG W/TONNEAU COVER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64349-3202003 |
SV21..WG W/TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64349-3202002 |
SV21..WG..USA W/TONNEAU COVER,MAROON,MAROON,TRIM3# |
1 | ||
| 64349-3201005 |
SV21..WG W/O TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64349-3202005 |
SV21..WG W/TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64349-3202005 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),DARK BEIGE,TRIM4# |
1 | ||
| 64349-3201005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
1 | ||
| 64349-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 64349-3202004 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),DARK BLUE,TRIM8# |
1 | ||
| 64349-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 64349-3202002 |
SV21,VZV21..WG..USA W(REAR CARGO DECK COVER),MAROON,TRIM3# |
1 | ||
| 64349-3202003 |
SV21,VZV21..WG W(REAR CARGO DECK COVER),MEDIUM GRAY,TRIM1# |
1 | ||
| 64397 - HOLDER, TONNEAU COVER SIDE, RH | ||||
| 64397-32020 |
SV21..WG..DX |
1 | ||
| 64397-32020 |
SV21,VZV21..WG..DX |
1 | ||
| 64398 - HOLDER, TONNEAU COVER SIDE, LH | ||||
| 64398-32010 |
SV21,VZV21..WG..DX |
1 | ||
| 64398-32010 |
SV21..WG..DX |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-3206002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64716-3206004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64716-3206005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64716-3206004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 64716-3206002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 64716-3206005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 64716-3206003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64716-3206003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-0604912 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
6 | ||
| 90467-0604923 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
6 | ||
| 90467-0604915 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
6 | ||
| 90467-0604912 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
6 | ||
| 90467-0604924 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
6 | ||
| 90467-0604924 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
6 | ||
| 90467-0604923 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
6 | ||
| 90467-0604915 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
6 | ||
| 64750 - PANEL ASSY, DECK SIDE TRIM, RH | ||||
| 64730-3202004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64730-3202002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64730-3202005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64730-3203003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64730-3203004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64730-3203005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64730-3203002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64730-3203002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 64730-3203005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 64730-3202003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64730-3203003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 64730-3203004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 64750 - PANEL ASSY, DECK SIDE TRIM, RH | ||||
| 64730-3202004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64730-3202002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64730-3202005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64730-3203003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64730-3203004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64730-3203005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64730-3203002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64730-3203002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 64730-3203005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 64730-3202003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64730-3203003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 64730-3203004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-0604923 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-0604924 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
2 | ||
| 90467-0604915 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 90467-0604912 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
2 | ||
| 90467-0604912 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 90467-0604924 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 90467-0604923 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-0604915 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
2 | ||
| 64760 - PANEL ASSY, DECK SIDE TRIM, LH | ||||
| 64740-3202003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64740-3203002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64740-3203003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64740-3202004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64740-3203004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64740-3202005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64740-3202002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64740-3203003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 64740-3203005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64740-3203004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 64740-3203002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 64740-3203005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 64760 - PANEL ASSY, DECK SIDE TRIM, LH | ||||
| 64740-3202003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64740-3203002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64740-3203003 |
SV21..WG..DX GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64740-3202004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64740-3203004 |
SV21..WG..DX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64740-3202005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64740-3202002 |
SV21..WG..DX..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64740-3203003 |
SV21,VZV21..WG..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 64740-3203005 |
SV21..WG..DX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64740-3203004 |
SV21,VZV21..WG..DX DARK BLUE,TRIM8# |
1 | ||
| 64740-3203002 |
SV21,VZV21..WG..DX..USA MAROON,TRIM3# |
1 | ||
| 64740-3203005 |
SV21,VZV21..WG..DX DARK BEIGE,TRIM4# |
1 | ||
| 64779 - TRAY, SPARE WHEEL COVER | ||||
| 64779-3202001 |
SV21..WG BLACK,BLACK |
1 | ||
| 64779-3202001 |
SV21,VZV21..WG BLACK,TRIM1#,3#,4#,8# |
1 | ||
| 64901A - RETRACTOR SUB-ASSY, TONNEAU COVER | ||||
| 64901-3201002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
1 | ||
| 64901-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 64901-3201005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64901-3201004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64901-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 64901-3201003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 64901-3201005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
1 | ||
| 64901-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 64931A - HANGER, TONNEAU COVER | ||||
| 64931-3201002 |
SV21..WG..USA MAROON,MAROON,TRIM3# |
2 | ||
| 64931-3201004 |
SV21..WG BLUE,DARK BLUE,TRIM8# |
2 | ||
| 64931-3201003 |
SV21..WG GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 64931-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 64931-3201005 |
SV21..WG BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 64931-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 64931-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 64931-3201005 |
SV21,VZV21..WG DARK BEIGE,TRIM4# |
2 | ||
| 64933A - BRACKET, TONNEAU COVER HOLDER, RH | ||||
| 64933-32010 |
SV21,VZV21..WG |
1 | ||
| 64933-32010 |
SV21..WG |
1 | ||
| 64934A - BRACKET, TONNEAU COVER HOLDER, LH | ||||
| 64934-32010 |
SV21..WG |
1 | ||
| 64934-32010 |
SV21,VZV21..WG |
1 | ||
| Common parts | ||||
| 67771-16010 | ||||
| 90159-40091 | ||||
| 90159-60025 | ||||
| 90159-60078 | ||||
| 90159-60203 | ||||
| 90183-04046 | ||||
| 90189-04035 | ||||
| 90189-06029 | ||||
| 90467-10012 | ||||
| 90540-06009 | ||||
| 90541-07001 | ||||
| 91655-40616 | ||||
| 93540-15014 | ||||
| 93560-14012 | ||||
| 93560-14016 | ||||
| Linked diagrams | ||||
| 7102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
