SV21LG-UWPDKA (1986)

Toyota Camry

Production Aug 1986 - Aug 1988
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )USA

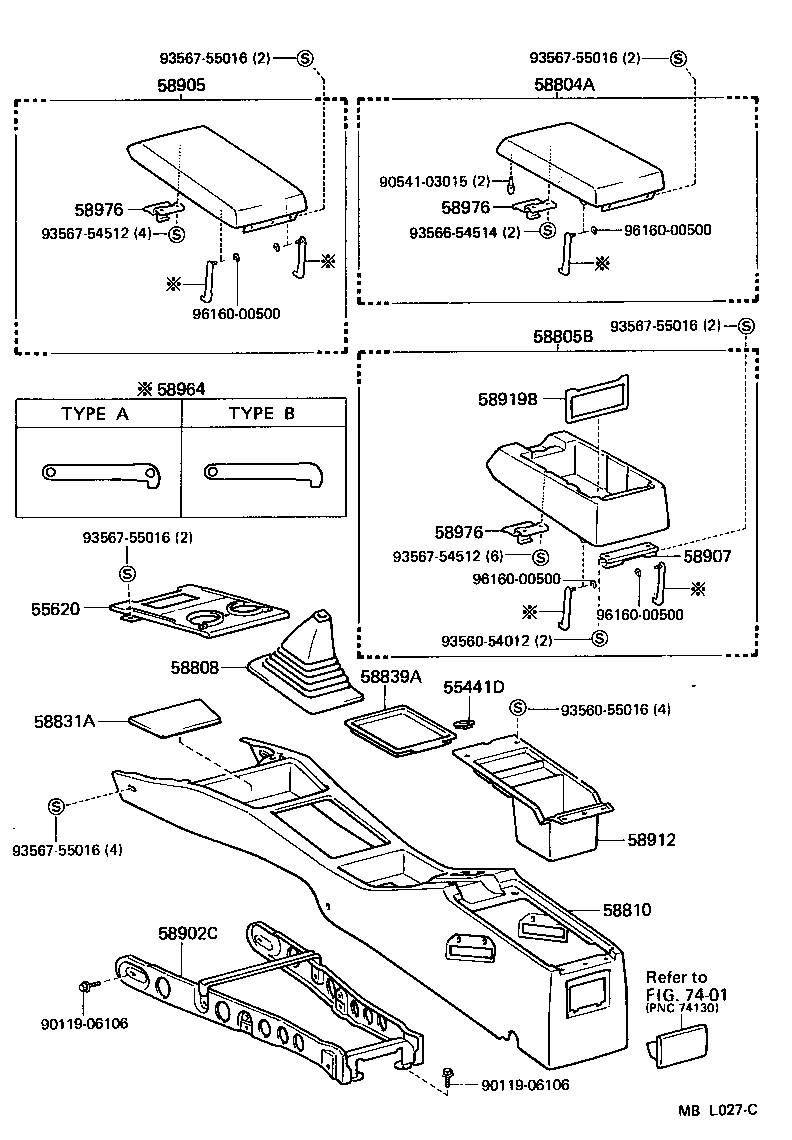

Click highlighted areas on diagram

diagram 55441D 55620 58804A 58805B 58808 58810 58831A 58839A 58902C 58905 58907 58912 58919B 58964 58976 58976 58976 7401 9011906106 9011906106 9054103015 9356054012 9356055016 9356654514 9356754512 9356754512 9356755016 9356755016 9356755016 9356755016 9356755016 9616000500 9616000500 9616000500 9616000500
Part # Description Qty Price
55441D - BOX, INSTRUMENT PANEL COIN
55539-2002005

SV21

BEIGE,BEIGE,TRIM4#

 2
55539-2002022

SV21..USA

MAROON,MAROON,TRIM3#

 2
55539-2002034

SV21

BLUE,DARK BLUE,TRIM8#

 2
55539-2002023

SV21

GRAY,GRAY,TRIM1#

 2
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-32010

SV2#,VZV21..DX,LE

 1
55620-32010

SV21

 1
58810 - CONSOLE ASSY
58810-3201004

SV21..USA

BLUE,DARK BLUE,TRIM8#

 1
58810-3201003

SV21..USA

GRAY,MEDIUM GRAY,TRIM1#

 1
58810-3201002

SV21,VZV21..USA

MAROON,TRIM3#

 1
58810-3201005

SV21..USA

BEIGE,DARK BEIGE,TRIM4#

 1
58810-3201003

SV21,VZV21..USA

MEDIUM GRAY,TRIM1#

 1
58810-3201005

SV21,VZV21..USA

DARK BEIGE,TRIM4#

 1
58810-3201004

SV21,VZV21..USA

DARK BLUE,TRIM8#

 1
58810-3201002

SV21..USA

MAROON,MAROON,TRIM3#

 1
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-32010

SV2#,VZV21..USA

 1
58831-32010

SV21..USA

 1
58839A - COVER, CONSOLE BOX HOLE
58839-3203002

SV21..USA

MAROON,MAROON,TRIM3#

 1
58839-3203002

SV2#,VZV21..(DX,LE)..USA

MAROON,TRIM3#

 1
58839-3203004

SV2#,VZV21..USA

DARK BLUE,TRIM8#

 1
58839-3203003

SV21..USA

GRAY,MEDIUM GRAY,TRIM1#

 1
58839-3203005

SV25..LE..USA;SV21,VZV21..(DX,LE)..USA

DARK BEIGE,TRIM4#

 1
58839-3203004

SV21..USA

BLUE,DARK BLUE,TRIM8#

 1
58839-3203005

SV21..USA

BEIGE,DARK BEIGE,TRIM4#

 1
58839-3203003

SV2#,VZV21..(DX,LE)..USA

MEDIUM GRAY,TRIM1#

 1
58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58902-32010

SV2#,VZV21

 1
58902-32010

SV21

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-3213003

SV21..(DX,STD)..USA

GRAY,MEDIUM GRAY,TRIM1#

 1
58905-3213005

SV21,VZV21..(DX,STD)..USA

DARK BEIGE,TRIM4#

 1
58905-3213004

SV21..(DX,STD)..USA

BLUE,DARK BLUE,TRIM8#

 1
58905-3213002

SV21..(DX,STD)..USA

MAROON,MAROON,TRIM3#

 1
58905-3213004

SV2#,VZV21..(DX,STD)..USA

DARK BLUE,TRIM8#

 1
58905-3213005

SV21..(DX,STD)..USA

BEIGE,DARK BEIGE,TRIM4#

 1
58905-3213002

SV2#,VZV21..(DX,STD)..USA

MAROON,TRIM3#

 1
58905-3213003

SV2#,VZV21..(DX,STD)..USA

MEDIUM GRAY,TRIM1#

 1
58912 - BOX, REAR CONSOLE, NO.2
58912-3201002

SV21..USA

MAROON,MARRON,TRIM3#

 1
58912-3201005

SV21..USA

BEIGE,DARK BEIGE,TRIM4#

 1
58912-3201004

SV2#,VZV21..USA

DARK BLUE,TRIM8#

 1
58912-3201004

SV21..USA

BLUE,DARK BLUE,TRIM8#

 1
58912-3201003

SV2#,VZV21..USA

MEDIUM GRAY,TRIM1#

 1
58912-3201003

SV21..USA

GRAY,MEDIUM GRAY,TRIM1#

 1
58912-3201005

SV25..LE..USA;SV21,VZV21..USA

DARK BEIGE,TRIM4#

 1
58912-3201002

SV2#,VZV21..USA

MARRON,TRIM3#

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30030

SV21..DX,STD

LH

 1
58964-90K00

SV2#,VZV21

TYPE B

 1
58964-30030

SV2#,VZV21..DX,STD

TYPE A

 1
58964-90K00

SV21..DX,STD

RH

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

SV2#,VZV21..DX,STD

 1
58976-22020

SV21..DX,STD

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

SV2#,VZV21..DX,STD

 1
58976-22020

SV21..DX,STD

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

SV2#,VZV21..DX,STD

 1
58976-22020

SV21..DX,STD

 1
Common parts
90119-06106
90541-03015
93560-54012
93560-55016
93566-54514
93567-54512
93567-55016
96160-00500
Linked diagrams
7401

(8610- )

Click highlighted areas on diagram

diagram 55441D 55539A 58804A 58805B 58808 58811A 58833A 58901A 58902C 58905 58907 58916 58919B 58959B 58964 58965A 58965A 58976 58976 58976 7404 9011906106 9011906106 9054103015 9356254512 9356654514 9356754512 9356754514 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9616000500 9616000500 9616000500 9616000500
Part # Description Qty Price
Common parts
90119-06106
90541-03015
93562-54512
93566-54514
93567-54512
93567-54514
93567-55016
96160-00500
Linked diagrams
7404
