SV21LG-UWPDKA (1986)
Toyota Camry
Production
Aug 1986
-
Aug 1988
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )WG

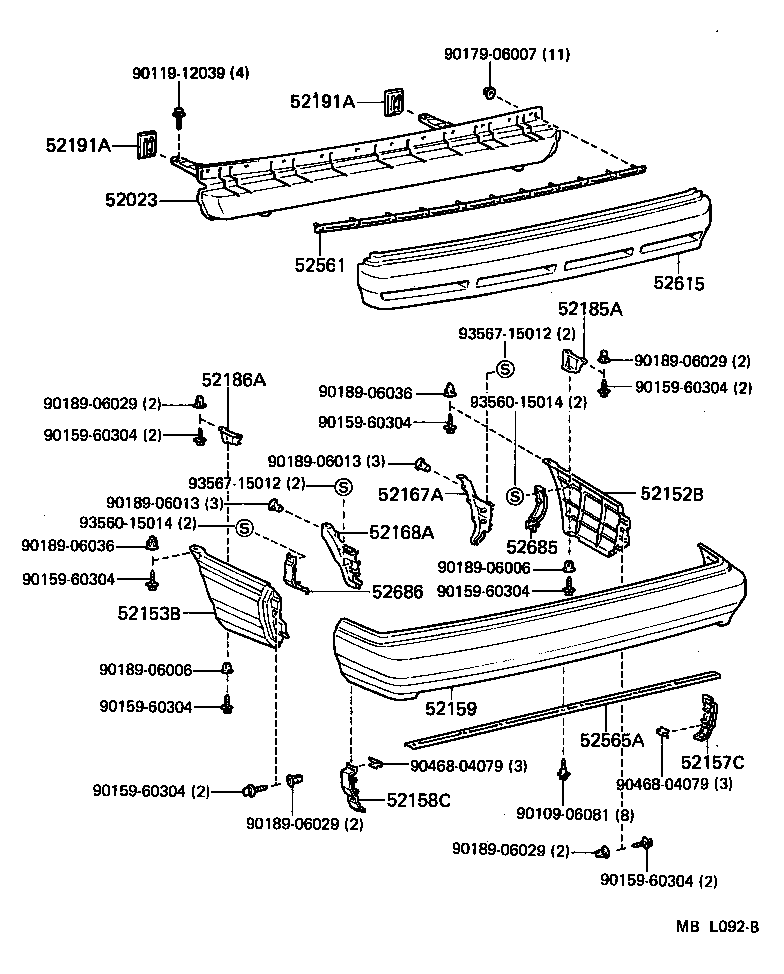

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-32090 |
SV21,VZV21..WG |
1 | ||
| 52023-32090 |
SV21..WG |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52152-32080 |
SV21..WG |
1 | ||
| 52152-32080 |
SV21,VZV21..WG |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52153-32080 |
SV21,VZV21..WG |
1 | ||
| 52153-32080 |
SV21..WG |
1 | ||
| 52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-32040 |
SV21 |
1 | ||
| 52157-32040 |
SV2#,VZV21 |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-32020 |
SV21 |
1 | ||
| 52158-32020 |
SV2#,VZV21 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-32140 |
SV21..DX,STD |
1 | ||
| 52159-32140 |
SV2#,VZV21..DX,STD |
1 | ||
| 52167A - SUPPORT, REAR BUMPER SIDE, NO.4 RH | ||||
| 52167-32040 |
SV21,VZV21..WG |
1 | ||
| 52167-32040 |
SV21..WG |
1 | ||
| 52168A - SUPPORT, REAR BUMPER SIDE, NO.4 LH | ||||
| 52168-32040 |
SV21..WG |
1 | ||
| 52168-32040 |
SV21,VZV21..WG |
1 | ||
| 52185A - BRACKET, REAR BUMPER SIDE, RH | ||||
| 52185-32010 |
SV21..WG |
1 | ||
| 52185-32010 |
SV21,VZV21..WG |
1 | ||
| 52186A - BRACKET, REAR BUMPER SIDE, LH | ||||
| 52186-32010 |
SV21..WG |
1 | ||
| 52186-32010 |
SV21,VZV21..WG |
1 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-32020 |
SV21,VZV21..WG |
2 | ||
| 52191-32020 |
SV21..WG |
2 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-32020 |
SV21,VZV21..WG |
2 | ||
| 52191-32020 |
SV21..WG |
2 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-32030 |
SV21 |
1 | ||
| 52561-32030 |
SV2#,VZV21 |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-32030 |
SV2#,VZV21 |
1 | ||
| 52565-32030 |
SV21 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-32060 |
SV21 |
1 | ||
| 52615-32060 |
SV2#,VZV21 |
1 | ||
| 52685 - SUPPORT, REAR BUMPER SIDE, NO.3 RH | ||||
| 52685-32020 |
SV2#,VZV21 |
1 | ||
| 52685-32020 |
SV21 |
1 | ||
| 52686 - SUPPORT, REAR BUMPER SIDE, NO.3 LH | ||||
| 52686-32020 |
SV2#,VZV21 |
1 | ||
| 52686-32020 |
SV21 |
1 | ||
| Common parts | ||||
| 90109-06081 | ||||
| 90119-12039 | ||||
| 90159-60304 | ||||
| 90179-06007 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
| 90189-06029 | ||||
| 90189-06036 | ||||
| 90468-04079 | ||||
| 93560-15014 | ||||
| 93567-15012 | ||||
(8610- )WG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06022 | ||||
| 90119-08126 | ||||
| 90119-12039 | ||||
| 90159-60249 | ||||
| 90179-05004 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
| 93560-15010 | ||||
| 93567-15012 | ||||
(8610- )WG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06081 | ||||
| 90119-12039 | ||||
| 90159-60304 | ||||
| 90179-06007 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
| 90189-06029 | ||||
| 90189-06036 | ||||
| 90468-04079 | ||||
| 93560-15014 | ||||
| 93567-15012 | ||||
