SV21LG-UWMNKW (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )WG

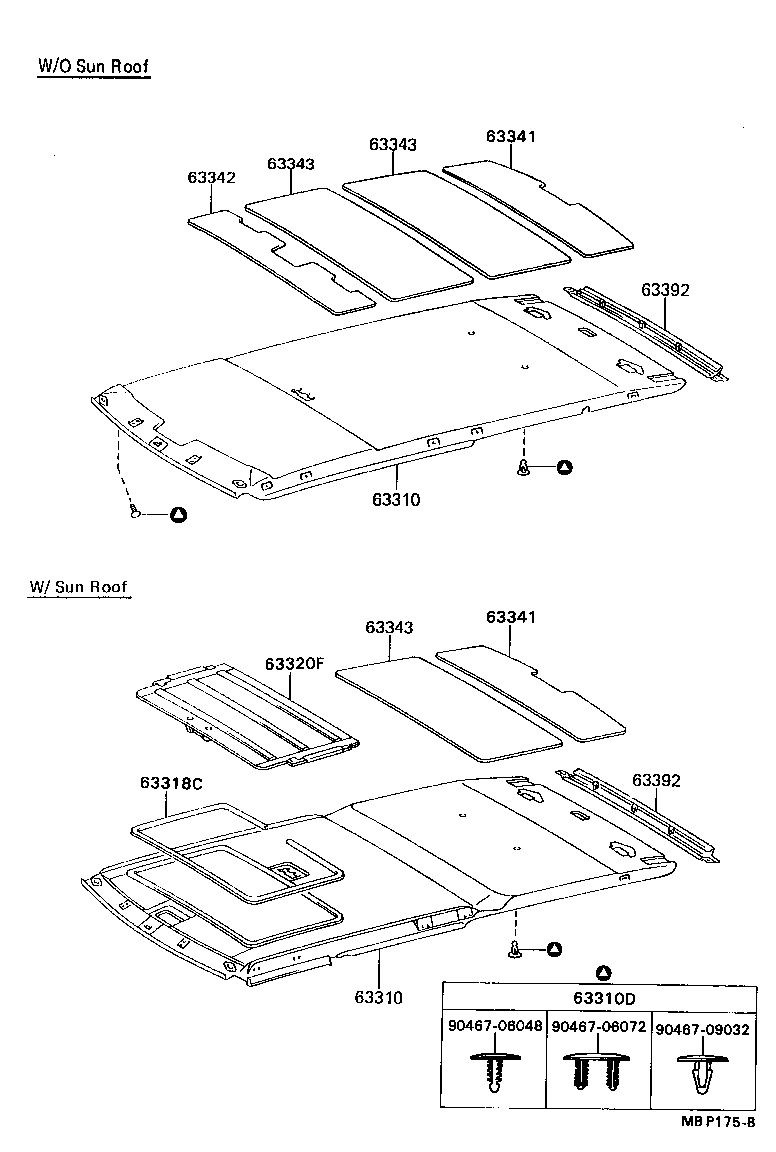

Click highlighted areas on diagram

diagram 63310 63310 63310D 63318C 63320F 63341 63341 63342 63343 63343 63343 63392 63392 9046706048 9046706072 9046709032
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-3222003

CV20,SV21,VZV21..WG

W(MOON ROOF & *45),LIGHT GRAY,TRIM1#,8#

 1
63310-3221006

CV20,SV21,VZV21..WG..LHD

W(MOON ROOF),LIGHT BROWN,TRIM4#

 1
63310-3231006

SV21,VZV21..WG..LHD..(GLI,GXI)

LIGHT BROWN,TRIM4#

 1
63310-3221003

CV20,SV21,VZV21..WG

W(MOON ROOF),LIGHT GRAY,TRIM1#,8#

 1
63310-3222006

CV20,SV21,VZV21..WG..LHD

W(MOON ROOF & *45),LIGHT BROWN,TRIM4#

 1
63310-3232003

SV21,VZV21..WG..(GLI,GXI)

W(*45),LIGHT GRAY,TRIM1#,8#

 1
63310-3232006

SV21,VZV21..WG..LHD..(GLI,GXI)

W(*45),LIGHT BROWN,TRIM4#

 1
63310-3231003

SV21,VZV21..WG..(GLI,GXI)

LIGHT GRAY,TRIM1#,8#

 1
63310 - HEADLINING ASSY, ROOF
63310-3222003

CV20,SV21,VZV21..WG

W(MOON ROOF & *45),LIGHT GRAY,TRIM1#,8#

 1
63310-3221006

CV20,SV21,VZV21..WG..LHD

W(MOON ROOF),LIGHT BROWN,TRIM4#

 1
63310-3231006

SV21,VZV21..WG..LHD..(GLI,GXI)

LIGHT BROWN,TRIM4#

 1
63310-3221003

CV20,SV21,VZV21..WG

W(MOON ROOF),LIGHT GRAY,TRIM1#,8#

 1
63310-3222006

CV20,SV21,VZV21..WG..LHD

W(MOON ROOF & *45),LIGHT BROWN,TRIM4#

 1
63310-3232003

SV21,VZV21..WG..(GLI,GXI)

W(*45),LIGHT GRAY,TRIM1#,8#

 1
63310-3232006

SV21,VZV21..WG..LHD..(GLI,GXI)

W(*45),LIGHT BROWN,TRIM4#

 1
63310-3231003

SV21,VZV21..WG..(GLI,GXI)

LIGHT GRAY,TRIM1#,8#

 1
63310D - CLIP, ROOF HEADLINING
90467-06072B0

CV20,SV2#,VZV21

W(MOON ROOF),LIGHT GRAY,LIGHT GRAY,TRIM1#

 2
90467-0903203

CV20,SV21,VZV21..WG

GRAY,TRIM1#,8#

 2
90467-06072E0

CV20,SV2#,VZV21..LHD

W(MOON ROOF),LIGHT BROWN,TRIM4#

 2
90467-0604816

CV20,SV2#,VZV21..LHD

LIGHT BROWN,TRIM4#

 2
90467-0903216

SV21,VZV21..WG..LHD..(GLI,GXI)

LIGHT BROWN,TRIM4#

 2
90467-0903216

CV20,SV21,VZV21..WG..LHD

LIGHT BROWN,TRIM4#

 2
90467-06072J0

CV20,SV2#,VZV21

W(MOON ROOF),LIGHT BLUE,LIGHT BLUE,TRIM8#

 2
90467-0604823

CV20,SV2#,VZV21

LIGHT GRAY,TRIM1#,8#

 2
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-32010B1

CV20,SV2#,VZV21

LIGHT GRAY,TRIM1#,8#

 1
63318-32030B0

CV20,SV2#,VZV21

LIGHT GRAY,TRIM1#,8#

 1
63318-32010E0

CV20,SV2#,VZV21..LHD

LIGHT BROWN,TRIM4#

 1
63318-32030E0

CV20,SV2#,VZV21..LHD

LIGHT BROWN,TRIM4#

 1
63320F - HEADLINING ASSY, SUN ROOF
63320-3201204

CV20,SV2#,VZV21

LIGHT BLUE,TRIM8#

 1
63320-3201103

CV20,SV2#,VZV21

LIGHT GRAY,TRIM1#,8#

 1
63320-3201106

CV20,SV2#,VZV21..LHD

BROWN,TRIM4#

 1
63320-3201203

CV20,SV2#,VZV21

LIGHT GRAY,TRIM1#

 1
63320-3201206

CV20,SV2#,VZV21..LHD

BROWN,TRIM4#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-32040

CV20,SV2#,VZV21

 1
63341-32020

CV20,SV2#,VZV21

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-32020

CV20,SV2#,VZV21

 1
63341-32040

CV20,SV2#,VZV21

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-32010

CV20,SV21,VZV21..WG

 1
63342-32040

CV20,SV21,VZV21..WG

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-32020

CV20,SV21,VZV21..WG

W(MOON ROOF)

 1
63343-32020

CV20,SV21,VZV21..WG

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-32020

CV20,SV21,VZV21..WG

W(MOON ROOF)

 1
63343-32020

CV20,SV21,VZV21..WG

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-32020

CV20,SV21,VZV21..WG

W(MOON ROOF)

 1
63343-32020

CV20,SV21,VZV21..WG

 2
63392 - TRIM, ROOF HEADLINING, REAR
63305-3207003

CV20,SV21,VZV21..WG

MEDIUM GRAY,TRIM1#

 1
63305-3207006

CV20,SV21,VZV21..WG..LHD

BROWN,TRIM4#

 1
63305-3207004

CV20,SV21,VZV21..WG

DARK BLUE,TRIM8#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63305-3207003

CV20,SV21,VZV21..WG

MEDIUM GRAY,TRIM1#

 1
63305-3207006

CV20,SV21,VZV21..WG..LHD

BROWN,TRIM4#

 1
63305-3207004

CV20,SV21,VZV21..WG

DARK BLUE,TRIM8#

 1
Common parts
90467-06048
90467-06072
90467-09032
