SV21LG-UWMNKG (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )WG

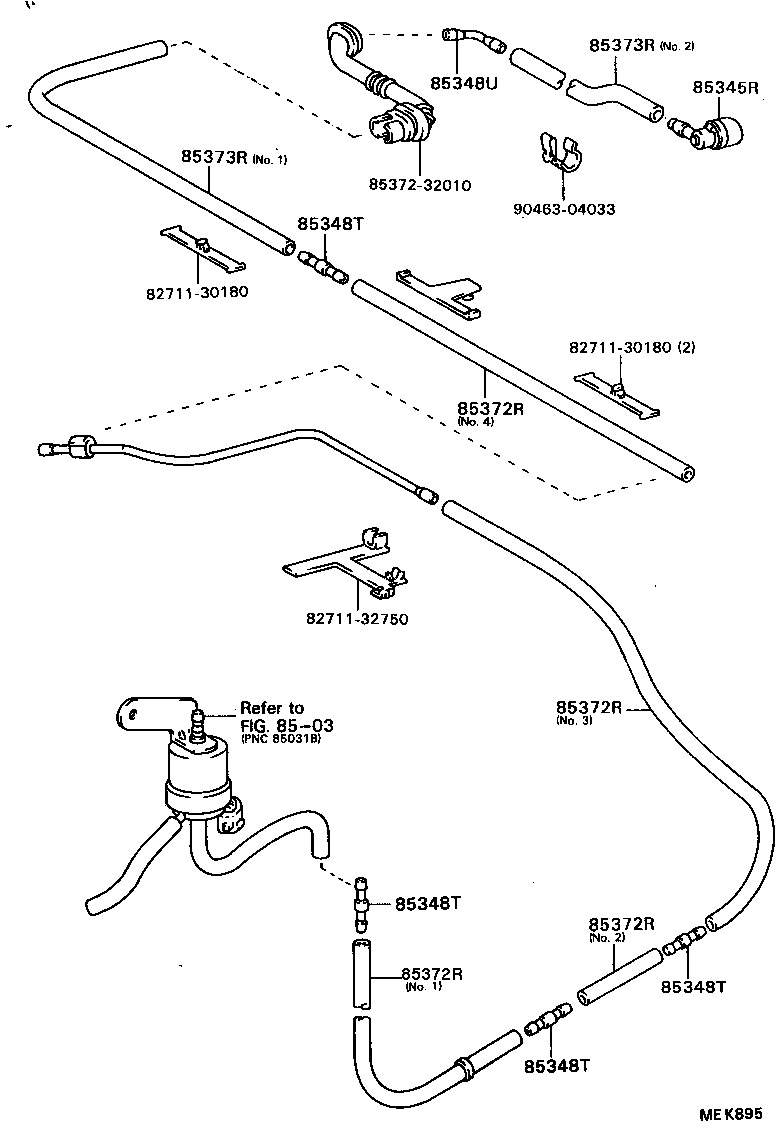

Click highlighted areas on diagram

diagram 8271130180 8271130180 8271132750 8503 85345R 85348T 85348T 85348T 85348T 85348U 8537232010 85372R 85372R 85372R 85372R 85373R 85373R 9046304033
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85345-32010

CV20,SV21,VZV21..WG

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

CV20,SV21,VZV21..WG

 4
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

CV20,SV21,VZV21..WG

 4
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

CV20,SV21,VZV21..WG

 4
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

CV20,SV21,VZV21..WG

 4
85348U - JOINT, REAR WASHER HOSE, NO.3
85355-32020

CV20,SV21,VZV21..WG

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33299

CV20,SV21,VZV21..WG

*H,L=60,NO.2

 1
90446-07001

CV20,SV21,VZV21..WG

*H,L=775,NO.1,NO.3,NO.4

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33299

CV20,SV21,VZV21..WG

*H,L=60,NO.2

 1
90446-07001

CV20,SV21,VZV21..WG

*H,L=775,NO.1,NO.3,NO.4

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33299

CV20,SV21,VZV21..WG

*H,L=60,NO.2

 1
90446-07001

CV20,SV21,VZV21..WG

*H,L=775,NO.1,NO.3,NO.4

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33299

CV20,SV21,VZV21..WG

*H,L=60,NO.2

 1
90446-07001

CV20,SV21,VZV21..WG

*H,L=775,NO.1,NO.3,NO.4

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

CV20,SV21,VZV21..WG

*H,L=1130,NO.1

 1
90099-33080

CV20,SV21..WG

*H,L=1100,NO.1

 1
90099-33299

CV20,SV21,VZV21..WG

*H,L=270,NO.2

 1
90099-33299

CV20,SV21..WG

*H,L=300,NO.2

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

CV20,SV21,VZV21..WG

*H,L=1130,NO.1

 1
90099-33080

CV20,SV21..WG

*H,L=1100,NO.1

 1
90099-33299

CV20,SV21,VZV21..WG

*H,L=270,NO.2

 1
90099-33299

CV20,SV21..WG

*H,L=300,NO.2

 1
Common parts
82711-30180
82711-32750
85372-32010
90463-04033
Linked diagrams
8503
