SV21LG-UWMDKK (1986)
Toyota Camry
Production
Aug 1986
-
Aug 1988
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )

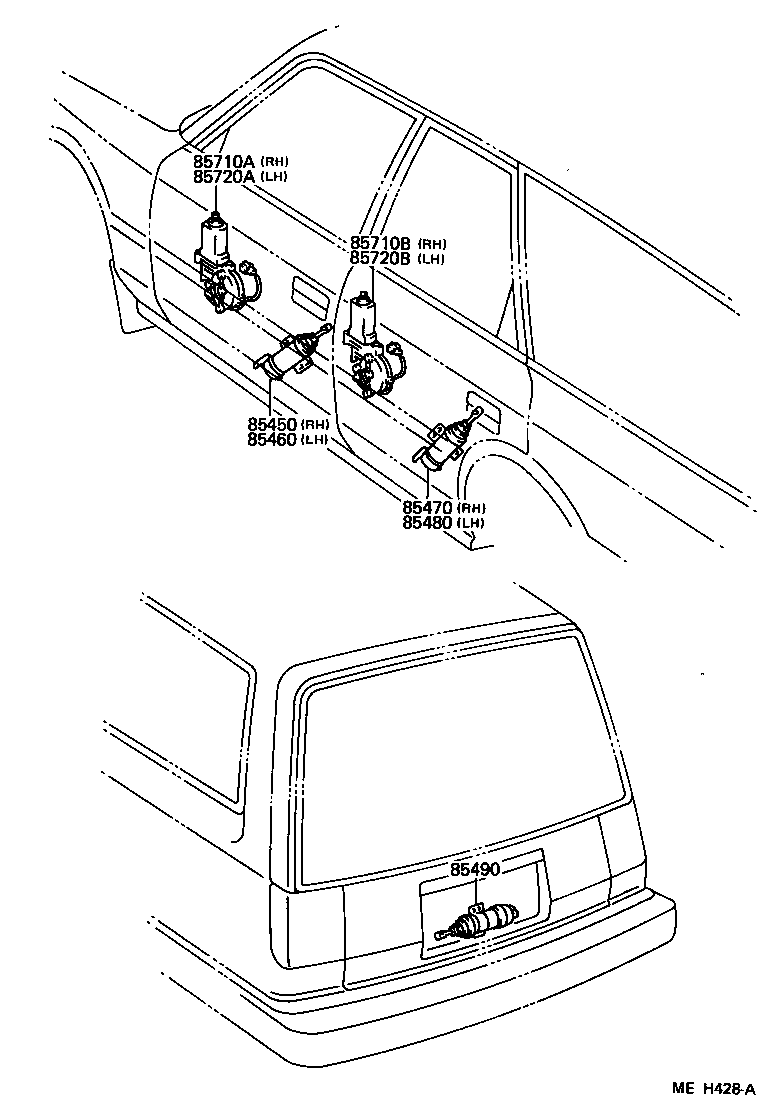

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH | ||||
| 85450-17050 |
SV21..DX,LE |
1 | ||
| 85450-17050 |
SV2#..DX;SV21..WG..LE;VZV21..WG..USA;VZV21..SED..DX |
1 | ||
| 85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH | ||||
| 85450-17060 |
SV2#..DX;SV21..WG..LE;VZV21..WG..USA;VZV21..SED..DX |
1 | ||
| 85450-17060 |
SV21..DX,LE |
1 | ||
| 85470 - SOLENOID ASSY, DOOR CONTROL, REAR RH | ||||
| 85450-32050 |
SV2#..DX;SV21..WG..LE;VZV21..WG..USA;VZV21..SED..DX |
1 | ||
| 85480 - SOLENOID ASSY, DOOR CONTROL, REAR LH | ||||
| 85450-32060 |
SV21..DX,LE |
1 | ||
| 85450-32060 |
SV2#..DX;SV21..WG..LE;VZV21..WG..USA;VZV21..SED..DX |
1 | ||
| 85490 - SOLENOID ASSY, DOOR CONTROL BACK | ||||
| 85450-32070 |
SV21..WG;VZV21..WG..USA |
1 | ||
| 85450-32070 |
SV21..WG;VZV21..WG..USA |
1 | ||
| 85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH | ||||
| 85710-32040 |
SV21..DX,LE |
1 | ||
| 85710-32040 |
SV2#,VZV21..DX,LE |
1 | ||
| 85710B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH | ||||
| 85710-32050 |
SV21..DX,LE |
1 | ||
| 85710-32050 |
SV2#,VZV21..DX,LE |
1 | ||
| 85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH | ||||
| 85720-32040 |
SV21..DX,LE |
1 | ||
| 85720-32040 |
SV2#,VZV21..DX,LE |
1 | ||
| 85720B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH | ||||
| 85720-32050 |
SV21..DX,LE |
1 | ||
| 85720-32050 |
SV2#,VZV21..DX,LE |
1 | ||
