SV21LG-UWMDKA (1986)

Toyota Camry

Production Aug 1986 - Aug 1988
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )USA

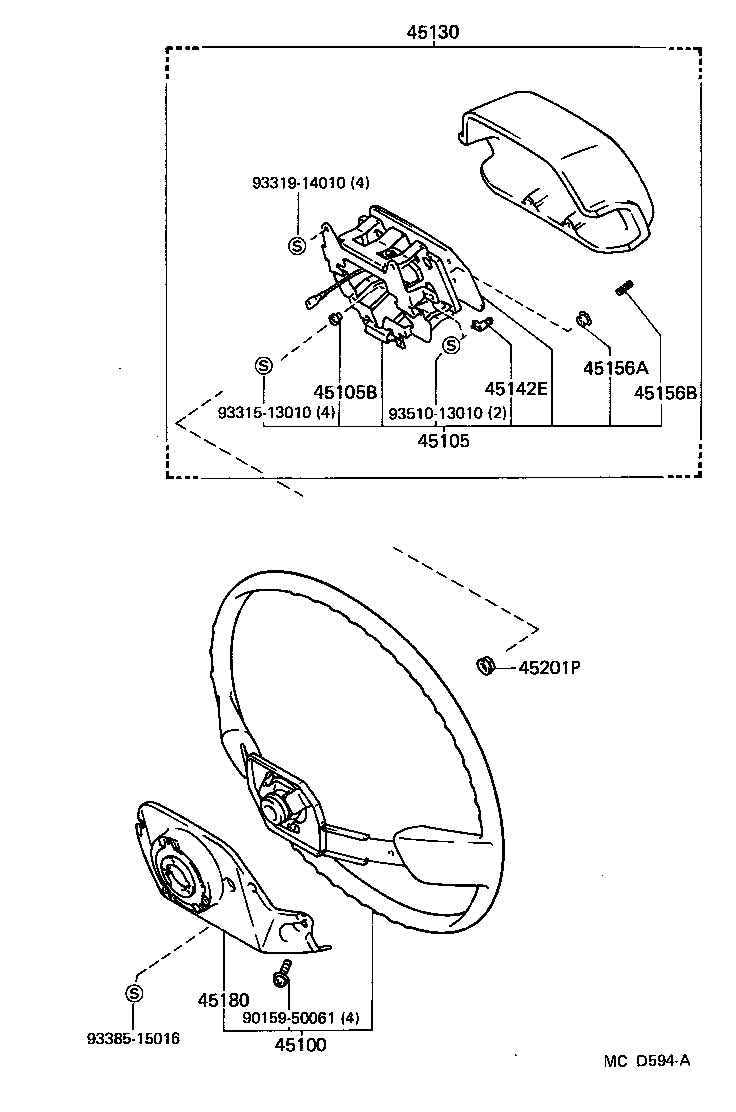

Click highlighted areas on diagram

diagram 45100 45105 45105B 45130 45142E 45156A 45156B 45180 45201P 9015950061 9331513010 9331914010 9338515016 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-3210005

SV21..USA

BEIGE,DARK BEIGE,TRIM4#

 1
45100-3210004

SV21..USA

BLUE,DARK BLUE,TRIM8#

 1
45100-3210003

SV21..USA

GRAY,MEDIUM GRAY,TRIM1#

 1
45100-3210005

SV25..LE..USA;SV21,VZV21..USA

DARK BEIGE,TRIM4#

 1
45100-3210004

SV2#,VZV21..USA

DARK BLUE,TRIM8#

 1
45100-3210002

SV21..USA

MAROON,MAROON,TRIM3#

 1
45100-3210002

SV2#,VZV21..USA

MAROON,TRIM3#

 1
45100-3210003

SV2#,VZV21..(DX,LE)..USA

MEDIUM GRAY,TRIM1#

 1
45100-32100D0

SV2#,VZV21..USA

MAROON,TRIM3#

 1
45100-32100J0

SV2#,VZV21..USA

DARK BLUE,TRIM8#

 1
45100-32100B0

SV21,VZV21..WG..USA;SV2#,VZV21..SED..DX..USA

MEDIUM GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-32050

SV2#,VZV21..USA

 1
45105-32050

SV21..USA

 1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-02001

SV2#,VZV21..USA

 4
90561-02001

SV21..USA

 4
45130 - BUTTON ASSY, HORN
45130-3214002

SV21..USA

MAROON,MAROON,TRIM3#

 1
45130-3214003

SV21..USA

GRAY,MEDIUM GRAY,TRIM1#

 1
45130-3214002

SV2#,VZV21..USA

MAROON,TRIM3#

 1
45130-3214004

SV21..USA

BLUE,DARK BLUE,TRIM8#

 1
45130-3214004

SV2#,VZV21..USA

DARK BLUE,TRIM8#

 1
45130-32140B0

SV2#,VZV21..USA

MEDIUM GRAY,TRIM1#

 1
45130-3214005

SV25..LE..USA;SV21,VZV21..USA

DARK BEIGE,TRIM4#

 1
45130-3214003

SV2#,VZV21..USA

MEDIUM GRAY,TRIM1#

 1
45130-3214005

SV21..USA

BEIGE,DARK BEIGE,TRIM4#

 1
45130-32140D0

SV2#,VZV21..USA

MAROON,TRIM3#

 1
45130-32140J0

SV2#,VZV21..USA

DARK BLUE,TRIM8#

 1
45142E - PIECE, HORN CONTACT
45142-20060

SV21..USA

 2
45142-20060

SV2#,VZV21..USA

 2
45156A - SEAT, HORN CONTACT SPRING SET
45156-16010

SV21..USA

 4
45156-16010

SV2#,VZV21..USA

 4
45156B - SPRING(FOR HORN CONTACT SPRING SET SEAT)
90501-06032

SV2#,VZV21..USA

 4
90501-06032

SV21..USA

 4
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-3204004

SV21..USA

BLUE,DARK BLUE,TRIM8#

 1
45180-3204002

SV21..USA

MAROON,MAROON,TRIM3#

 1
45180-3204003

SV21..USA

GRAY,MEDIUM GRAY,TRIM1#

 1
45180-32040

SV2#,VZV21..USA

 1
45180-3204005

SV21..USA

BEIGE,DARK BEIGE,TRIM4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

SV2#,VZV21

 1
90179-12086

SV21

 1
Common parts
90159-50061
93315-13010
93319-14010
93385-15016
93510-13010
