SV21L-UEPNKA (1986)
Toyota Camry
(8608- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-32070 |
SV21 |
1 | ||
| 69051-32070 |
SV2#,VZV21 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-32080 |
SV21..LE |
1 | ||
| 69052-32080 |
SV2#,VZV21..LE |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-32080 |
SV21..LE |
1 | ||
| 69052-32080 |
SV2#,VZV21..LE |
1 | ||
| 69061 - CYLINDER & KEY SET, LUGGAGE LOCK | ||||
| 69055-32150 |
SV2#,VZV21..SED |
1 | ||
| 69055-32150 |
SV21..SED |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-3207003 |
SV21..USA GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69056-3207004 |
SV21..USA BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69056-3207002 |
SV2#,VZV21..USA MAROON,TRIM3# |
1 | ||
| 69056-32070D0 |
SV2#,VZV21..USA MAROON,TRIM3# |
1 | ||
| 69056-3207005 |
SV25..LE..USA;SV21,VZV21..USA DARK BEIGE,TRIM4# |
1 | ||
| 69056-3207003 |
SV2#,VZV21..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 69056-32070B0 |
SV2#,VZV21..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 69056-32070J0 |
SV2#,VZV21..USA DARK BLUE,TRIM8# |
1 | ||
| 69056-3207002 |
SV21..USA MAROON,MAROON,TRIM3# |
1 | ||
| 69056-3207004 |
SV2#,VZV21..USA DARK BLUE,TRIM8# |
1 | ||
| 69056-3207005 |
SV21..USA BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-3207003 |
SV21..USA GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69056-3207004 |
SV21..USA BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69056-3207002 |
SV2#,VZV21..USA MAROON,TRIM3# |
1 | ||
| 69056-32070D0 |
SV2#,VZV21..USA MAROON,TRIM3# |
1 | ||
| 69056-3207005 |
SV25..LE..USA;SV21,VZV21..USA DARK BEIGE,TRIM4# |
1 | ||
| 69056-3207003 |
SV2#,VZV21..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 69056-32070B0 |
SV2#,VZV21..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 69056-32070J0 |
SV2#,VZV21..USA DARK BLUE,TRIM8# |
1 | ||
| 69056-3207002 |
SV21..USA MAROON,MAROON,TRIM3# |
1 | ||
| 69056-3207004 |
SV2#,VZV21..USA DARK BLUE,TRIM8# |
1 | ||
| 69056-3207005 |
SV21..USA BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-32080 |
SV2#,VZV21 |
1 | ||
| 69057-32080 |
SV21 |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-32070 |
SV2#,VZV21 FR DOOR,RH |
1 | ||
| 69759-24080 |
SV2#,VZV21..SED LUGGAGE DOOR |
1 | ||
| 69759-32080 |
SV21 FR DOOR,LH |
1 | ||
| 69759-32080 |
SV2#,VZV21 FR DOOR,LH |
1 | ||
| 69759-24080 |
SV21..SED LUGGAGE DOOR |
1 | ||
| 69759-32070 |
SV21 FR DOOR,RH |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-32070 |
SV2#,VZV21 FR DOOR,RH |
1 | ||
| 69759-24080 |
SV2#,VZV21..SED LUGGAGE DOOR |
1 | ||
| 69759-32080 |
SV21 FR DOOR,LH |
1 | ||
| 69759-32080 |
SV2#,VZV21 FR DOOR,LH |
1 | ||
| 69759-24080 |
SV21..SED LUGGAGE DOOR |
1 | ||
| 69759-32070 |
SV21 FR DOOR,RH |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-32070 |
SV2#,VZV21 FR DOOR,RH |
1 | ||
| 69759-24080 |
SV2#,VZV21..SED LUGGAGE DOOR |
1 | ||
| 69759-32080 |
SV21 FR DOOR,LH |
1 | ||
| 69759-32080 |
SV2#,VZV21 FR DOOR,LH |
1 | ||
| 69759-24080 |
SV21..SED LUGGAGE DOOR |
1 | ||
| 69759-32070 |
SV21 FR DOOR,RH |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-32070 |
SV2#,VZV21 FR DOOR,RH |
1 | ||
| 69759-24080 |
SV2#,VZV21..SED LUGGAGE DOOR |
1 | ||
| 69759-32080 |
SV21 FR DOOR,LH |
1 | ||
| 69759-32080 |
SV2#,VZV21 FR DOOR,LH |
1 | ||
| 69759-24080 |
SV21..SED LUGGAGE DOOR |
1 | ||
| 69759-32070 |
SV21 FR DOOR,RH |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-3224003 |
SV21..SED..LE..USA GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69005-3224005 |
SV21..SED..LE..USA BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69005-3224002 |
SV21..SED..LE..USA MAROON,MAROON,TRIM3# |
1 | ||
| 69005-3224004 |
SV21..SED..LE..USA BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69005-3224002 |
SV2#,VZV21..SED..LE..USA MAROON,TRIM3# |
1 | ||
| 69005-3224003 |
SV2#,VZV21..SED..LE..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 69005-3224004 |
SV2#,VZV21..SED..LE..USA DARK BLUE,TRIM8# |
1 | ||
| 69005-3224005 |
SV2#,VZV21..SED..LE..USA DARK BEIGE,TRIM4# |
1 | ||
| 69005-32240D0 |
SV2#,VZV21..SED..LE..USA MAROON,TRIM3# |
1 | ||
| 69005-32240J0 |
SV2#,VZV21..SED..LE..USA DARK BLUE,TRIM8# |
1 | ||
| 69005-32240B0 |
SV2#,VZV21..SED..LE..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00118 |
SV21 MASTER KEY,W(*68),MASTER KEY W/*68 |
1 | ||
| 90999-00099 |
SV2#,VZV21 MASTER KEY |
1 | ||
| 90999-00100 |
SV21 SUB KEY,SUB KEY |
1 | ||
| 90999-00100 |
SV2#,VZV21 SUB KEY |
1 | ||
| 90999-00118 |
SV2#,VZV21 MASTER KEY,W(*68) |
1 | ||
| 90999-00099 |
SV21 MASTER KEY,MASTER KEY |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00118 |
SV21 MASTER KEY,W(*68),MASTER KEY W/*68 |
1 | ||
| 90999-00099 |
SV2#,VZV21 MASTER KEY |
1 | ||
| 90999-00100 |
SV21 SUB KEY,SUB KEY |
1 | ||
| 90999-00100 |
SV2#,VZV21 SUB KEY |
1 | ||
| 90999-00118 |
SV2#,VZV21 MASTER KEY,W(*68) |
1 | ||
| 90999-00099 |
SV21 MASTER KEY,MASTER KEY |
1 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-32020 |
SV21 |
2 | ||
| 69511-32020 |
SV2#,VZV21 |
2 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-32020 |
SV21 |
2 | ||
| 69511-32020 |
SV2#,VZV21 |
2 | ||
| 69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE | ||||
| 69561-32020 |
SV2#,VZV21..SED |
1 | ||
| 69561-32020 |
SV21..SED |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
(8610- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90151-40005 | ||||

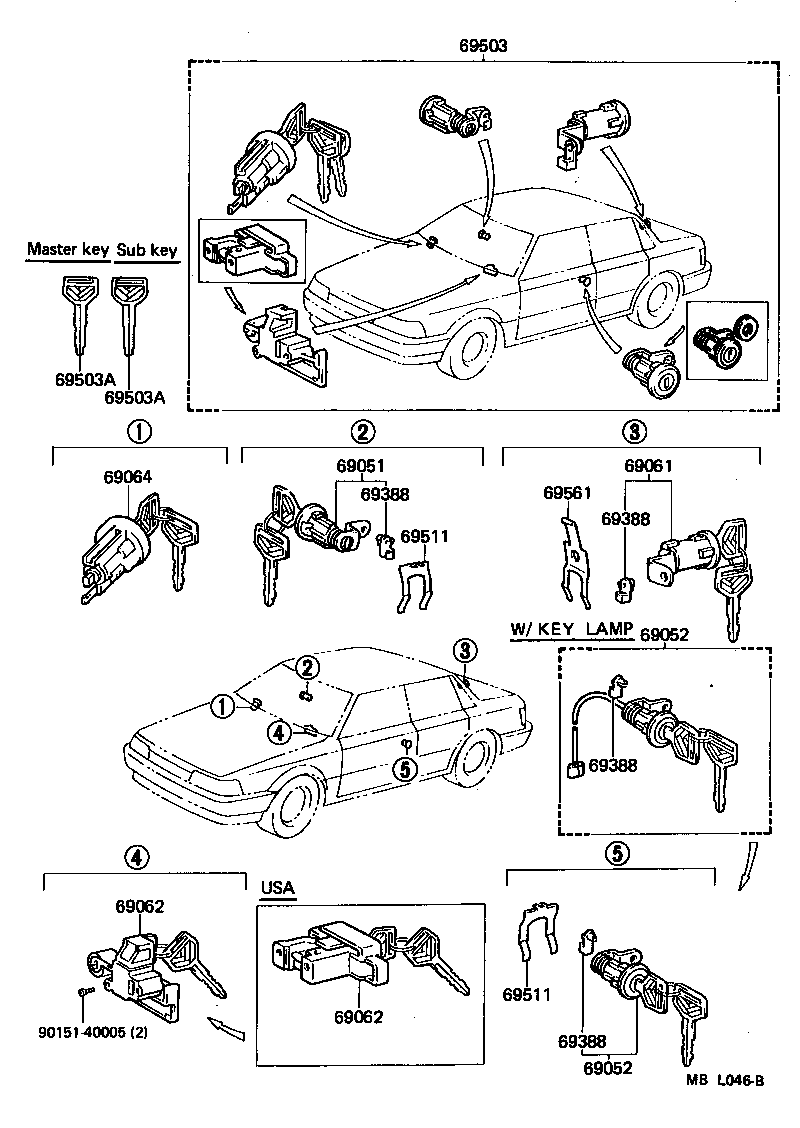

| Linked diagrams | ||||
| 5501 | ||||
