SV21L-UEPNKA (1986)
Toyota Camry

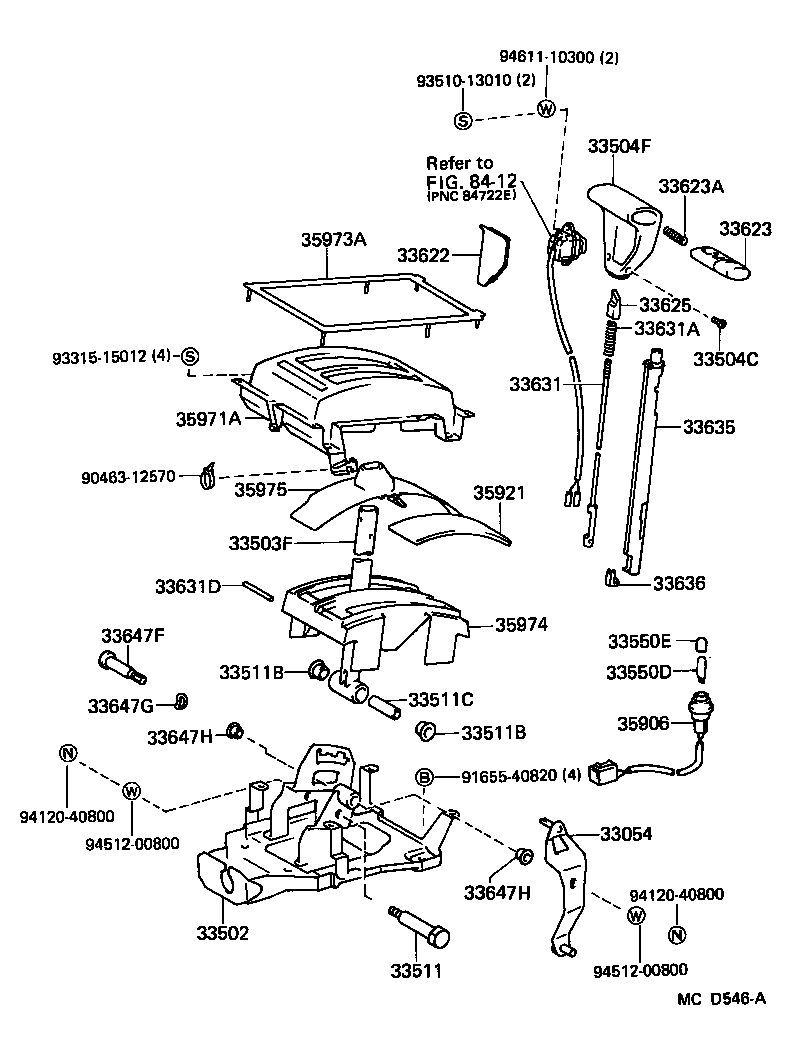

ILLUST NO. 1 OF 2(8608- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-32090 |
SV21..4FC |
1 | ||
| 33054-32090 |
SV21,VZV21..4FC |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-32080 |
SV21..4FC |
1 | ||
| 33502-32080 |
SV21,VZV21..4FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-32120 |
SV21..4FC |
1 | ||
| 33503-32120 |
SV21,VZV21..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
SV21,VZV21..4FC |
2 | ||
| 90159-40109 |
SV21..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3205022 |
SV21..4FC..USA MAROON,MAROON,TRIM3# |
1 | ||
| 33542-3205013 |
SV21..4FC GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 33542-3205013 |
SV21,VZV21..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 33542-3205034 |
SV21..4FC BLUE,DARK BLUE,TRIM8# |
1 | ||
| 33542-3205034 |
SV21,VZV21..4FC DARK BLUE,TRIM8# |
1 | ||
| 33542-3205022 |
SV21,VZV21..4FC..USA MAROON,TRIM3# |
1 | ||
| 33542-3205015 |
SV21..4FC BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 33542-3205015 |
SV21,VZV21..4FC DARK BEIGE,TRIM4# |
1 | ||
| 33542-32050D0 |
SV21,VZV21..4FC..USA MAROON,TRIM3# |
1 | ||
| 33542-32050J0 |
SV21,VZV21..4FC DARK BLUE,TRIM8# |
1 | ||
| 33542-32050B0 |
SV21,VZV21..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-32020 |
SV21,VZV21..4FC |
1 | ||
| 33511-32020 |
SV21..4FC |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11003 |
SV21,VZV21..4FC |
2 | ||
| 90385-11003 |
SV21..4FC |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11003 |
SV21,VZV21..4FC |
2 | ||
| 90385-11003 |
SV21..4FC |
2 | ||
| 33511C - COLLAR (FOR CONTROL SHAFT) | ||||
| 90387-08082 |
SV21..4FC |
1 | ||
| 90387-08082 |
SV21,VZV21..4FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
SV21..4FC 12V 1.2W W/O SOCKET,12V 1.4W |
1 | ||
| 90981-11018 |
SV21,VZV21..4FC 12V 1.2W W/O SOCKET |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04023 |
SV21..4FC |
1 | ||
| 90339-04023 |
SV21,VZV21..4FC |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-1602022 |
SV21,VZV21..4FC..USA MAROON,TRIM3# |
1 | ||
| 33622-1602022 |
SV21..4FC..USA MAROON,MAROON,TRIM3# |
1 | ||
| 33622-16020D0 |
SV21,VZV21..4FC..USA MAROON,TRIM3# |
1 | ||
| 33622-1602033 |
SV21,VZV21..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 33622-1602025 |
SV21,VZV21..4FC DARK BEIGE,TRIM4# |
1 | ||
| 33622-1602044 |
SV21..4FC BLUE,DARK BLUE,TRIM8# |
1 | ||
| 33622-1602033 |
SV21..4FC GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 33622-1602025 |
SV21..4FC BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 33622-1602044 |
VZV21..4FC;SV21..WG..LE;SV21..SED..4FC;SV21..WG..4FC..DX..USA DARK BLUE,TRIM8# |
1 | ||
| 33622-16020B0 |
SV21,VZV21..4FC MEIUM GRAY,TRIM1# |
1 | ||
| 33622-16020J0 |
VZV21..4FC;SV21..WG..LE;SV21..SED..4FC;SV21..WG..4FC..DX..USA DARK BLUE,TRIM8# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-1404005 |
SV21..4FC BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 33623-1404002 |
SV21..4FC..USA MAROON,MAROON,TRIM3# |
1 | ||
| 33623-1404003 |
SV21,VZV21..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 33623-1404003 |
SV21..4FC GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 33623-14040D0 |
SV21,VZV21..4FC..USA MAROON,TRIM3# |
1 | ||
| 33623-1404014 |
SV21..4FC BLUE,DARK BLUE,TRIM8# |
1 | ||
| 33623-1404002 |
SV21,VZV21..4FC..USA MAROON,TRIM3# |
1 | ||
| 33623-14040J0 |
SV21,VZV21..4FC DARK BLUE,TRIM8# |
1 | ||
| 33623-1404005 |
SV21,VZV21..4FC DARK BEIGE,TRIM4# |
1 | ||
| 33623-14040B0 |
SV21,VZV21..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 33623-1404014 |
SV21,VZV21..4FC DARK BLUE,TRIM8# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
SV21..4FC |
1 | ||
| 90501-07009 |
SV21,VZV21..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
SV21..4FC |
1 | ||
| 33625-32010 |
SV21,VZV21..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-16050 |
SV21,VZV21..4FC |
1 | ||
| 33631-16050 |
SV21..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07005 |
SV21..4FC |
1 | ||
| 90501-07005 |
SV21,VZV21..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
SV21,VZV21..4FC |
1 | ||
| 90256-04003 |
SV21..4FC |
1 | ||
| 33635 - GUIDE, WIRE (FOR SHIFT LEVER) | ||||
| 33635-12020 |
SV21,VZV21..4FC |
1 | ||
| 33635-12020 |
SV21..4FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
SV21..4FC |
1 | ||
| 33636-35010 |
SV21,VZV21..4FC |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 33647-32010 |
SV21,VZV21..4FC |
1 | ||
| 33647-32010 |
SV21..4FC |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-10003 |
SV21,VZV21..4FC |
1 | ||
| 90206-10003 |
SV21..4FC |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
SV21..4FC |
2 | ||
| 90386-10012 |
SV21,VZV21..4FC |
2 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
SV21..4FC |
2 | ||
| 90386-10012 |
SV21,VZV21..4FC |
2 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-35051 |
SV21,VZV21..4FC |
1 | ||
| 35906-35050 |
SV21..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-32070 |
SV21..4FC |
1 | ||
| 35921-32070 |
SV21,VZV21..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-3206002 |
SV21..4FC..USA MAROON,MAROON,TRIM3# |
1 | ||
| 35971-3206004 |
SV21..4FC BLUE,DARK BLUE,TRIM8# |
1 | ||
| 35971-3206003 |
SV21..4FC GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 35971-3206004 |
SV21,VZV21..4FC DARK BLUE,TRIM8# |
1 | ||
| 35971-3206005 |
SV21..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 35971-3206001 |
SV21,VZV21..4FC BLACK,TRIM1#,3#,4#,8# |
1 | ||
| 35971-3206002 |
SV21,VZV21..4FC..USA MAROON,TRIM3# |
1 | ||
| 35971-3206005 |
SV21,VZV21..4FC BEIGE,TRIM4# |
1 | ||
| 35971-3206003 |
SV21,VZV21..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER | ||||
| 35973-3201003 |
SV21..4FC GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 35973-3201002 |
SV21,VZV21..4FC..USA MAROON,TRIM3# |
1 | ||
| 35973-3201005 |
SV21..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 35973-3201002 |
SV21..4FC..USA MAROON,MAROON,TRIM3# |
1 | ||
| 35973-3201005 |
SV21,VZV21..4FC BEIGE,TRIM4# |
1 | ||
| 35973-3201004 |
SV21..4FC BLUE,DARK BLUE,TRIM8# |
1 | ||
| 35973-3201003 |
SV21,VZV21..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 35973-32010B0 |
SV21,VZV21..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 35973-3201004 |
SV21,VZV21..4FC DARK BLUE,TRIM8# |
1 | ||
| 35973-32010J0 |
SV21,VZV21..4FC DARK BLUE,TRIM8# |
1 | ||
| 35973-32010D0 |
SV21,VZV21..4FC..USA MAROON,TRIM3# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-32050 |
SV21..4FC |
1 | ||
| 35974-32050 |
SV21,VZV21..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-3207002 |
SV21,VZV21..4FC..USA MAROON,TRIM3# |
1 | ||
| 35975-3207003 |
SV21..4FC GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 35975-3207005 |
SV21..4FC BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 35975-3207004 |
SV21,VZV21..4FC DARK BLUE,TRIM8# |
1 | ||
| 35975-3207003 |
SV21,VZV21..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 35975-3207005 |
SV21,VZV21..4FC DARK BEIGE,TRIM1#,4# |
1 | ||
| 35975-3207004 |
SV21..4FC BLUE,DARK BLUE,TRIM8# |
1 | ||
| 35975-3207002 |
SV21..4FC..USA MAROON,MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90463-12570 | ||||
| 91655-40820 | ||||
| 93315-15012 | ||||
| 93510-13010 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94611-10300 | ||||
| Linked diagrams | ||||
| 8412 | ||||

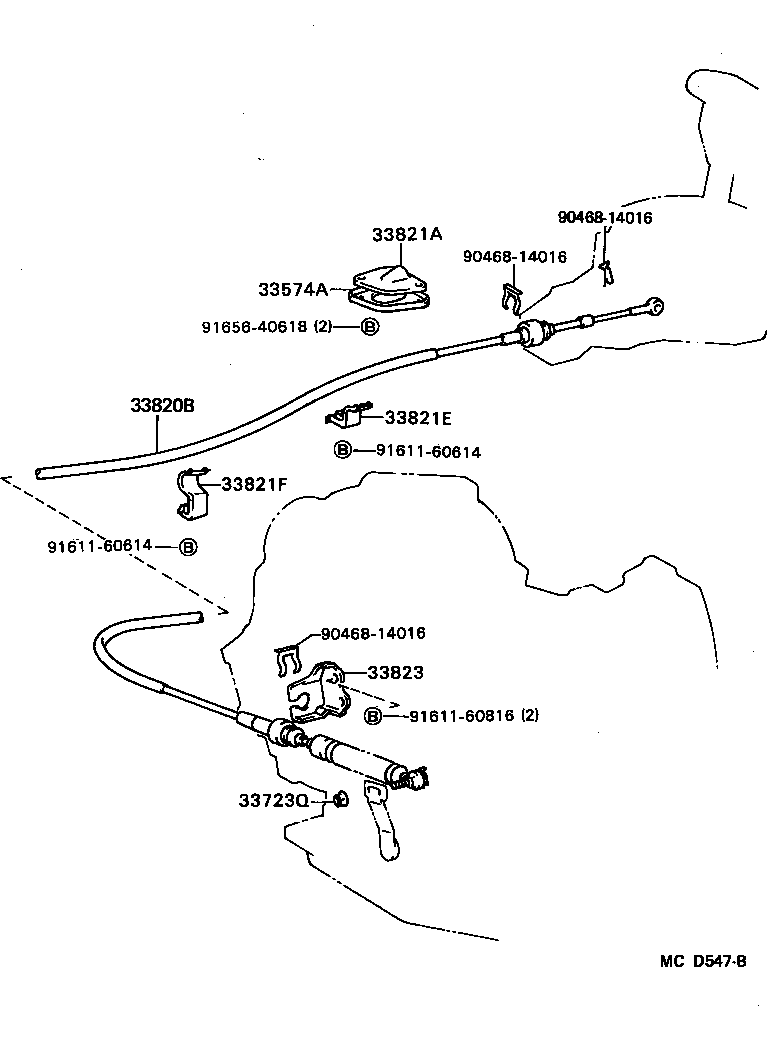

(8608- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-32120 |
SV21..4FC |
1 | ||
| 33574-32120 |
SV21,VZV21..4FC |
1 | ||
| 33723Q - NUT (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08054 |
SV21..4FC |
1 | ||
| 90179-08054 |
SV21,VZV21..4FC |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-32160 |
SV21..4FC |
1 | ||
| 33820-32161 |
SV21,VZV21..4FC |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01357 |
SV21..4FC |
1 | ||
| 90480-01357 |
SV21,VZV21..4FC |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01374 |
SV21,VZV21..4FC |
1 | ||
| 90949-01374 |
SV21..4FC |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01377 |
SV21..4FC |
1 | ||
| 90949-01377 |
SV21,VZV21..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-32020 |
SV21,VZV21..4FC |
1 | ||
| 33823-32020 |
SV21..4FC |
1 | ||
| Common parts | ||||
| 90468-14016 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91656-40618 | ||||
ILLUST NO. 2 OF 2(8610- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-14011 | ||||
| 90468-14016 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91656-40618 | ||||
