SV21L-UEPNKA (1986)
Toyota Camry
Production
Aug 1986
-
Aug 1988
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )3SFE

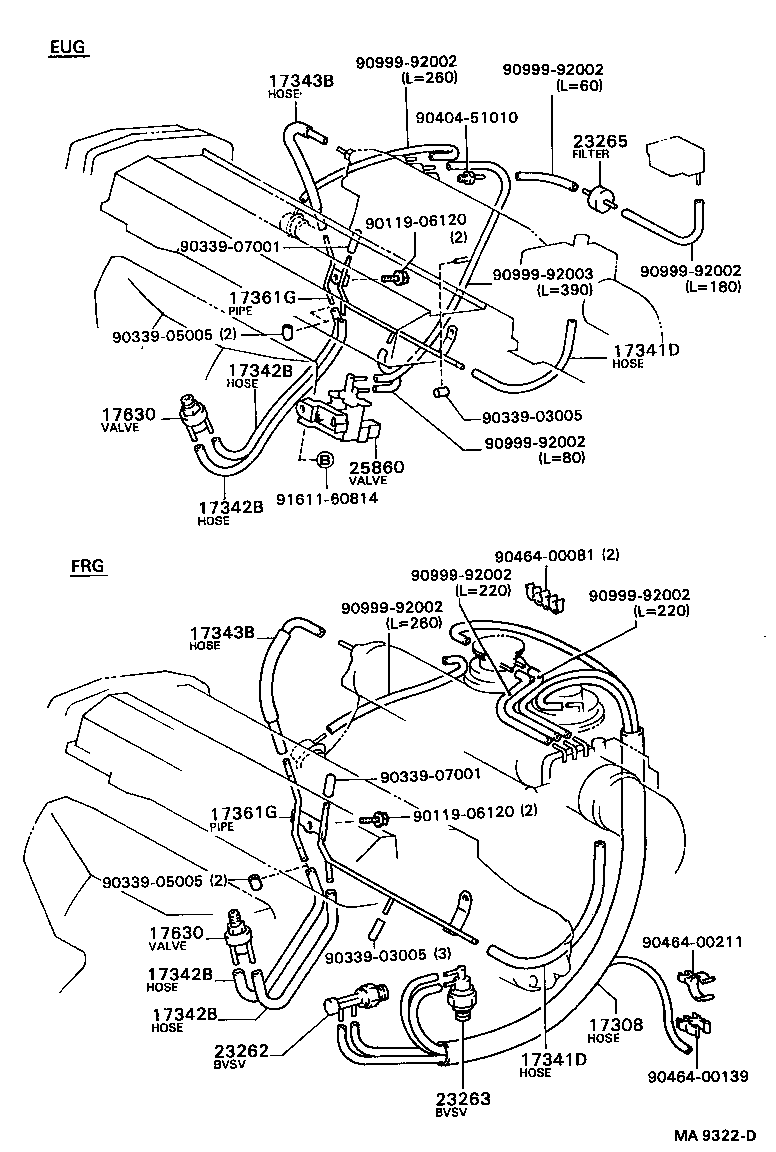

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-74030 |
3SFE..SV2# |
1 | ||
| 17308-74030 |
3SFE..SV21 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-74040 |
3SFE..SV21 |
1 | ||
| 17341-74040 |
3SFE..SV2# |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17343-74010 |
3SFE..SV21 |
2 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17343-74010 |
3SFE..SV21 |
2 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-74040 |
3SFE..SV2# |
1 | ||
| 17343-74040 |
3SFE..SV21 |
1 | ||
| 17361G - TUBE, AIR(FOR IDLE-UP) | ||||
| 17361-74030 |
3SFE..SV2# |
1 | ||
| 17361-74020 |
3SFE..SV21 |
1 | ||
| 17361-74030 |
3SFE..SV21 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70020 |
3SFE..SV2# |
1 | ||
| 17630-70020 |
3SFE..SV21 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05073 |
3SFE..SV2# |
1 | ||
| 90925-05073 |
3SFE..SV21 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05068 |
3SFE..SV21 |
1 | ||
| 90925-05068 |
3SFE..SV2# |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90339-03005 | ||||
| 90339-07001 | ||||
| 90464-00081 | ||||
| 90464-00139 | ||||
| 90464-00211 | ||||
| 90999-92002 | ||||
(8608- )3SFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
(8610- )3SFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06120 | ||||
| 90339-03005 | ||||
| 90339-05005 | ||||
| 90339-07001 | ||||
| 90404-51010 | ||||
| 90464-00081 | ||||
| 90464-00139 | ||||
| 90464-00211 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-60814 | ||||
(8610- )1S,3SFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
