SV21L-UEPDKW (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CV20,SV2#

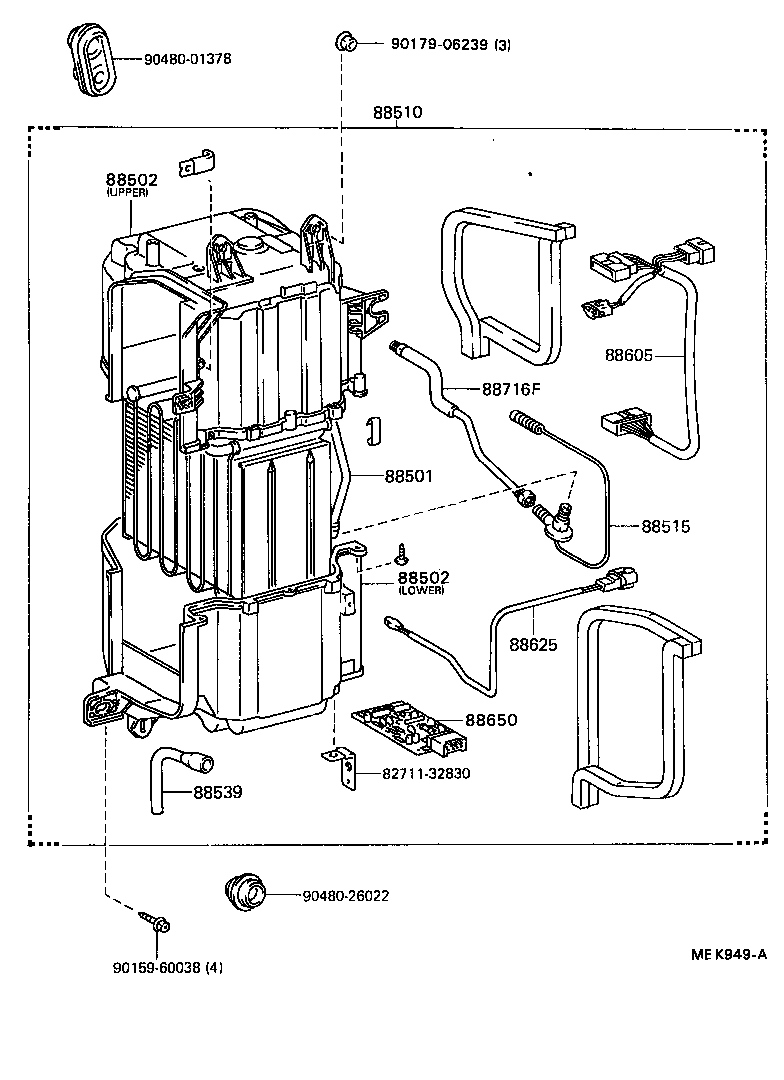

Click highlighted areas on diagram

diagram 8271132830 88501 88502 88502 88510 88515 88539 88605 88625 88650 88716F 9015960038 9017906239 9048001378 9048026022
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-32050

CV20,SV2#,VZV21..LHD

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-32060

CV20,SV2#,VZV21..LHD

LOWER

 1
88502-32050

CV20,SV2#,VZV21..LHD

UPPER

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-32060

CV20,SV2#,VZV21..LHD

LOWER

 1
88502-32050

CV20,SV2#,VZV21..LHD

UPPER

 1
88510 - UNIT ASSY, COOLER
88510-32211

SV2#..LHD

 1
88515 - VALVE, COOLER EXPANSION
88515-16040

SV21..WG;SV21..SED..5F;CV20,SV25,VZV21;SV21..SED..LHD..4FC

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22110

SV21..WG;SV21..SED..5F;CV20,SV25,VZV21;SV21..SED..LHD..4FC

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-32410

SV2#..LHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-32040

SV21..WG;SV21..SED..5F;CV20,SV25,VZV21;SV21..SED..LHD..4FC

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-32210

SV2#..LHD

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-32270

SV21..WG;SV21..SED..5F;CV20,SV25,VZV21;SV21..SED..LHD..4FC

 1
Common parts
82711-32830
90159-60038
90179-06239
90480-01378
90480-26022
